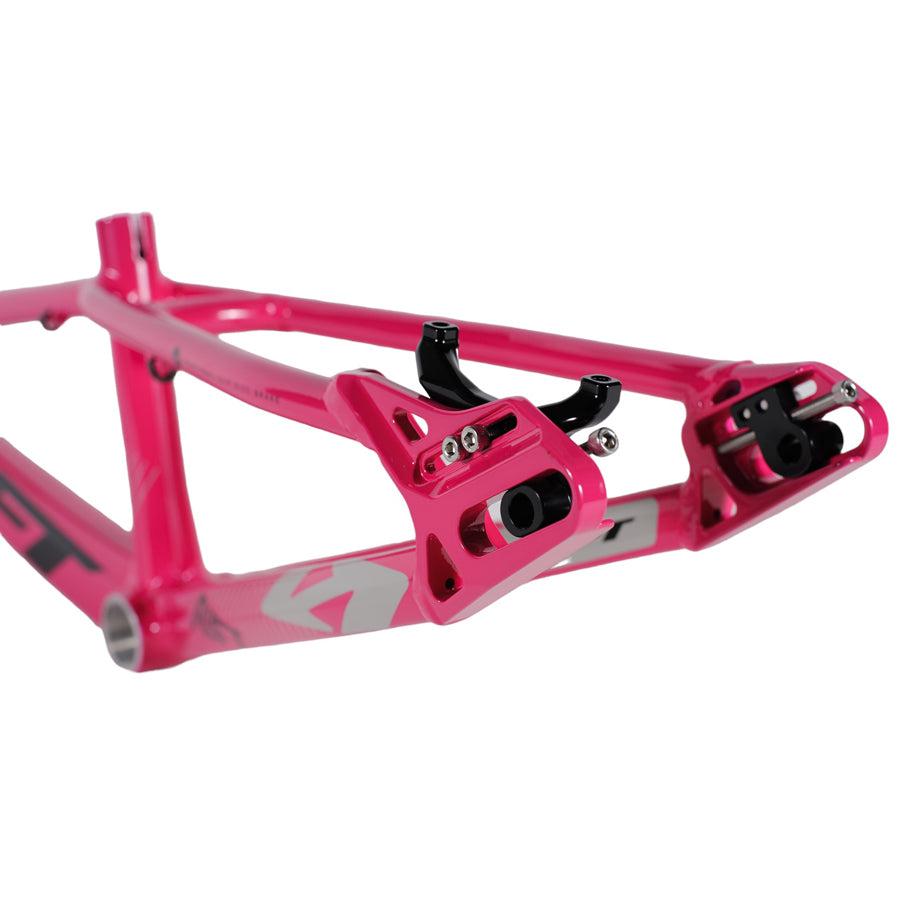

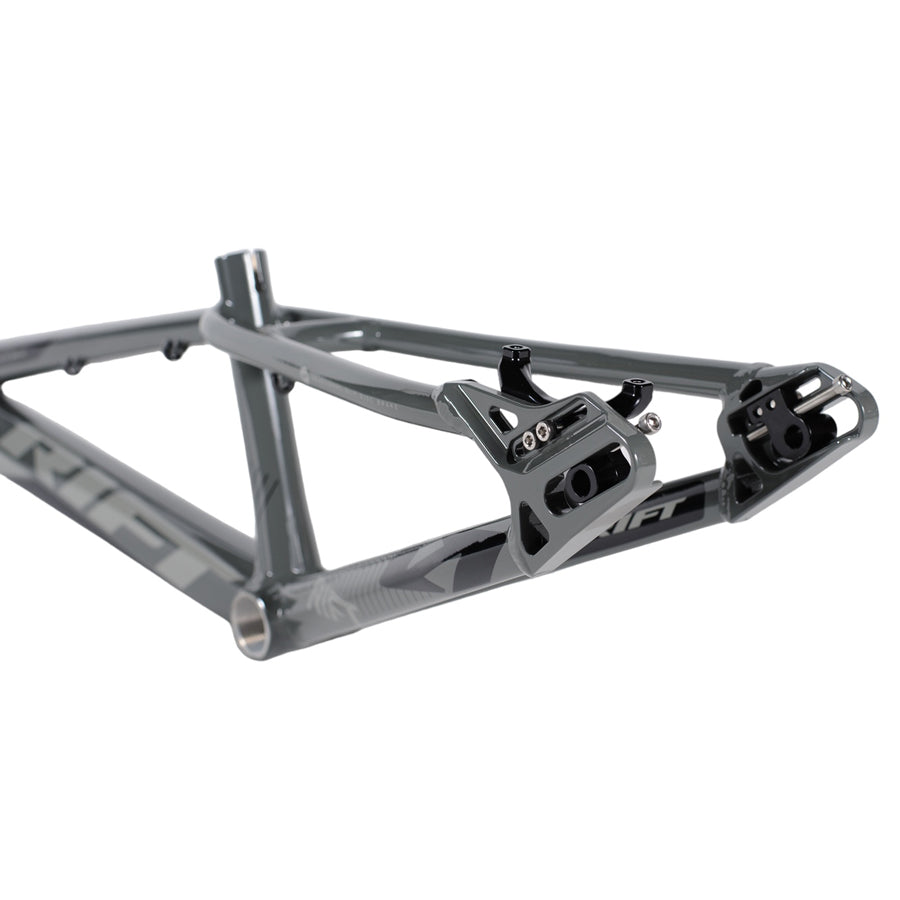

The Rift ES20D Pro XL Cruiser frame is here in all new colours for the 2023/24 race season. From classic grey charcoal with black decals, to hot pink, with a few colours in between, all of the frames are finished in a gloss clear coat covering the decals and adding an extra layer of protection.
The D in ES20D stands for disc only, with every pro frame dropping the V-brake mounts if favour of a post mount caliper bracket. We've built these up and our workshop crew stated that the Rift set up is one of the nicest on the market in terms of ease of installation of the caliper.

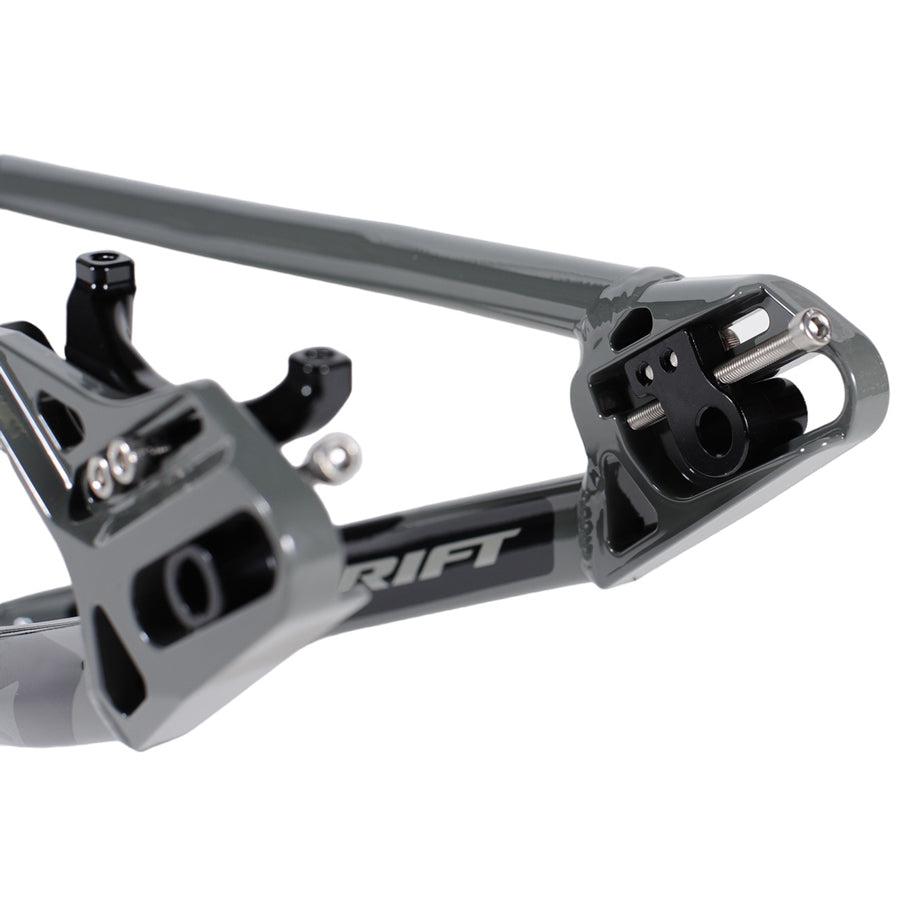

Manufactured from 7005 Double Heat Treated Alloy, all of the main tubing is hydro-form making for a unique appearance. The CNC'd 3D dropouts are both beautiful and functional, with every part working in sync to make installing the wheel, and centring it, a breeze.
A Euro bottom bracket means the crank install is also a quick and easy process. No messy silicon and multiple cable guides keeps your build looking sleek.
Rift frames are popular for good reason and the attention to detail on these has us excited to be offering them to you guys through LUX.
Note: The maroon and green frames here are the youth frames and are showing V-brake mounts. These images are simply to display the colour options.
Features:
- 7005 Double Heat Treated Alloy
- Hydro-Form Top Tube
- Hydro-Form Down Tube
- Hydro-Form Chain Stays
- CNC CS Yoke for Max Wheel Clearance
- Bulge Seat Tube
- CNC Integrated Head Tube and BB
- CNC 3D Dropouts
- Decals Under Clear Coat
Specs:
| Model | Rift ES20D Pro Cruiser |
| Frame Material | 7005 Double Heat Treated Alloy |
| Top Tube Length | 22.2 Inch |
| Chainstay Length | 15.2 Inch |
| Bottom Bracket Height | 11.85 Inch |
| Head Angle | 73 Degrees |
| Seat Angle | 70 Degrees |
| Head Tube Type | Tapered 1-1/8th - 1.5 Inch |
| Wheel Type | 20 Inch (406mm) |
| Bottom Bracket Type | Euro |
| Seat Tube Diameter | 27.2mm |
| Seat Clamp Diameter | 31.8mm |
| Brake Type | Disc (Post Mount Caliper) |
| Dropout type | 10mm Slotted |
| Weight | 1701g |
