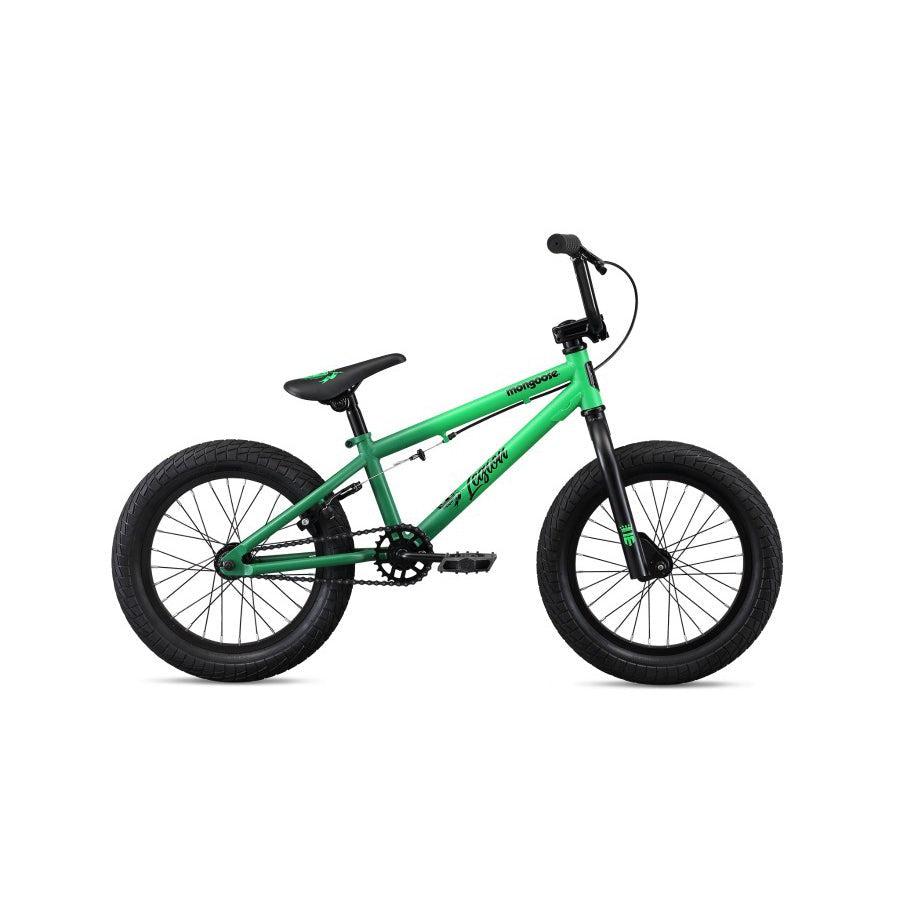

Mongoose Legion L16 16 Inch Bike / Green

Description

The Legion series of bikes offers everything a BMX rider could need from your first true BMX bike. The Legion L16 gives littler kids a perfect feel for what BMX is all about. Small BMX bikes have never looked better!

Ah, the mongoose legion 16 inch bike, the perfect vehicle for your little daredevil-in-training. This bike is equipped with features that will make your child feel like they're ready to take on the Olympics (or at least the cul-de-sac).

First off, we have the Mongoose® Hi-Ten steel frame and fork. This thing is tough as nails, which is great news for all those inevitable crashes and spills that are bound to happen. And with a 6" handlebar, your child will have no trouble steering their way to victory.

Included are 1-piece forged steel cranks with 130 mm arms. And with 25/9t gearing, your little speedster will be able to cruise around the neighborhood at top speed.

And we can't forget about those aluminum single wall 28H rims and 16 x 2.3" tires. These bad boys will provide the ultimate in traction and stability, ensuring that your child doesn't go flying off the bike at the slightest bump in the road.

Overall, the mongoose legion 16 inch bike is a force to be reckoned with. Your child will feel like a true champion as they ride down the street, leaving all the other kids in the dust.

Features

A first true BMX bike. The Legion L16 gives smaller kids the feel of what BMX is about, on a frame scaled to 16 in wheels.
Hi-Ten steel frame and fork. Tough enough for the crashes and spills that come with learning, with BMX freestyle geometry so it handles like a real BMX.
130 mm cranks, 25/9t gearing. Short forged steel crank arms suit short legs, and the gearing lets a young rider cruise the neighbourhood at speed.
16 x 2.3" tyres, 28H rims. Aluminium single wall rims and wide tyres give traction and stability, so a bump in the road does not upset the ride.
Bars sized for small riders. A 22.5 in wide Hi-Ten bar with 6 in rise and a 48 mm front load stem keeps steering easy.

Specifications

Size: 16" wheels, one size
Frame: Hi-Ten steel, BMX freestyle geometry
Fork: Hi-Ten steel
Headset: Threadless, 1-1/8" external, retainer bearing
Stem: Mongoose, threadless front load, 48 mm
Bars: Mongoose, Hi-Ten steel, 22.5 in width, 6 in rise
Grips: Mongoose Zig, 130 mm
Brakes: U-brake, aluminium
Cranks: 1-piece, forged steel, 130 mm arms
Bottom bracket: American loose ball
Chainring: 25T steel
Chain: KMC S1
Pedals: Mongoose, nylon
Front hub: Steel, ball bearing, 3/8 in axle, 28H
Rear hub: Steel, ball bearing, 3/8 in axle, 28H
Rear cog: Single-speed, 9T cassette driver
Spokes: 14G, steel, black
Rims: Aluminium single wall, 24 mm ID, 28H
Tyres: 16 in x 2.3 in, wire bead
Seat: Mongoose, steel rails
Seat post: Steel, 250 mm, 25.4 mm
Gearing: 25T / 9T

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Mongoose Legion L16 16 Inch Bike

Name: Mongoose Legion L16 16 Inch Bike
Brand: Mongoose
SKU: MGM41600U10OS
Price: 399.99 AUD
Availability: OutOfStock

Brand: Mongoose SKU: Click to copy the SKU and show the pick location

$399.99 AUD

Or 4 payments of $99.99 AUD with

Recommended Rider Height:

96-122cm

Colour - Green

Top Tube Length - 15.3

A 16 inch bike suits a rider of about 96 to 122cm, usually 4 to 7 years old, on a 16 to 16.5 inch top tube. It is the size most kids learn to ride properly on.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. At this wheel size the top tube barely changes the fit: go by height, and check they can stand over the bike flat footed.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between two wheel sizes? Go up. Kids grow into a bike far faster than they grow out of the fun.
They should be able to stand over the top tube with both feet flat on the ground.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
