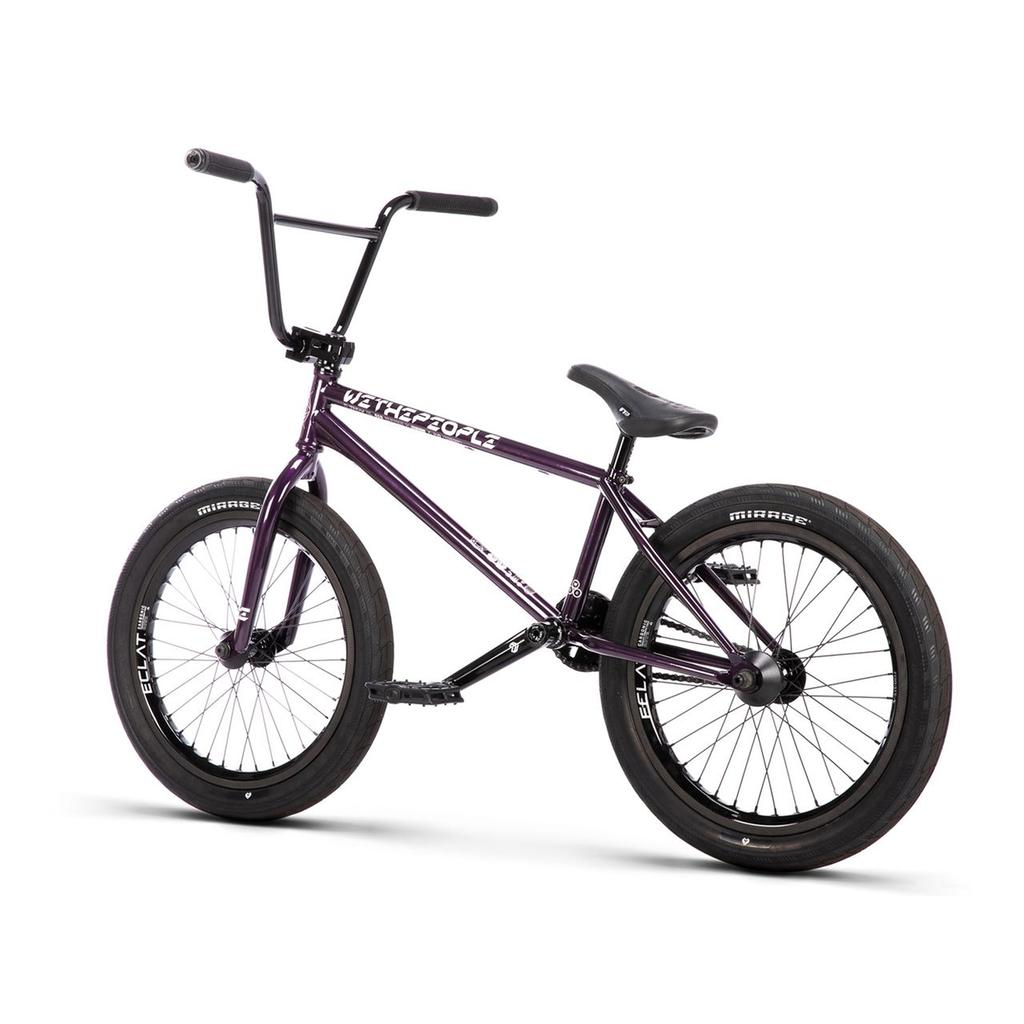

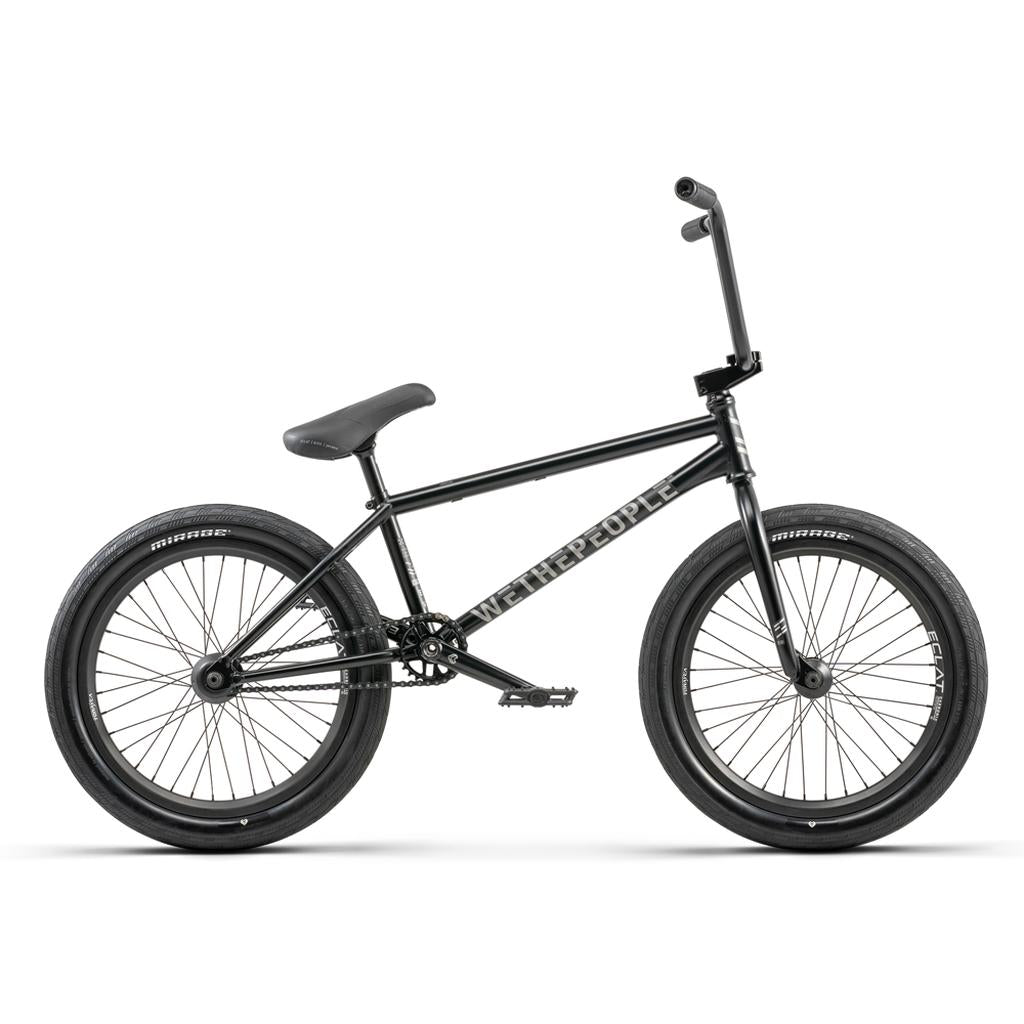

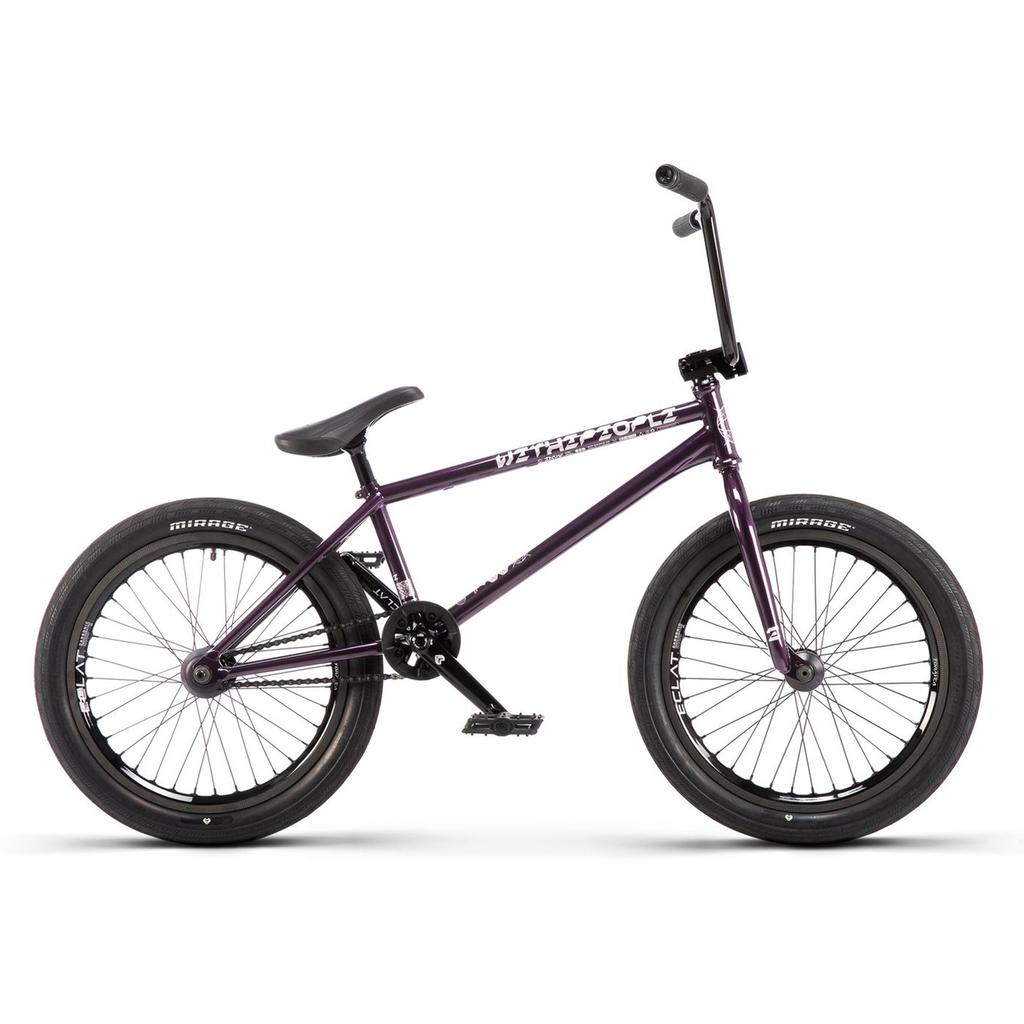

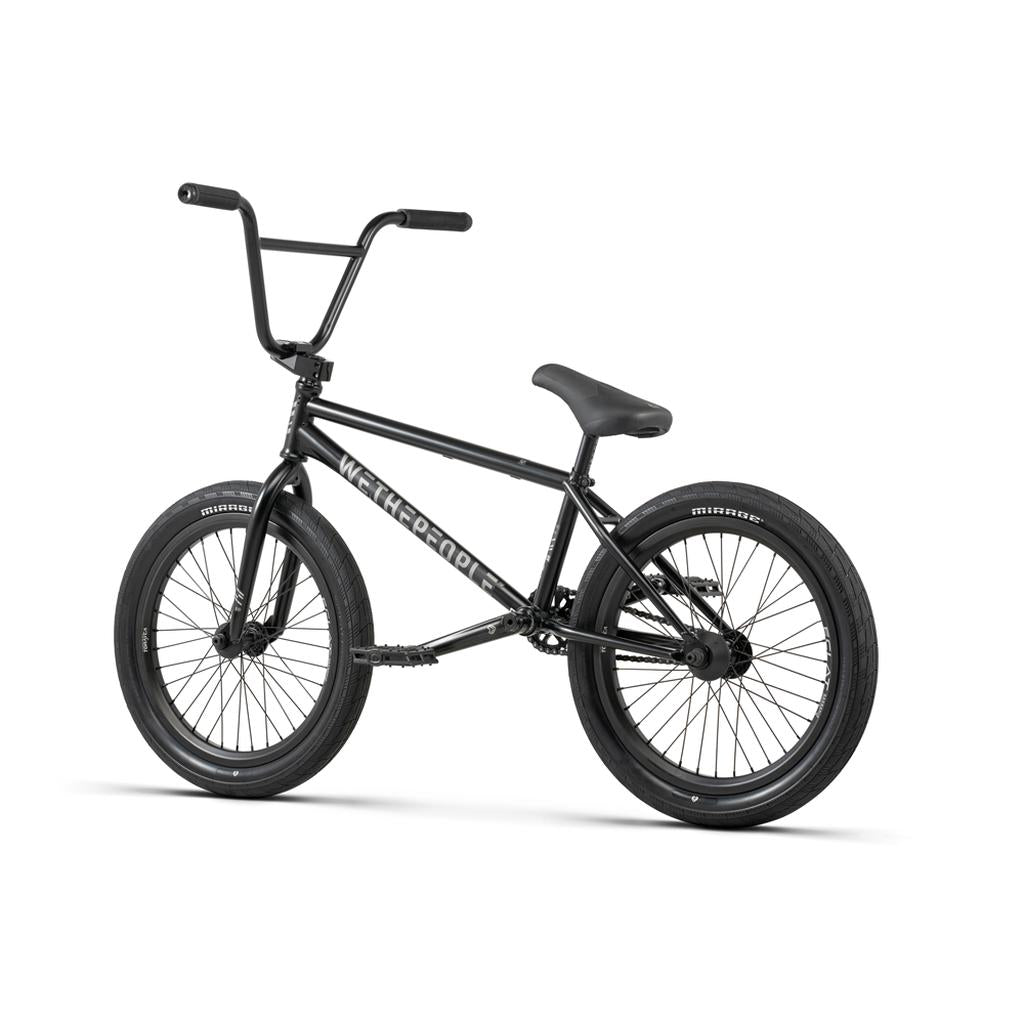

Wethepeople 20 inch Envy Carbonic LTD Bike
Description
Specifications

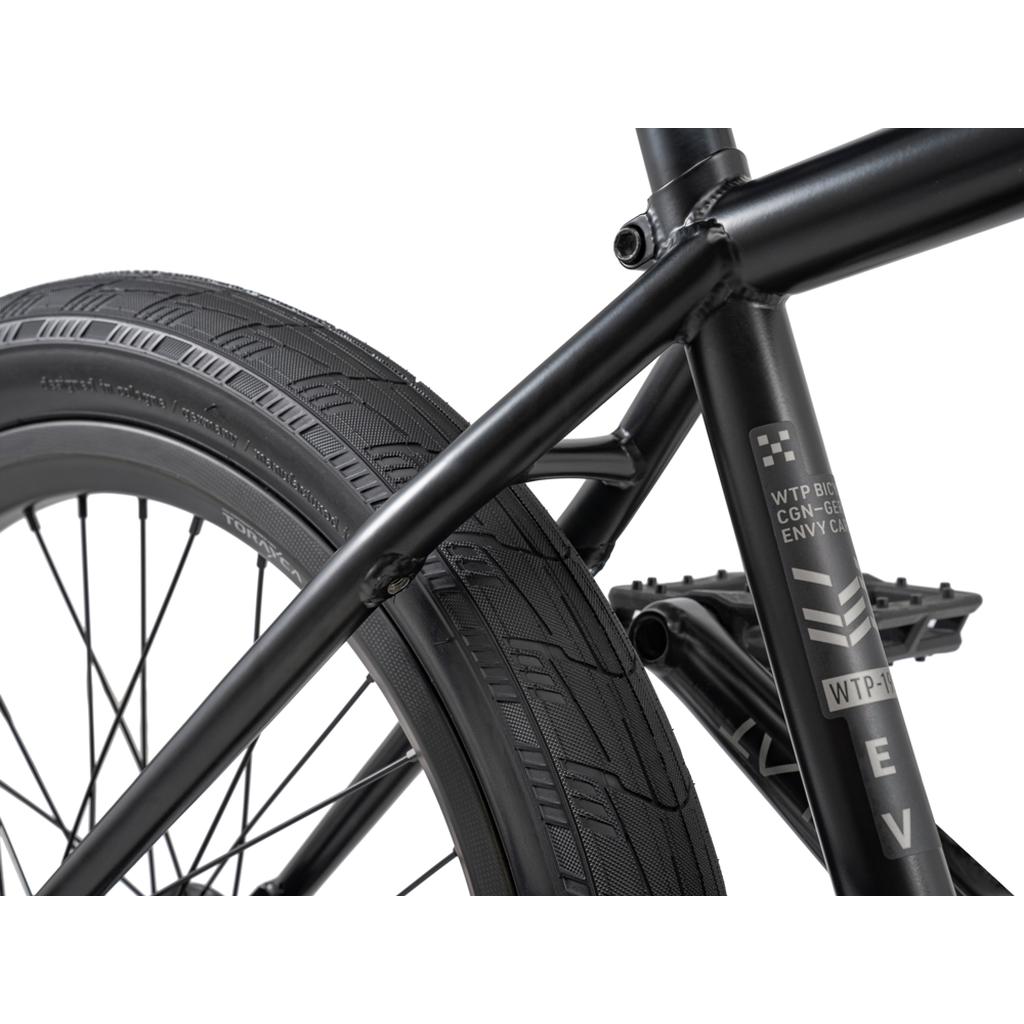

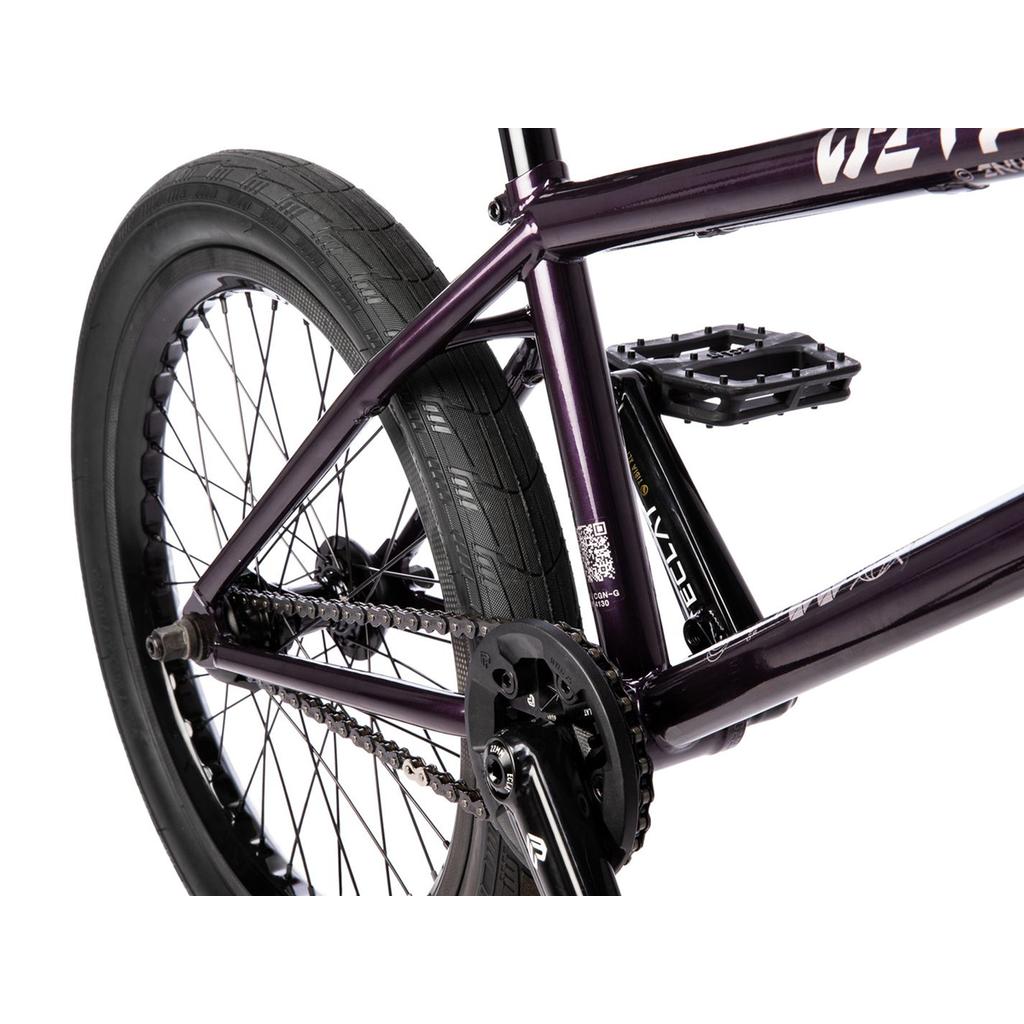

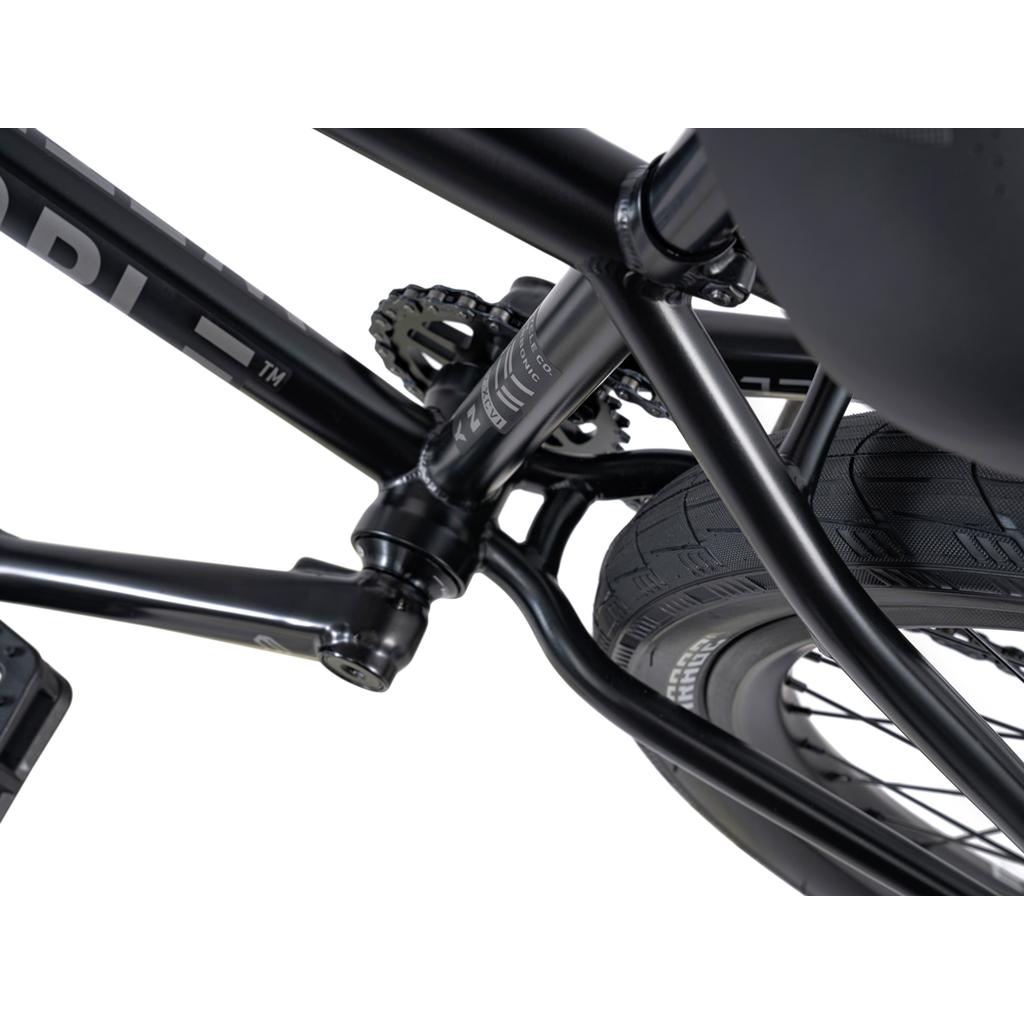

Frame - wethepeople "envy xlt", 4130 full crmo, hydroformed gussets, lasercut 6.0mm dropouts, 120mm head tube

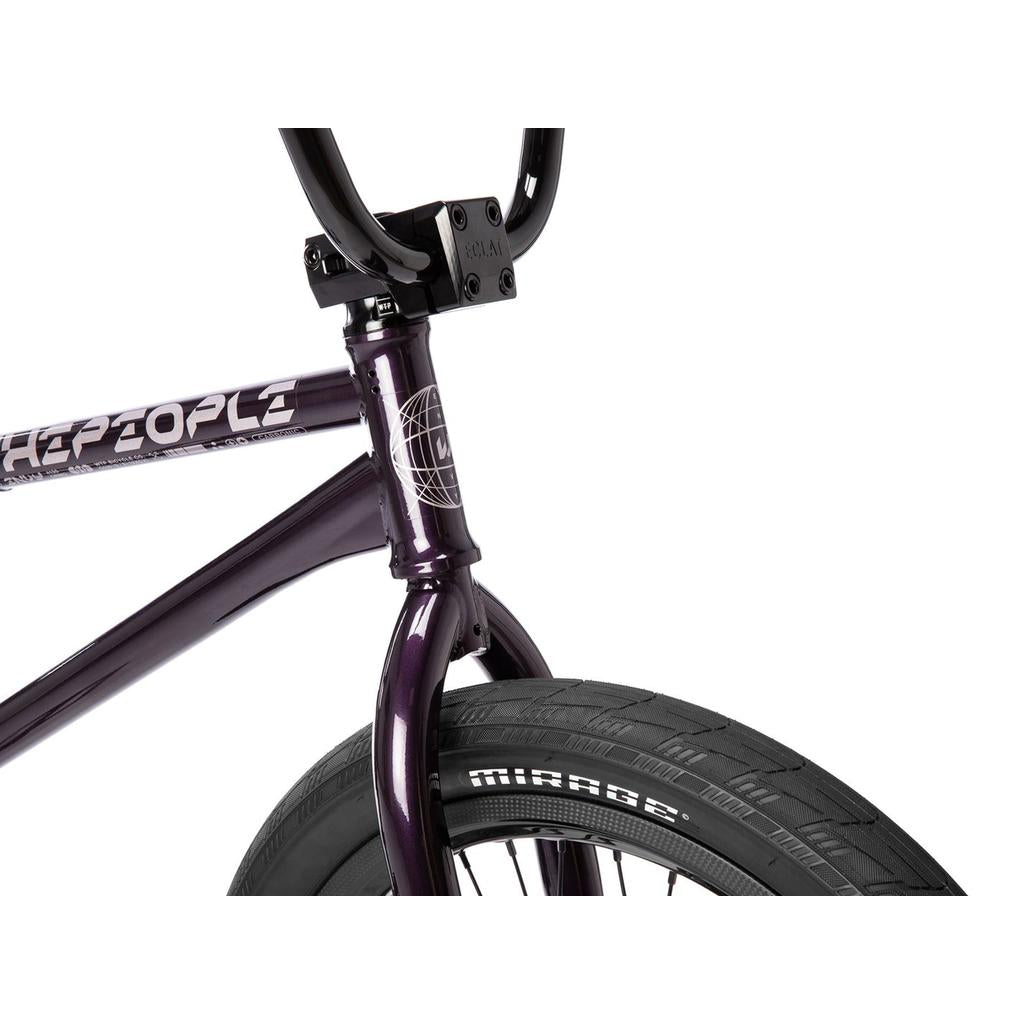

Fork - éclat "storm xlt" fork, post liquid heat-treated & butted sanko tubing, 24mm offset

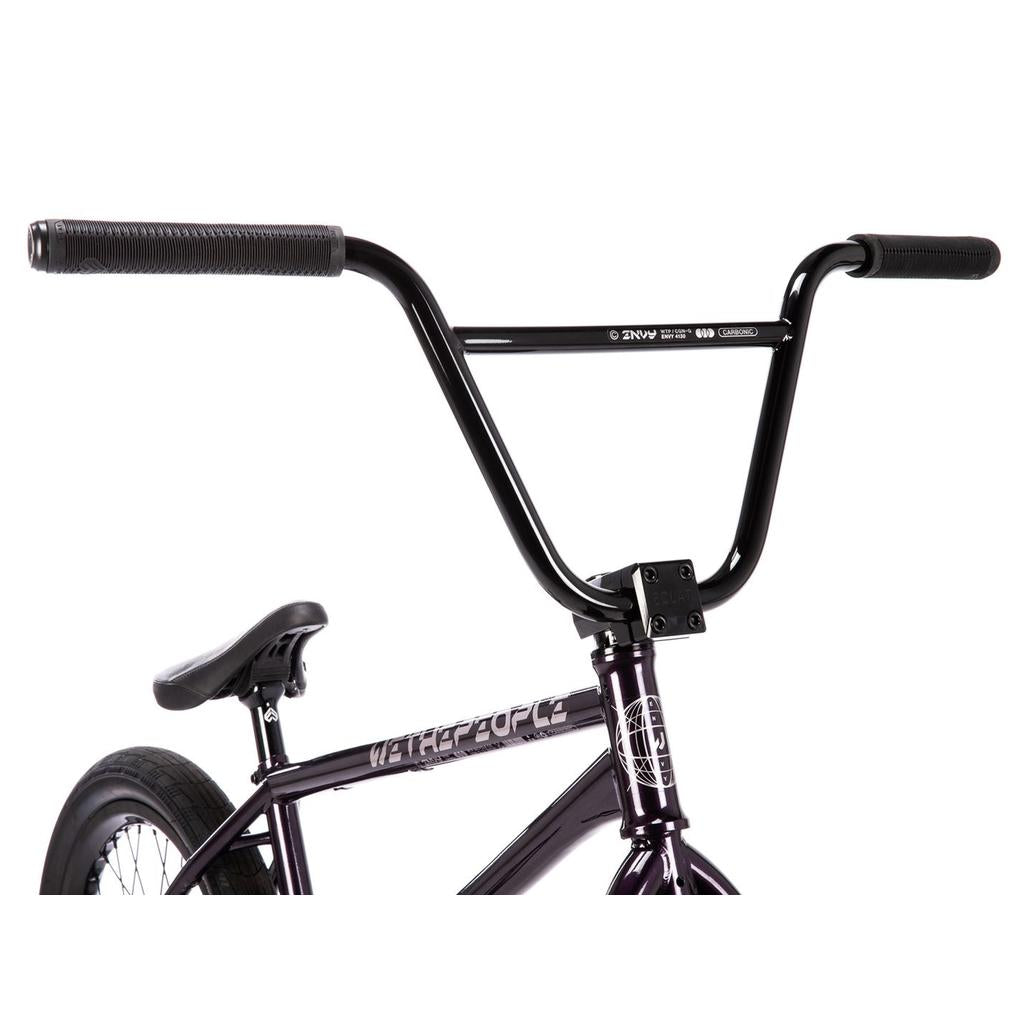

Bars - wethepeople "envy xlt" bar, 4130 full butted sanko, post liquid heat-treated, 25.4mm clamping

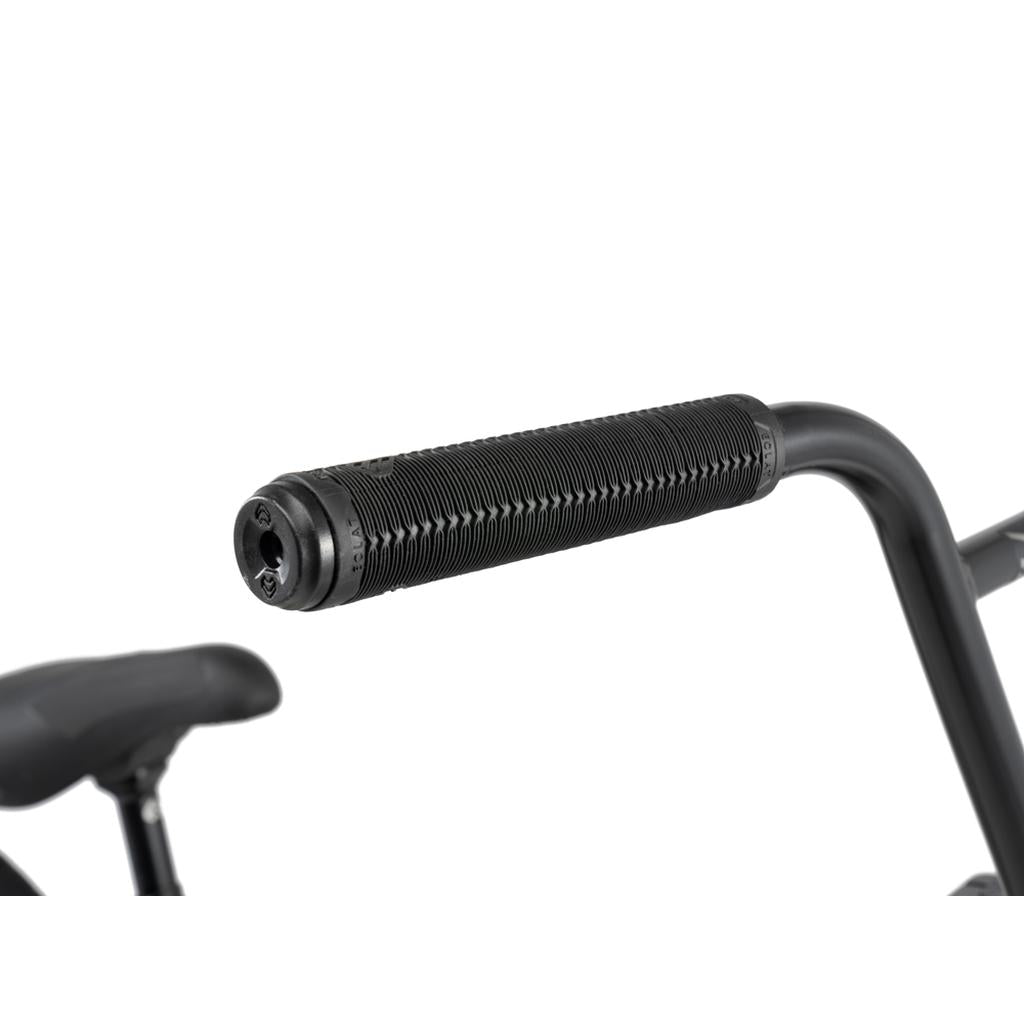

Grips - éclat "shogun" grips, flangeless, with éclat "tech-bolt" barends

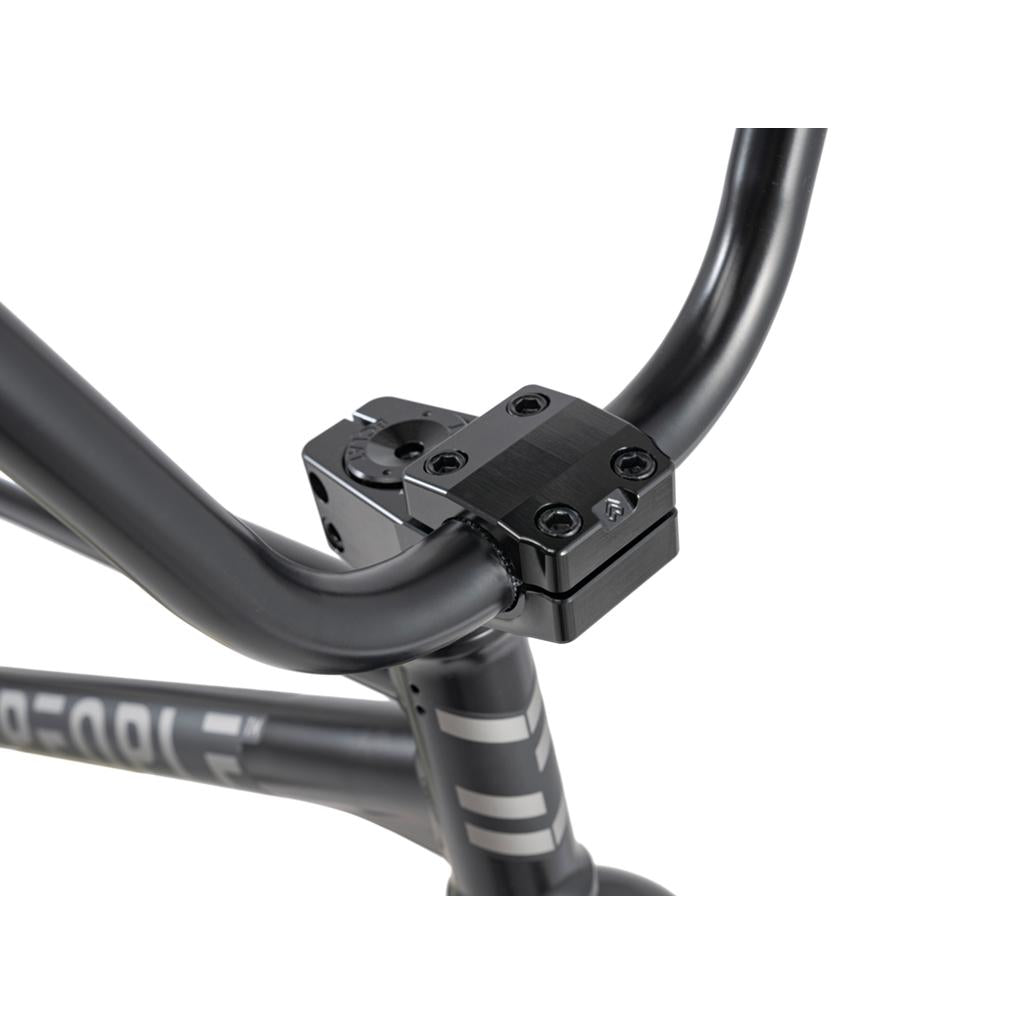

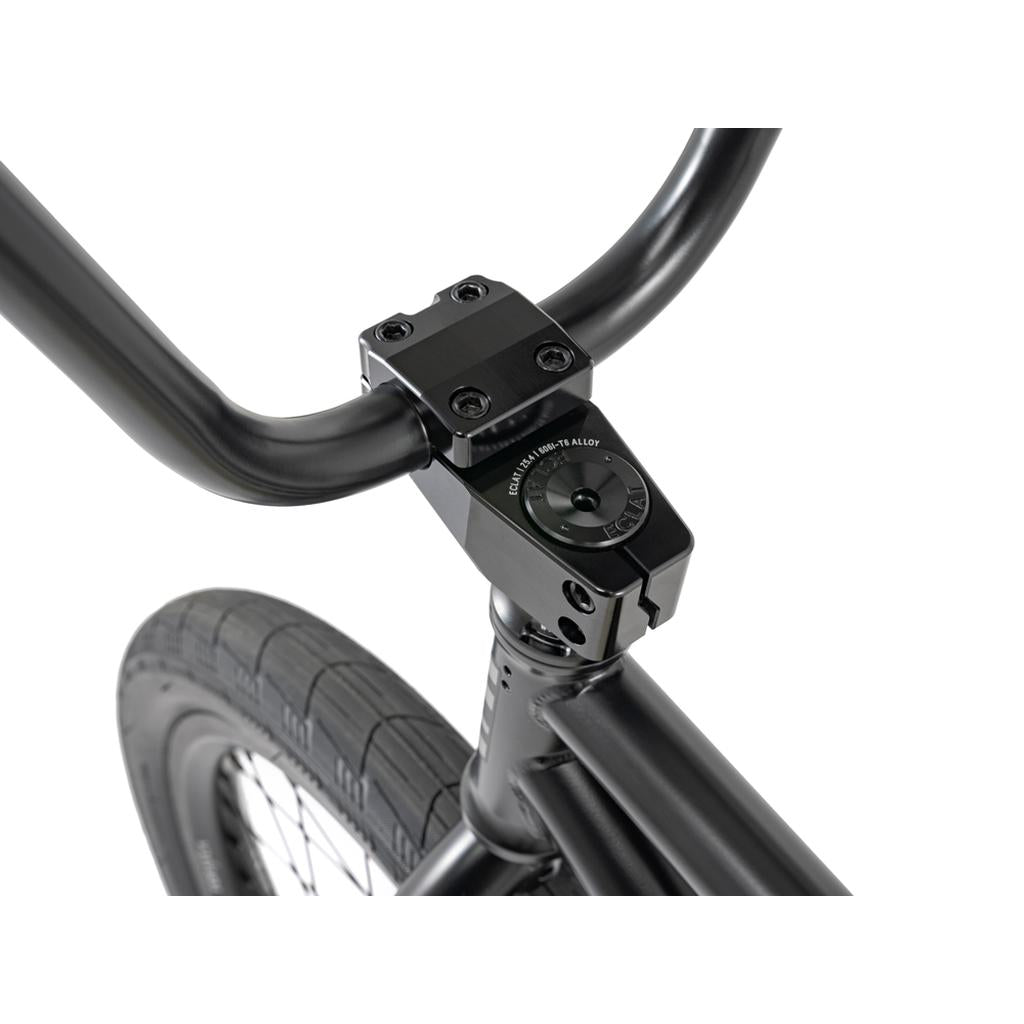

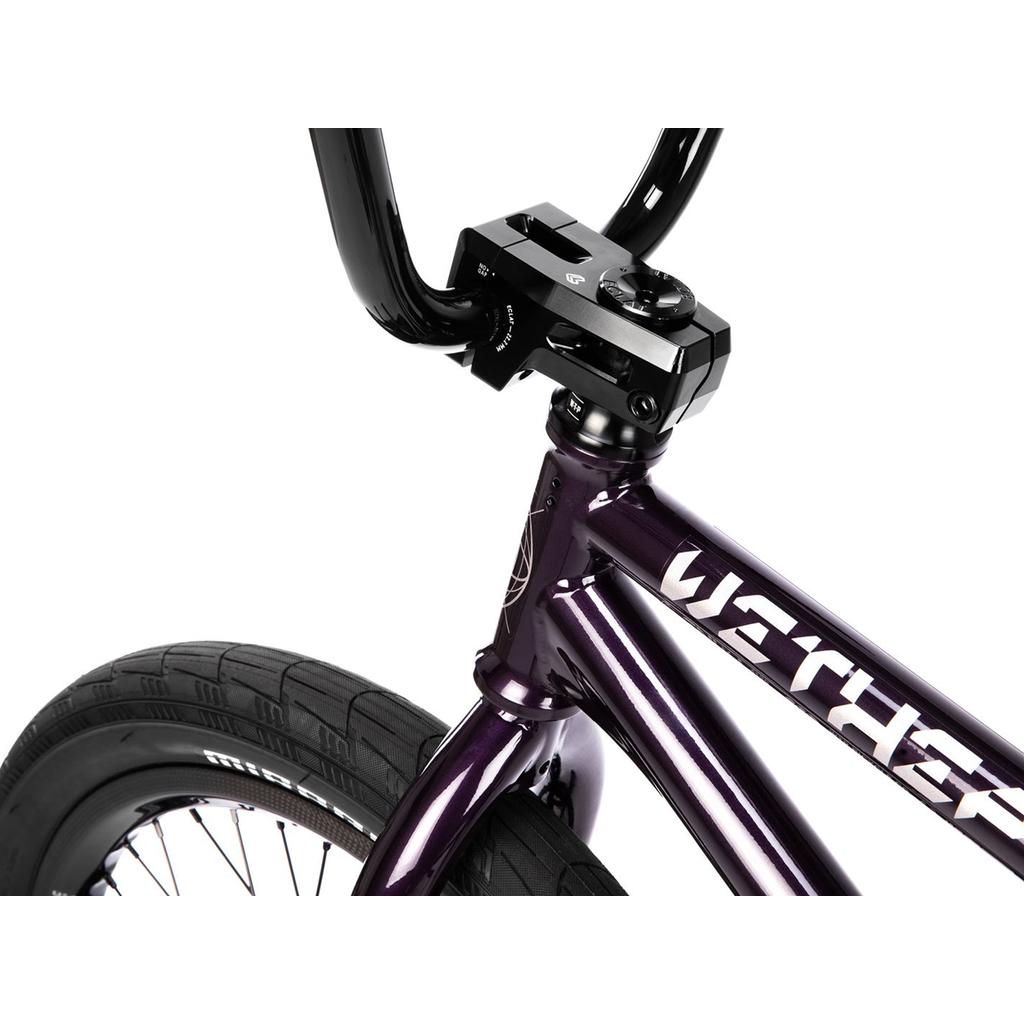

Stem - éclat "dune" topload stem, cnc alloy, 50mm reach, 25.4mm clamping

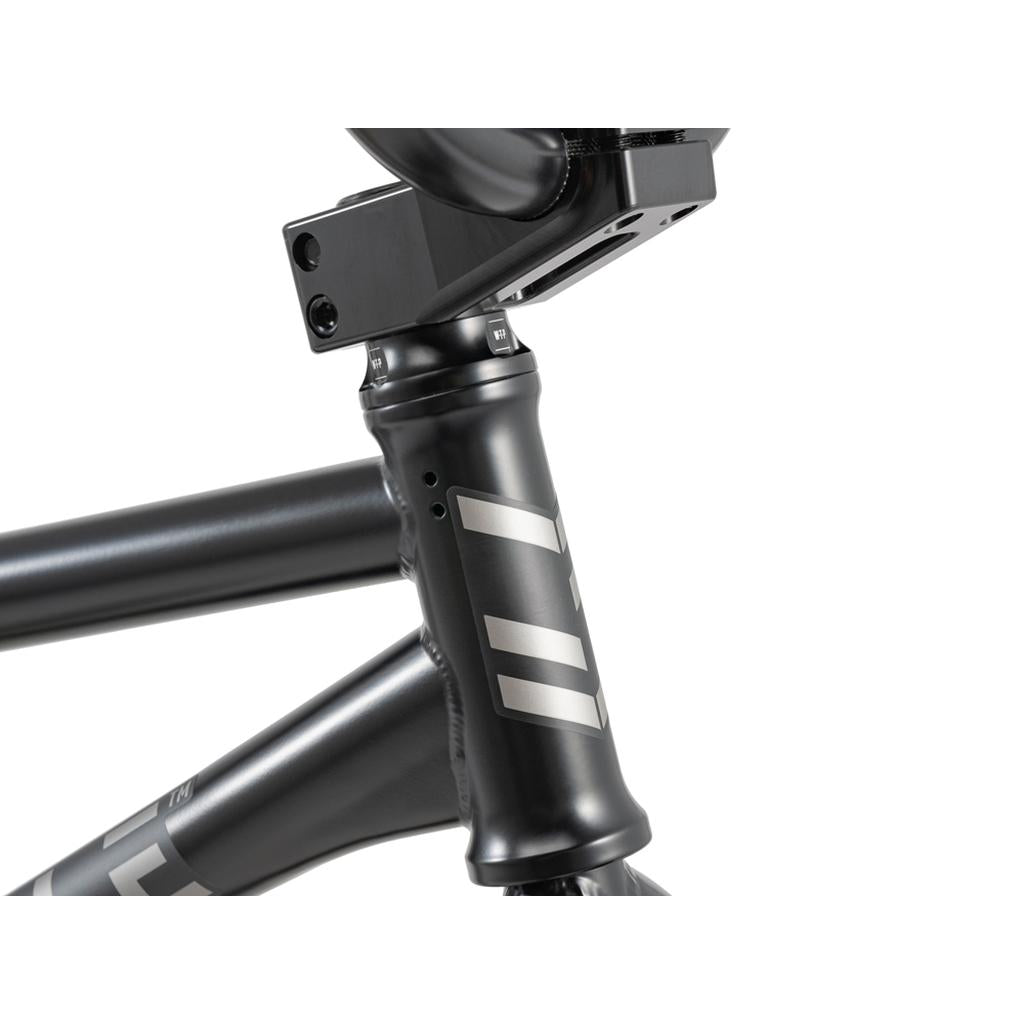

Headset - wethepeople "compact" int. Headset, sealed bearing
Gyro - holes for removable gyro tabs
Lever - éclat "sniper" hinged brake lever, alloy, two finger version
Brakes - éclat "talon" u-brake rear, alloy, with saltplus "propeller" clear brakepads

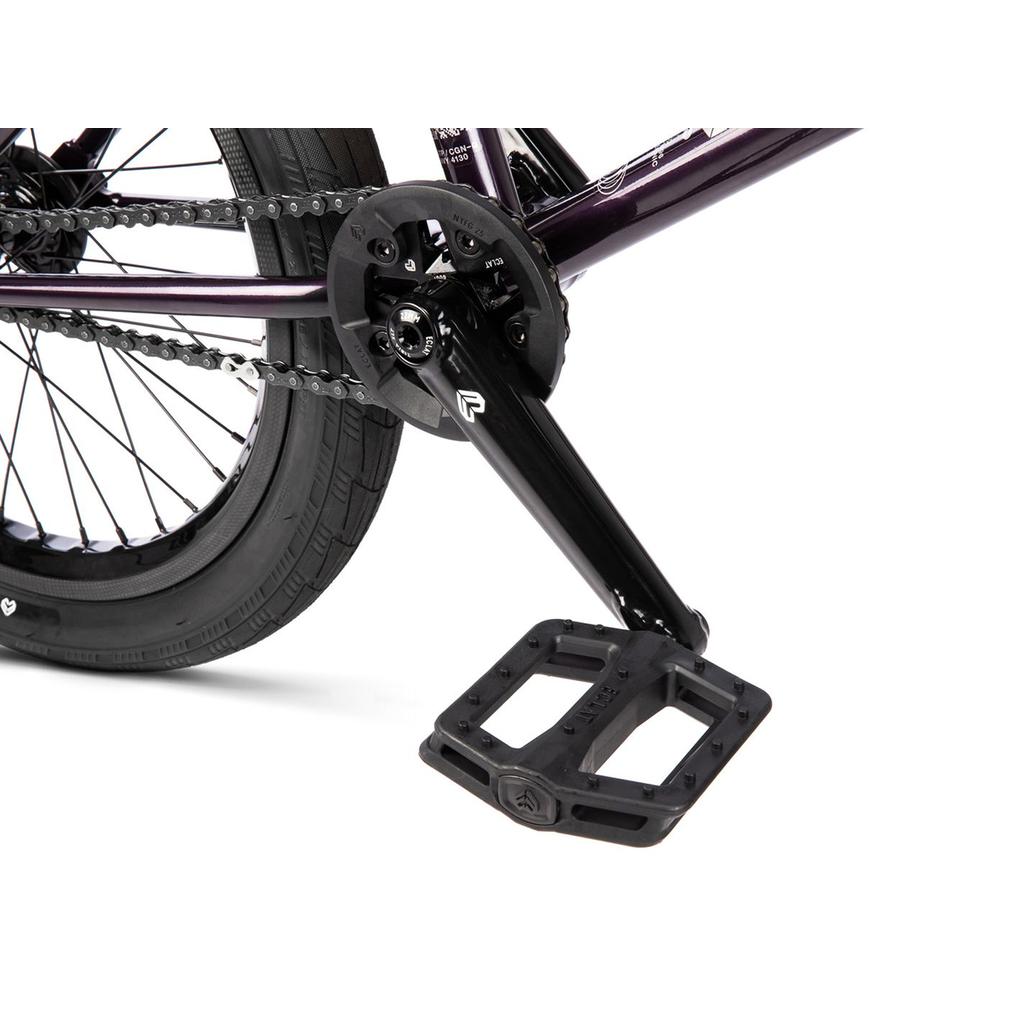

Cranks - éclat "tibia" tubular 2.5pc crank, 22mm, crmo, 170mm, 48 spline

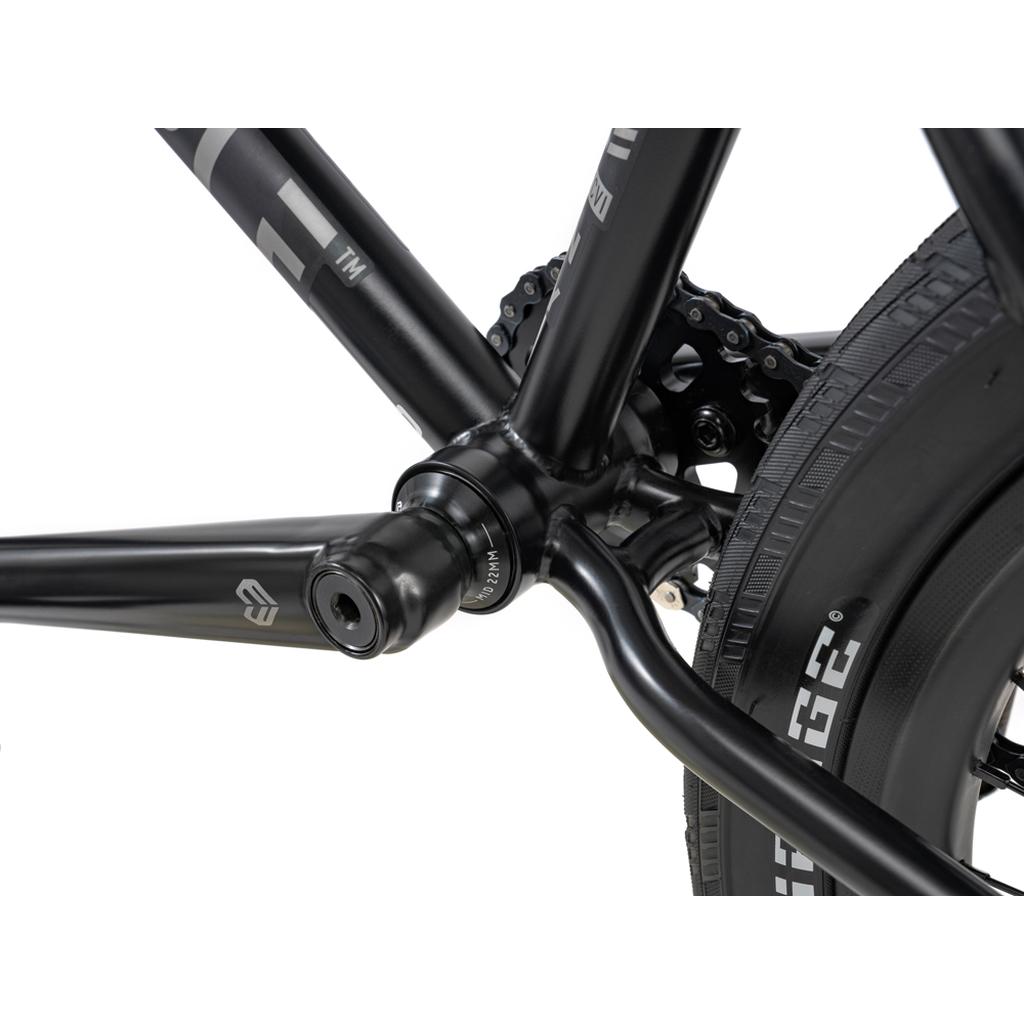

BB - éclat "cnc" bb, 22mm, press fit, sealed bearing

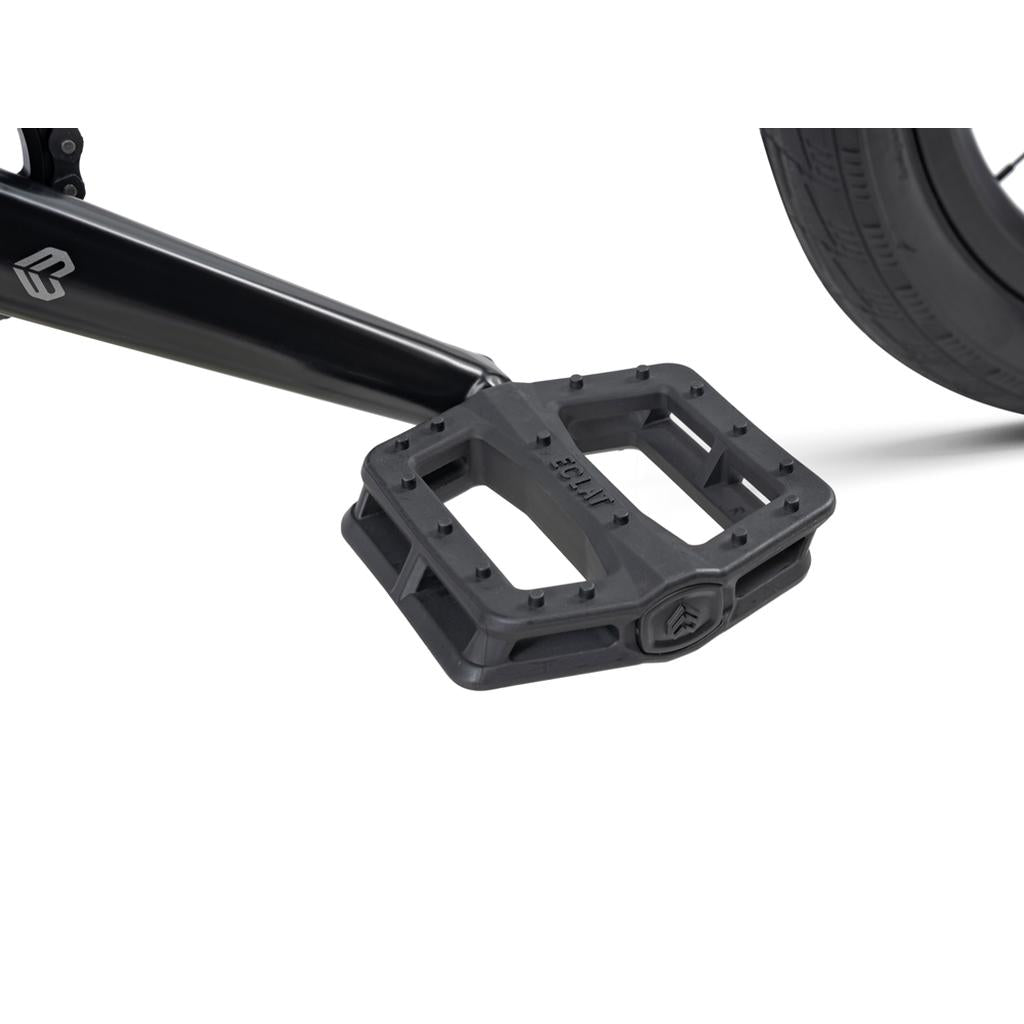

Pedals - éclat "contra" pedals, nylon/fiberglass
Chain - wethepeople "demand" chain, k1 type

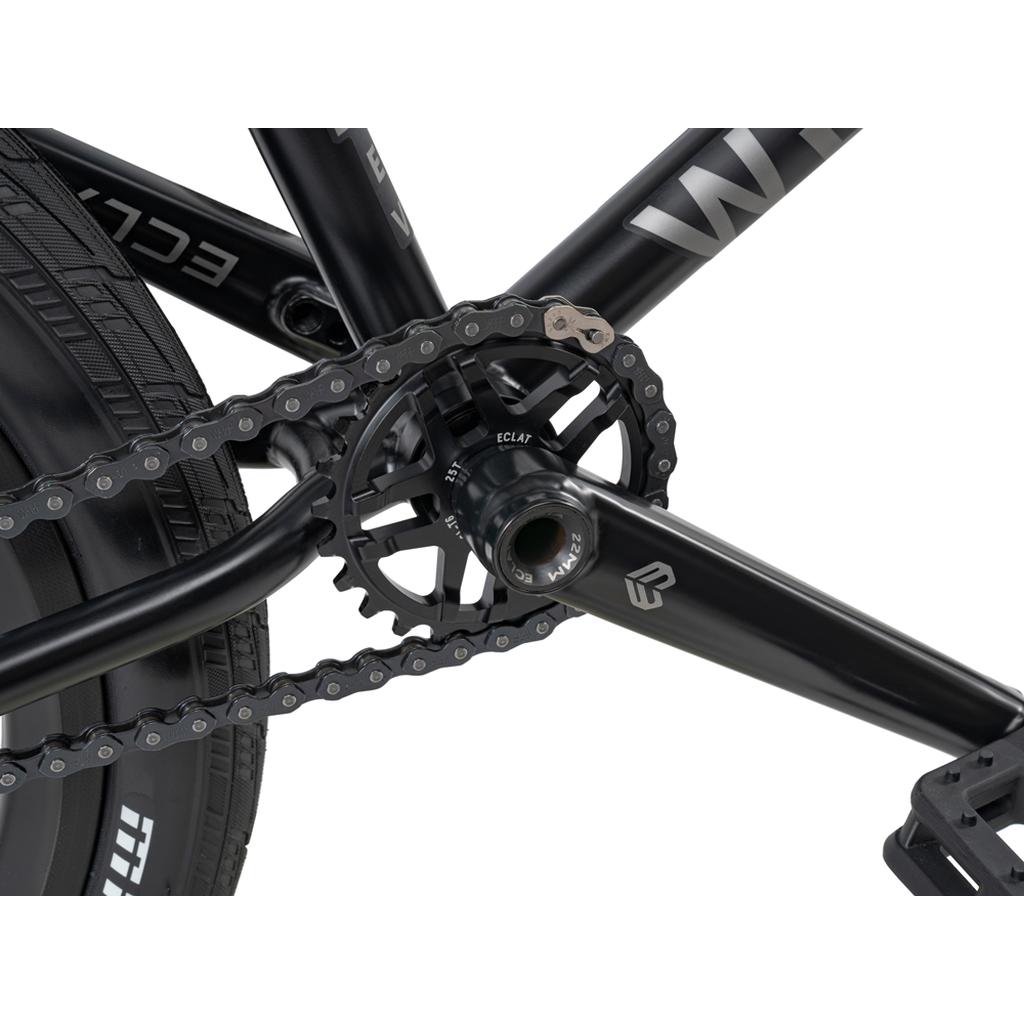

Sprocket - éclat "abyss" sprocket, cnc, 6061-t6 alloy, 25t
Driver - 1pc cassette driver, 9t, sealed bearing, tcs system

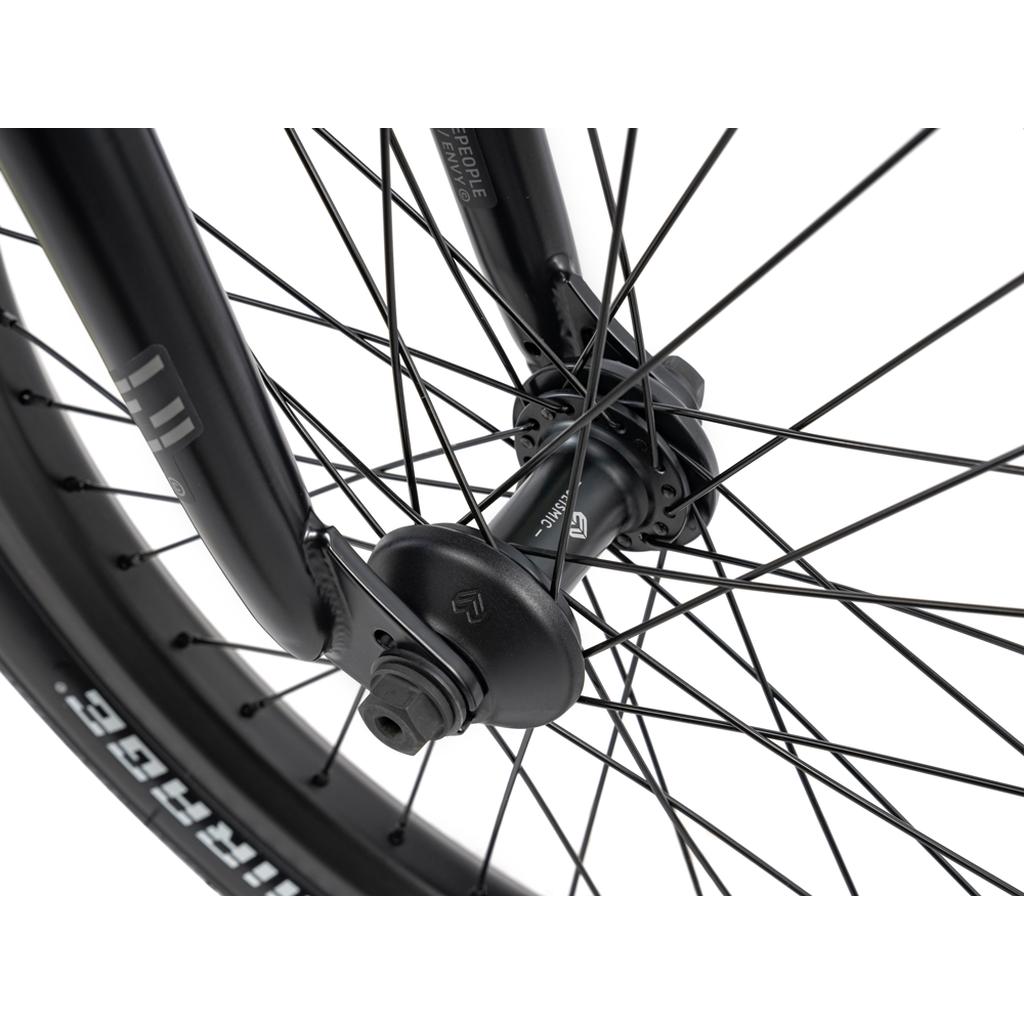

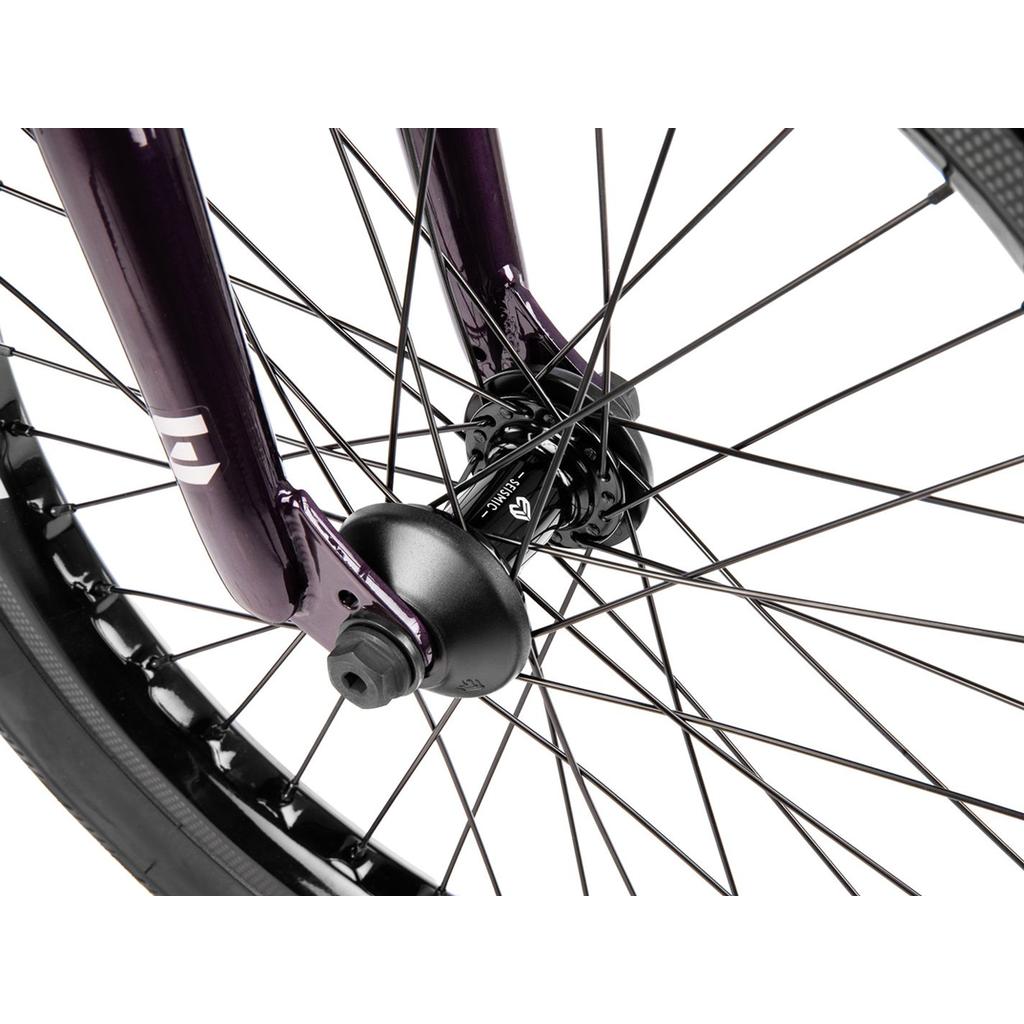

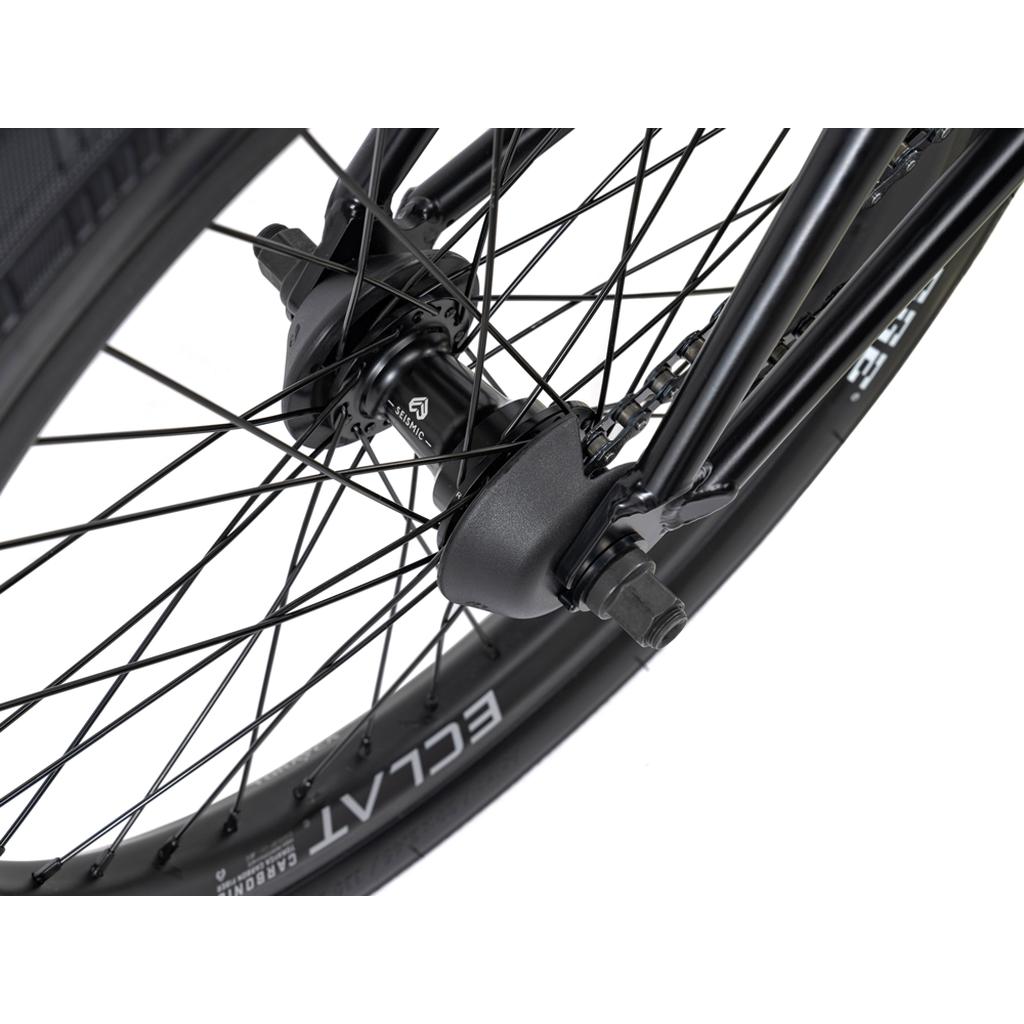

Front hub - éclat "seismic" hub, fully sealed, 3/8"s female bolts, 36h

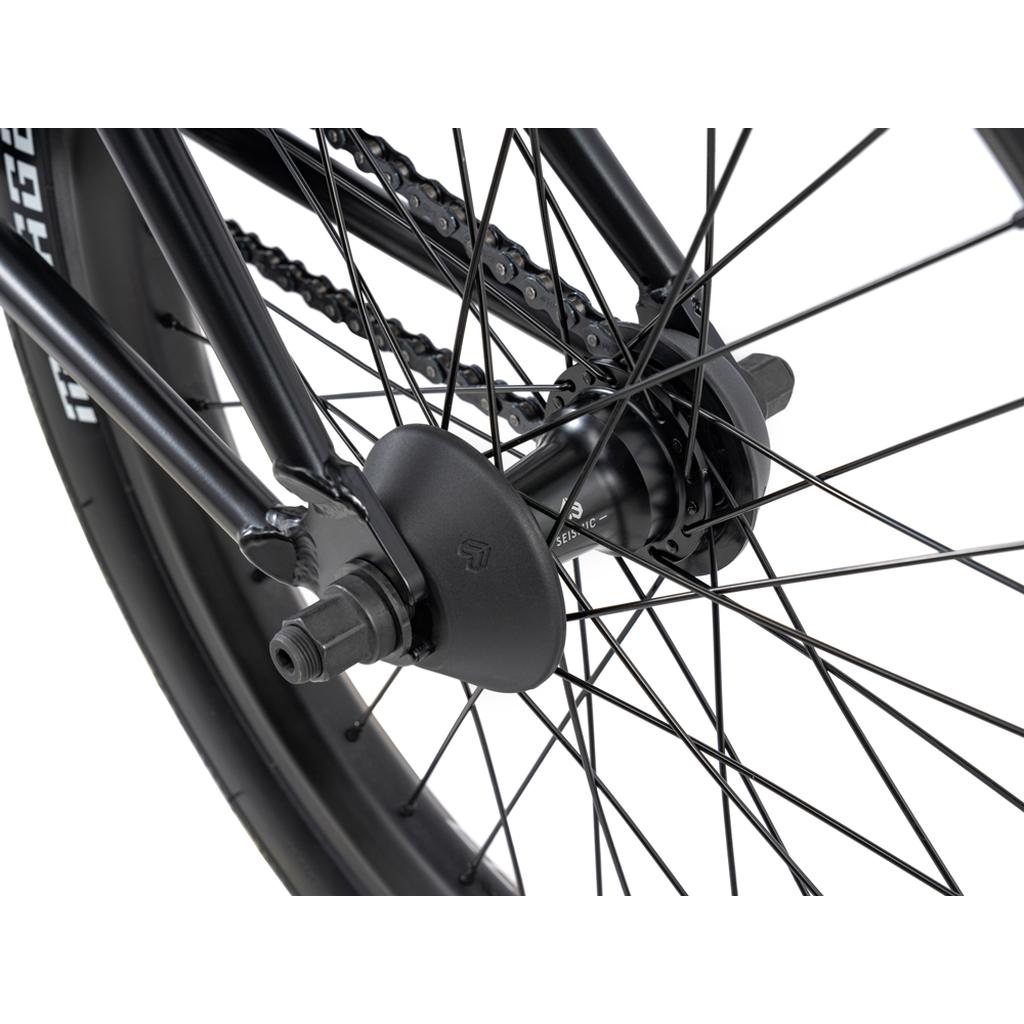

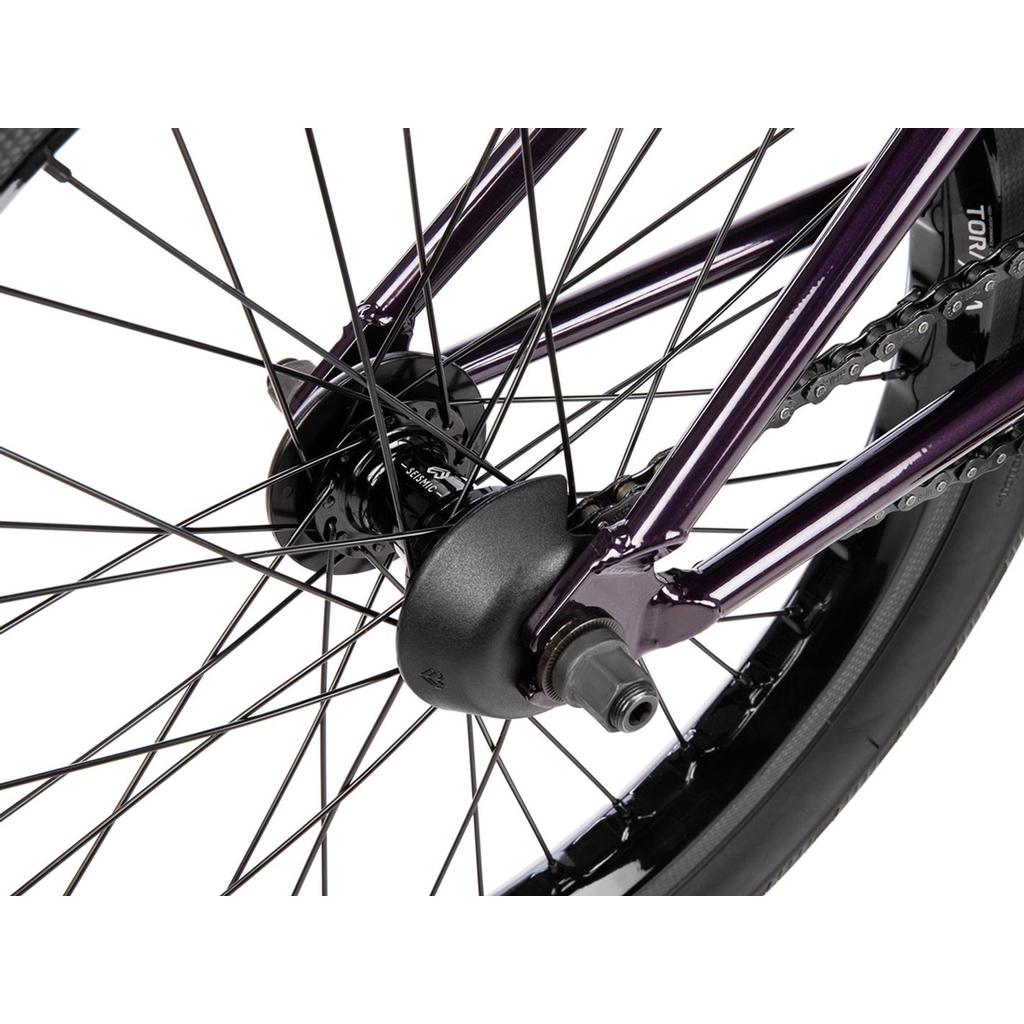

Rear hub - éclat "seismic" cassette hub, fully sealed, 9t, 14mm axle, 36h, tcs driver (available in rsd or lsd)
Hubguards - éclat hub guards - nylon/fiberglass front (x2), nylon/fiberglass rear (x2)

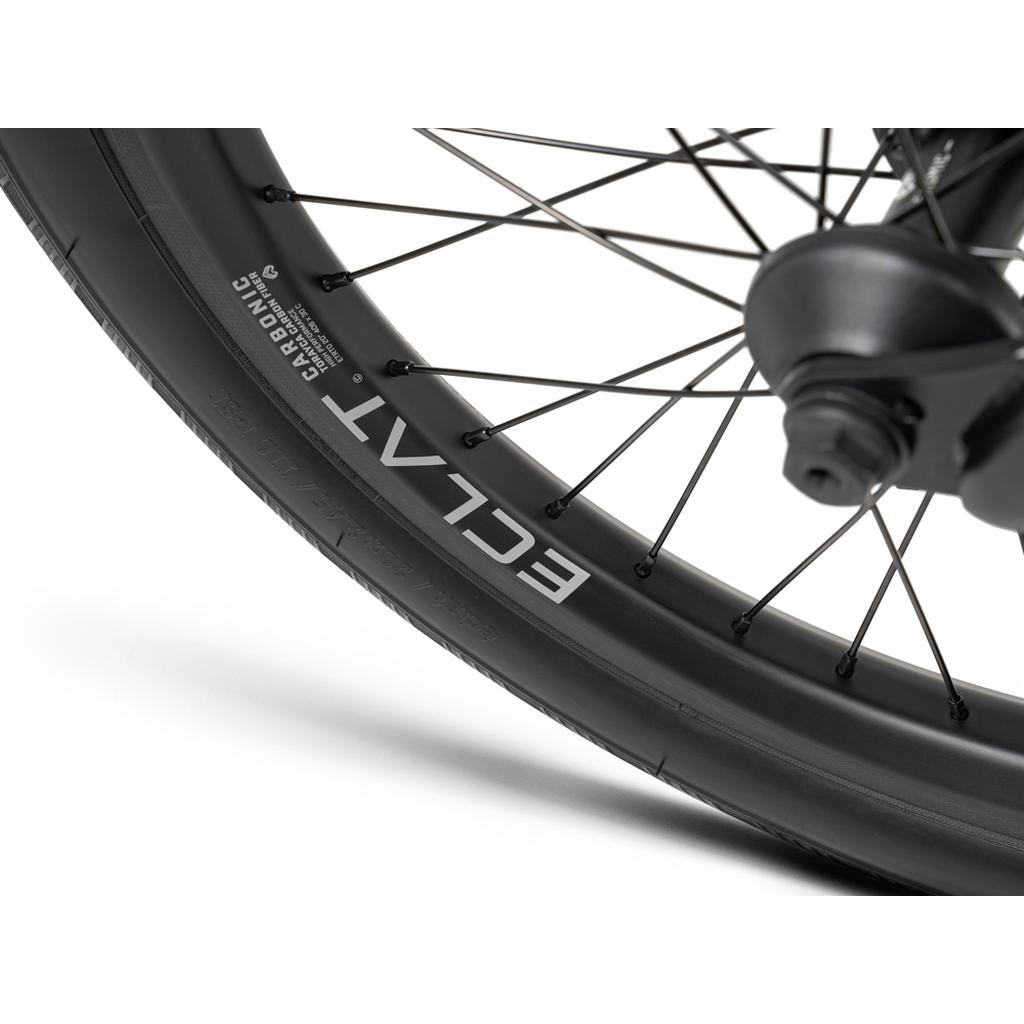

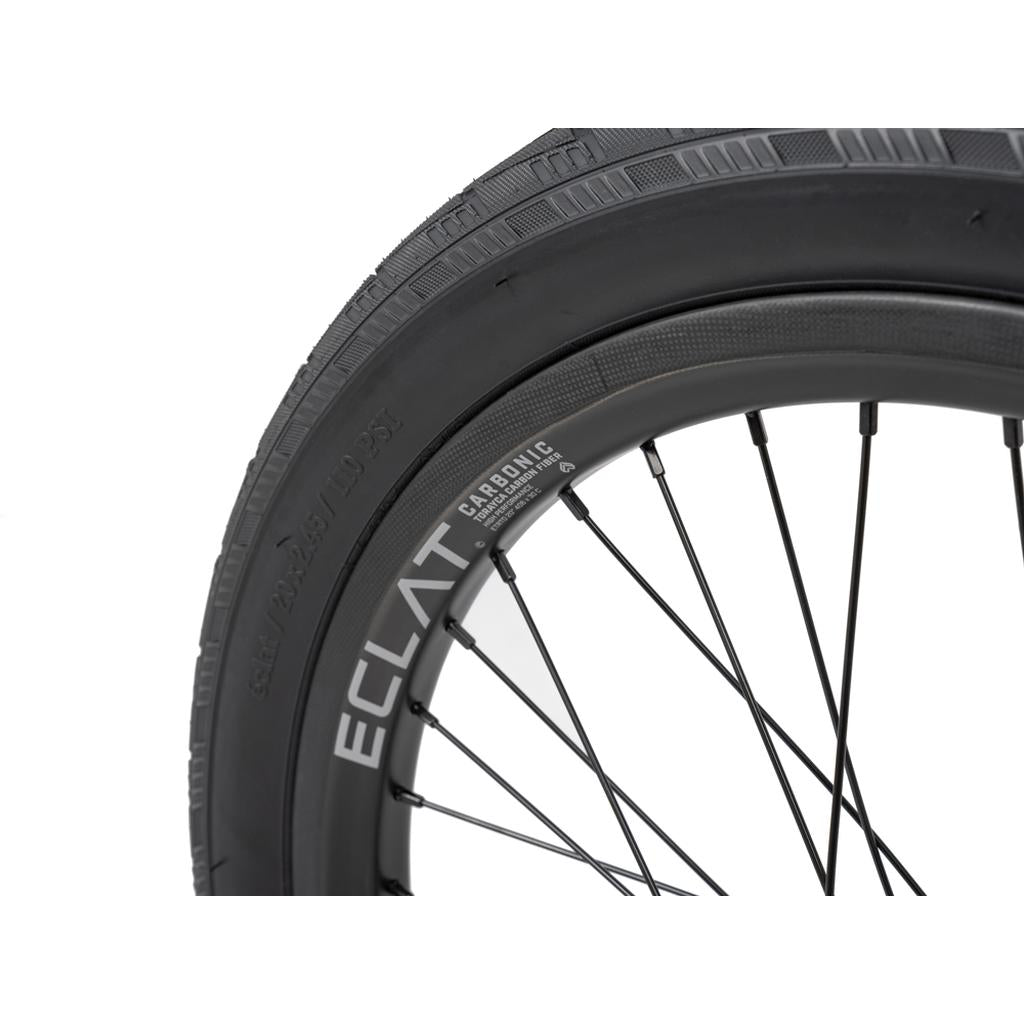

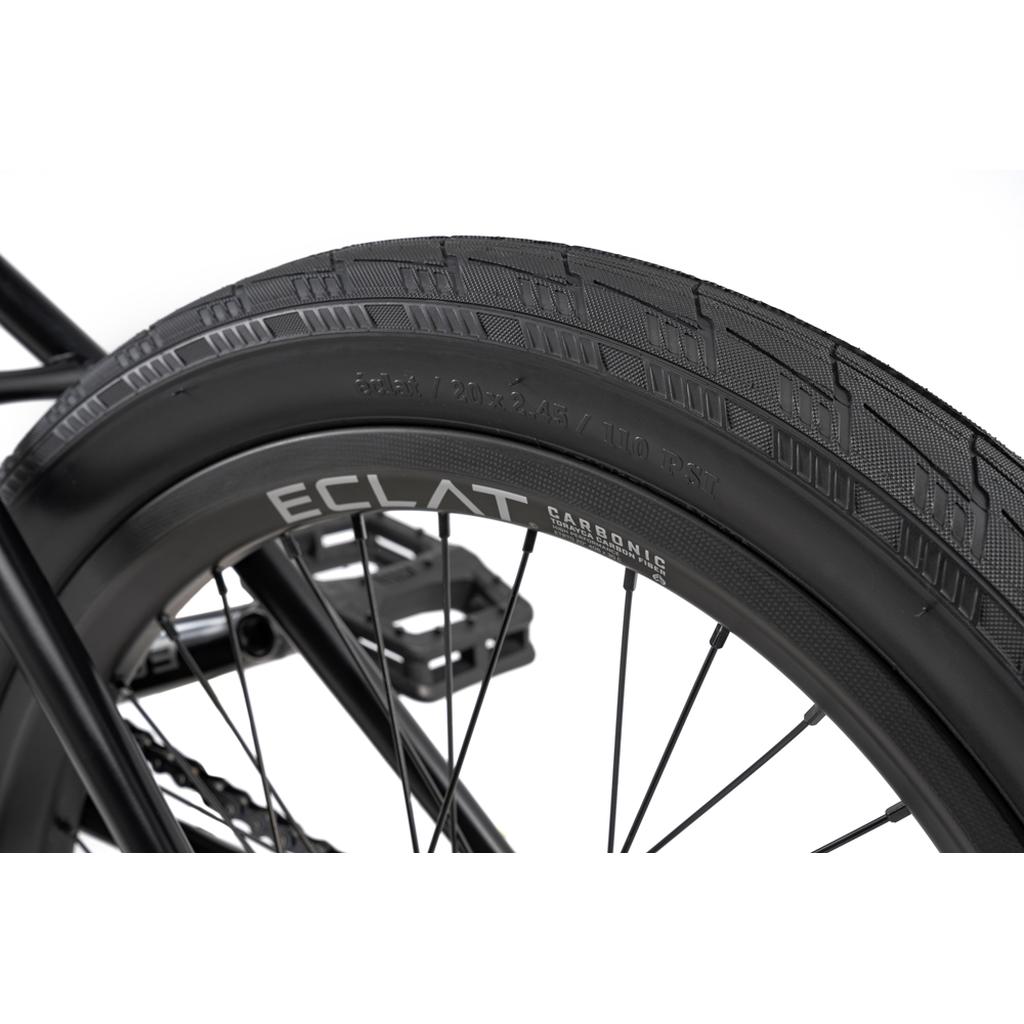

Front rim - éclat "carbonic" rim, "toryca" carbon fibre, 37mm wide, tubeless ready, 36h
Rear rim - éclat "carbonic" rim, "toryca" carbon fibre, 37mm wide, tubeless ready, brake compatible, 36h

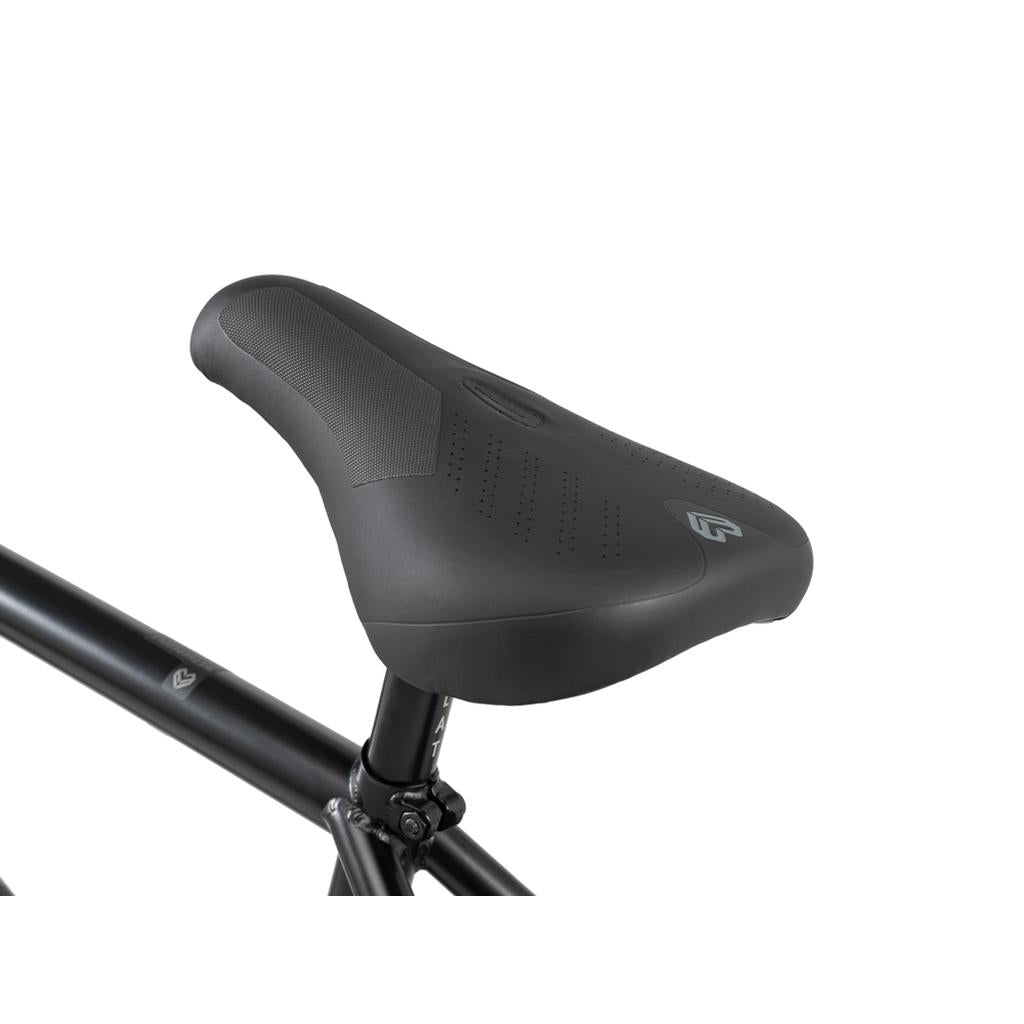

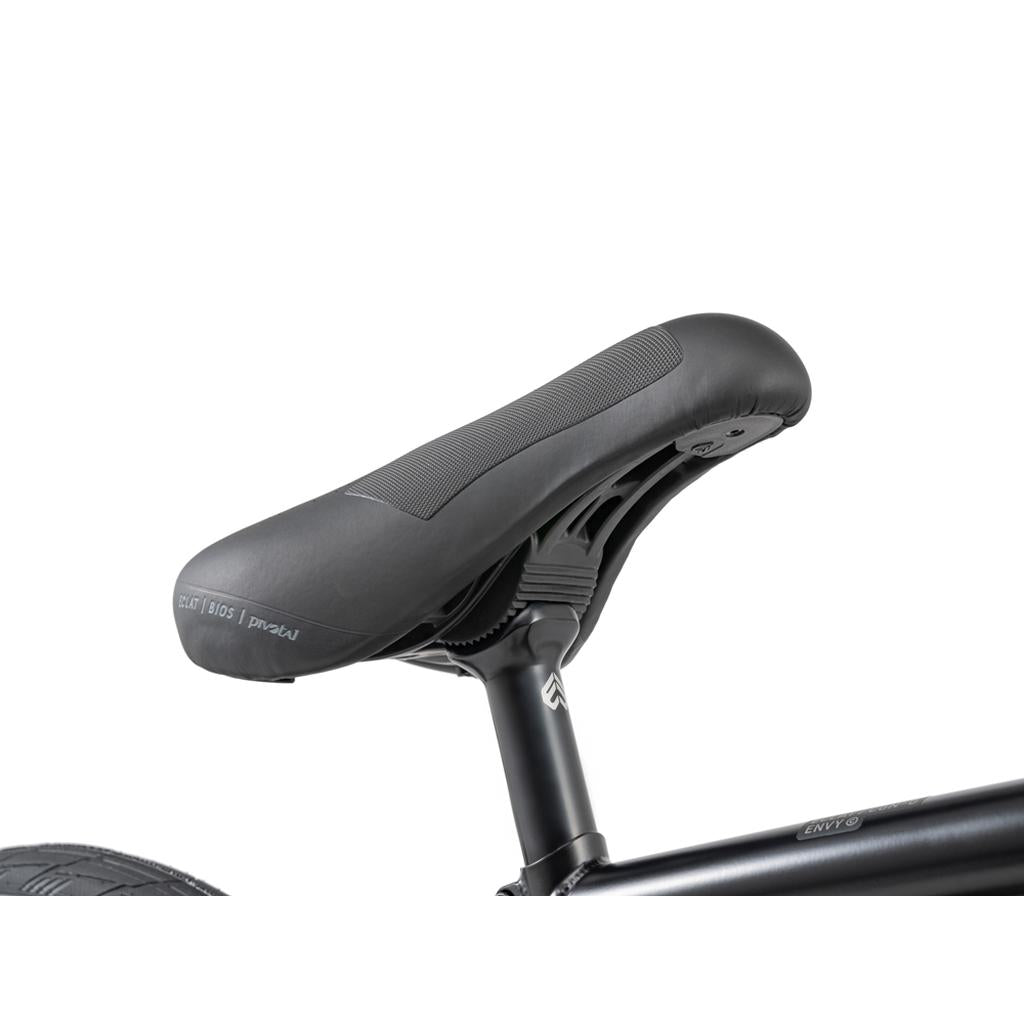

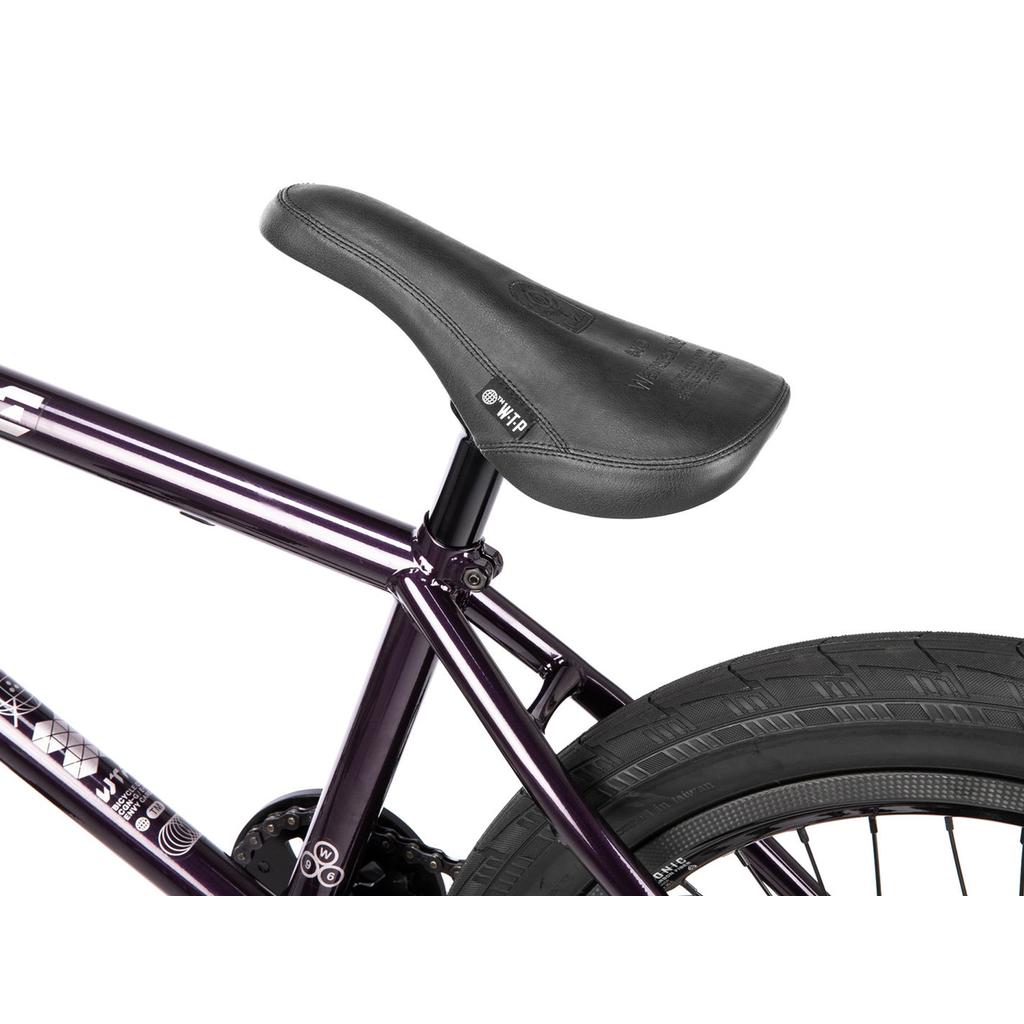

Seat - éclat "bios" pivotal seat, fat padded
Seat post - éclat "torch" pivotal seat post , 230mm, alloy
Seat clamp - integrated seat clamp

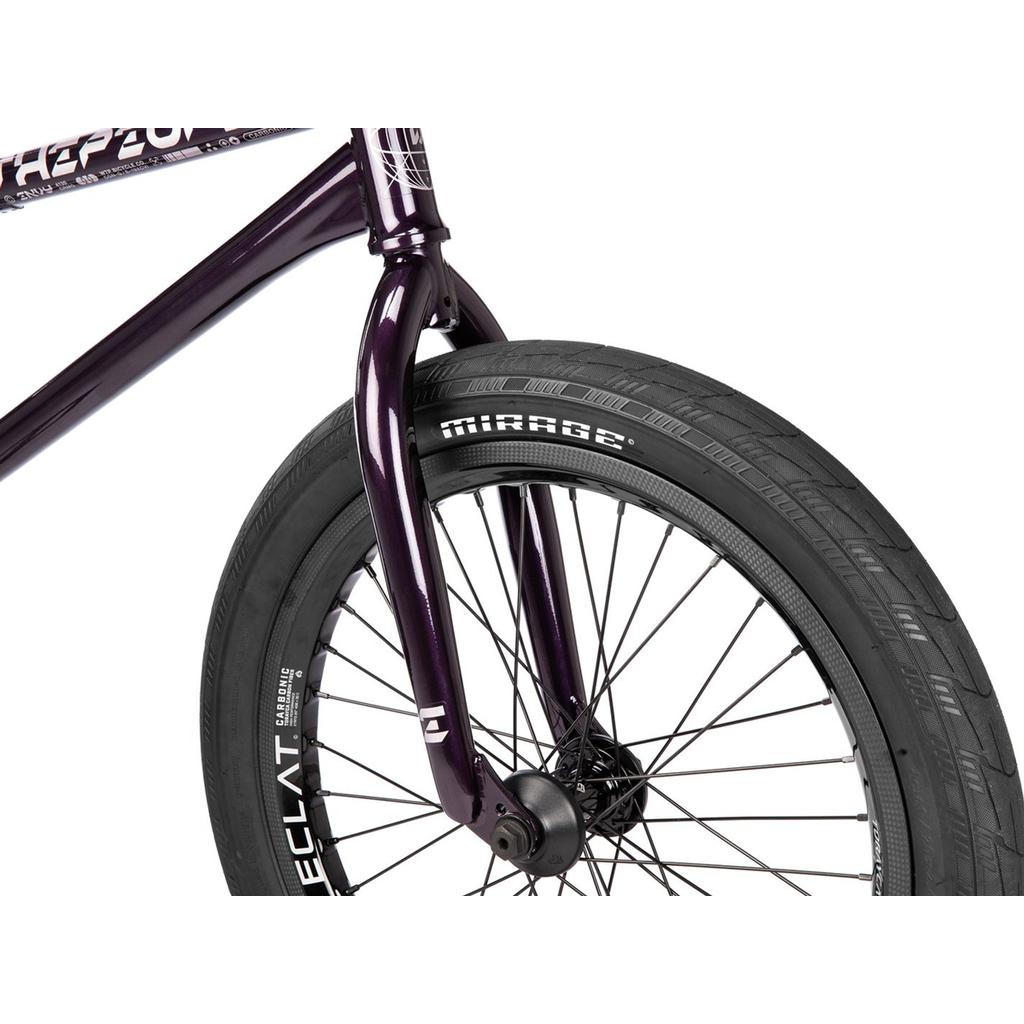

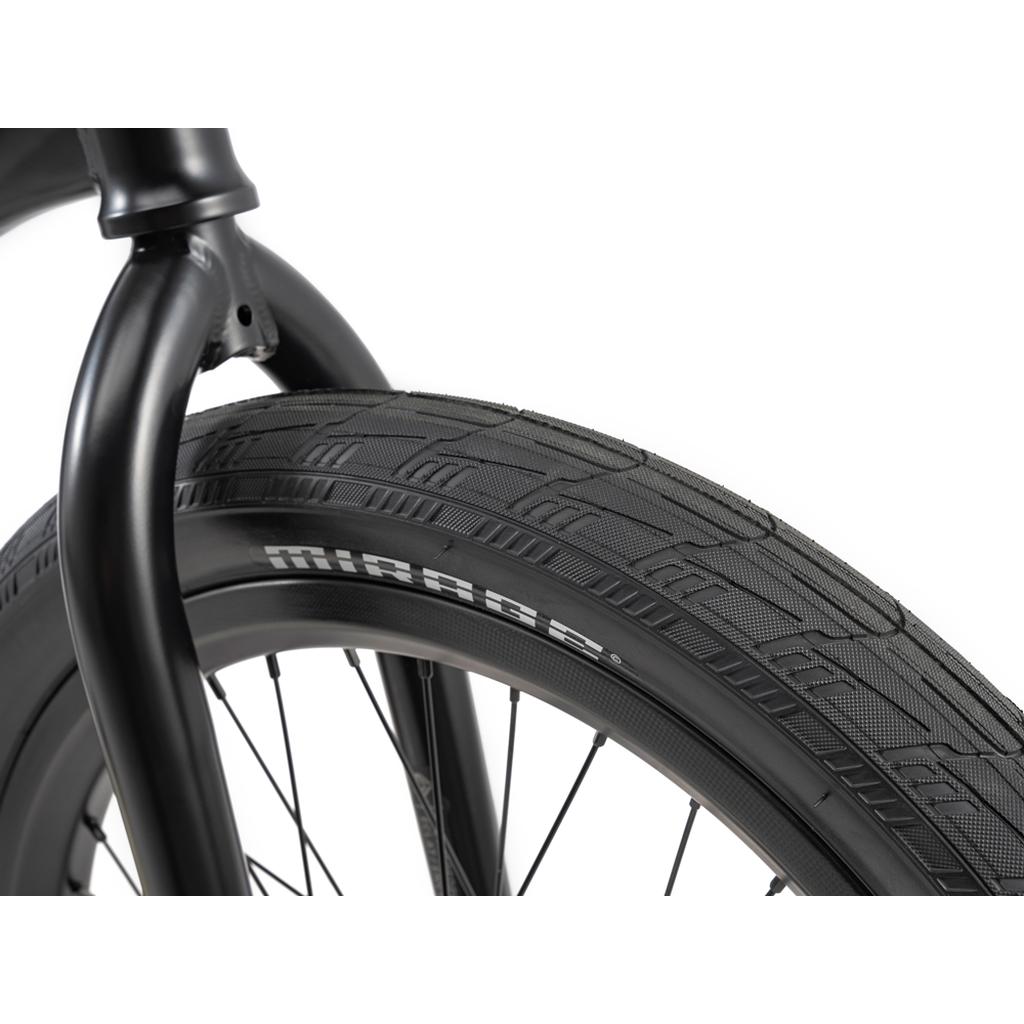

Tyres - éclat "mirage" tires - 2.45" front & rear
Weight - 10.81kg
Geometry
Top tube length - 20.5" | 21"
Chain stay length - 12.5" (12.5"-13.35")
Head tube angle - 75.25°
Seat tube angle - 71.5°
BB height - 11.7"
Standover height - 8.75"
