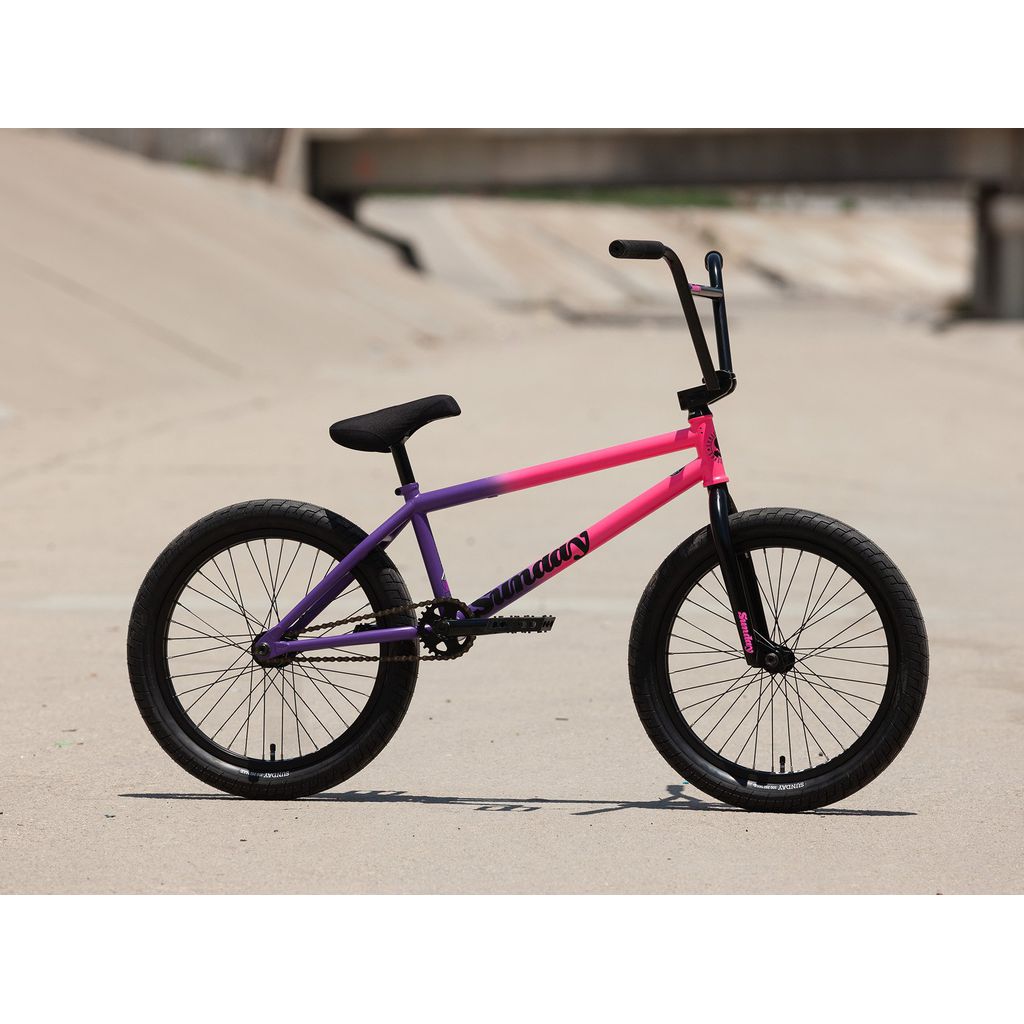

Sunday Street Sweeper 20 Inch Bike

The Sunday Street Sweeper BMX Bike is designed with serious street riders in mind.

Built around Jake Seeley’s all-new chromoly aftermarket signature frame, it uses a 75.25° head tube angle, a very short chainstay and a higher bottom bracket to match perfectly with Jake’s technical riding style. With its 4-piece bars, 160mm cranks, sealed Odyssey Clutch freecoaster and Sunday Street Sweeper tyres, this is truly a pro-level bike. Follow @thejakeseeley.

Features
- Aftermarket Sunday Street Sweeper frame
- 100% chromoly forks and 4-piece bars
- Sunday Seeley signature grips
- Sunday Seeley seat, pivotal
- Odyssey Clutch v2 freecoaster
- Odyssey Quadrant rims
- FSA conical headset
- Right hand or left hand drive
- Sunday Street Sweeper 2.4" tyres

Specifications
Frame - Sunday Street Sweeper, 20.75" top tube, 100% chromoly aftermarket frame, removable brake hardware
Fork - Sunday Pro, 20", 100% chromoly fork w/ 1-piece steerer tube and welded pre-load, 25mm offset
Handlebar - Sunday, 100% chromoly, 4-piece with bar pad

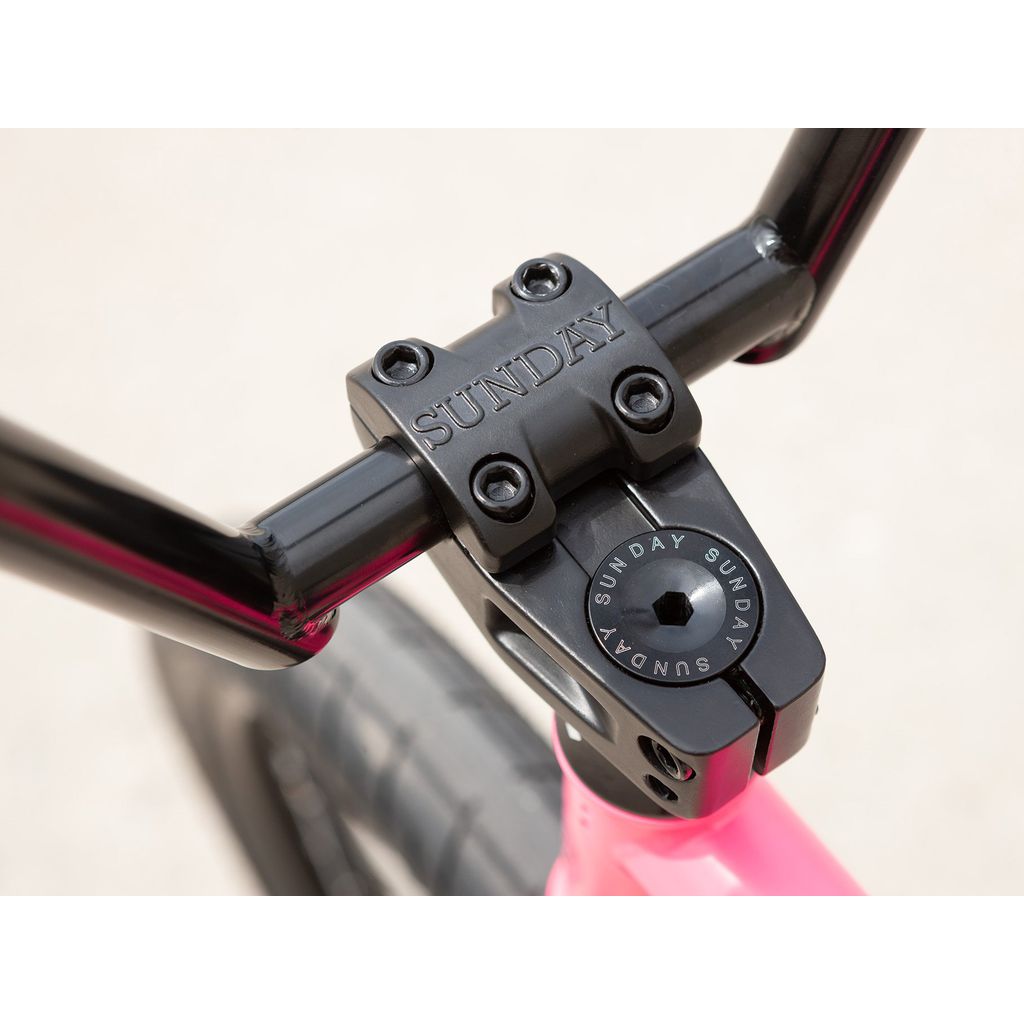

Stem - Sunday Freeze top load, 48mm
Headset - FSA integrated conical, 1-1/8"
Alloy Cap - Sunday M16, aluminum
Brake Lever - Odyssey Springfield
Brakes - Odyssey Springfield U-brake
Brake Cable - Odyssey Quik Slic
Grips - Sunday Jake Seeley
Seat - Sunday Seeley, pivotal (Matt Blue/Lavender), Sunday Creepy Sweeper, Pivotal (Matt Pink/Grape Fade)
Seat post - Sunday pivotal
Seat Clamp - Integrated
Sprocket - Sunday Sabretooth v2, 25T, 6061 aluminum
Cranks - 160mm, 3-piece, chromoly
BB Parts - Sealed, mid, 19mm
Pedals - Odyssey Twisted PC Pro
Rims - Odyssey Quadrant, 20", 36H

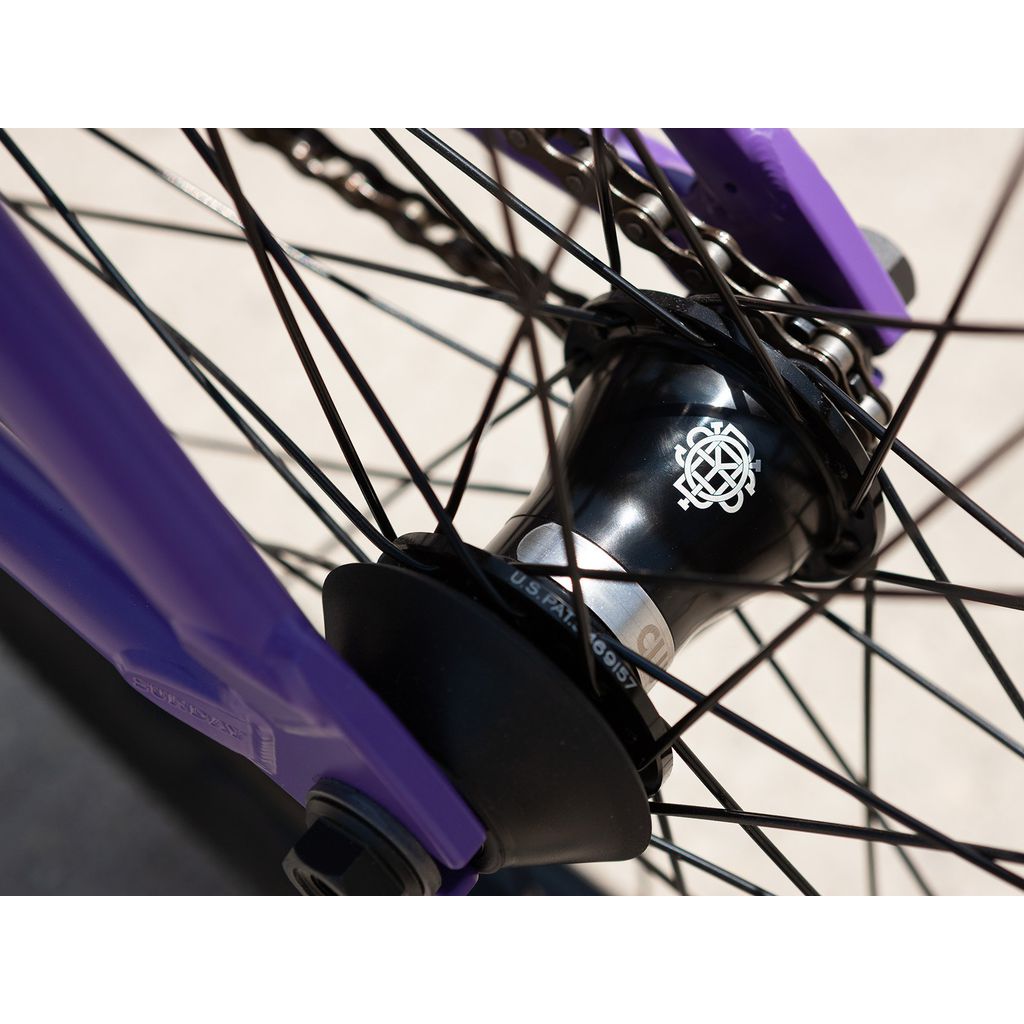

Front Hub - Sunday, 36H, low-flange, sealed , 3/8" female axle
Rear Hub - Odyssey Clutch v2 freecoaster, 36H, 14mm female axle w/ 9T driver, non-drive PC guard
Spokes - 14g steel, black
Tyres - Sunday Street Sweeper v2, 20 x 2.4" (F & R)
Chain - KMC Z1 wide
Approx. Weight - 11.33kgs (brakeless)

Frame Geometry
Top Tube Length - 20.75"
Head Tube Angle - 75.25°
Seat Tube Angle - 71°
Chainstay Length - 12.7"-13”
Bottom Bracket Height - 11.7"
Headtube Length - 4.7"
Standover - 8.85”

Handlebar Geometry
Rise - 9"
Width - 29"
Backsweep - 12°
Upsweep - 3°

Size	20.75TT
Frame	Sunday Street Sweeper, 20.75" TT, 100% chromoly, aftermarket frame, w/ removable brake hardware TT: 20.75" HT: 75.25° ST: 71° CS: 12.7-13" BB: 11.7" SO: 8.85"
Fork	Sunday Pro, 20", 100% chromoly fork w/ 1-piece steerer tube and welded pre-load, 25mm offset
Headset	FSA integrated conical, 1-1/8
Stem	Sunday Freeze top load, 48mm
Handlebar	Sunday, 9 x 29", 12° backsweep, 3° upsweep, 100% chromoly, 4-piece, w/Handlebar pad
Grips	Sunday Jake Seeley
Brake	Brake lever: Odyssey Springfield Brake: Odyssey Springfield U-brake Brake cable: Odyssey Linear Quik Slic
BB	Sealed, Mid, 19mm
Crank	160mm, 3-piece, chromoly
Sprocket	Sunday Sabretooth V2, 25T, 6061 aluminum
Chain	KMC Z1 wide
Pedals	Odyssey Twisted PC Pro
Front Hub	Sunday, 36H, low-flange, sealed , 3/8" female axle
Rear Hub	Odyssey Clutch V2 freecoaster, 36H, 14mm female axle w/ 9T driver, RHD, non-drive side plastic guard Odyssey Clutch V2 freecoaster, 36H, 14mm female axle w/ 9T driver, LHD, non-drive side plastic guard
Rims	Odyssey Quadrant, 20", 36H
Tyres	Sunday Street Sweeper V2, 20 x 2.4" (F & R)
Seat / Post	Seat : Sunday Seeley, Pivotal Seat post: Sunday Pivotal Seat clamp: Integrated
