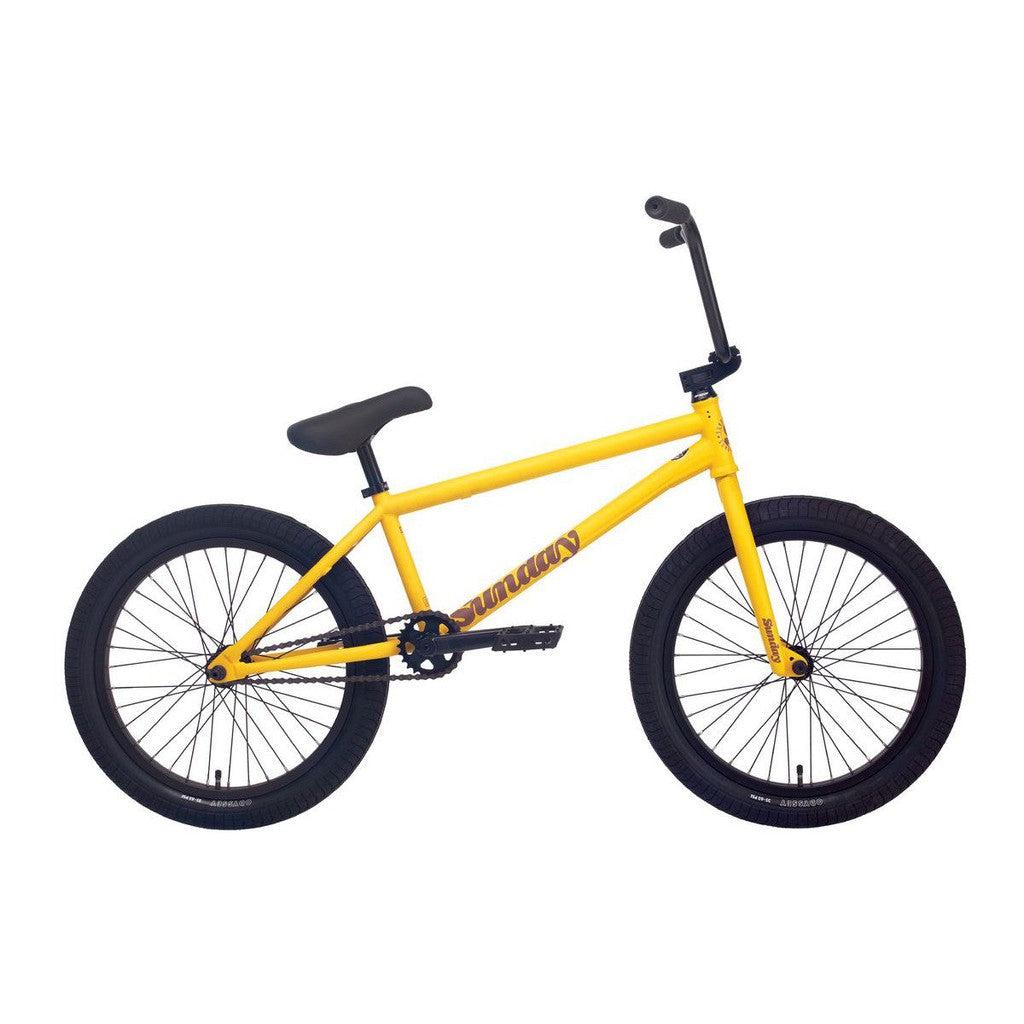

Sunday EX 20 Bike (2022) / Julian Arteaga
Get ready to shred with one of these insane completes from the legends at Sunday! Julian Arteaga's signature model pushes the envelope with a tough, pro-level, Odyssey/Sunday parts package and frame design upgrades like the EX’s removable braking hardware mean business.
- 100% Chromoly Frame, Fork, and 4-piece Bars
- Sunday Signature Wave Down Tube
- Odyssey Broc Raiford Grips
- FSA Conical Headset
- Sunday Sabretooth v2 25t Sprocket
- Sunday Saker 3-PC Cranks, 165mm
- Odyssey Path Pro OEM 2.40"" Tires
- Odyssey C5 Sealed Cassette Hub
- Sealed Front Hub
Spec as shown is subject to change based on component availability.
| Size |
21TT |
| Frame |
100% chromoly frame with wave downtube, removable brake hardware Top Tube Length: 21"" Head Tube Angle: 75° Seat Tube Angle: 71° Chainstay Length: 13.2-13.5” Bottom Bracket Height: 11.5"" Standover: 9"" |
| Fork |
Sunday EX, 20"", 100% chromoly fork w/ 2-piece steerer tube and welded pre-load, 25mm offset |
| Headset |
FSA integrated conical, 1-1/8 |
| Stem |
Sunday Freeze front load, 48mm |
| Handlebar |
Sunday, 100% chromoly, 2-piece Rise: 9"" Width: 28.5"" Backsweep: 12° Upsweep: 4° |
| Grips/Bar Ends |
Grips: Odyssey Broc Raiford |
| Brake |
Brake Lever: Odyssey Springfield Brakes: Odyssey Springfield U-brake Brake Cable: Odyssey Quik Slic |
| BB |
Sealed, Mid, 19mm |
| Cranks |
Sunday Saker, 165mm |
| Sprocket |
Sunday Sabertooth v2, 25T, 6061 aluminum |
| Chain |
KMC Z1 wide |
| Pedals |
Odyssey Twisted PC Pro |
| Front Hub |
Sunday, 36H, low-flange, sealed , 3/8"" female axle |
| Rear Hub |
Odyssey C5 Cassette Hub, 36H, 14mm male axle, 9T Driver, non-drive side plastic guard |
| Rims |
Sunday Lightning, 20"", 36H |
| Tyres |
Odyssey Path Pro OEM, 20 x 2.4 |
| Seat/Post/Clamp |
Seat: Sunday Badge, Pivotal Seat Post: Sunday Pivotal Seat Clamp: Sunday |
| Weight |
25.75lbs (with brakes) |
| Extras |
|
