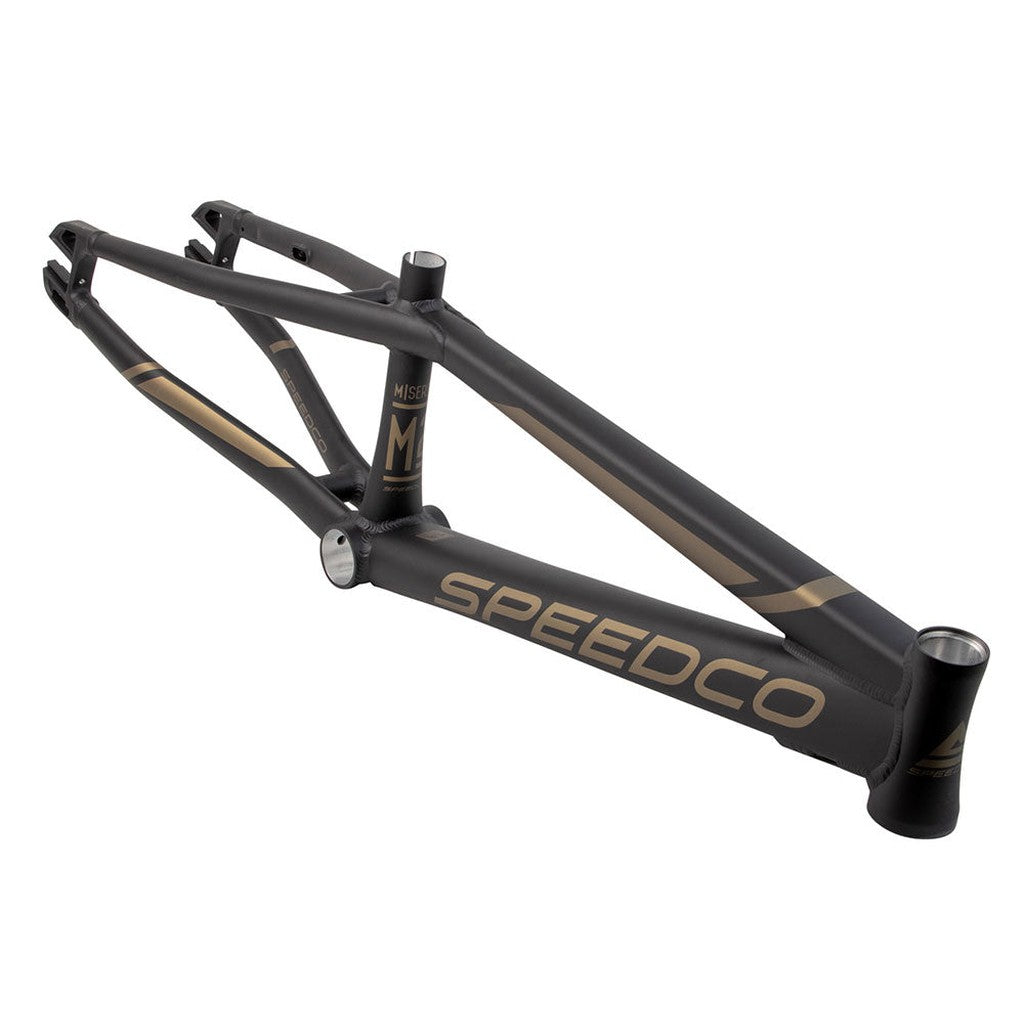

New colours for the 2024 Speedco M2 Alloy Disc frames bring a fresh update and confirm that the V-brake is dead. Speedco has ditched the brake post mounts on the seat stay to produce a alloy frame that has a sleek clean look befit of a BMX race frame of the modern era.
With geometry that mimics the Velox carbon frames, the Pro disc frames are manufactured from 7005 series aluminium that is heat treated and double butted for weight reduction and increased strength. The down tube is tapered and wider at the bottom bracket to provide increased stiffness in this critical area.
Features of the M2 disc frame include a seamless integrated chain tensioner system and internal cable routing from front of top-tube to mid seat-stay exiting right at the brake caliper, keeping the hydraulic hose protected as possible.
Speedco's reputation for producing quality BMX race frames in both aluminium and carbon is well known in the racing community and the M2 disc frame continues this legacy of innovation and style. Some of the fastest riders on the planet ride Speedco frames.
Making the jump to your first disc brake frame? Contact LUX's customer service team and they will step you through the process to ensure that everything goes together smoothly. They can help you choose the right wheelset and disc brake set up for your new race rig.
Note: Each frame is supplied with the caliper mounting hardware in either 10mm or 20mm axle/thru-bolt configuration.
- Required Thru Bolt Length: 145mm
8 sizes available:
- Pro L - 20.5"TT
- Pro XL - 21"TT
- Pro XL+ - 21.35"TT
- Pro XXL - 21.75"TT
- Pro XXXL - 22.5"TT
- Pro XXXXXL- 23"TT
- Pro XL 24 - 21.75"TT
- Pro XXL 24 - 22.5"TT
| Speedco M2 | TT | BB | Chainstay | Head Tube | Head Tube | Seat Tube | Seat Tube | Weight |
| Disc Frame | Length | Height | Length (Centre) | Angle | Type | Angle | Post Size | |
| Pro L Disc | 20.5" | 11.5" | 14.75" | 74° | Tapered 1.5" | 72° | 27.2mm | 1.68kg |
| Pro XL Disc | 21" | 11.5" | 14.75" | 74° | Tapered 1.5" | 72° | 27.2mm | 1.70kg |
| Pro XXL Disc | 21.75" | 11.5" | 14.75" | 74° | Tapered 1.5" | 72° | 27.2mm | 1.72kg |
| Pro XXXL Disc | 22" | 11.5" | 15.2" | 74° | Tapered 1.5" | 72° | 27.2mm | 1.75kg |
| Pro XXXXL Disc | 22.5" | 11.5" | 15.2" | 74° | Tapered 1.5" | 72° | 27.2mm | 1.79kg |
| Pro XXXXXL Disc | 23" | 11.5" | 15.2"" | 73° | Tapered 1.5" | 69.5° | 27.2mm | 1.72kg |
| Pro XL 24 Disc | 21.75" | 12" | 15.45" | 73° | Tapered 1.5" | 69.5° | 27.2mm | 1.79kg |
| Pro XXL 24 Disc | 22.5" | 12" | 15.45" | 73° | Tapered 1.5" | 69.5° | 27.2mm | 1.86kg |
