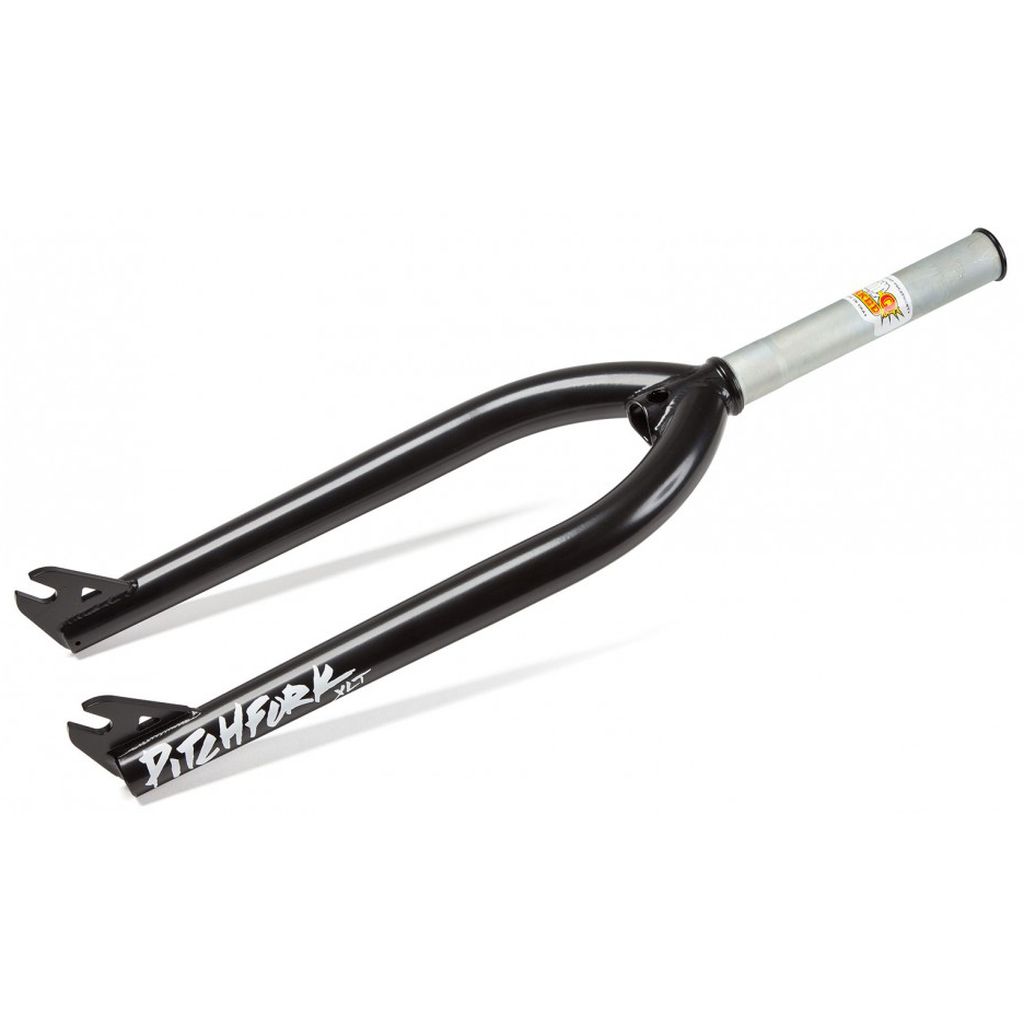

The S&M Pitchfork XLT 24 Inch Fork features a sleek black finish and a silver steerer tube made from 4130 CrMo, with "PITCHFORK" proudly displayed on one side.
The close-up reveals the S&M Pitchfork XLT 24 Inch Fork, a CNC-machined metal bike part featuring a black threaded cap engraved with "S&M BIKES MADE IN USA." Crafted from 4130 CrMo, this precision component ensures durability and exceptional performance.

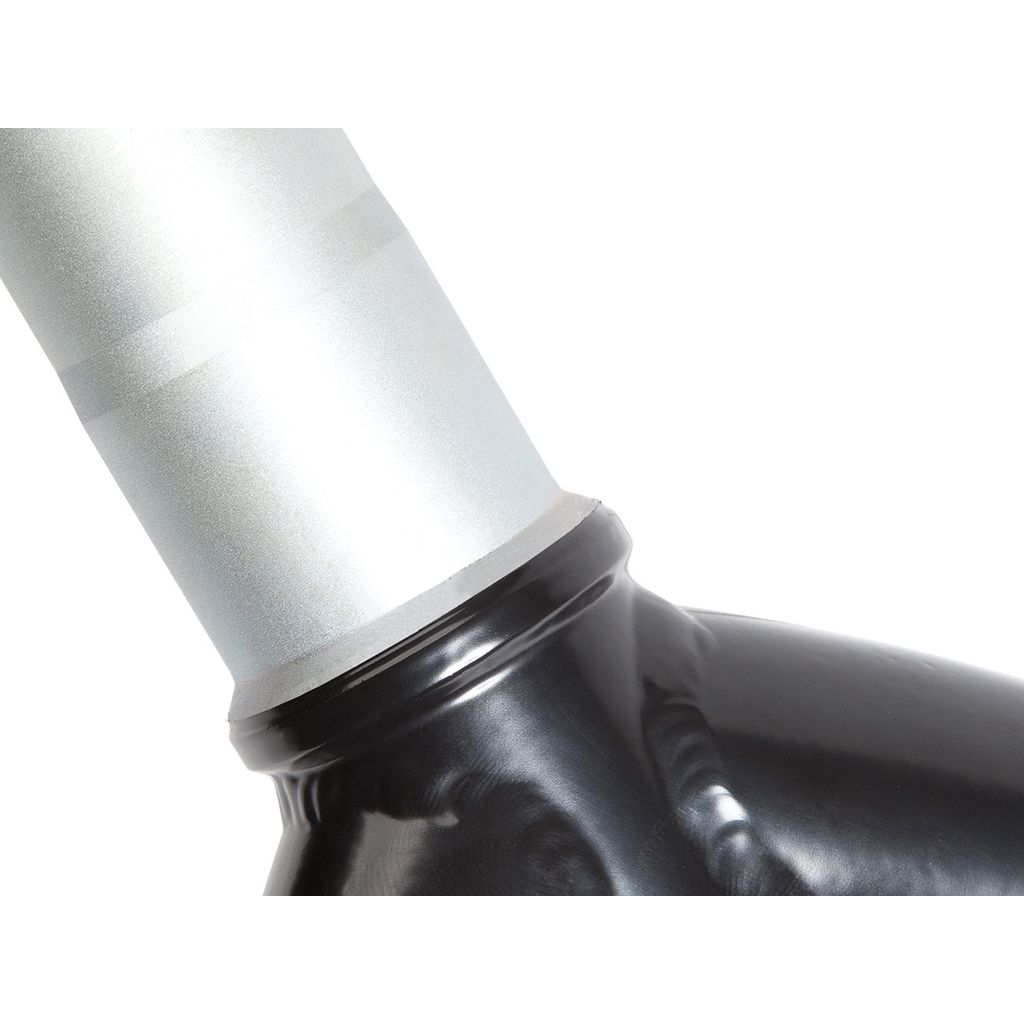

A close-up of the S&M Pitchfork XLT 24 Inch Fork, featuring a glossy black and silver CNC-machined metal joint. The image highlights its smooth connection and reflective surfaces, suggesting it might be part of a pipe or exhaust system.

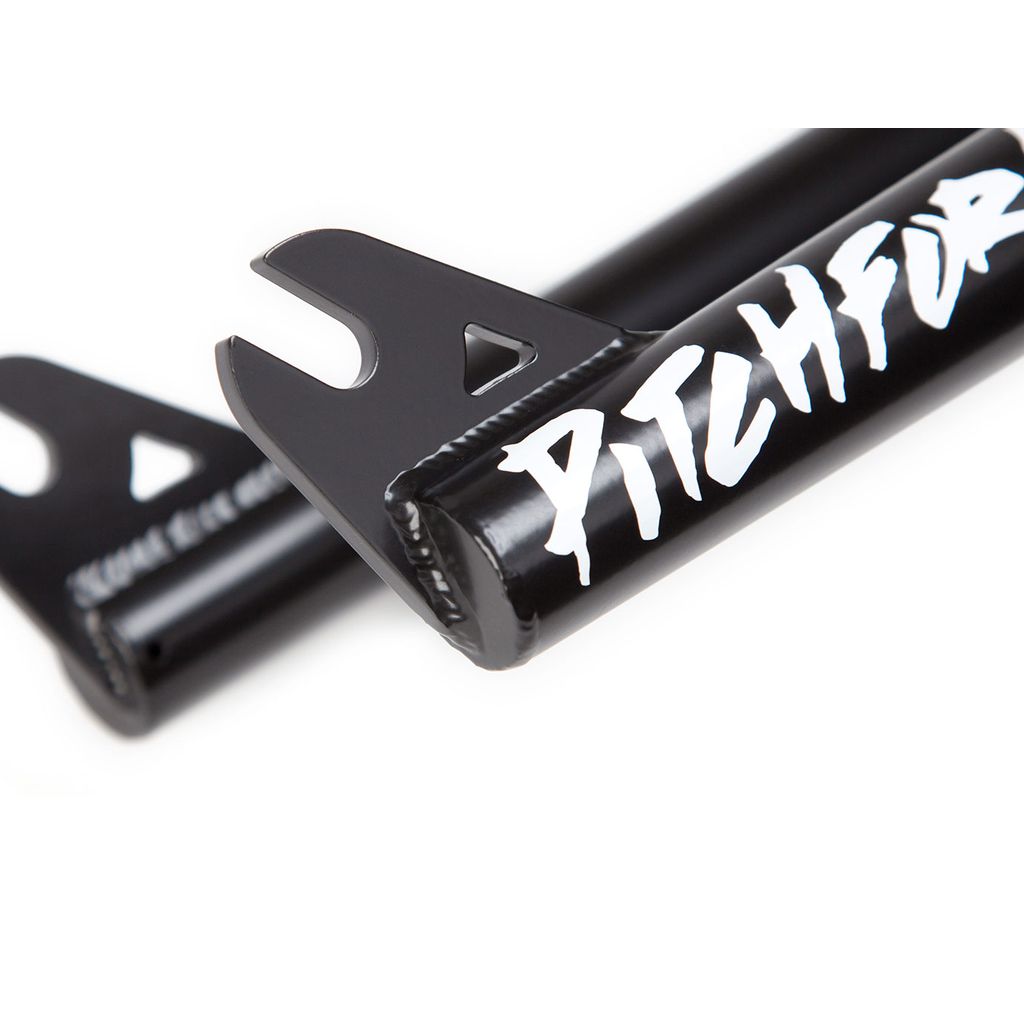

Close-up of a meticulously CNC-machined dropout from the S&M Pitchfork XLT 24 Inch Fork, crafted from 4130 CrMo, with "PITCHFORK" elegantly displayed on the side against a pristine white background.

S&M Pitchfork XLT 24 Inch Fork

$439.99 AUD

Or 4 payments of $109.99 AUD with

Colour

Offset

Select Option

View All
The S&M Pitchfork XLT 24 Inch Fork features a sleek black finish and a silver steerer tube made from 4130 CrMo, with "PITCHFORK" proudly displayed on one side.

S&M Pitchfork XLT 24 Inch Fork / Black / 33mm

$439.99 AUD

Price match

SMFO303-01-BLK

With Supplier

Description

Specifications
Legs - Double Butted, Tapered, 4130 CrMo
Dropouts - Laser Cut 3/8″ Slot
Steerer Tube - Integrated Race, 1 Piece CNC-Machined 4130 CrMo, Extruded 6061 Steerer Tube Insert
Steerer Tube Length - 166mm
Compression - M24 X 1.5 Thread – 6mm Allen Slot
Axle to Crown Height
14″ – 242mm
18″ – 290.4mm
20″ – 315.5mm
22″ – 340.9mm
24″ – 366mm
Offset - 33mm
Weight
18" - 0.97 kg
20" - 0.98 kg
22" - 1.02 kg
24" - 1.06 kg
Heat Treat - 4Q Baked Post-Weld
Tyre Clearance - Max Clearance 2.4″ S&M Tyre

Need Help ?

Chat with the LUXBMX crew!

Email Us Call Us

S&M Pitchfork XLT 24 Inch Fork Features

Brand:

S&M

Approx Weight (Kg):

1.06
