Big disc energy! Chris Mad Dog Moeller owns S&M and made a massive disc frame. For all your American-made lovers out there this is the one!

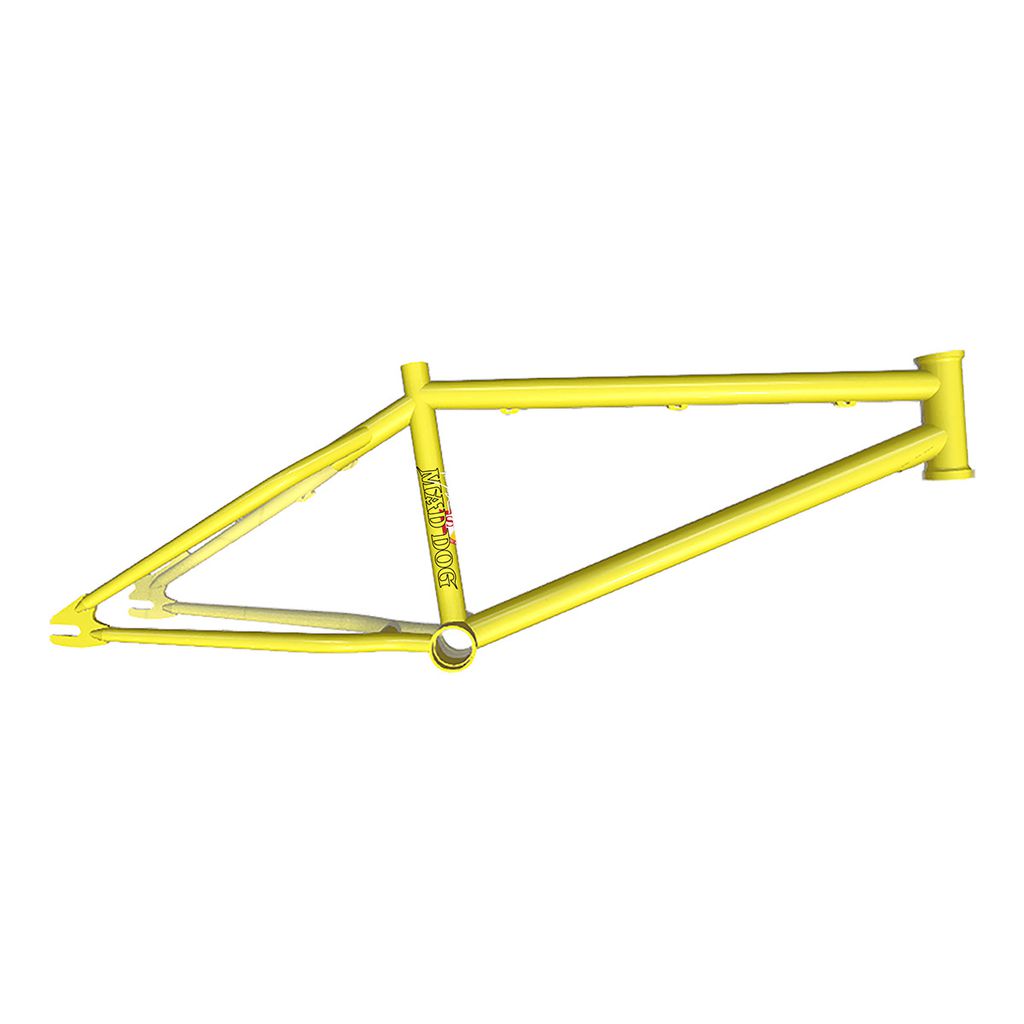

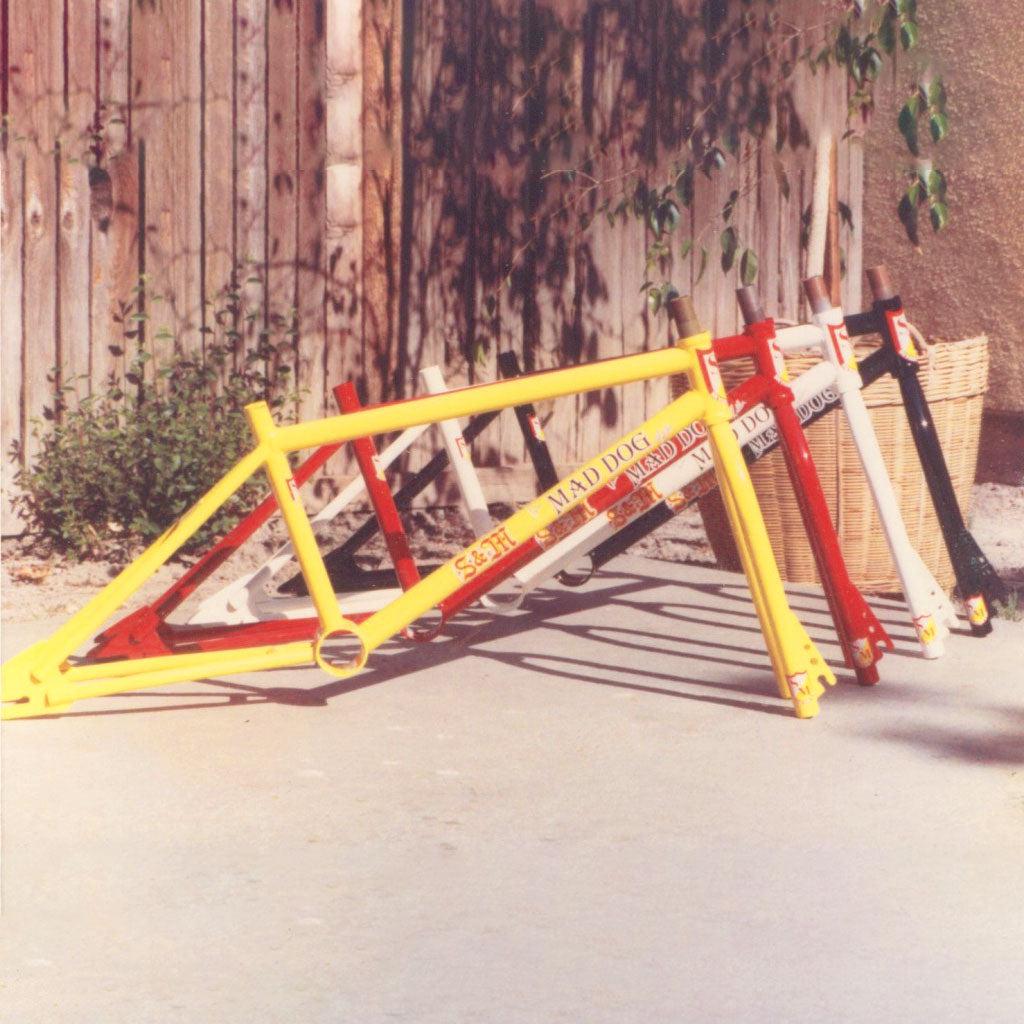

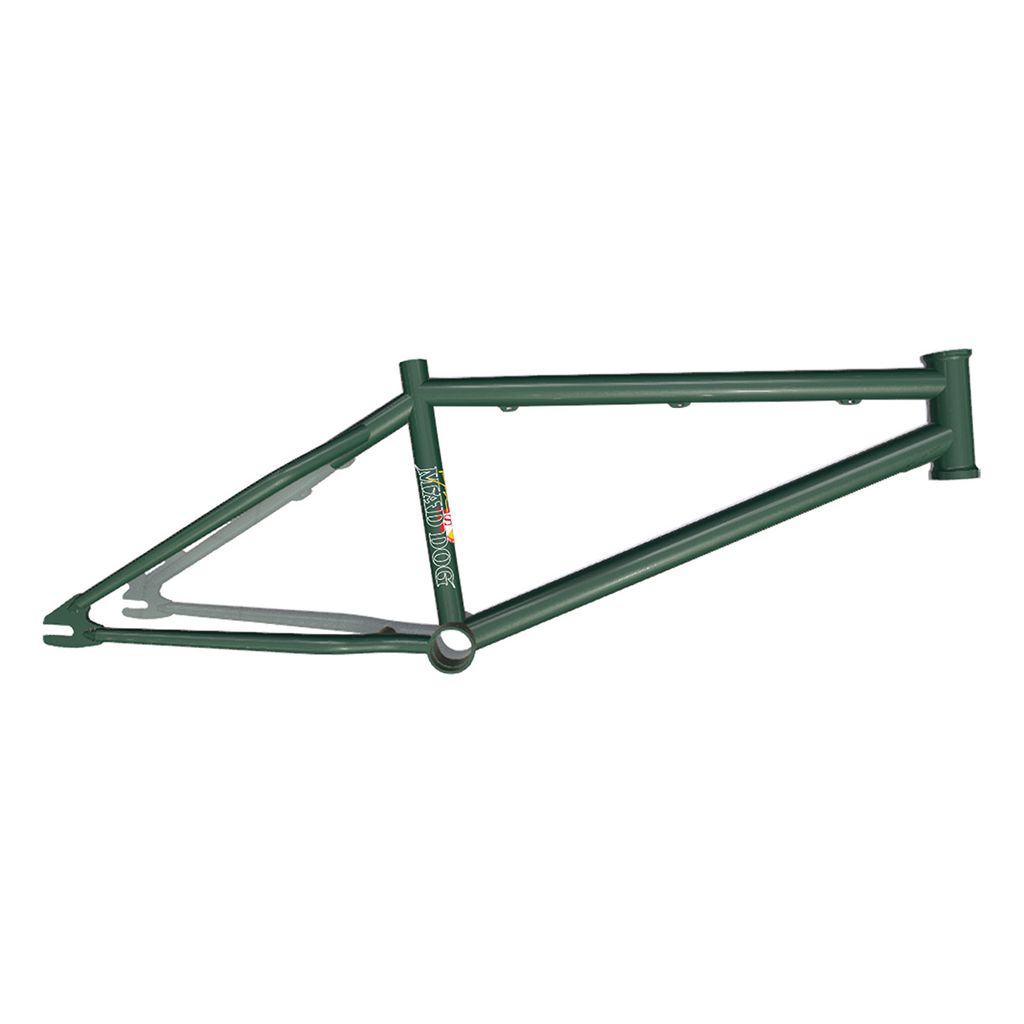

Throw a dog a wishbone! And a disc brake, with a tall stand-over, but keep it light (sub 5lbs) and you’ve got yourself the reincarnated Chris “Mad Dog” Moeller frame. It only took 36 years for S&M’s Top Dawg to drop another bike custom-crafted for his breed of biking, but much like the original, it's designed for dudes who want to terrorize the trails and the track and claim their territory doing it.
Engraved Shield on Headtube. Engraved ’87’ on BB shell. MAD DOG-tag on seat-tube

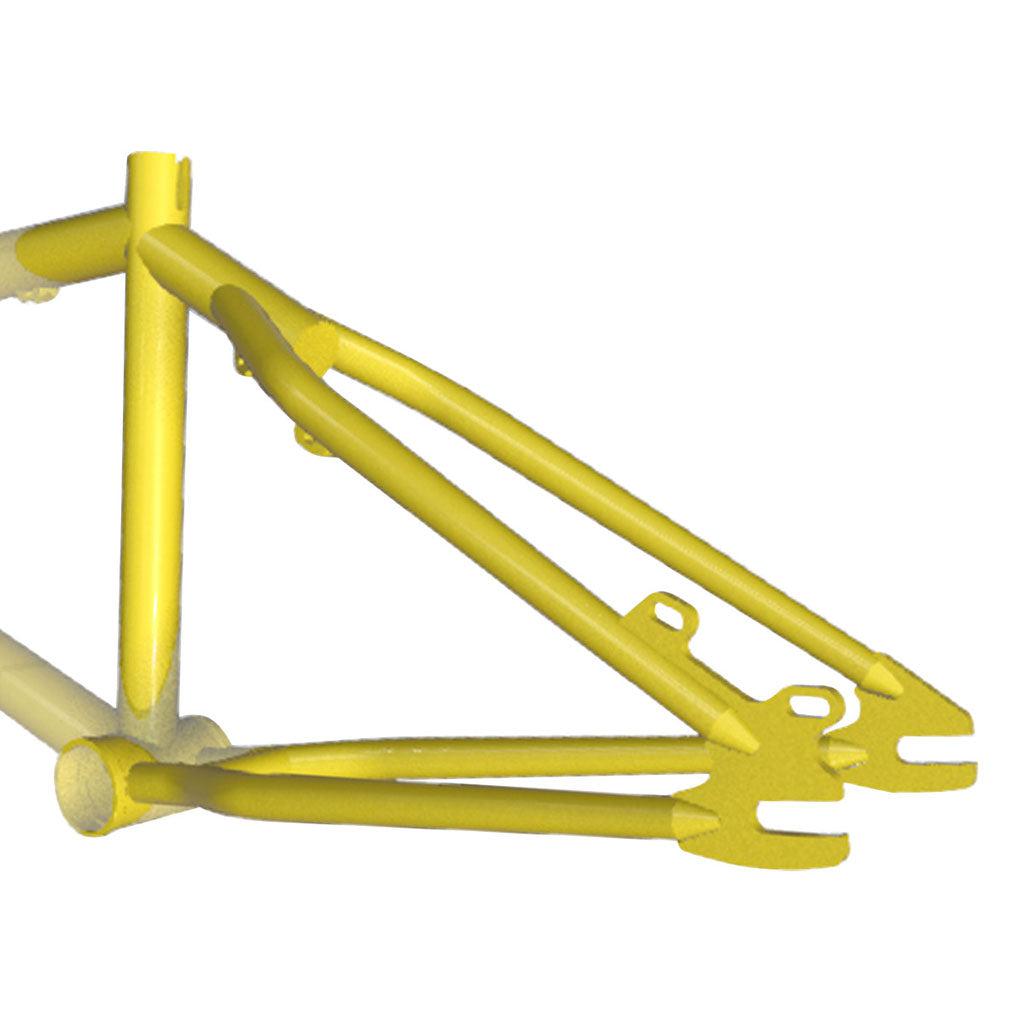

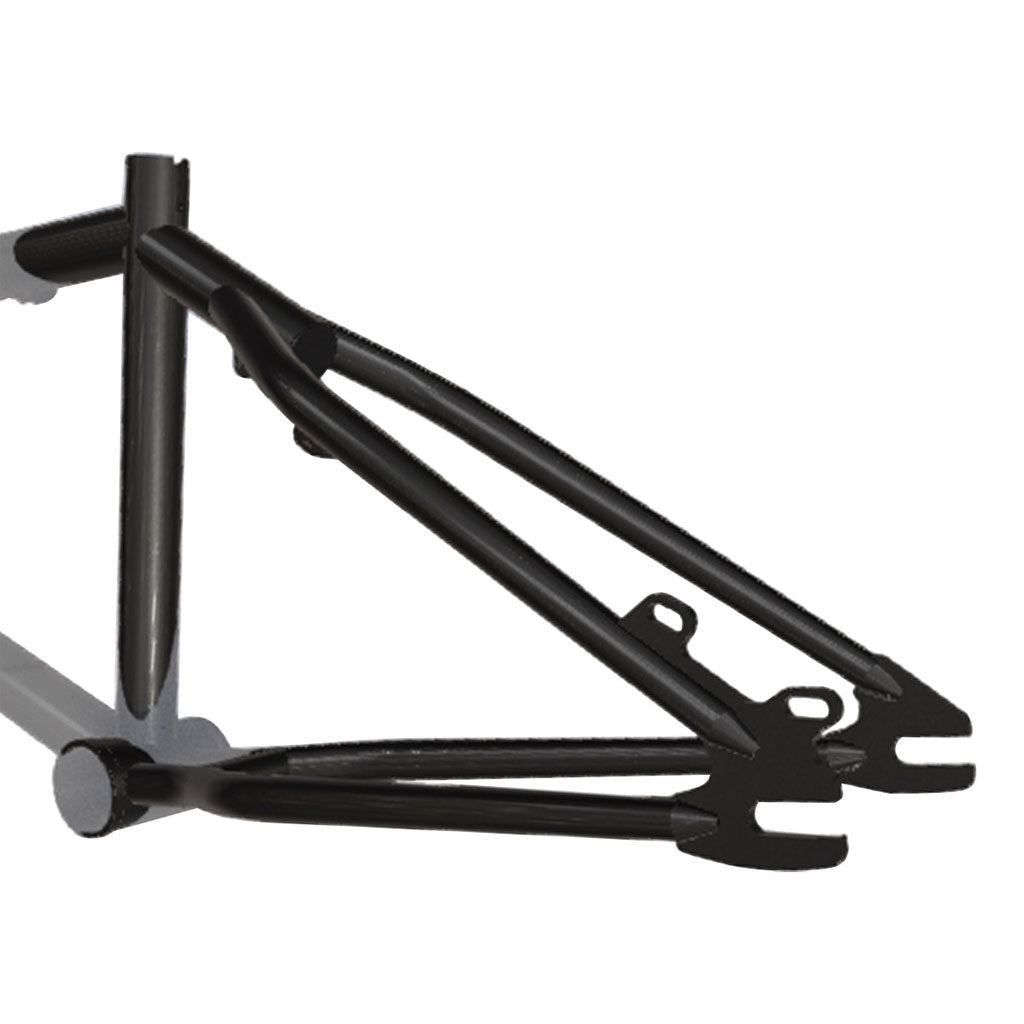

*Disc mount is designed for a 120mm rotor with 0mm IS to POST mount adaptor (Hub with narrow flange width recommended for spoke/caliper clearance), 140mm rotor requires a 20mm IS to POST mount adaptor. The max sprocket size with proper chain alignment is a 39 tooth. The seat tube is slotted for a traditional 28.6mm seat clamp or Quick Release 28.6mm seat clamp.
Specifications:
Wheel size - 20 Inch
Top tube lengths - 21″, 21.25″, 21.5″, 21.75″, 22″
Rear end length - 13.9″
Head tube angle - 74.25°
Standover height - 10″
BB height - 11.6″
Seat tube angle - 71°
Head tube style - 5″ Tall Integrated Campy Style
BB - Mid
Brake mounts -Disc 120mm Rotor Spacing with 0mm IS to POST mount adaptor, 140mm Rotor with 20mm IS to POST mount adaptor.
Dropouts - 3/8″
Seat Post Size - 1″ / 25.4mm – Frame slotted for 28.6mm Seatpost Clamp
Weight - 4.9 lbs
