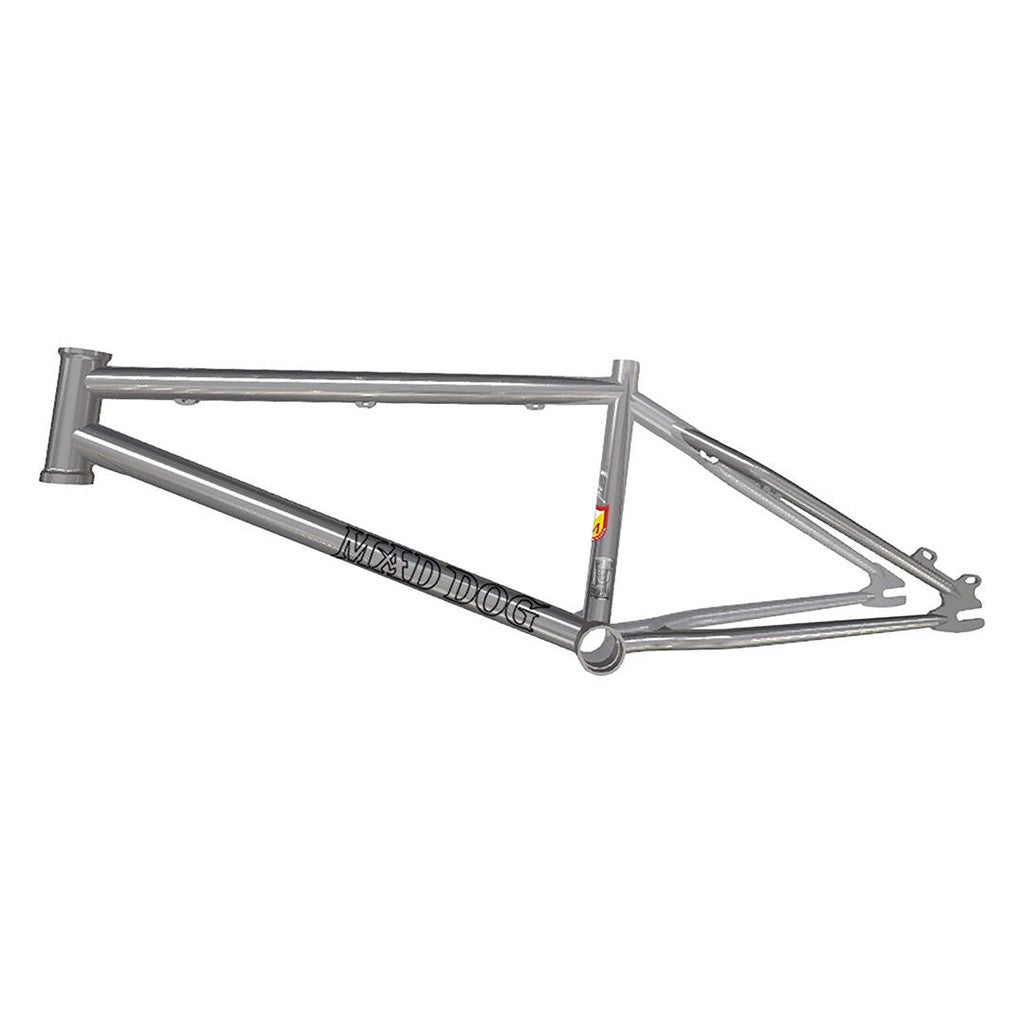

A S & M Mad Dog 22 Frame in gray, with "Mad Dog" written on the down tube, is custom-crafted and displayed in a side view against a white background.

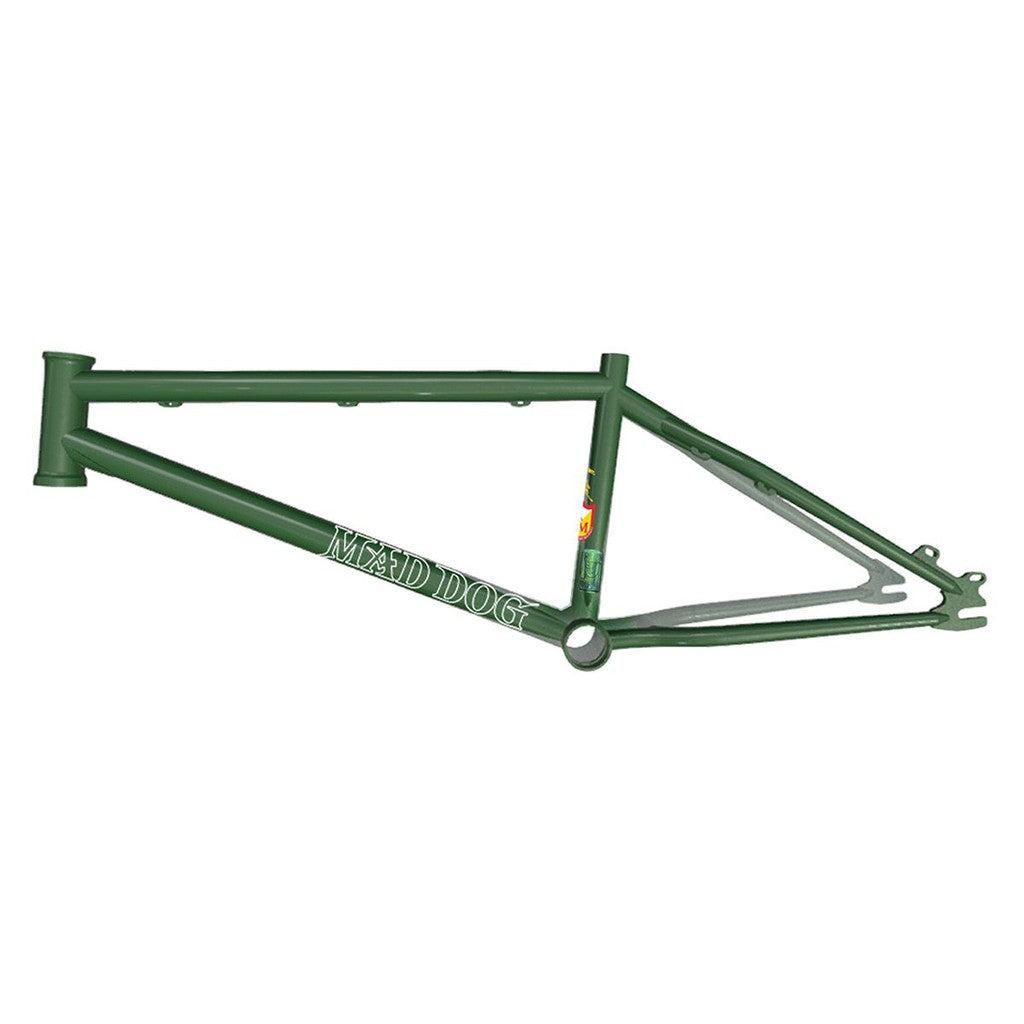

Green bicycle frame labeled "S & M Mad Dog 22 Frame," showcasing the main triangle structure with a seat tube, top tube, down tube, chainstays, and seatstays. This custom-crafted bike is built for reliability and style.

S & M Mad Dog 22 Frame

$1,299.99 AUD

Or 4 payments of $324.99 AUD with

Colour

Top Tube Length

Select Option

View All
A S & M Mad Dog 22 Frame in gray, with "Mad Dog" written on the down tube, is custom-crafted and displayed in a side view against a white background.

S & M Mad Dog 22 Frame / Gloss Clear / 22

$1,299.99 AUD

Price match

SMFR021-02-CLR

Sold Out
Green bicycle frame labeled "S & M Mad Dog 22 Frame," showcasing the main triangle structure with a seat tube, top tube, down tube, chainstays, and seatstays. This custom-crafted bike is built for reliability and style.

S & M Mad Dog 22 Frame / Green / 22

$1,299.99 AUD

Price match

SMFR021-02-GRN

With Supplier
A S & M Mad Dog 22 Frame in gray, with "Mad Dog" written on the down tube, is custom-crafted and displayed in a side view against a white background.

S & M Mad Dog 22 Frame / Gloss Clear / 22.25

$1,299.99 AUD

Price match

SMFR021-03-CLR

With Supplier
Green bicycle frame labeled "S & M Mad Dog 22 Frame," showcasing the main triangle structure with a seat tube, top tube, down tube, chainstays, and seatstays. This custom-crafted bike is built for reliability and style.

S & M Mad Dog 22 Frame / Green / 22.25

$1,299.99 AUD

Price match

SMFR021-03-GRN

With Supplier
A S & M Mad Dog 22 Frame in gray, with "Mad Dog" written on the down tube, is custom-crafted and displayed in a side view against a white background.

S & M Mad Dog 22 Frame / Gloss Clear / 22.5

$1,299.99 AUD

Price match

SMFR021-04-CLR

Sold Out
Green bicycle frame labeled "S & M Mad Dog 22 Frame," showcasing the main triangle structure with a seat tube, top tube, down tube, chainstays, and seatstays. This custom-crafted bike is built for reliability and style.

S & M Mad Dog 22 Frame / Green / 22.5

$1,299.99 AUD

Price match

SMFR021-04-GRN

With Supplier

Description
The S&M Mad Dog 22 Frame - Ttrow a dog a wishbone! And a disc brake, with a tall stand-over, but keep it light (sub 5lbs) and you’ve got yourself the reincarnated Chris “Mad Dog” Moeller frame. It only took 36 years for S&M’s Top Dawg to drop another bike custom-crafted for his breed of biking, but much like the original, it's designed for dudes who want to terrorize the trails and the track and claim their territory doing it.

Engraved Shield on Headtube. Engraved ’87’ on BB shell. MAD DOG-tag on seat-tube

*The disk mount is designed for a 120mm rotor with 0mm IS to POST mount adaptor (Hub with narrow flange width recommended for spoke/caliper clearance), 140mm rotor requires a 20mm IS to POST mount adaptor.

Specifications:
Top tube lengths - 22″, 22.25″, 22.5″
Rear end length - 14.15″
Head tube angle - 74.25°
Standover height - 10″
BB height - 11.8″
Seat tube angle - 71°
Head tube style - 5″ Tall Integrated Campy Style
BB - Mid
Brake mounts -Disk 120mm Rotor Spacing with 0mm IS to POST mount adaptor, 140mm Rotor with 20mm IS to POST mount adaptor.
Dropouts - 3/8″
Seat Post Size - 1″ / 25.4mm – Frame slotted for 28.6mm Seatpost Clamp
Weight - 5.1 lbs
Max Tyre Clearance - 22X2.35″
Max Sprocket Sizing - 36T

Need Help ?

Chat with the LUXBMX crew!

Email Us Call Us

WE ALSO RECOMMEND:

Sold out

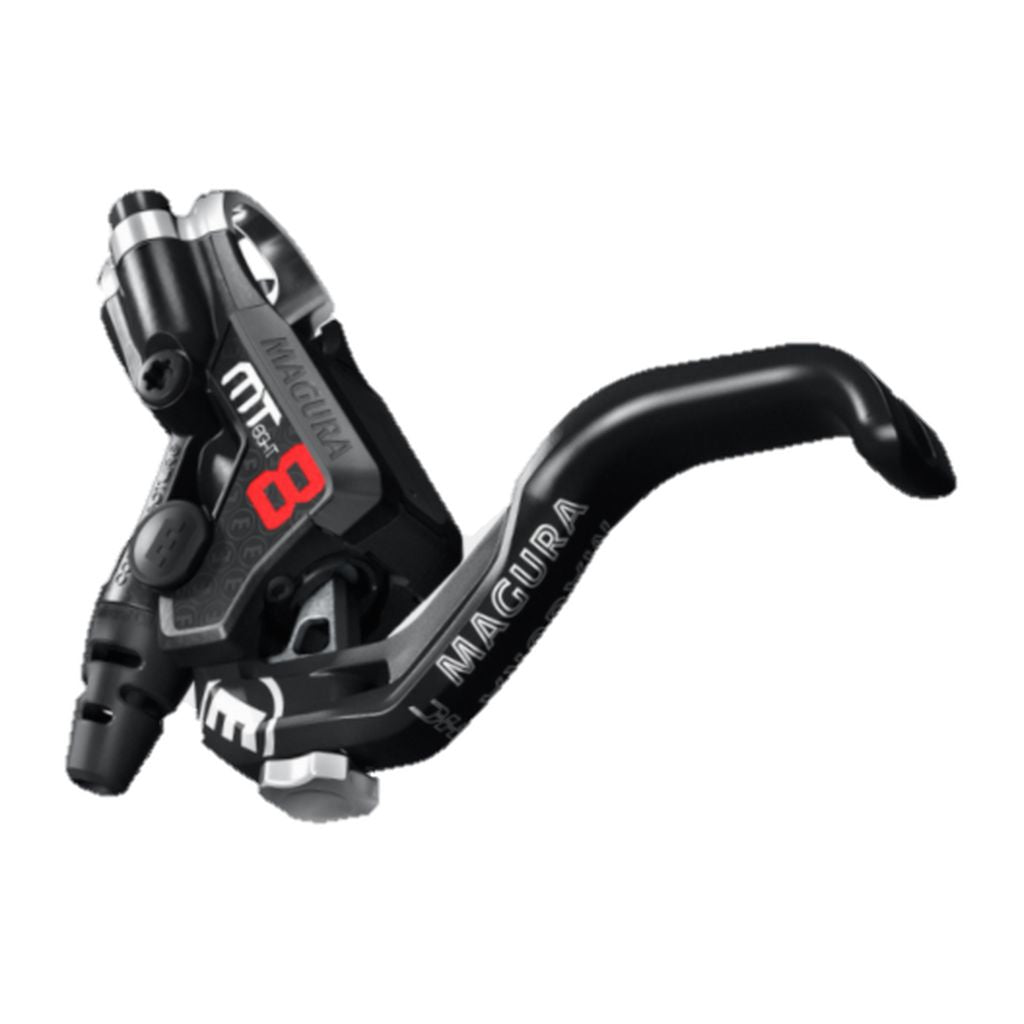

A lightweight Magura MT8 Pro 1-Finger HC Post Mount Disc Brake Kit offers maximum performance, showcased on a white background. A lightweight Magura MT8 Pro 1-Finger HC Post Mount Disc Brake Kit with a black handle, offering maximum performance.
