Redline Monocog 29 Inch Bike
Swing a leg over this beauty and let the world pass you by as you enjoy the ride. These big wheeled machines are designed for cruising in style and are available in a bunch of sizes so that you can get dialled in with the perfect fit.

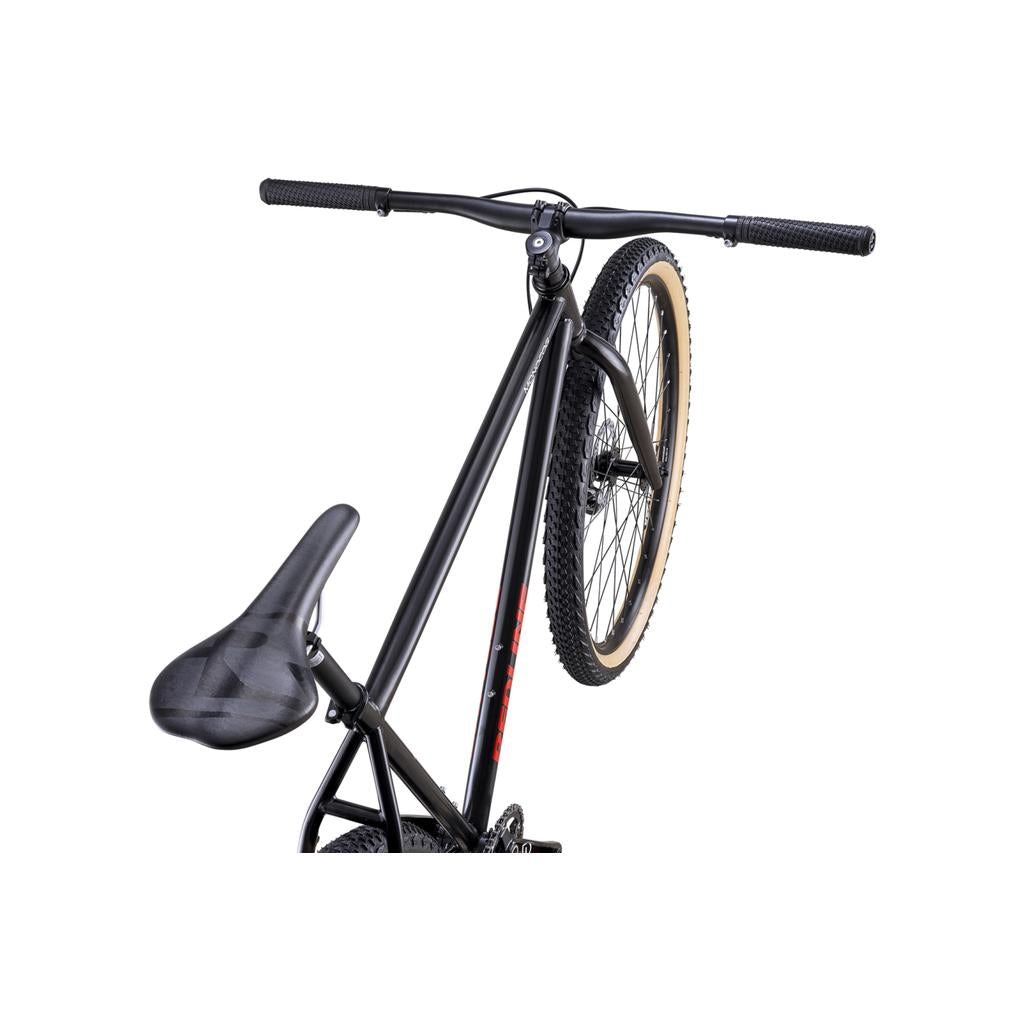

The Monocog is a steel singlespeed 29er for the ultimate in simplicity. A chromoly frame and fork makes for old-school style and gives you the smooth ride quality that steel is known for. Durable double wall 29-inch wheels let you roll over obstacles, whether you are on the road or cruising on trails. Tektro mechanical disc brakes and a nice, wide 740mm riser handlebar round out the package for great control and a comfortable riding position. This fully rigid mountain bike is at home on trails, gravel roads, and even pavement to give you a versatile ride that’s plenty fun on the singletrack.
| Frame Size | SM/15 | MD/17 | LG/19 | XL/21 |
| Bike Stand Over Height | 721.0 "" | 753.0 "" | 796.0 "" | 819.0 "" |
| Bike Seat Tube Length | 385.0 "" | 432.0 "" | 482.0 "" | 535.0 "" |
| Bike Top Tube Length | 585.0 "" | 603.0 "" | 625.0 "" | 640.0 "" |
| Bike Head Tube Length | 95.0 "" | 100.0 "" | 110.0 "" | 115.0 "" |
| Bike Head Angle | 68.0 ° | 68.0 ° | 68.0 ° | 68.0 ° |
| Bike Seat Angle | 74.0 ° | 74.0 ° | 74.0 ° | 74.0 ° |
| Bike Wheel Base | 1121.0 "" | 1140.0 "" | 1163.0 "" | 1179.0 "" |
| Bike Chain Stay Length | 450.0 "" | 450.0 "" | 450.0 "" | 450.0 "" |
| Bike Fork Offset | 46.0 "" | 46.0 "" | 46.0 "" | 46.0 "" |
| Bike Bb Height | 292.0 "" | 292.0 "" | 292.0 "" | 292.0 "" |
| Bike Bb Drop | 65.0 "" | 65.0 "" | 65.0 "" | 65.0 "" |
| Bike Stack | 582.0 "" | 586.0 "" | 596.0 "" | 600.0 "" |
| Bike Reach | 418.0 "" | 435.0 "" | 454.0 "" | 468.0 "" |
| Bike Fork Length | 481.0 mm | 481.0 mm | 481.0 mm | 481.0 mm |
| Size | 15TT, 17TT, 19TT, 21TT |
| Frame | full chromoly disc |
| Fork | chromoly disc |
| Headset | fsa impact integrated 1 1/8"" |
| Stem | alloy, 3d forged, 40mm, 35mm bar bore |
| Handlebar | alloy, 740mm wide, 15mm rise, 9 deg back, 5 deg up, 35mm |

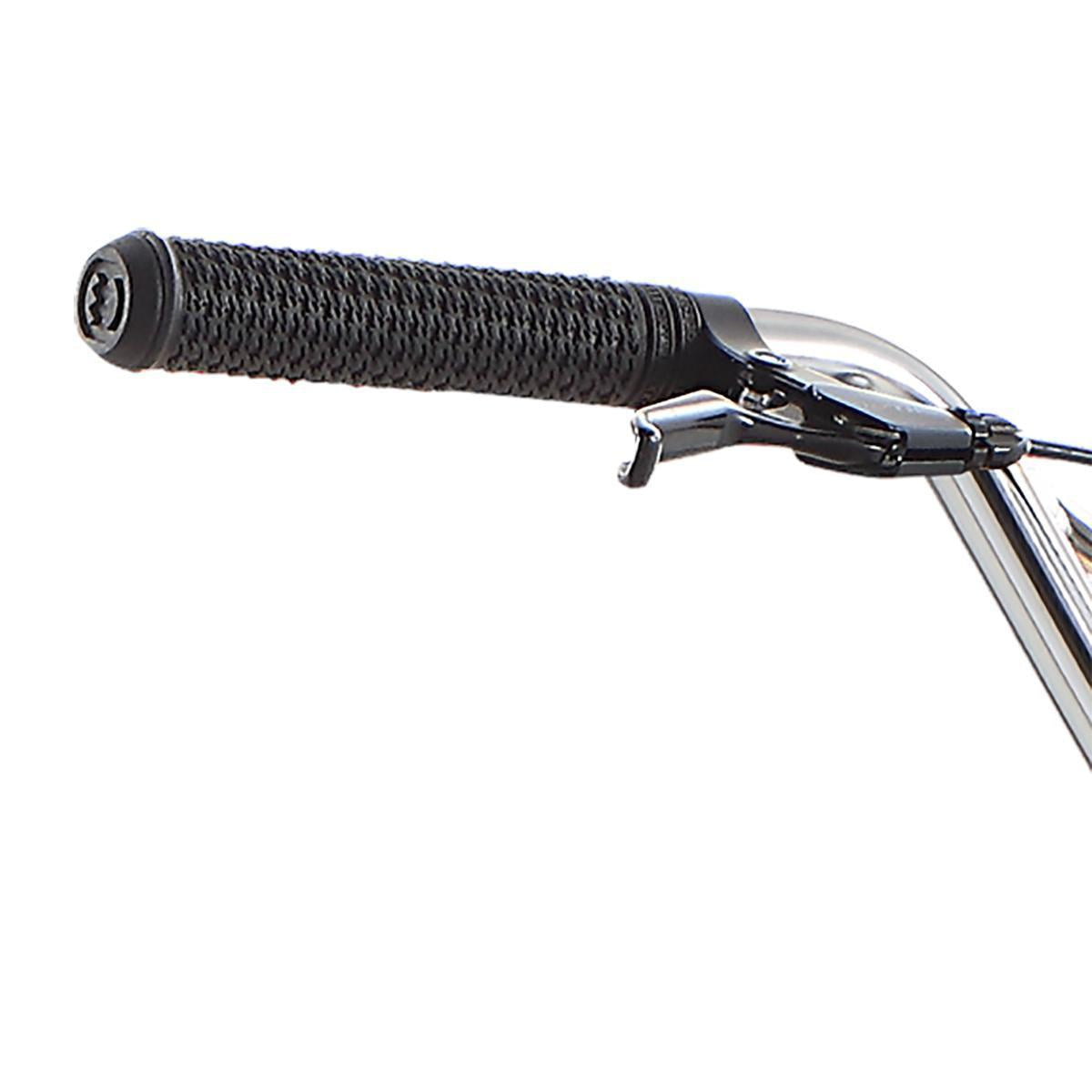

| Grips/Bar Ends | redline monster 151, no flange |

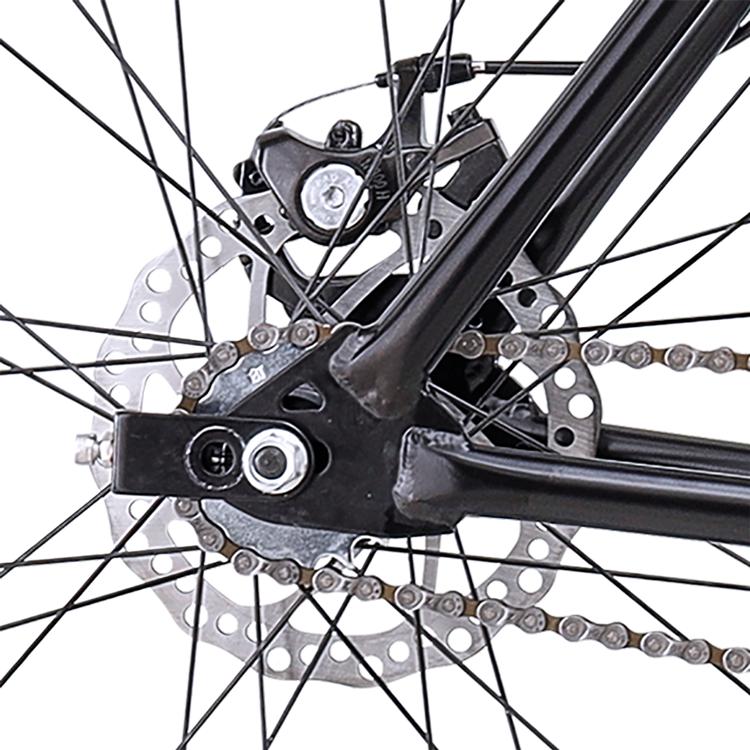

| Brake | Brake levers - tektro ml520 Brakes - tektro md-m300, mechanical disc, 160mm rotor |
| BB | sealed external euro |

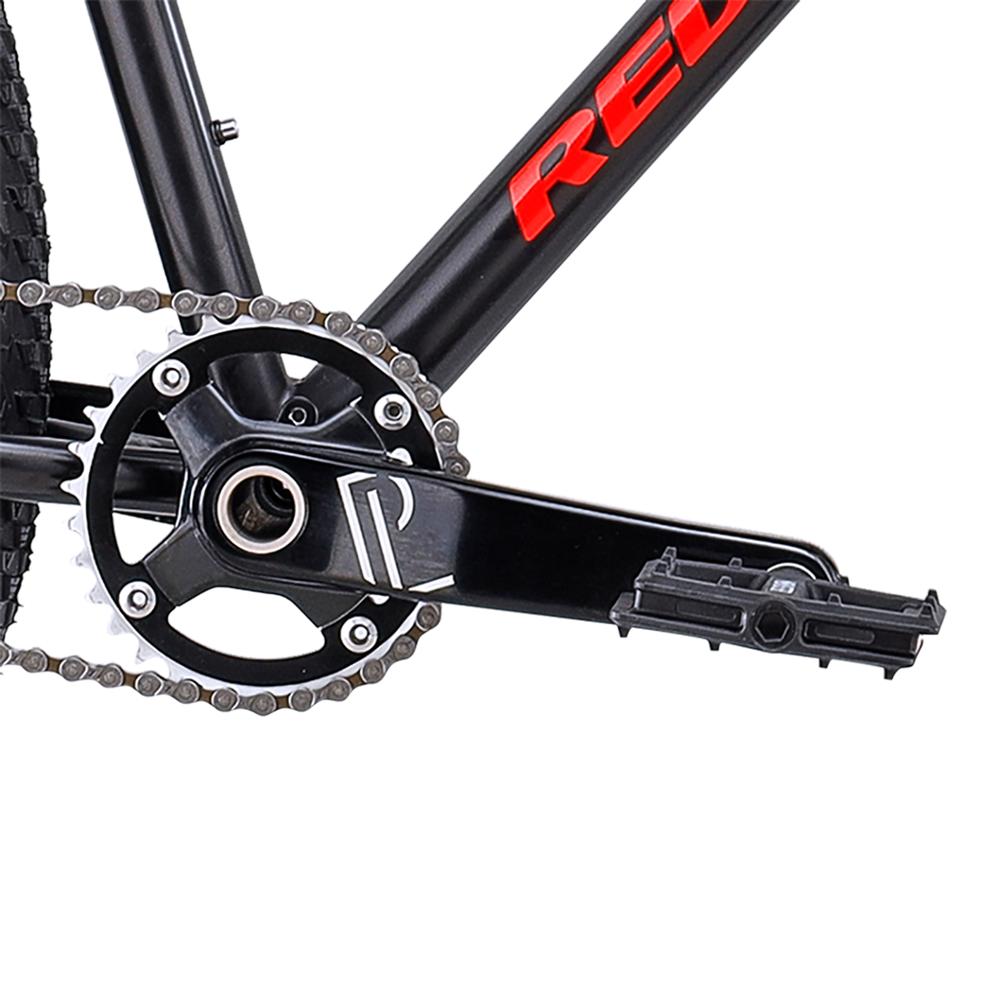

| Cranks | proline 2pc alloy forged cranks 175mm w/24mm chromo spindle |
| Sprocket | alloy, 104 bcd, 32t |
| Chain | kmc z33 |
| Pedals | monster pc, sealed bearing, ultra low profile w/ broached chromo spindle |
| Front Hub | formula alloy disc, qr, 32h |
| Rear Hub | formula alloy disc, cassette spaced for single speed, nutted, 32h Cogset - 18t |
| Rims | alloy ddm-2 double wall, disc |

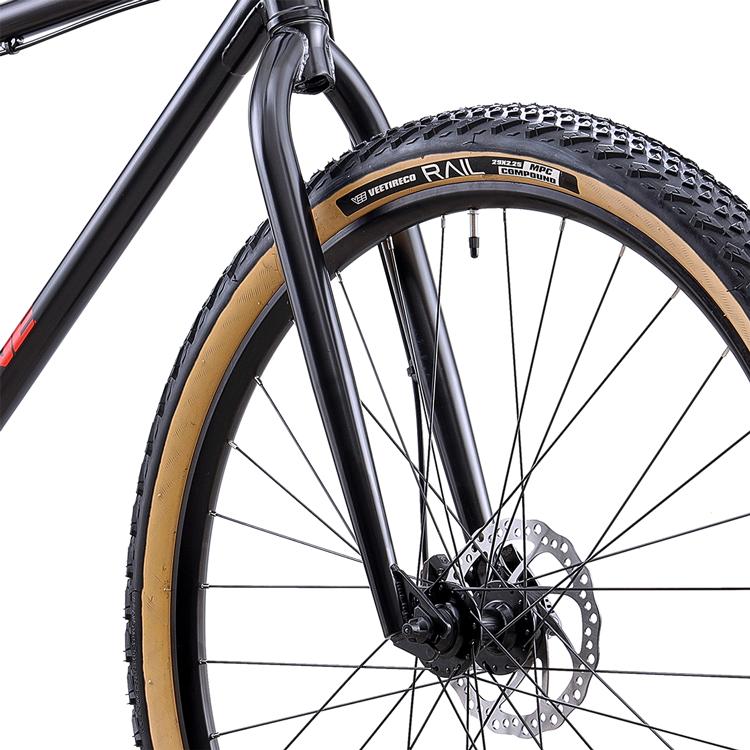

| Tyres | vee rubber, 29 x 2.25 |
| Seat/Post/Clamp | Seat - redline mtb Seatpost - alloy, 26.8 x 350mm |
| Weight |
|
| Extras |
|
