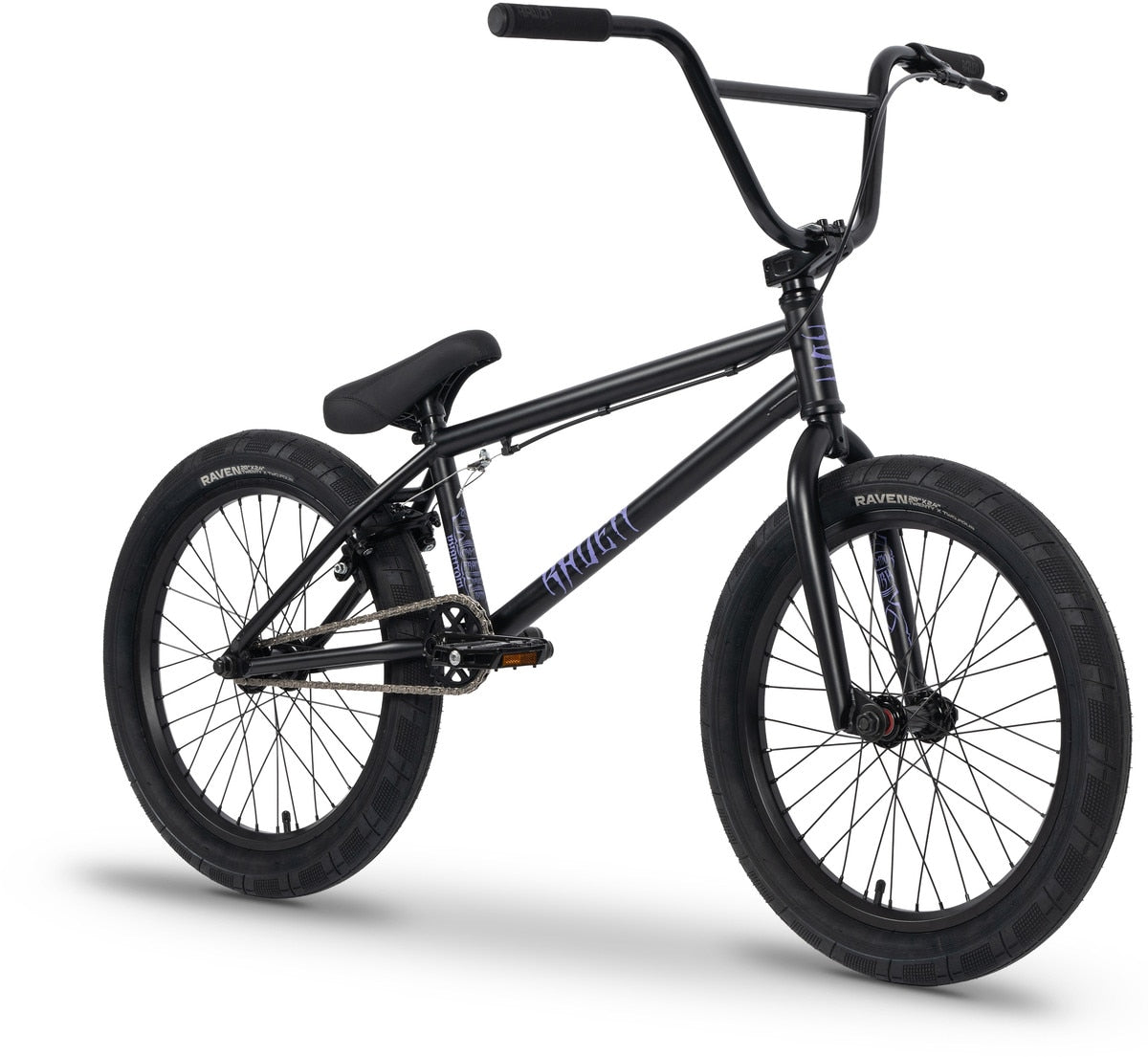

The Raven Phantom XL 20 inch Bike features thick tires, a padded seat, high handlebars, and a sturdy chromoly frame—ideal for beginner BMX riders—shown on a white background.

Description

The Raven Phantom XL is built for beginner riders who want strength, control and reliability. It runs a full chromoly frame with a larger 21" top tube and a tapered chromoly fork, so it can handle beginner street sessions and beginner park riding.

Sealed bearing hubs and a sealed MID bottom bracket keep it smooth and low maintenance, while double wall alloy rims, a 3-piece chromoly crankset and alloy brakes give you something to lean on. It rolls on 20 x 2.4" Raven tyres and is ready to ride straight out of the box.

Features
  • Full chromoly frame and fork. The 21" chromoly frame and tapered chromoly fork give a beginner something strong to learn street and park on.
  • Sealed bearings where it counts. Raven alloy 14mm sealed bearing hubs and a sealed MID bottom bracket keep the bike rolling smoothly with less maintenance.
  • Alloy brakes front and rear. An alloy calliper up front and an alloy U brake out back, with alloy levers and Jagwire slick cables for a clean pull.
  • 3-piece chromoly cranks. 165mm 3-piece Cro-Mo cranks on a 19mm spindle put the strength where the bike takes the most abuse.
  • Double wall rims, 2.4" tyres. 36H double wall alloy rims laced with 14g spokes and wrapped in Raven 20 x 2.4" tyres for plenty of grip.

Specifications
  • Size: 20"
  • Frame: Full chromoly, 21" top tube
  • Top tube: 21"
  • Fork: Full chromoly, tapered, integrated
  • Headset: Integrated
  • Stem: Alloy top load, 4-bolt
  • Bars: Chromoly steel, 28 x 8.5"
  • Brakes: Alloy calliper front, alloy U brake rear
  • Brake lever: Alloy with Jagwire slick cables
  • Cranks: 3-piece Cro-Mo, 165mm, 48T, 19mm
  • Bottom bracket: Sealed MID
  • Chain: KMC
  • Pedals: Resin platform
  • Front hub: Raven alloy 14mm, sealed bearing
  • Rear hub: Raven alloy 14mm, sealed bearing
  • Spokes: 36H, 14g
  • Rims: Alloy double wall, 36H
  • Tyres: Raven 20 x 2.4"
  • Seat: BMX fixed
  • Seat post: Steel

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Raven Phantom XL 20 inch Bike

Brand: Raven SKU:

From

$594.99 AUD

 $628.99 AUD

Or 4 payments of $148.74 AUD with

Colour - Matte Black

Top Tube Length - 21

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.
