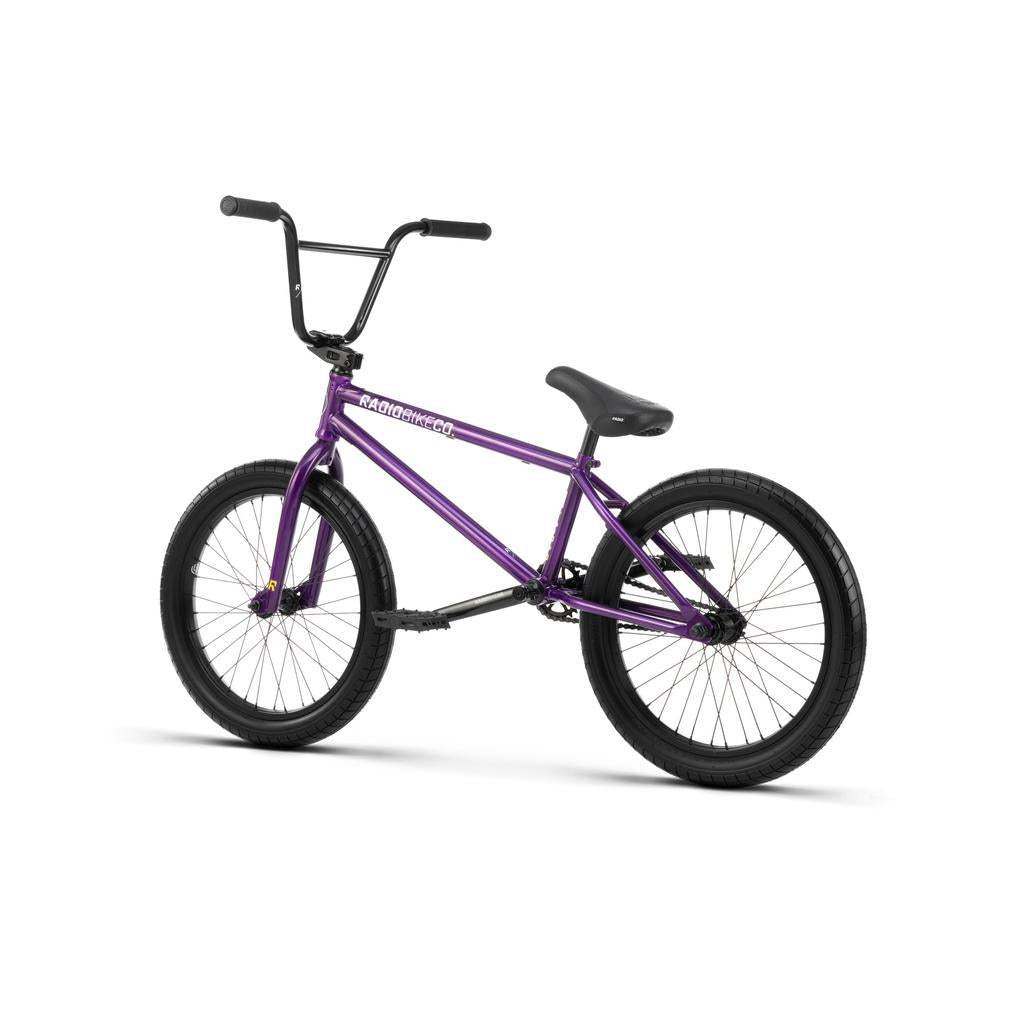

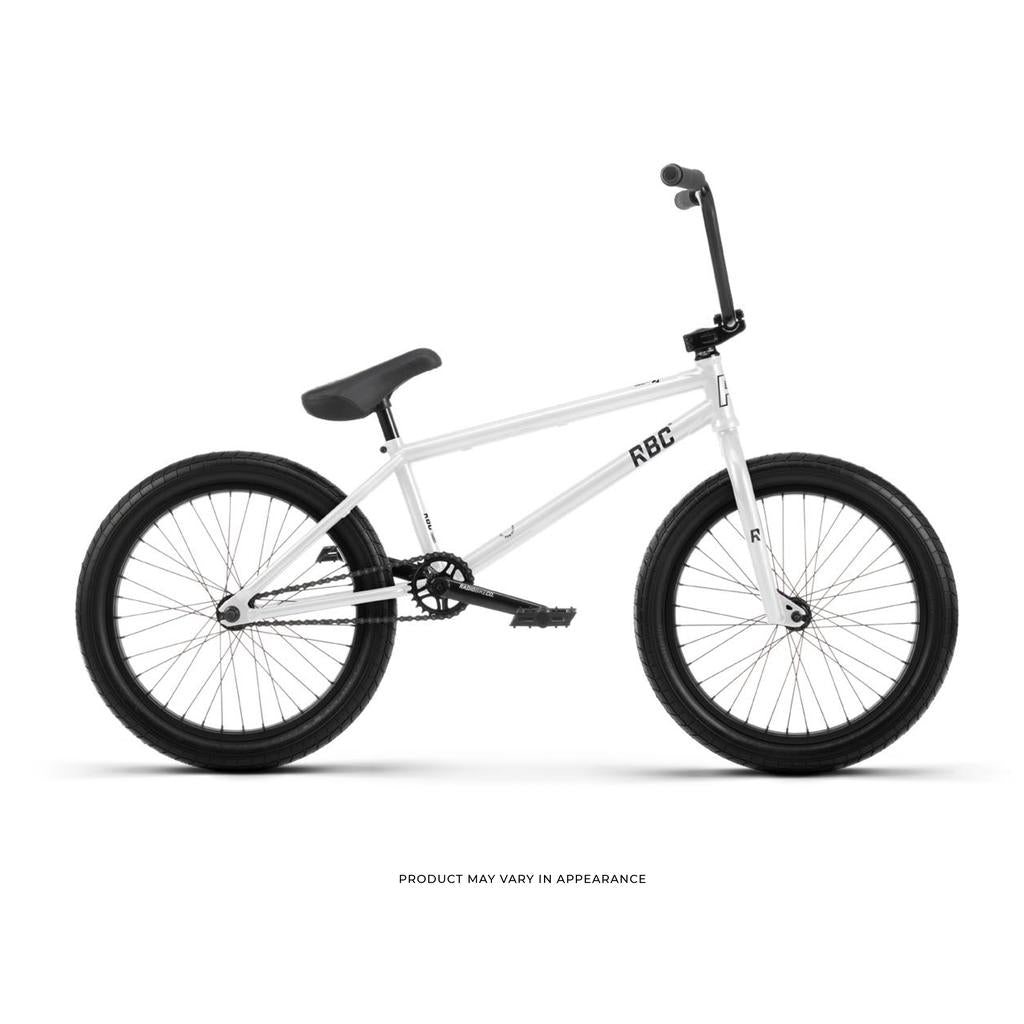

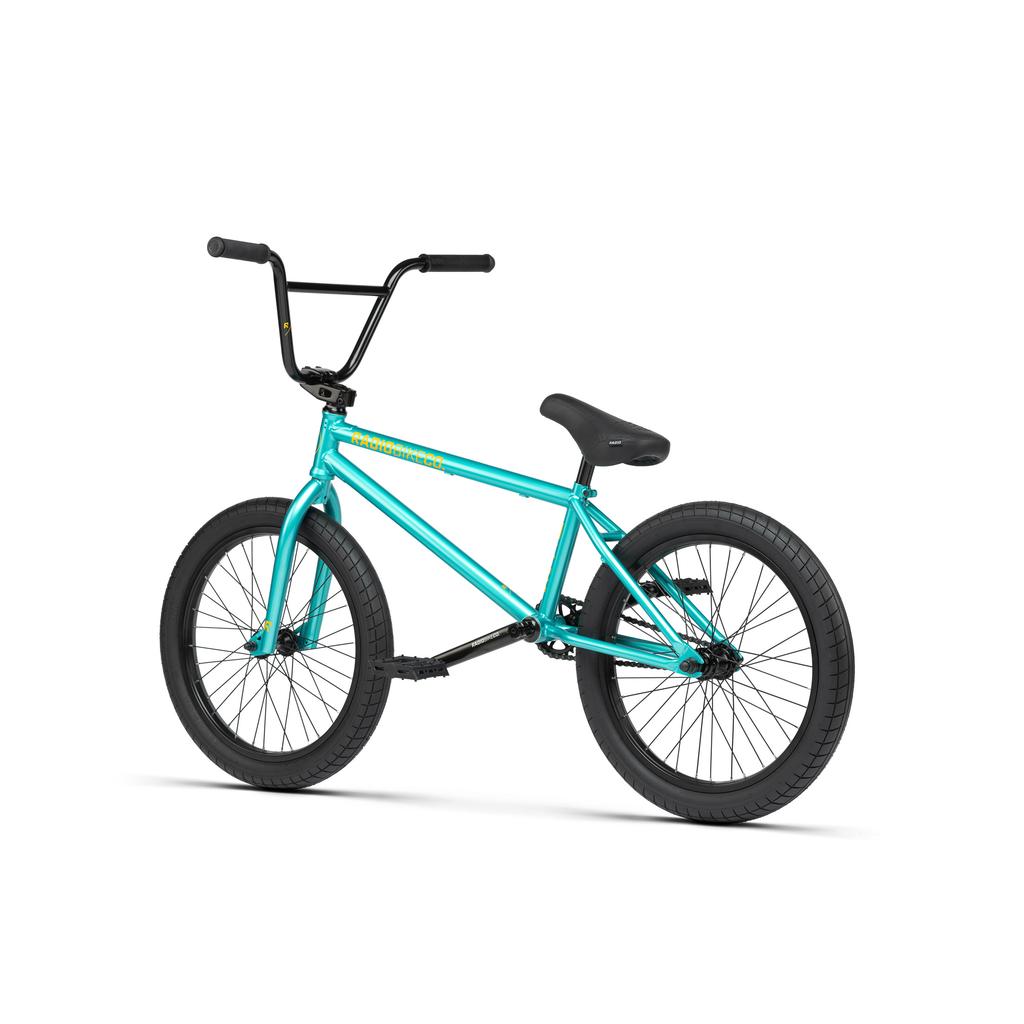

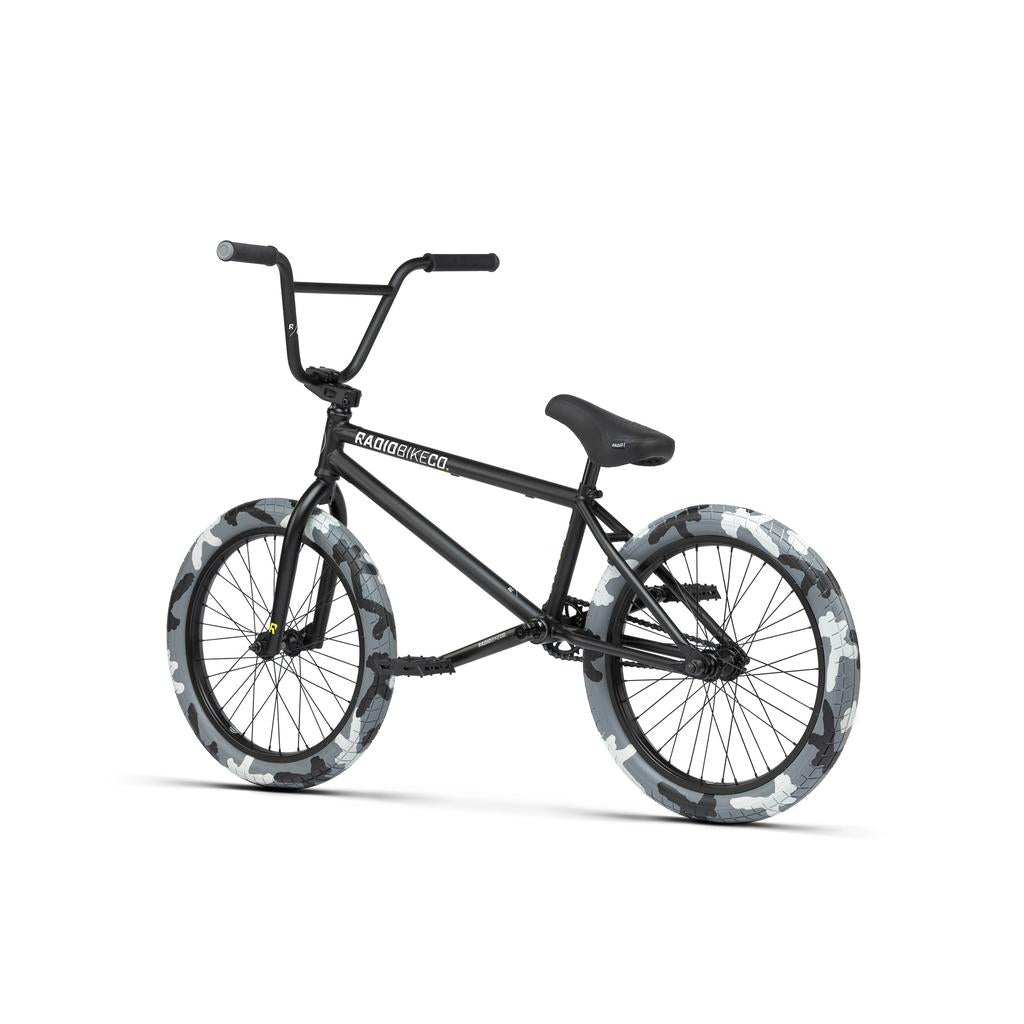

Radio Darko 20 Bike
Rip the fattest skids in your street with one of these burly shred-sleds from Radio! They threw in some Salt Burn Tyres in 2.35"" because they know whats up! Built tough with a Chromoly Top Tube and Down Tube in the frame, and Chromoly Three Piece Cranks, you can feel calm and in control on this rig! A Salt Pro Headset gets those bars spinning at blistering speeds and the Radio Pro Pedals will keep your Crocs glued in place. This is a beast of a bike so get out there and start taming it!
FRAME - RADIO ""DARKO"" frame, crmo top tube & down tube, 1020 hi-ten, removable brake mounts & guides
FORK - RADIO ""AM"" fork, 1020 hi-ten, crmo steerer, tapered legs
BARS - RADIO ""DARKO"" bar, 1020 hi-ten
GRIPS - RADIO ""AM XL"" grips, 160mm

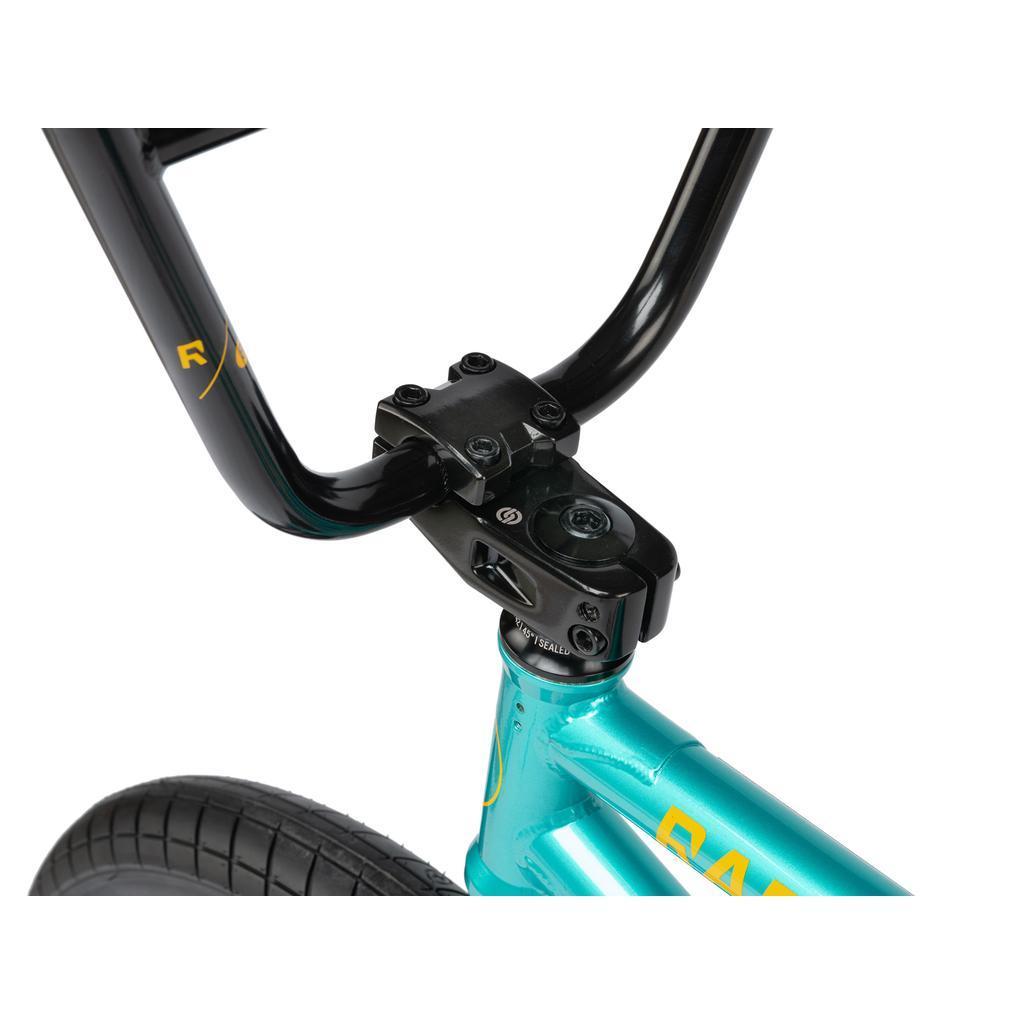

STEM - SALT ""PRO"" top load stem, 50mm reach
HEADSET - SALT ""PRO"" integrated headset, sealed bearing
GYRO - holes for removable gyro tabs
LEVER - RADIO ""AM"" brake lever, alloy, rear
BRAKES - RADIO ""AM"" u-brake, alloy, rear

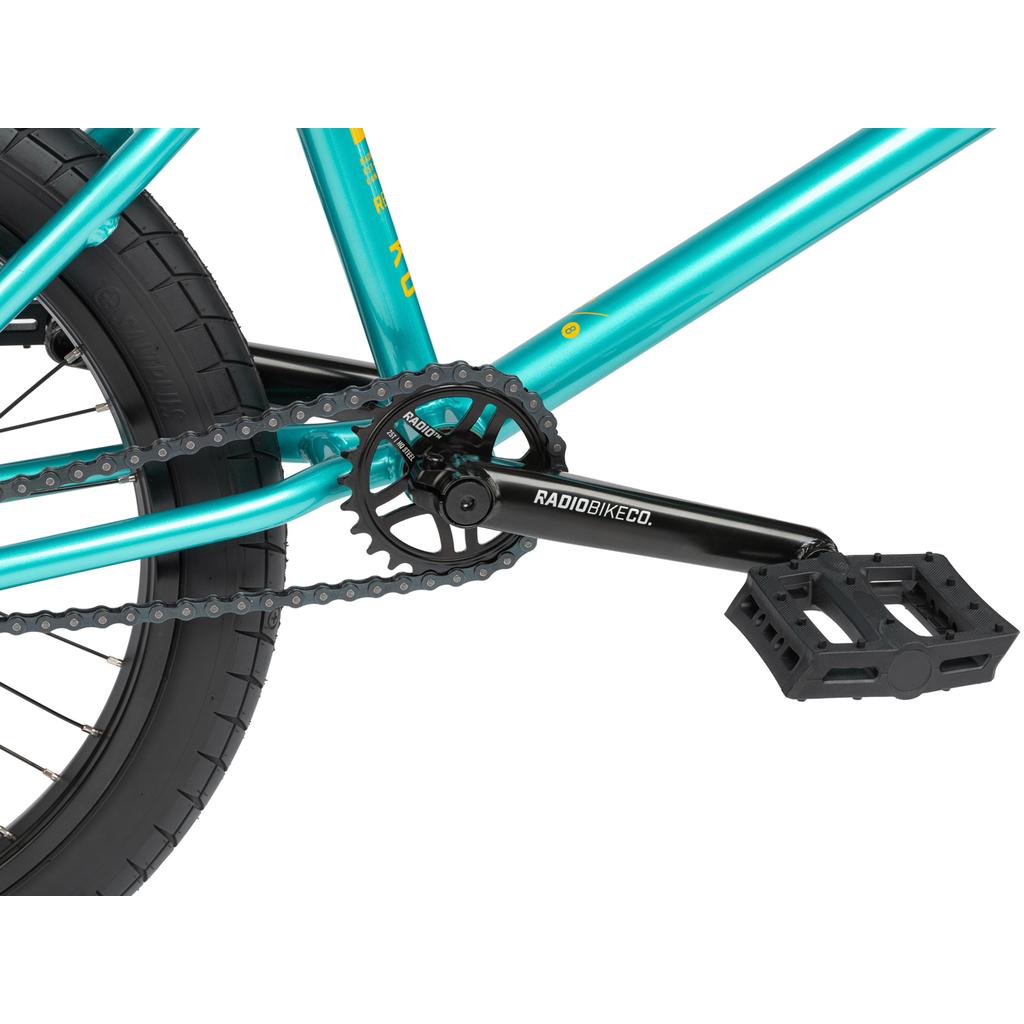

CRANKS - RADIO ""AM"" 3pc crank, tubular, crmo, 170mm, 8 spline
BB - RADIO ""MID"" bb set, press fit, sealed bearing

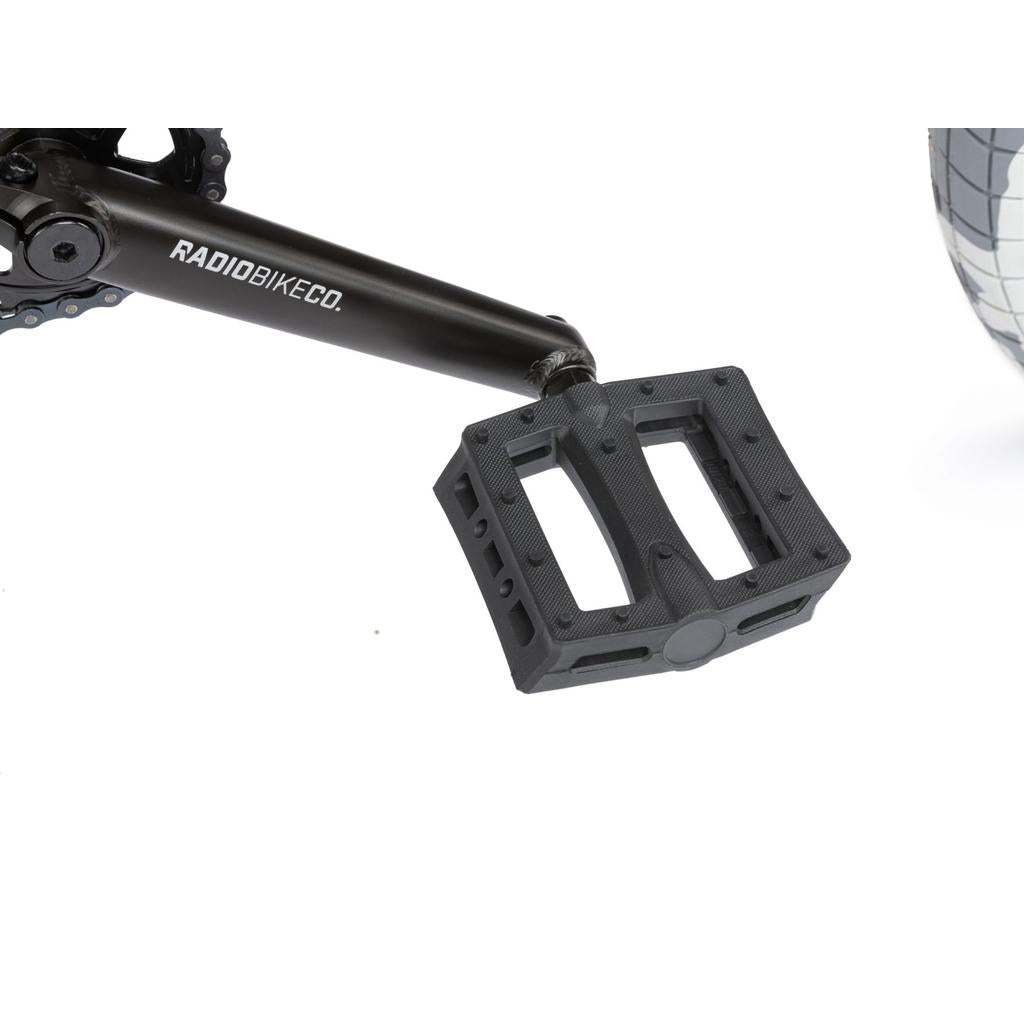

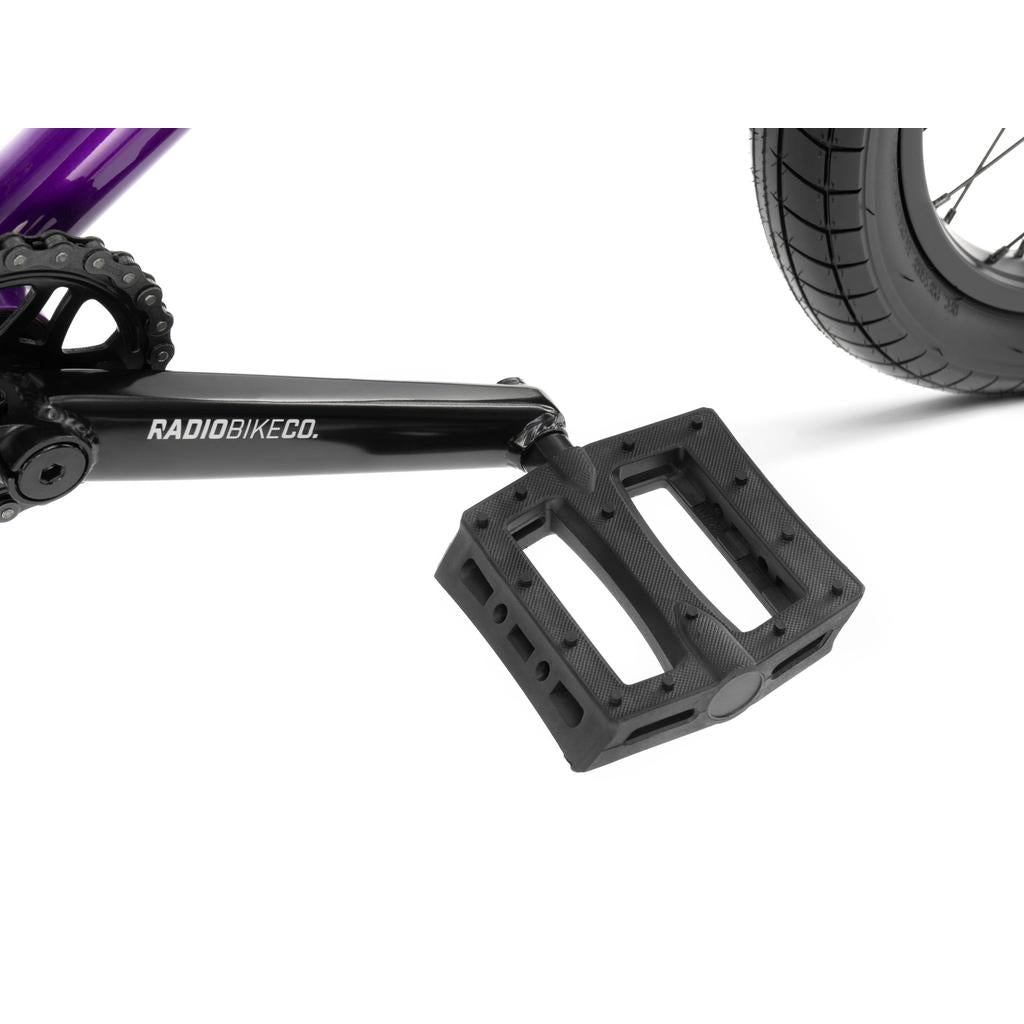

PEDALS - RADIO ""PRO"" pedals, nylon/fiberglass
CHAIN - SALT ""AM"" chain, WZ1 type

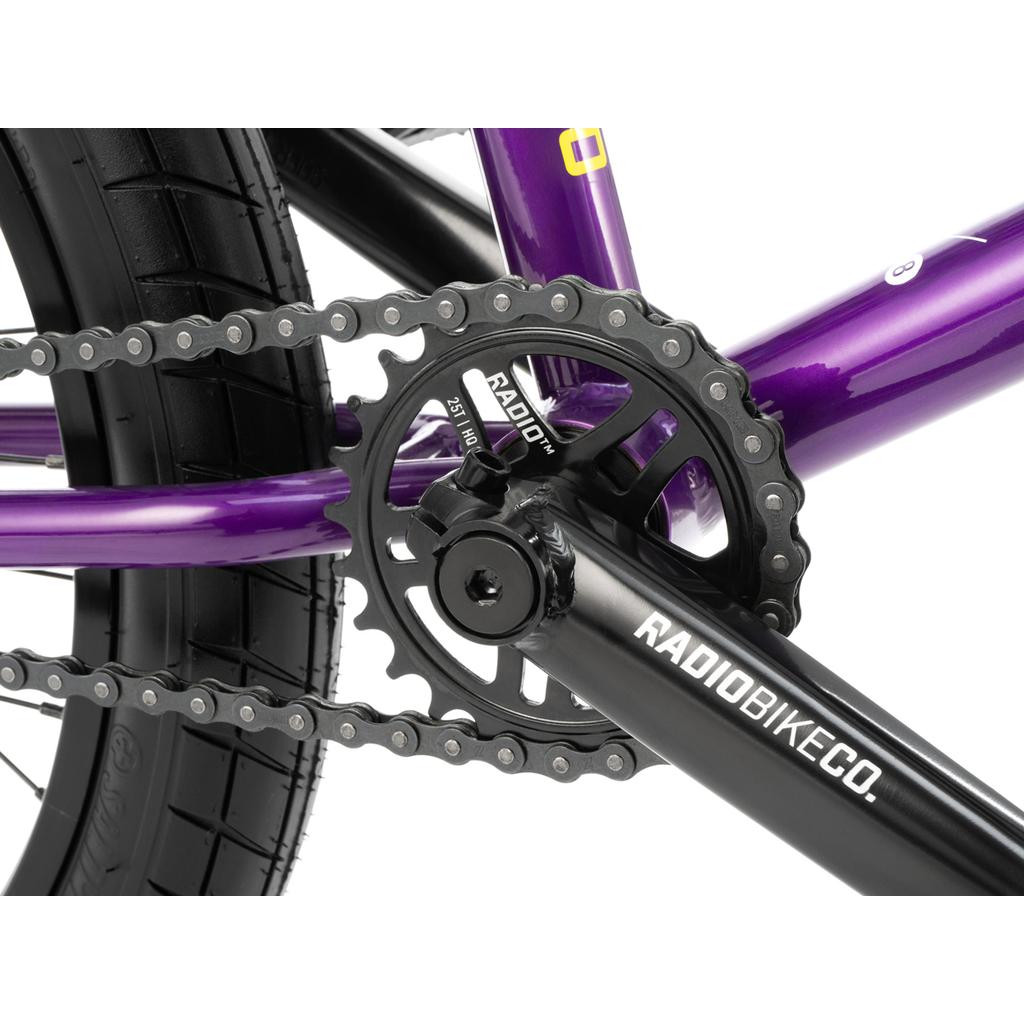

SPROCKET - RADIO ""VISION"" sprocket, steel, 25t
DRIVER - cassette driver, 9t, sealed bearing

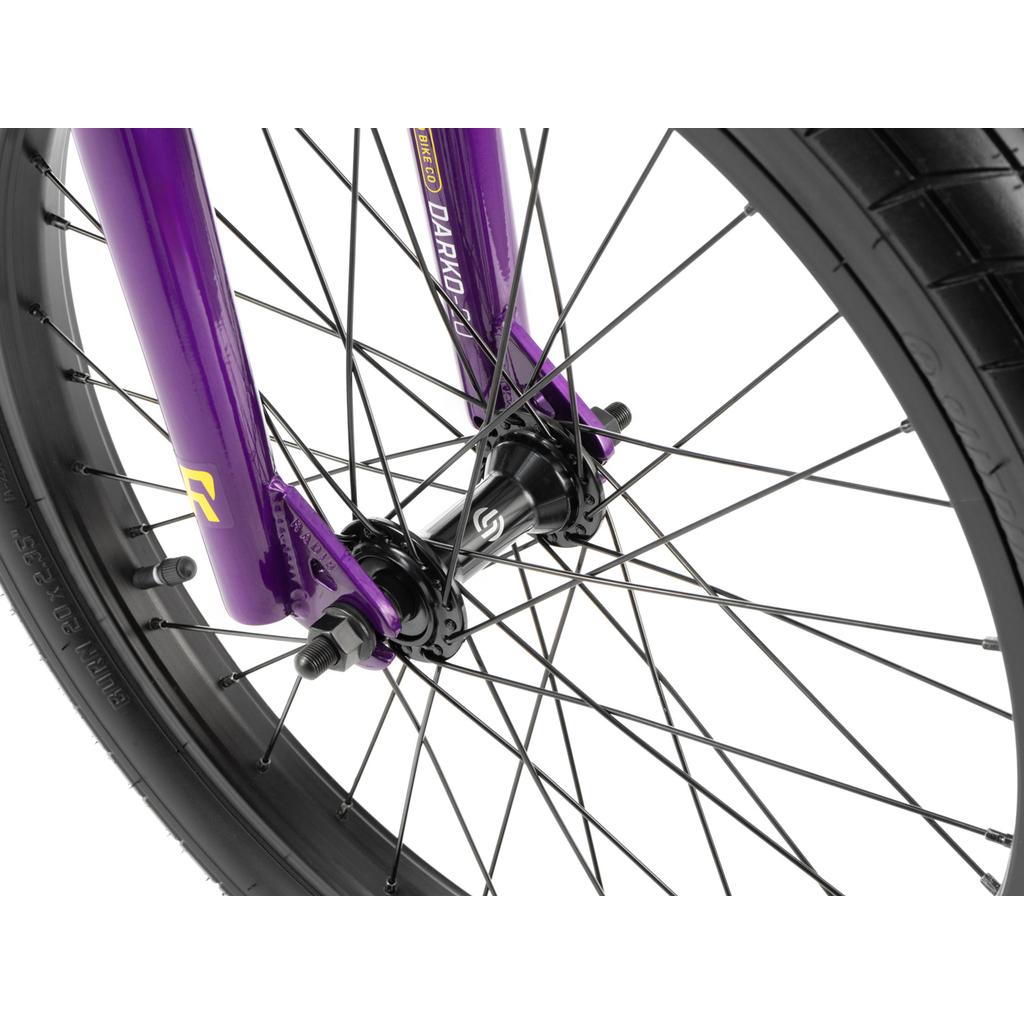

FRONT HUB - SALT ""AM"" hub, alloy, loose ball, 3/8""s male axle, 36h

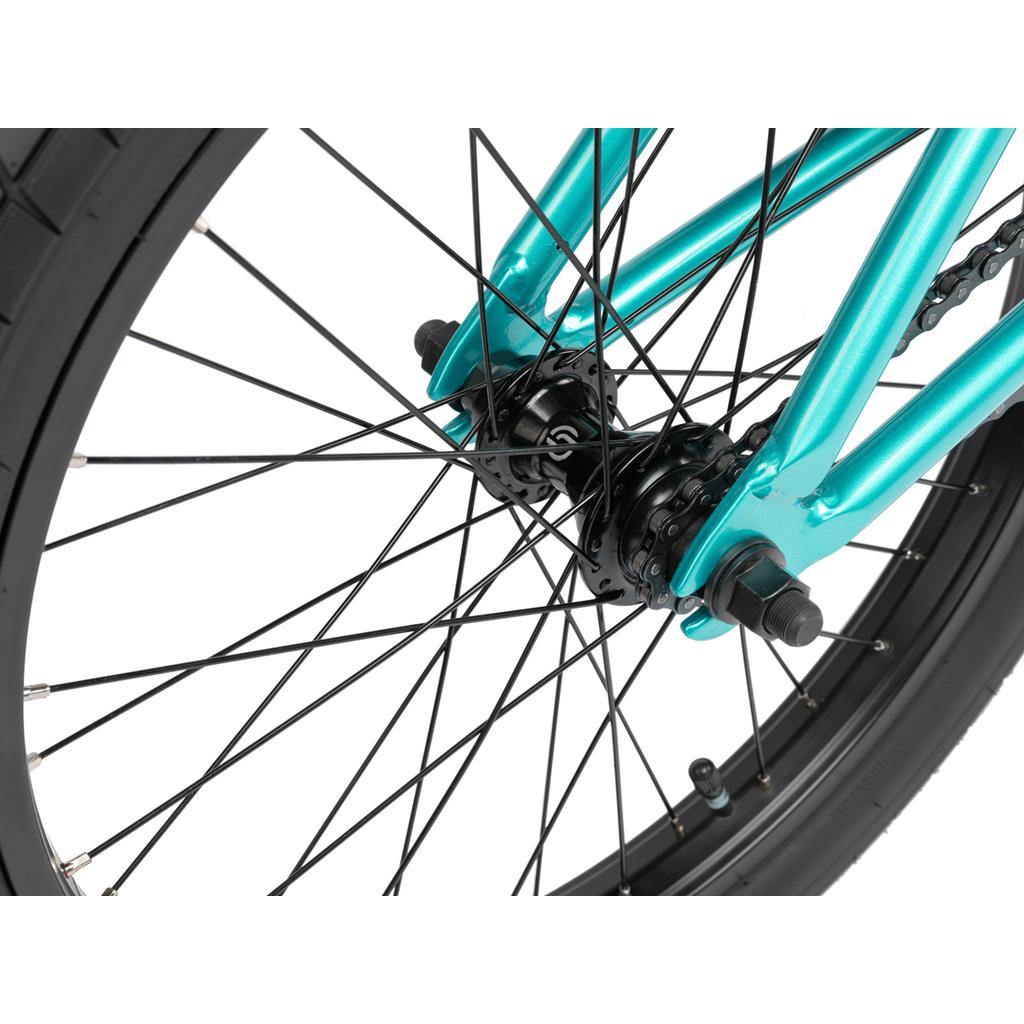

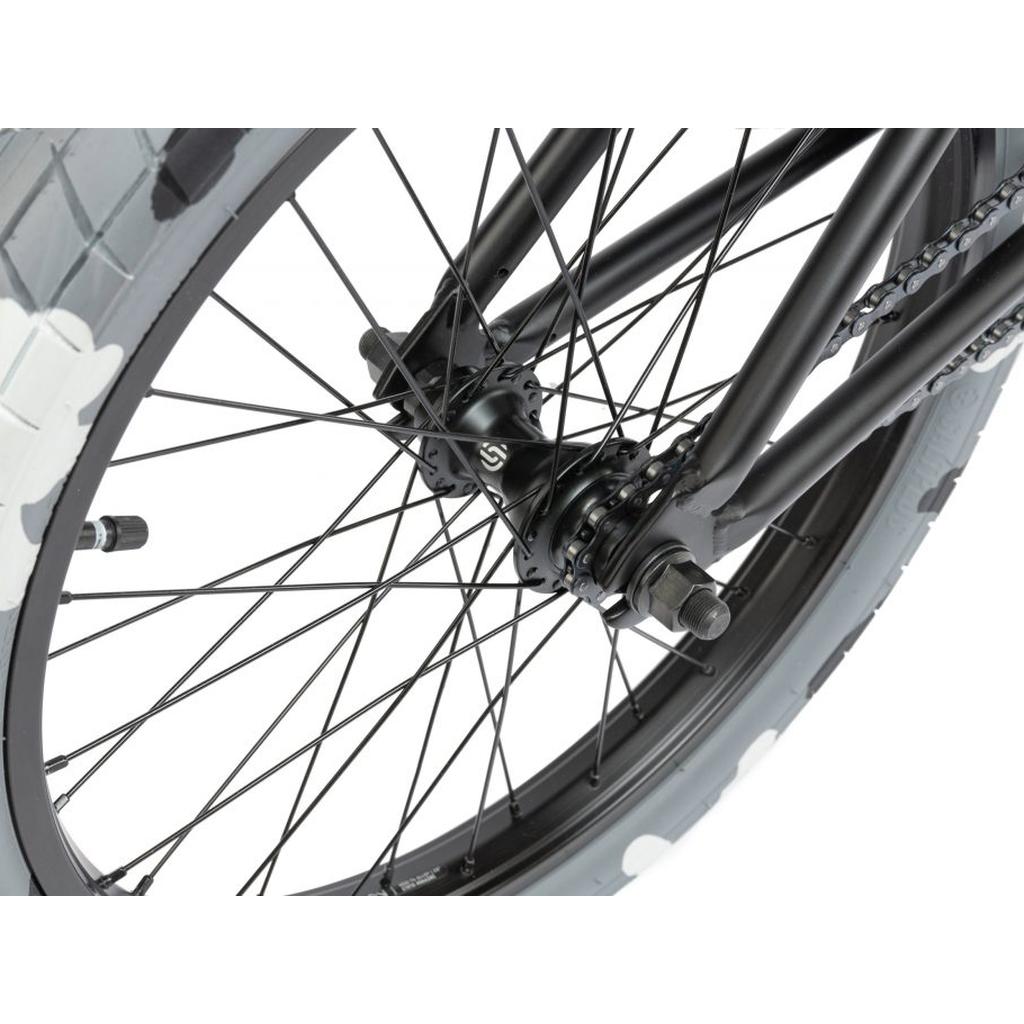

REAR HUB - RADIO ""AM"" cassette hub, alloy, semi-sealed, 9t, 14mm axle, 36h
FRONT RIM - SALT ""FRACTION"" rim, single wall
REAR RIM - SALT ""FRACTION"" rim, single wall

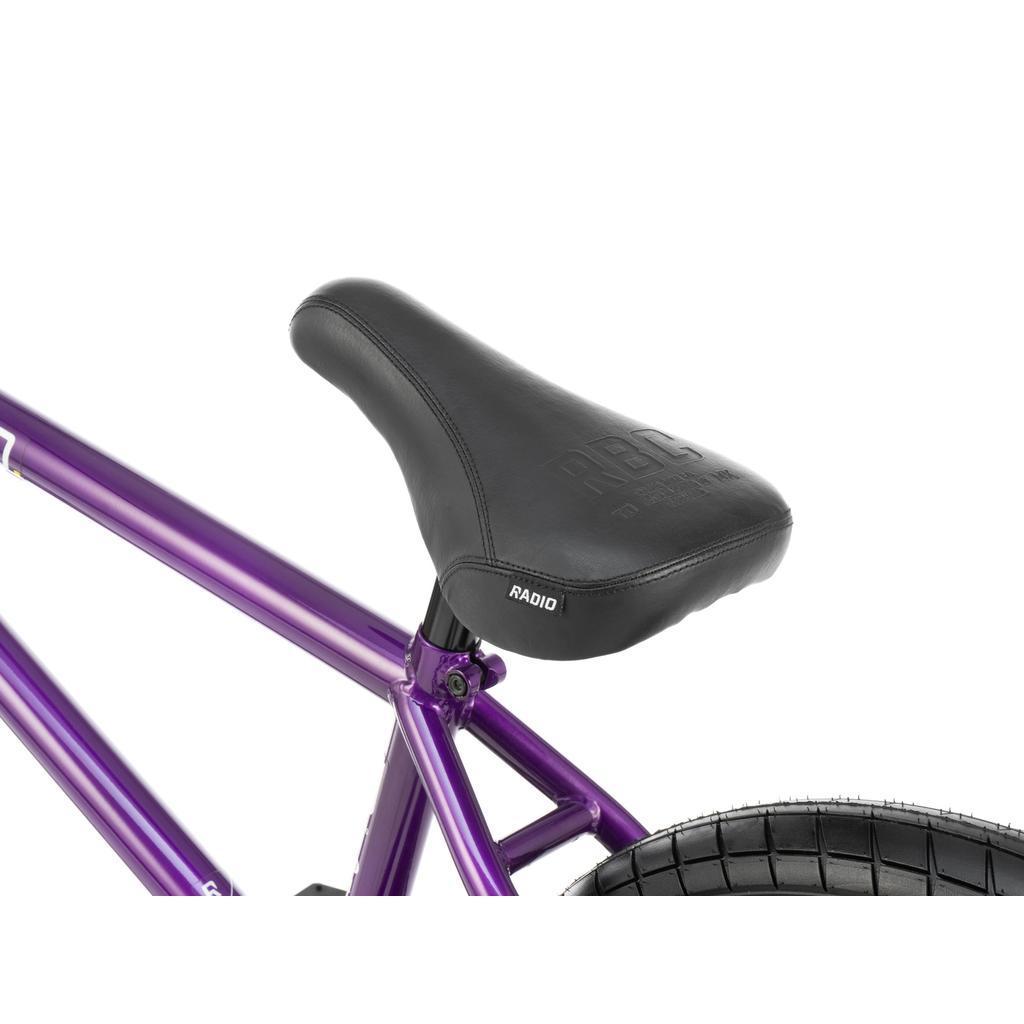

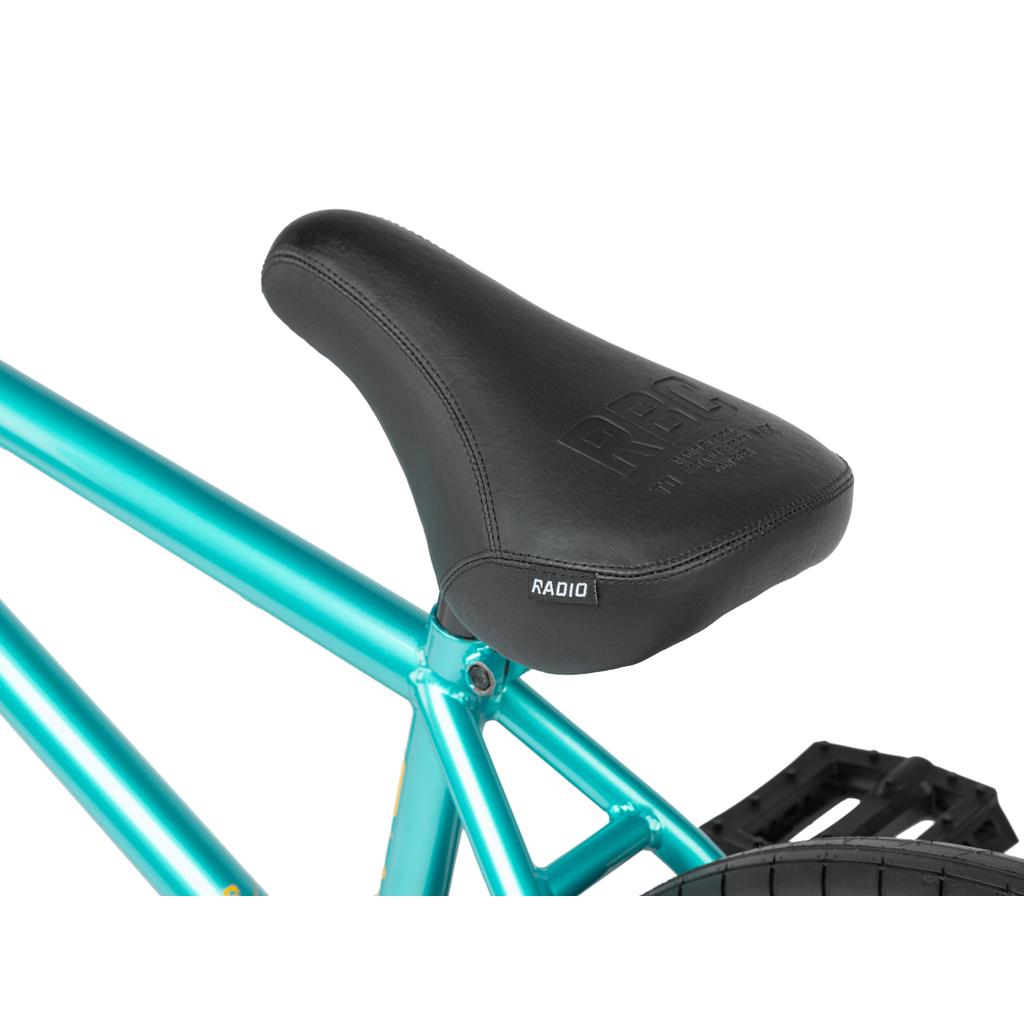

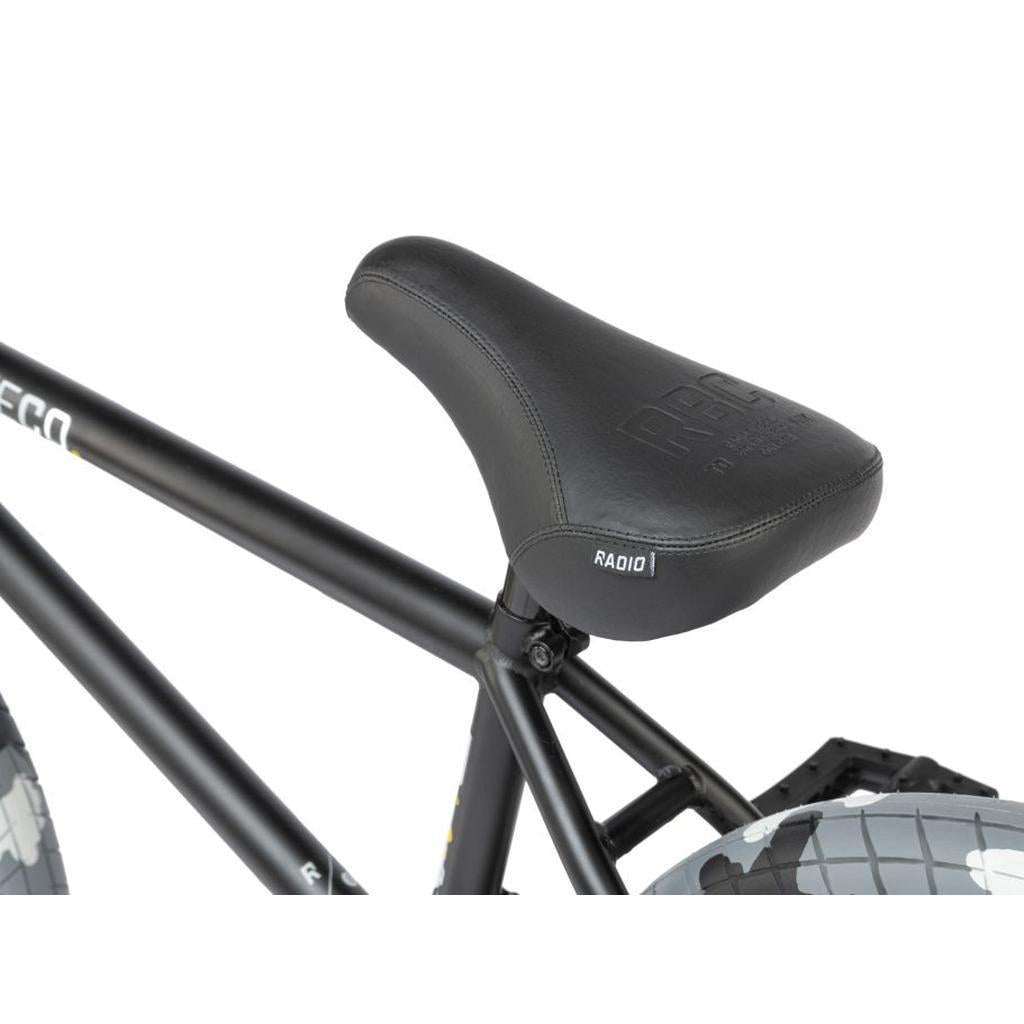

SEAT - RADIO ""CENTURY"" combo seat, fat padded
SEAT POST -
SEAT CLAMP - integrated seat clamp
TYRES - SALTPLUS ""BURN"" TYREs, 2.35"", front & rear
WEIGHT - 11.59kg
FRAME/BAR GEOMETRY
TOP TUBE LENGTH - 20.5"" & 21""
CHAIN STAY LENGTH - 13.2""
HEAD TUBE ANGLE - 75°
SEAT TUBE ANGLE - 71°
BOTTOM BRACKET HEIGHT - 11.7""
STANDOVER HEIGHT - 8.6""/8.9""
RISE - 9""
WIDTH - 29.5""
BACKSWEEP - 12°
UPSWEEP - 2°
