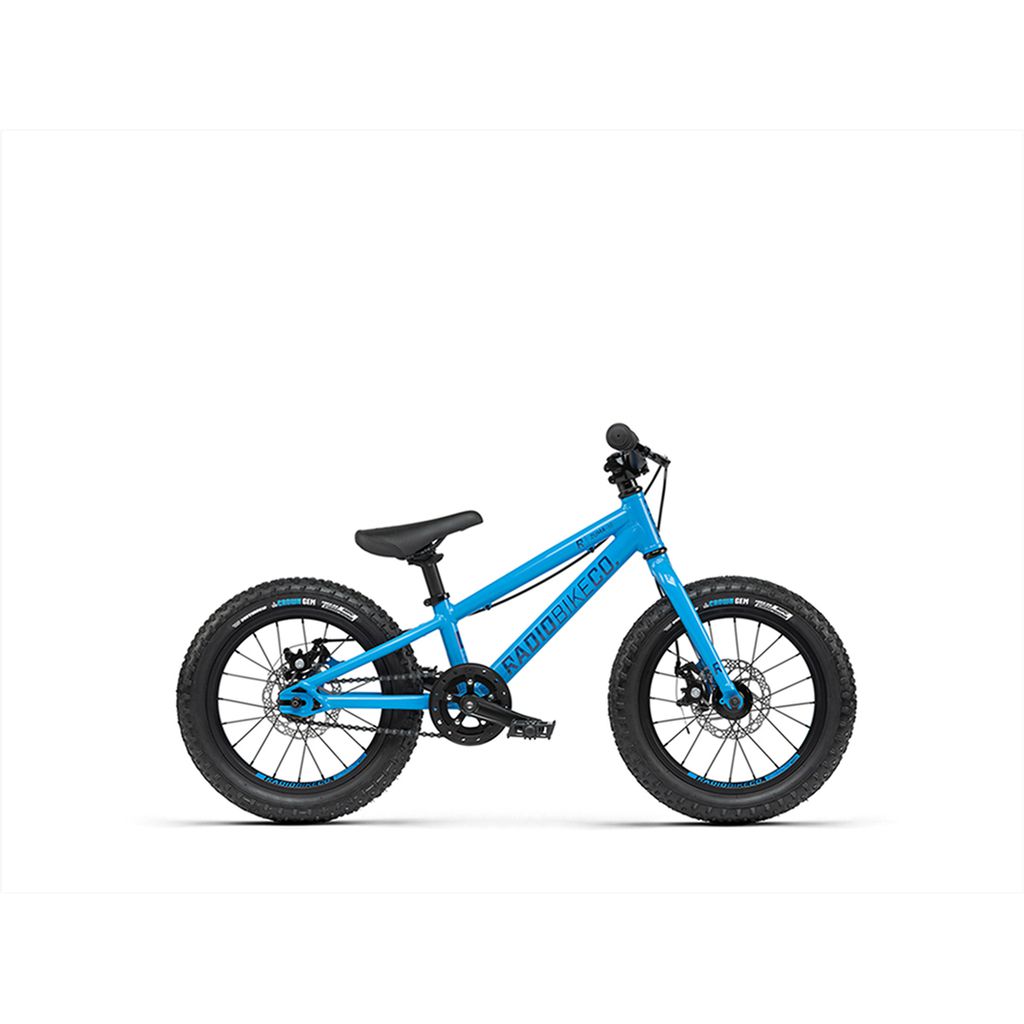

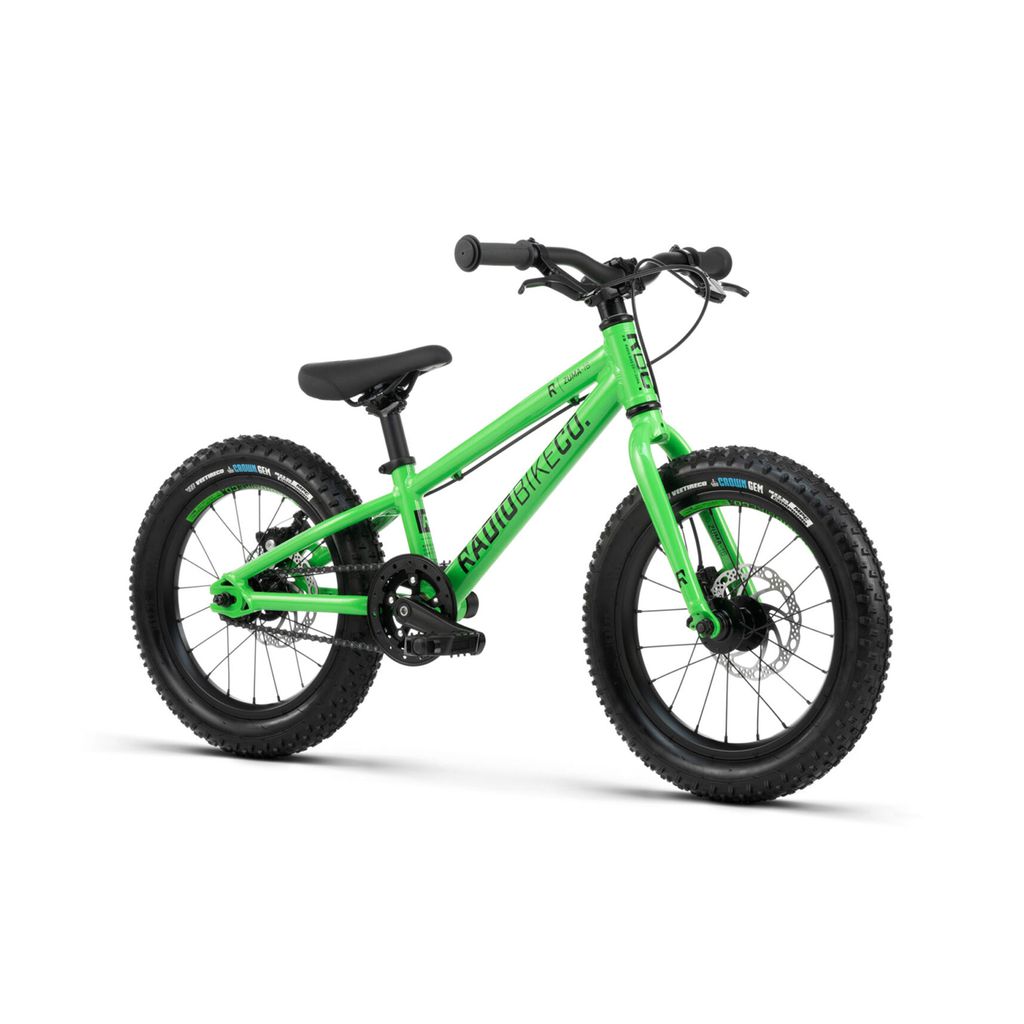

Radio 16 Inch Zuma Bike

Radio 16 Inch Zuma
Buying a bike for your child can be daunting, that’s why Radio developed the Zuma range to make it that much easier. Based around the concept of a kid sized MTB bike, the Zuma bikes are incredibly lightweight, with carefully researched geometry and designed specifically around smaller riders as the perfect balance between a bike for a child to learn the basics on, and a more advanced MTB for off-road riding conditions for weekend rides with the parents.

With a full range of sizes from 14” for the first-time rider, all the way through to a 26” wheeled machine for the aspiring rookie, there is a Zuma for every rider. These carefully spec’d bikes feature a super lightweight alloy frame and fork with double wall rims and children specific aftermarket components from Promax, KMC, FSA, Vee Rubber and Satori, making them suit the rider’s size perfectly, but look, feel and ride just like a high-end full adult size MTB.

Children are the future, and the Zuma line is designed to give them the best possible start in for that future…

Specifications
Frame - Radio 'Zuma 16' frame, 6061-T6 alloy
Fork - Radio 'Zuma 16' straight rigid fork, 6061-T6 alloy
Handlebar - Satori bar, 6061-T6 alloy, 19mm griptube, 25.4mm bar bore, 1″rise
Grips - Radio 'Junior' grips, 100mm, with flange
Stem - Radio 'Zuma 30' frontload stem, alloy, 30mm reach
Headset - FSA a-headset, loose ball
Brake lever - Promax 'BL-367' lever, alloy
Brake - Promax 'DSK-310' – mechanical disc front & rear brake. Rotor Size Front/Rear - 140mm
Crank - Radio 'Junior' 3pc crank, forged alloy, 114mm length
BB - Radio BB set, BSA, square taper, sealed bearing
Pedals - Radio 'Junior' pedals, nylon
Chain - KMC chain, S1 type, 1/2″ x 1/8″
Sprocket - Radio sprocket, steel, 28T
Driver - 16T freewheel, Cr-Mo
Front hub - Radio disc hub, alloy shell, loose ball, 3/8″s Cr-Mo axle, 20h
Rear hub - Radio disc hub, alloy shell, for freewheel, sealed,3/8″s Cr-Mo axle, 20h
Front rim - Radio 'J25SE' rim, alloy, double wall
Rear rim - Radio 'J25SE' rim, alloy, double wall
Seat - Radio 'Zuma 1416' railed seat
Seat post - Promax 'SP-2019' seat post, alloy, multi-adjust, 250mm
Seat clamp - Radio 'Slim' seat clamp, alloy
Tyres - Vee Tyre 'Crown Gem' tyres, 2.25″ front & rear
Weight - 7.72kg / 17.24lbs

Frame geometry
Top tube length - 14.75″
Chain stay length - 11.4″
Head tube angle - 69°
Seat tube angle - 73°
Bottom bracket height - 8″
Standover height - 5.8″
