A sleek Promx Mini HB-M1 Hub Set and entry level race bike wheelset build, placed on a clean white background.
Promax HB-M1 Mini Hubset (28 Hole) / Blue
Promax HB-M1 Mini Hubset (28 Hole) / Red
A pair of Promx Mini HB-M1 Hubset bicycle hubs on a white background.

Promx Mini HB-M1 Hub Set

$269.99 AUD

Or 4 payments of $67.49 AUD with

Colour

Drive Side

Select Option

View All

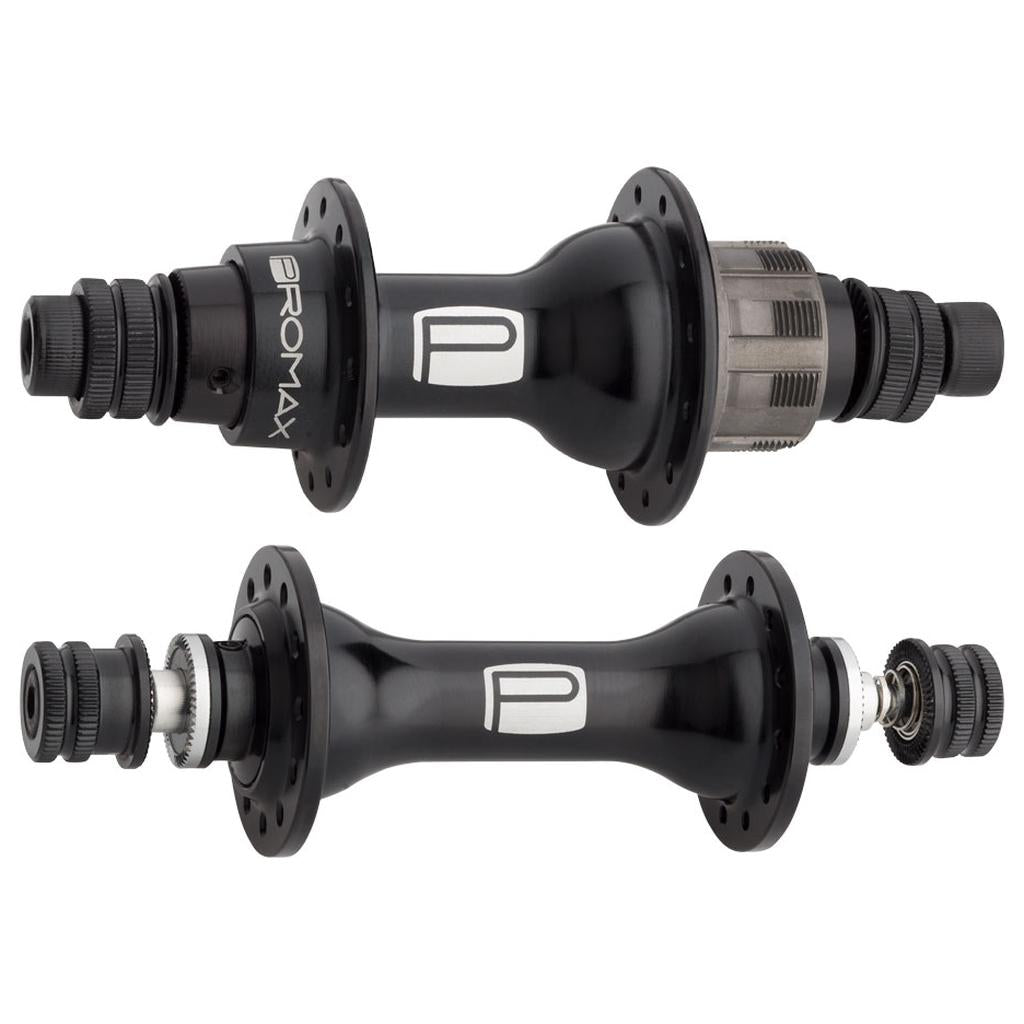

A pair of Promx Mini HB-M1 Hubset bicycle hubs on a white background.

Promx Mini HB-M1 Hub Set / Black / Right Hand Drive

$269.99 AUD

Price match

PMHU001-24-BLK

With Supplier

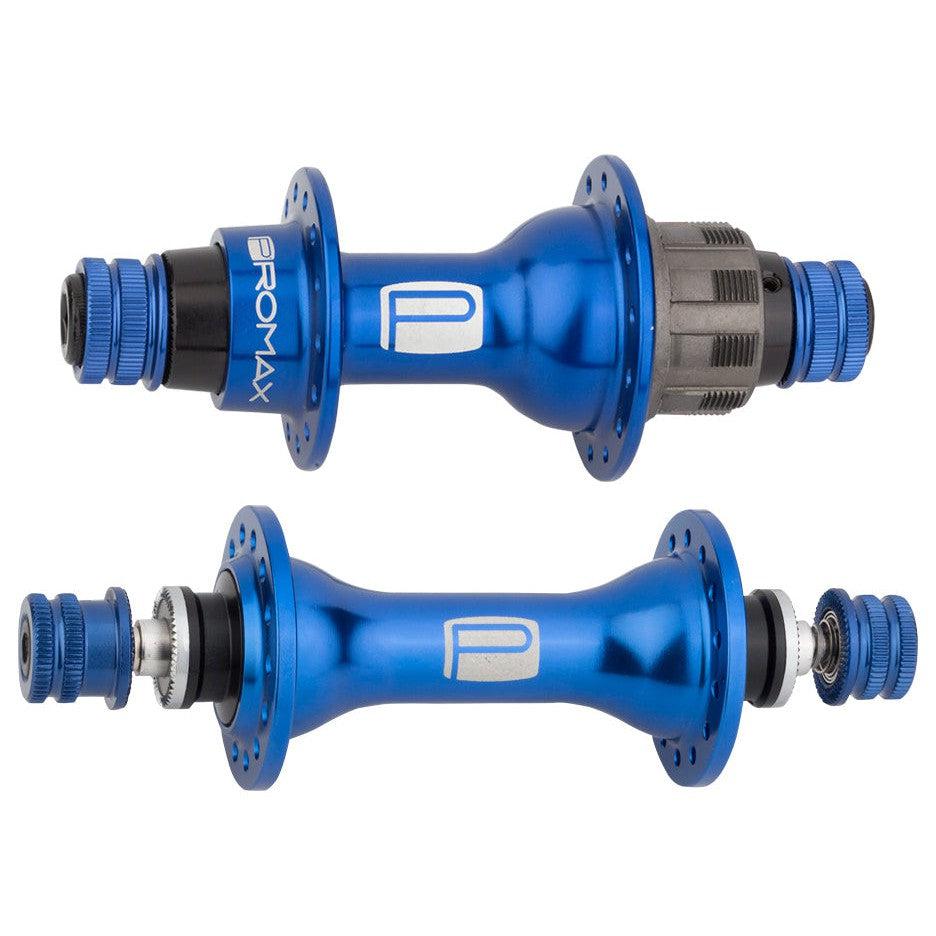

Promax HB-M1 Mini Hubset (28 Hole) / Blue

Promx Mini HB-M1 Hub Set / Blue / Right Hand Drive

$269.99 AUD

Price match

PMHU001-01-BLU

With Supplier

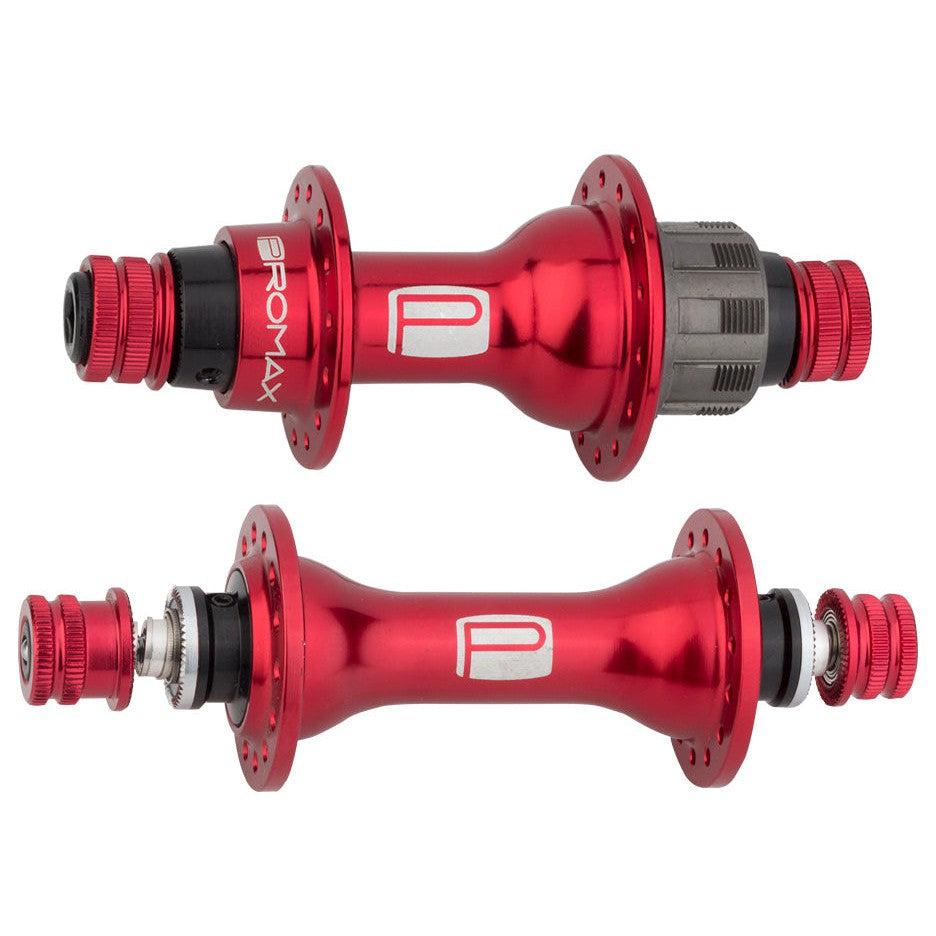

Promax HB-M1 Mini Hubset (28 Hole) / Red

Promx Mini HB-M1 Hub Set / Red / Right Hand Drive

$269.99 AUD

Price match

PMHU001-01-RED

With Supplier

Description
The 28 hole Promax HB-M1 Mini Hubset is a nice-price solution for a junior wheelset build. Lace them to a set of Promax rims using stainless steel spokes for a set of wheels for a colour change, or upgrade on an entry level race bike.

Features:

• Hub Shells Are Cold Forged From 6061-T6 Aluminum Alloy
• Wide Shimano-Compatible Cassette Body Allows for Easy Chainline Adjustments
• Chromoly Cassette Body
• Lightweight Skewer-Style Front Axle; Chromoly Rear Axle Bolts
• 4-Pawl Cassette Body Engages Fast With Less Drag
• Includes on 10mm Cassette Space and Lock Ring
• 28H Front & Rear
• Designed in USA/Made in Taiwan
• 524 grams w/axles
Dimensions -

Rear -

  • Axle width (Locknut to Locknut) - 110mm
  • Drive side flange diameter - 49mm
  • Non-Drive side flange diameter - 44mm
  • Drive side flange to locknut - 30mm
  • Non-Drive side flange to locknut - 25mm

Front -

  • Axle width (Locknut to Locknut) - 100mm
  • Flange diameter - 35mm
  • Flange to locknut - 14mm
