The product is called the "Pillar DSN 14g Aluminium AB Lock Nipple (Each)" and features black stainless steel material, a hexagonal socket head, and AB-Lock technology.

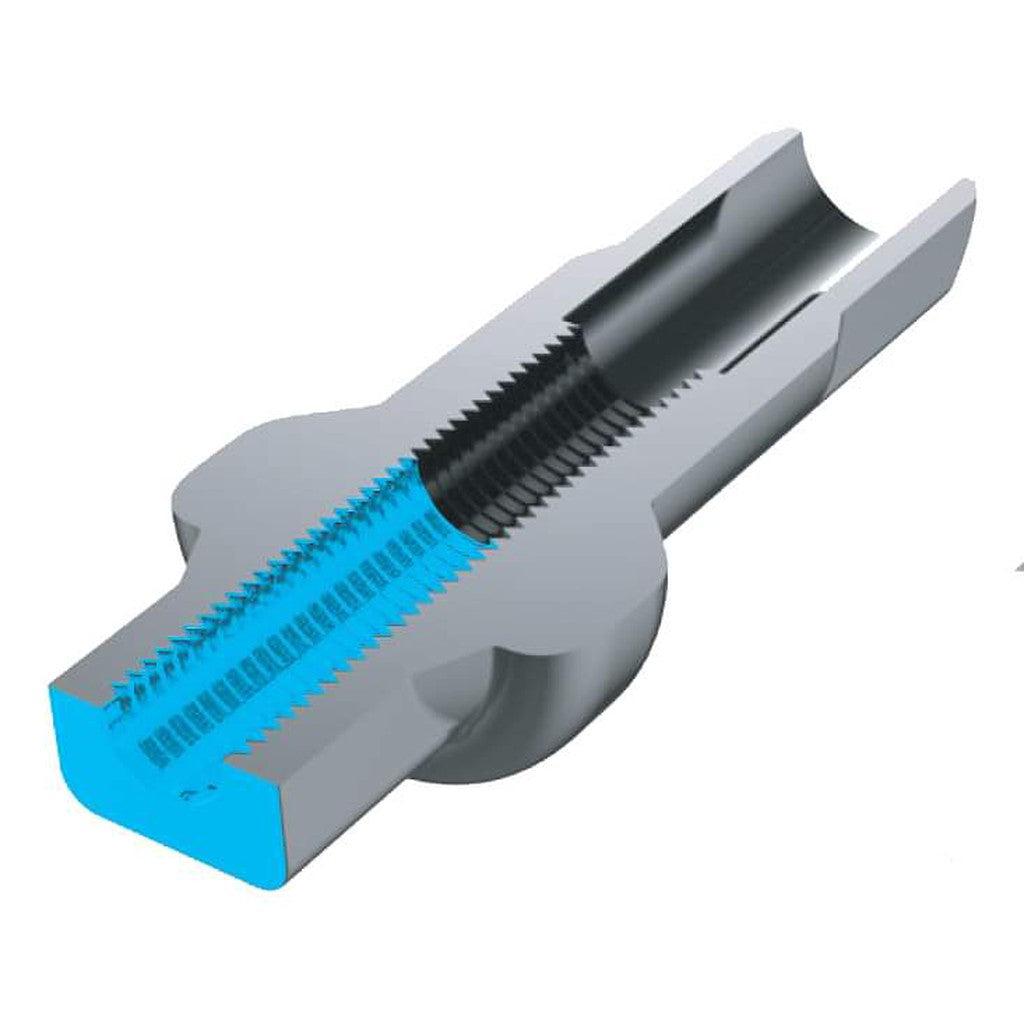

A digital rendering of the Pillar DSN 14g Aluminium AB Lock Nipple, featuring internal and external threads in gray and blue, utilizing the AB-Lock adhesive process for enhanced durability.

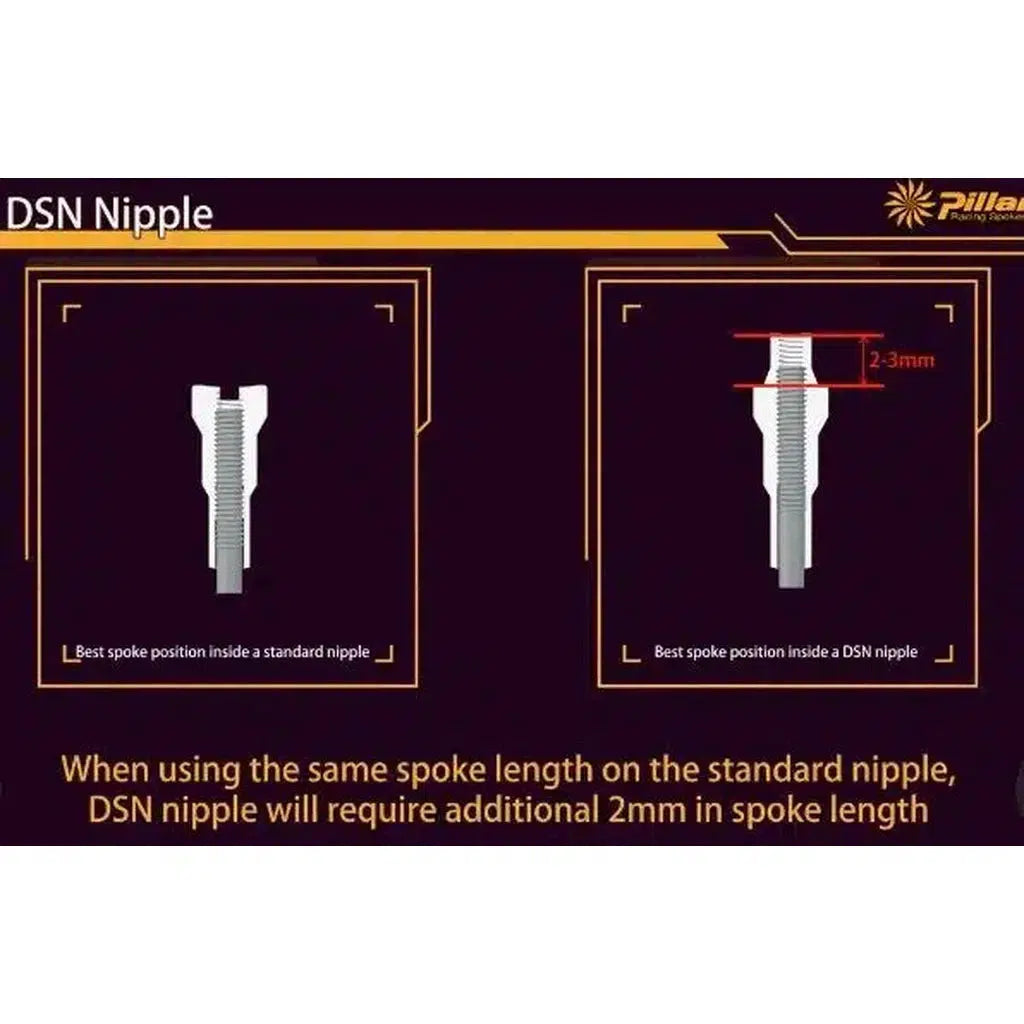

Diagram of the Pillar DSN 14g Aluminium AB Lock Nipple (Each) showing that it requires an additional 2mm spoke length compared to standard square drive nipples.

Pillar DSN 14g Aluminium AB Lock Nipple (Each)

$1.00 AUD

Or 4 payments of $0.25 AUD with

Color

Size

Select Option

View All
The product is called the "Pillar DSN 14g Aluminium AB Lock Nipple (Each)" and features black stainless steel material, a hexagonal socket head, and AB-Lock technology.

Pillar DSN 14g Aluminium AB Lock Nipple (Each) / Black / 14.4mm

$1.00 AUD

Price match

PRG-NAPQ1415KQ1

In Stock

Description

Forged & machined 14g (2.0mm)
Finish - black
Length - 14.4mm

Sold Individually

Square drive (or DSN) nipples have a square interface on the end of the nipple that normally would have a driver slot, or a hex. This raised square interface allows for very fine tuning of the spoke tension. Building a better wheel.
Spoke calculation lengths need to be at least 1-2mm longer for optimal thread engagement

AB-Lock is a process where a dual compound, adhesive liquid is injected into the nipple thread during manufacture, this compound then dries and remains dormant until a spoke is threaded through the compound.

By threading the nipple onto the spoke the adhesive is activated and begins to cure.
(it is recommended that wheels using AB-Lock be built in "one sitting" and not "finished" the following day).

However, re-truing the wheel is still possible even after the adhesive has cured completely, with only a minimal percentage decrease of its thread holding capability.
