Description

With the Legion Series, Mongoose offers a full line of freestyle BMX bikes for riders of all ages and ability levels. The Legion L80 is a fully park, street or dirt worthy freestyle BMX bike that offers chromoly 8.75 inch 4-piece bars that will make you stand out at the park!

Features

Chromoly main triangle. A 4130 chromoly front triangle with an integrated headset and mid BB shell, ready for park, street or dirt.
3-piece tubular chromoly cranks. An 8-spline spindle in a mid sealed bearing bottom bracket keeps the drive solid where the bike cops the most abuse.
9T sealed cassette rear hub. Aluminium hubs at both ends, the rear running sealed bearings on a 14 mm axle with a 9T cassette driver.
Wide rims, 2.3" tyres. Aluminium single wall 36H rims with a 29 mm inner width give the 20 x 2.3 in tyres a stable footprint.
Tall bars, Pivotal seat. A 29 in wide bar with 9 in of rise on a 50 mm top load stem, plus a Pivotal post and saddle.

Specifications

Size: 20" wheels
Frame: 4130 chromoly front triangle, BMX freestyle geometry, integrated headset, mid BB shell
Fork: Hi-Ten steel
Headset: Threadless, integrated 1-1/8", cartridge bearing
Stem: Mongoose, threadless top load, 50 mm
Bars: Mongoose, Hi-Ten steel, 29 in width, 9 in rise
Grips: Mongoose MushXL, 160 mm
Brakes: U-brake, aluminium
Cranks: 3-piece, tubular chromoly, 8-spline spindle
Bottom bracket: Mid sealed bearing, 8-spline spindle
Chainring: 25T steel
Chain: KMC S1
Pedals: Mongoose, nylon
Front hub: Aluminium, ball bearing, 3/8 in axle, 36H
Rear hub: Aluminium, sealed-bearing cassette, 14 mm axle, 36H
Rear cog: Single-speed, 9T cassette driver
Spokes: 14G, steel, black
Rims: Aluminium single wall, 29 mm ID, 36H
Tyres: 20 in x 2.3 in, wire bead
Seat: Mongoose Pivotal
Seat post: Pivotal, steel, 250 mm, 25.4 mm

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

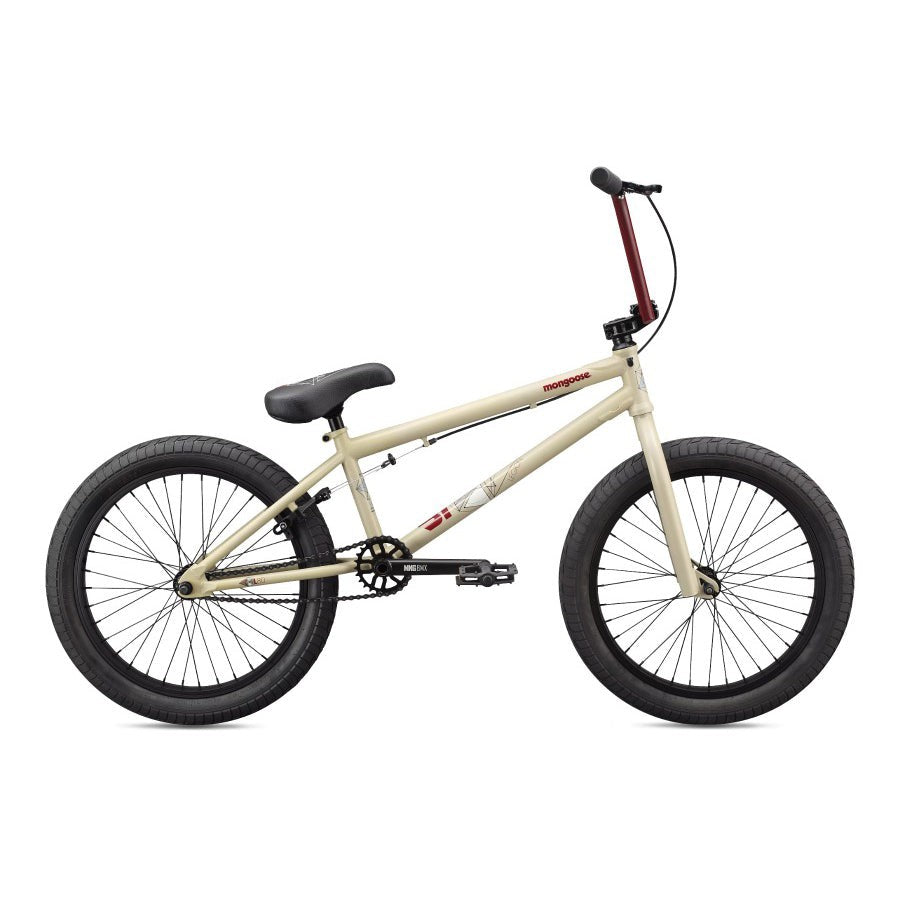

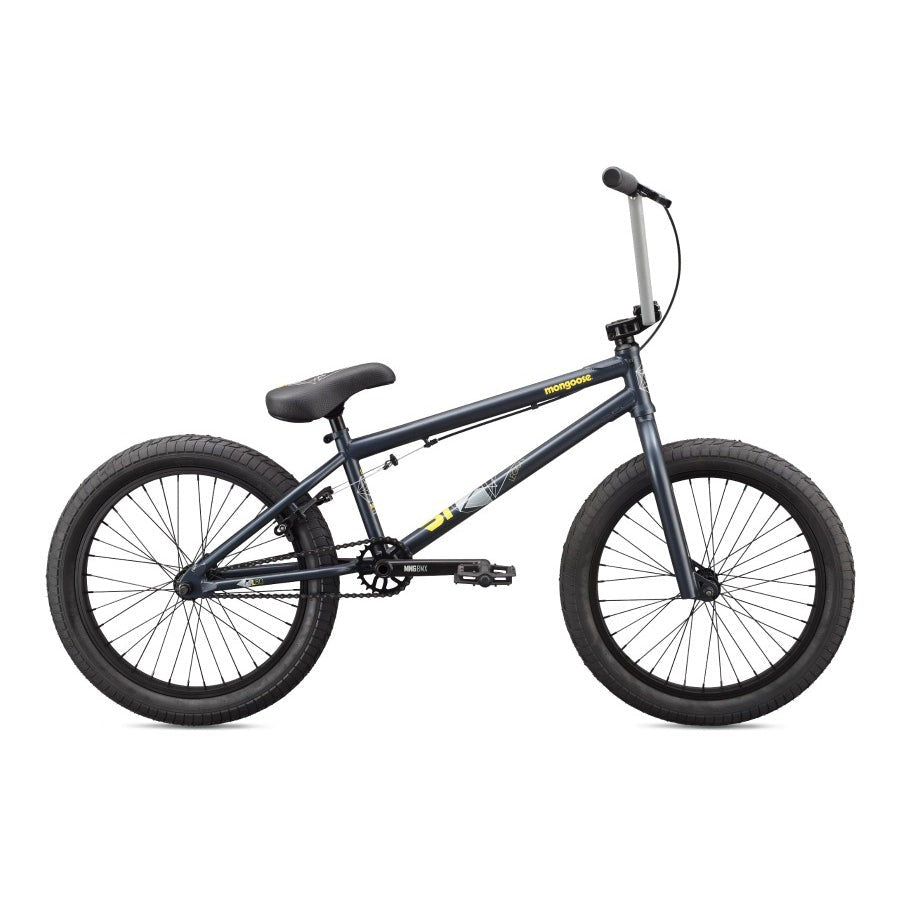

Mongoose Legion L80 20 Inch Bike

Name: Mongoose Legion L80 20 Inch Bike
Brand: Mongoose
SKU: MGM41301U10OS
Price: 649.99 AUD
Availability: OutOfStock

Brand: Mongoose SKU: Click to copy the SKU and show the pick location

$649.99 AUD

Or 4 payments of $162.49 AUD with

Recommended Rider Height:

168cm+

Colour - Tan

Top Tube Length - 20.75

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.
