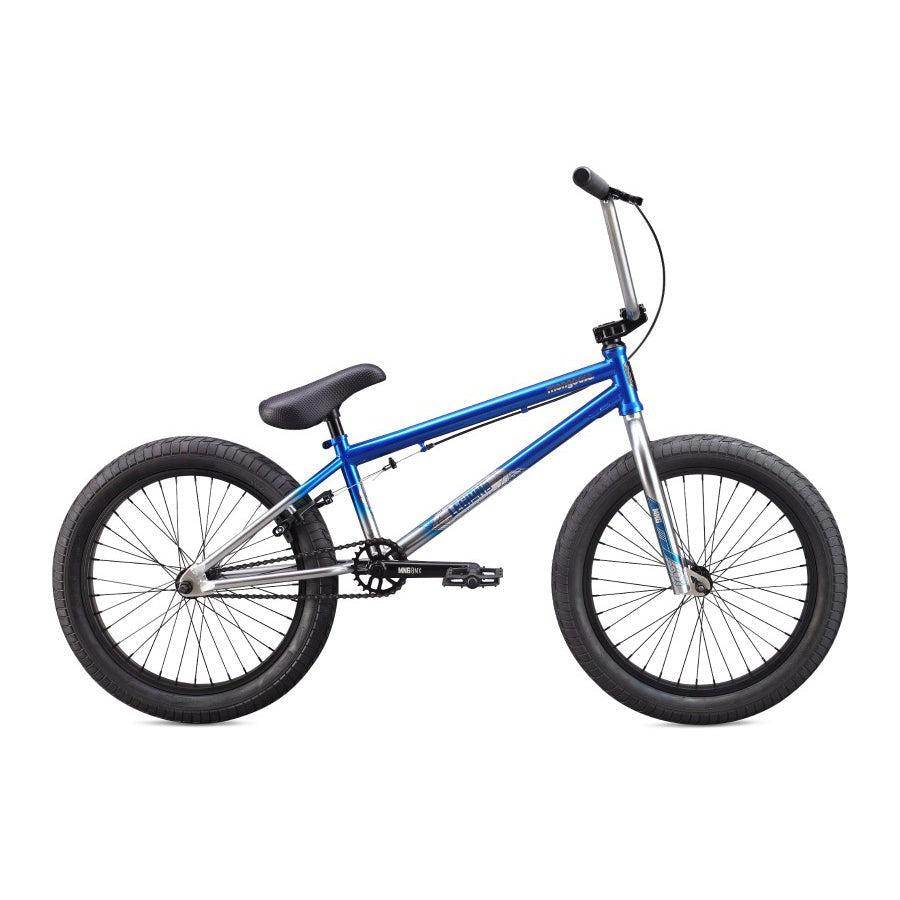

Mongoose Legion L60 20 Inch Bike / Blue

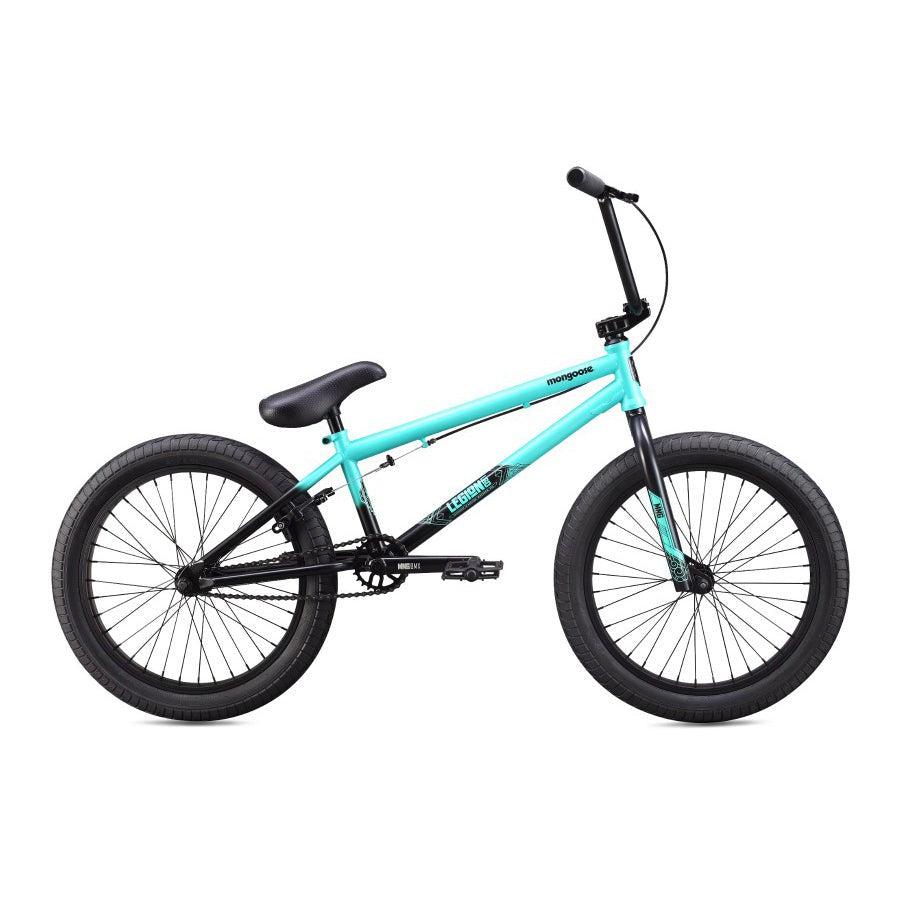

Mongoose Legion L60 20 Inch Bike / Teal

Description

With the Legion Series, Mongoose offers a full line of freestyle BMX bikes for riders of all ages and ability levels. The Legion L60 is a fully park, street or dirt worthy freestyle BMX bike with killer colorways that’s just waiting for a rider to take it to the local ramp park!


Features
  • Park, street or dirt ready. A freestyle BMX in killer colourways, waiting for a rider to take it down to the local ramp park.
  • Removable brake mounts, mid BB shell. Run the aluminium U-brake and levers now, then take the mounts off when you decide to ride brakeless.
  • 175mm 3-piece tubular chromoly cranks. A hollow spindle and mid sealed bearing bottom bracket put the strong stuff where the bike cops the most abuse.
  • Wide rims, 2.3" tyres. Aluminium single wall 36H rims with a 29 mm inner width give the 20 x 2.3 in tyres a stable footprint.
  • Sized for 5'0" to 5'6". A 20.5 inch top tube with 29 in bars, 8.75 in of rise and a 50 mm top load stem.

Specifications
  • Size: 20" wheels, one size
  • Frame: Hi-Ten steel, BMX freestyle geometry, removable brake mounts, integrated headset, mid BB shell
  • Top tube: 20.5"
  • Fork: Hi-Ten steel
  • Headset: Threadless, integrated 1-1/8", cartridge bearing
  • Stem: Mongoose, threadless top load, 50 mm
  • Bars: Mongoose, Hi-Ten steel, 29 in width, 8.75 in rise
  • Grips: Mongoose MushXL, 160 mm
  • Brakes: U-brake, aluminium
  • Brake lever: Aluminium
  • Cranks: 3-piece, tubular chromoly, 175mm, hollow spindle
  • Bottom bracket: Mid sealed bearing, 8-spline spindle
  • Chainring: 25T steel
  • Chain: KMC S1
  • Pedals: Mongoose, nylon
  • Front hub: Steel, ball bearing, 3/8 in axle, 36H
  • Rear hub: Steel, sealed-bearing cassette, 14 mm axle, 36H
  • Rear cog: Single-speed, 9T cassette driver
  • Spokes: 14G, steel, black
  • Rims: Aluminium single wall, 29 mm ID, 36H
  • Tyres: 20 in x 2.3 in, wire bead
  • Seat: Mongoose Unifier, 1 piece rails
  • Seat post: Steel, 250 mm, 25.4 mm
  • Note: Suggested rider height 5'0" to 5'6"

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Mongoose Legion L60 20 Inch Bike

Brand: Mongoose SKU:

$599.99 AUD

Or 4 payments of $149.99 AUD with

Recommended Rider Height:

168-183cm

Colour - Blue

Top Tube Length - 20.5

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
