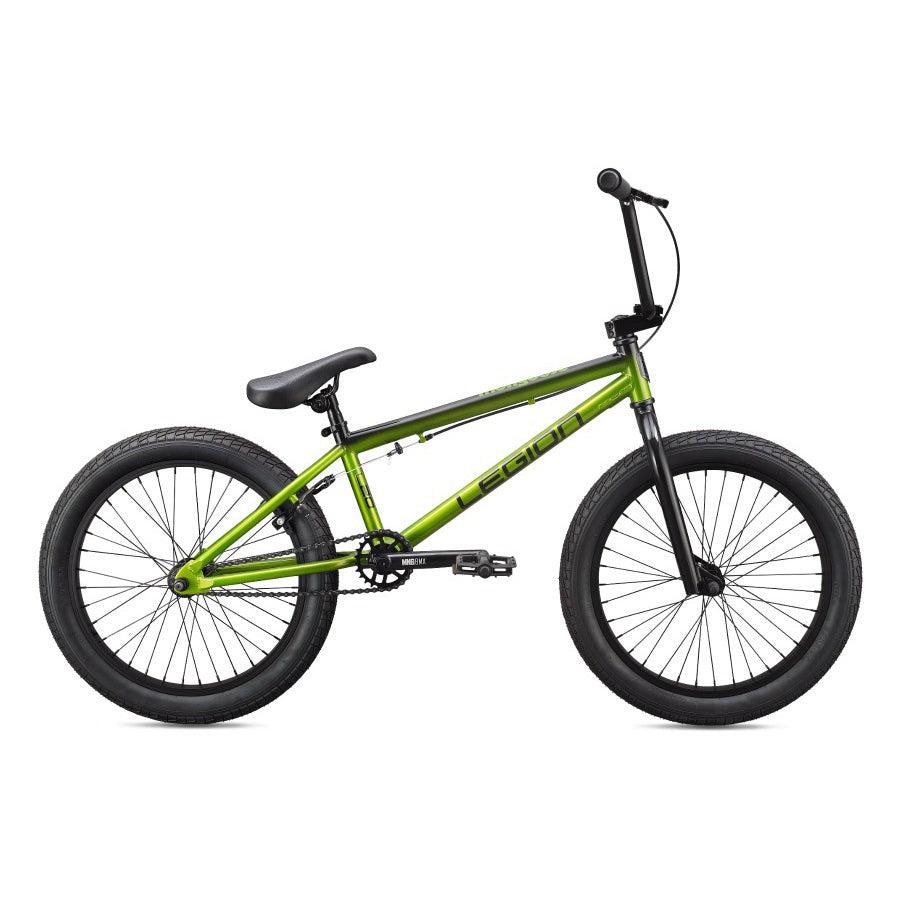

Mongoose Legion L20 20 Inch Bike / Green

Description

With the Legion Series, Mongoose offers a full line of freestyle BMX bikes for riders of all ages and ability levels. The Legion L20 is a stylish freestyle BMX bike that offers everything a beginning rider needs to hit the streets and pop off curbs!


Features
  • Ready for kerbs and streets. A stylish freestyle BMX with what a beginning rider needs to hit the streets and pop off kerbs.
  • Hi-Ten steel frame and fork. Freestyle BMX geometry in tough steel: a bike that shrugs off the knocks while you find your feet.
  • 3-piece tubular chromoly cranks. The part that cops the most abuse is chromoly, turning on a mid sealed bearing bottom bracket with an 8-spline spindle.
  • 9T sealed cassette rear hub. A sealed bearing cassette on a 14 mm axle, driven by a 25T steel chainring and a KMC S1 chain.
  • 8 in rise bars, 2.3" tyres. A 28 in wide Hi-Ten bar on a 50 mm top load stem, with 2.3 in tyres on 36H alloy rims.

Specifications
  • Size: 20" wheels, one size
  • Frame: Hi-Ten steel, BMX freestyle geometry
  • Fork: Hi-Ten steel
  • Headset: Threadless, integrated 1-1/8", retainer bearing
  • Stem: Mongoose, threadless top load, 50 mm
  • Bars: Mongoose, Hi-Ten steel, 28 in width, 8 in rise
  • Grips: Mongoose Mush, 145 mm
  • Brakes: U-brake, aluminium
  • Cranks: 3-piece, tubular chromoly, 8-spline spindle
  • Bottom bracket: Mid sealed bearing, 8-spline spindle
  • Chainring: 25T steel
  • Chain: KMC S1
  • Pedals: Mongoose, nylon
  • Front hub: Steel, ball bearing, 3/8 in axle, 36H
  • Rear hub: Steel, sealed-bearing cassette, 14 mm axle, 36H
  • Rear cog: Single-speed, 9T cassette driver
  • Spokes: 14G, steel, black
  • Rims: Aluminium single wall, 24 mm ID, 36H
  • Tyres: 20 in x 2.3 in, wire bead
  • Seat: Mongoose, steel rails
  • Seat post: Steel, 250 mm, 25.4 mm

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Mongoose Legion L20 20 Inch Bike

Brand: Mongoose SKU:

$469.99 AUD

Or 4 payments of $117.49 AUD with

Recommended Rider Height:

157-175cm

Colour - Green

Top Tube Length - 20.25

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
