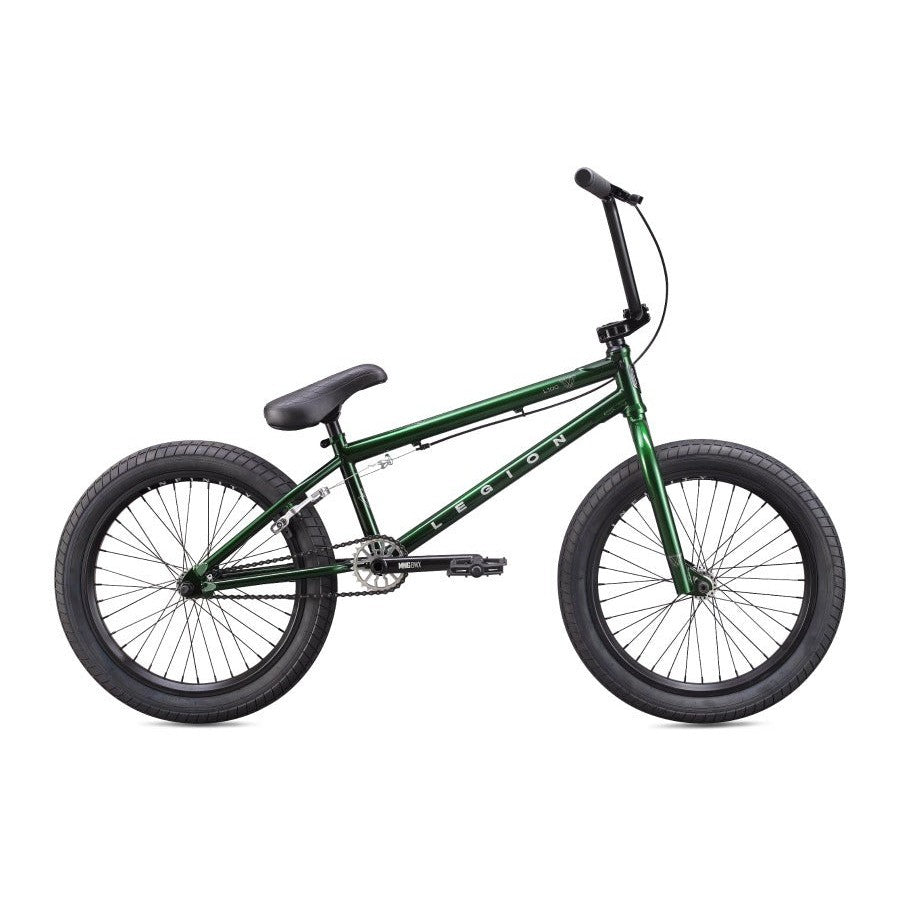

Mongoose Legion L100 20 Inch Bike / Green

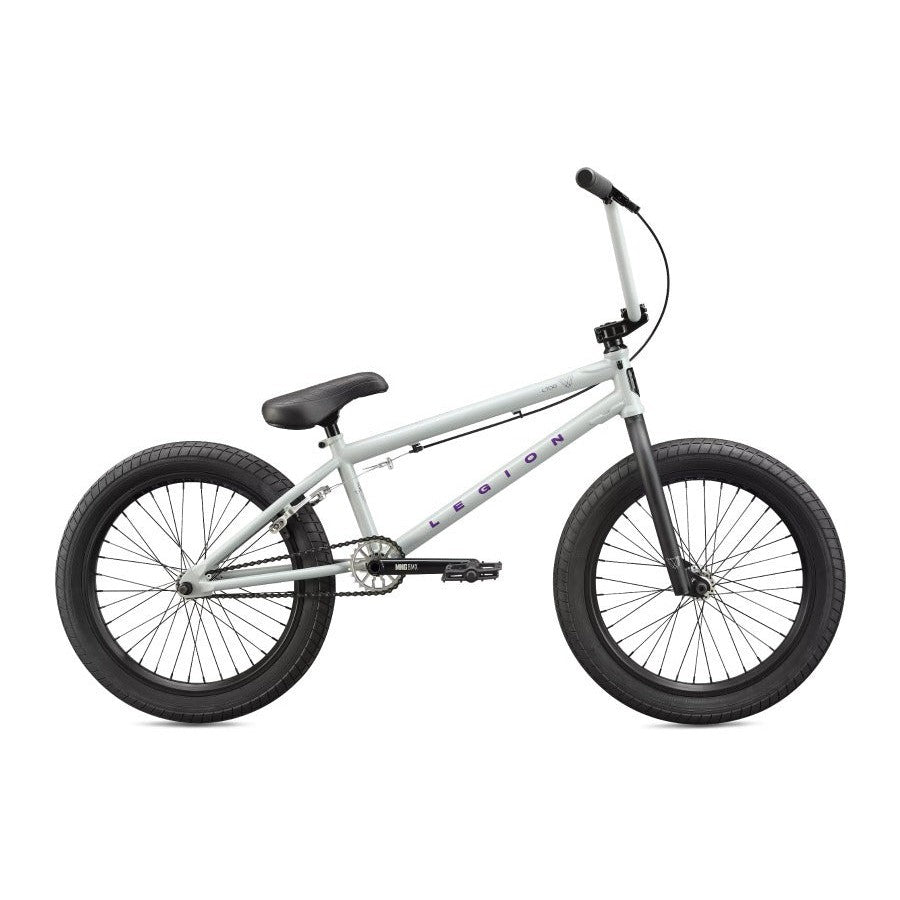

Mongoose Legion L100 20 Inch Bike / Grey

Description

With the Legion Series, Mongoose offers a full line of freestyle BMX bikes for riders of all ages and ability levels. The Legion L100 was designed to be a fully park, street and dirt worthy BMX bike that offers everything a rider could need from beginner level curb jumps all the way up to advanced aerial tricks on a quarterpipe!

As a cycling enthusiast, finding the perfect bike that fits all your needs can be challenging. If you're looking for a bike that can take on any terrain, look no further than the Mongoose Legion L100.

The Mongoose L100 frame is made of high-quality Chromoly, which is a type of steel that is strong and durable. This makes it ideal for riding on any terrain, as it can withstand the bumps and bruises that come with shredding.

Removable Brake Mounts: The Mongoose full 4130 Chromoly frame comes with removable brake mounts, which means you can easily switch between brakes and no brakes.

In addition to the Chromoly frame, the Mongoose bike also features 175mm 2-piece tubular chromoly hollow spindle cranks. This type of crank is designed to be lightweight yet durable, making it perfect for BMX riding. It also comes with a 25T alloy chainring and a mid-sealed bearing bottom bracket, which provide smooth and reliable performance.

The Mongoose L100 also comes with wide aluminum double wall 36H rims. These rims are designed to be strong and durable, which makes them ideal for off-road riding. They also come with 20” x 2.4” tires, which provide excellent traction and stability on any terrain.

The bike also features a 3/8” female axle front hub and 9T cog sealed bearing cassette rear hub.

Features

Full 4130 chromoly frame and fork. Strong, durable steel that takes the bumps and knocks of park, street and dirt, from first kerb jumps to quarterpipe airs.
Removable brake mounts. Run the aluminium U-brake while you are learning, then take the mounts off for a clean frame once you ride brakeless.
175mm 2-piece tubular chromoly cranks. The hollow spindle keeps them light, and a mid sealed bearing bottom bracket with a 25T alloy chainring keeps the drive smooth.
Wide double wall rims, 2.4" tyres. Xposure Infinity-XD 36H rims with 30 mm inner width give strength off road, and the tyres add traction on rough ground.
9T sealed cassette rear hub. Sealed bearings on a 14 mm axle, matched with 29 in chromoly bars, a 50 mm top load stem and a Pivotal seat.

Specifications

Size: 20" wheels
Frame: 4130 chromoly, BMX freestyle geometry, removable brake mounts, integrated headset, mid BB shell
Top tube: 534mm / 21.02"
Chainstay: 348mm / 13.70"
Head tube angle: 75°
Seat tube angle: 71°
Standover: 565mm / 22.24"
Fork: 4130 chromoly, 35mm / 1.38" offset
Headset: Threadless, integrated 1-1/8", cartridge bearing
Stem: Mongoose, threadless top load, 50 mm
Bars: Mongoose, 4130 chromoly, 29 in width, 8.75 in rise
Grips: Mongoose MushXL, 160 mm
Brakes: U-brake, aluminium
Cranks: 2-piece, tubular chromoly hollow spindle, 175mm
Bottom bracket: Mid sealed bearing, 8-spline spindle
Chainring: 25T aluminium
Chain: KMC S1
Pedals: Mongoose, nylon
Front hub: Aluminium, ball bearing, 3/8 in axle, 36H
Rear hub: Aluminium, sealed-bearing cassette, 14 mm axle, 36H
Rear cog: Single-speed, 9T cassette driver
Spokes: 14G, steel, black
Rims: Xposure Infinity-XD, aluminium double wall, 30 mm ID, 36H
Tyres: 20 in x 2.4 in, wire bead
Seat: Mongoose Pivotal
Seat post: Pivotal, steel, 250 mm, 25.4 mm
Note: Wheelbase 925mm / 36.42", bottom bracket drop 40mm / 1.57", head tube 120mm / 4.72"

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Mongoose Legion L100 20 Inch Bike

Name: Mongoose Legion L100 20 Inch Bike
Brand: Mongoose
SKU: MGM41201U10OS
Price: 699.99 AUD
Availability: OutOfStock

Brand: Mongoose SKU: Click to copy the SKU and show the pick location

$699.99 AUD

Or 4 payments of $174.99 AUD with

Recommended Rider Height:

175cm+

Colour - Green

Top Tube Length - 21

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.
