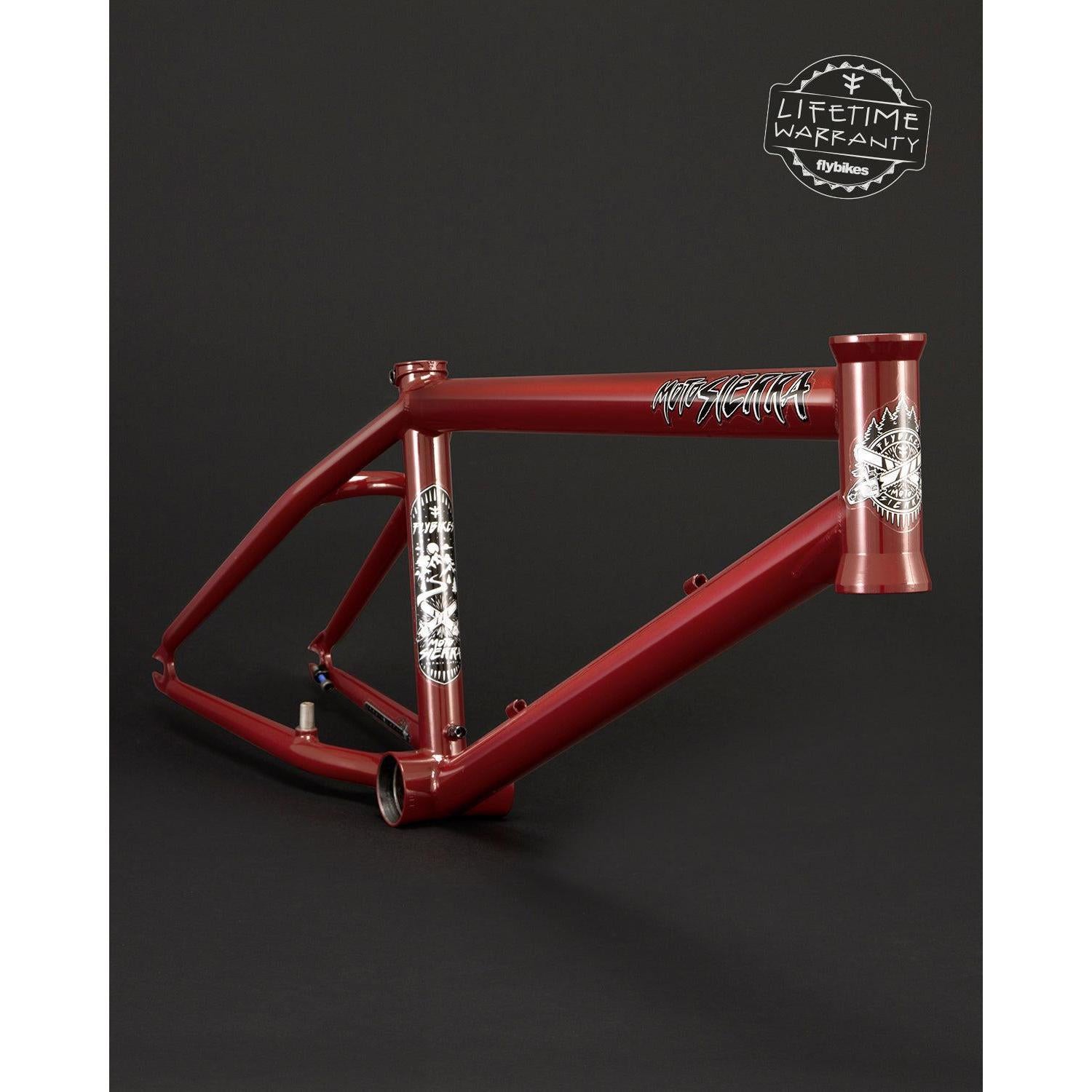

Fly Bikes Motosierra Frame
Description
Since the release of Sergio Layos’ signature Sierra frame, we have always wanted to do a more trails
specific frame. The new Motosierra frame is a Sierra Frame version for the die hard trails riders with
a trails specific geometry.

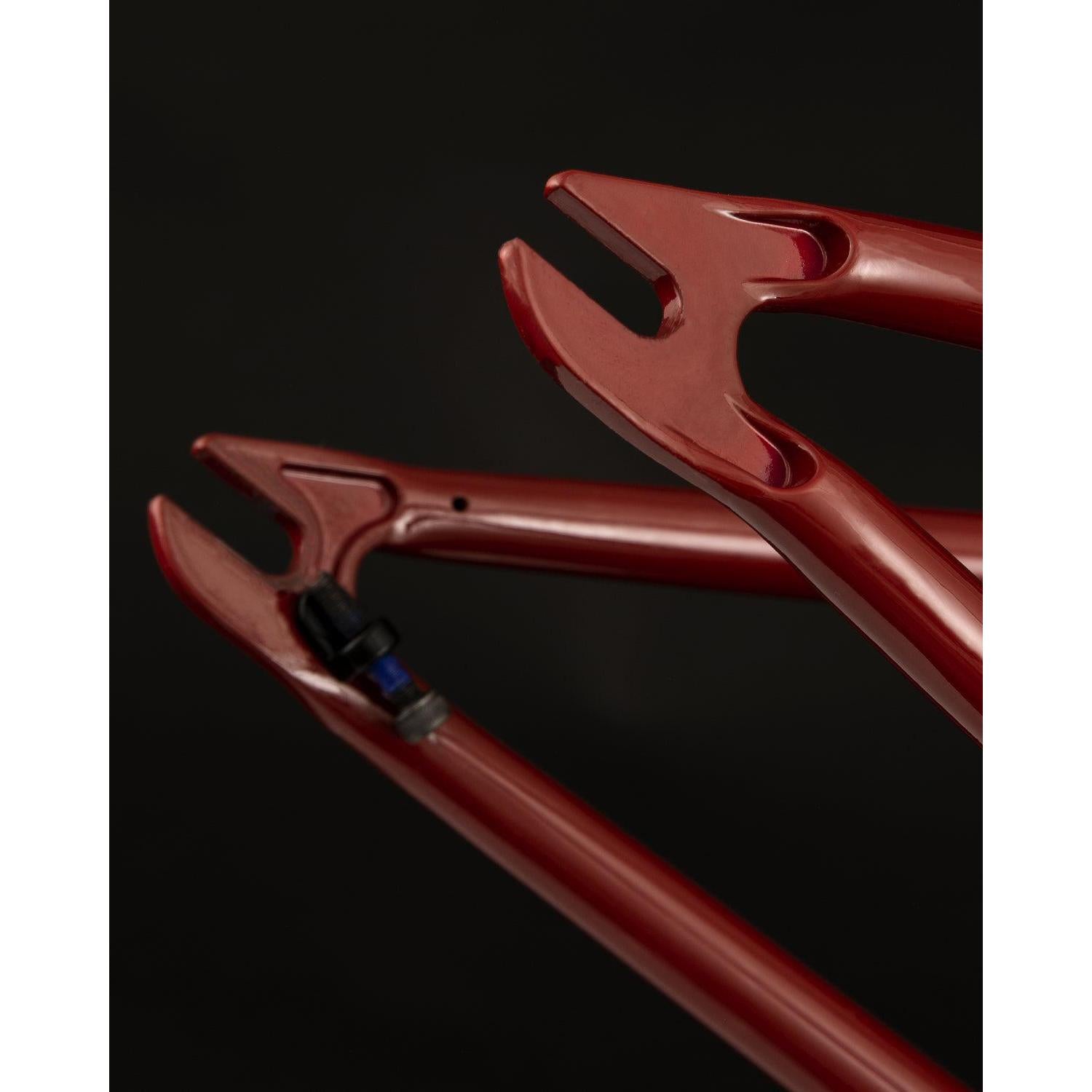

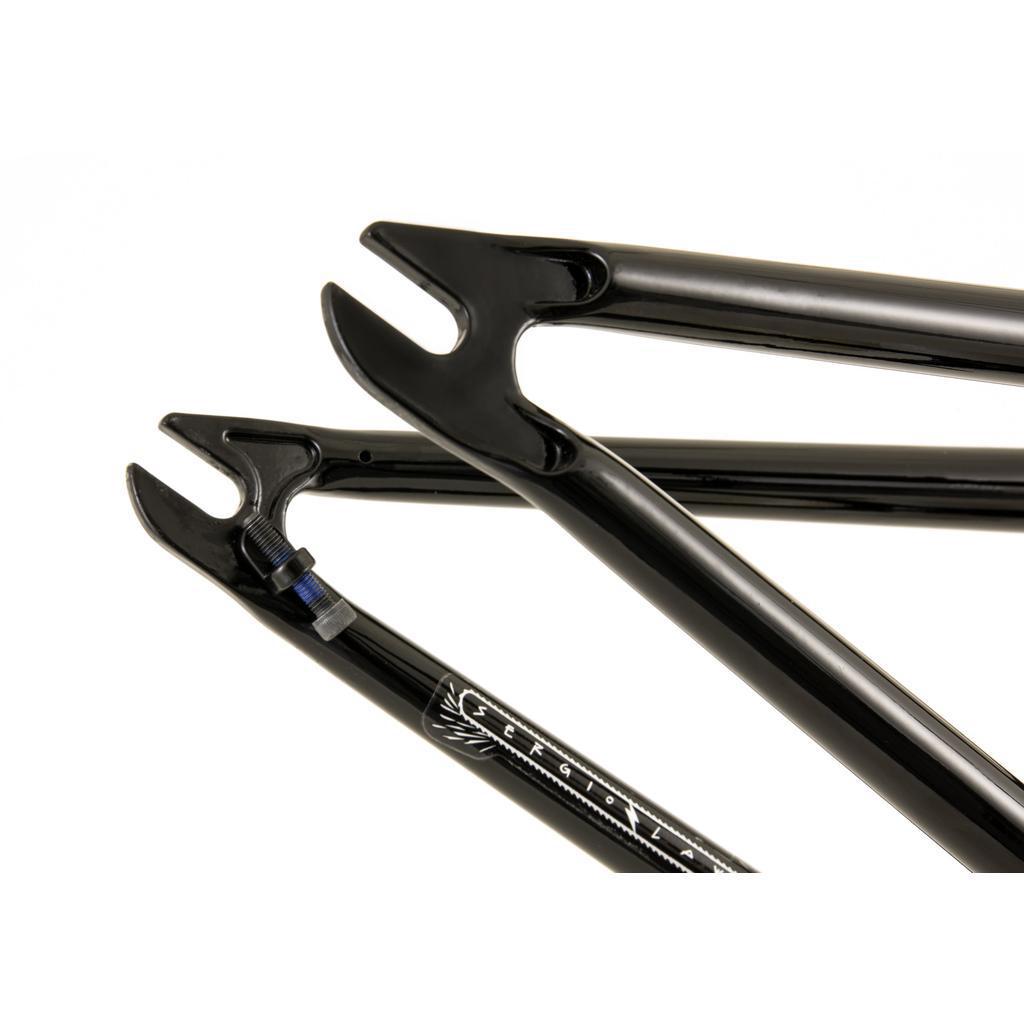

It features welded chainstay brake mounts and our new 5mm invest casting dropouts for 10mm axle
cassette, that all these pegless riders will love.
Other important features are the welded chainstay brake mounts with the cable through the seat
tube system.
Note: The chain tensioner is compatible with all hubs with less than 24mm cone diameter, like Magneto Hubs, Profile,...
Tubing Material
4130 CrMo / Japanese Sanko Triple Butted
Headtube Material
CNC Machined / 4130 CrMo / Heat Treated
Bottom Bracket
CNC Machined / 4130 CrMo / Heat Treated / Mid BB
Dropouts
10mm Axle / Invest Casting / 4130 CrMo / Heat Treated w/ 1pc. Removable Chain Tensioner
Seat Clamp Material
Invest Casting / 4130 CrMo / Heat Treated
Seatstays Bridge Material
4130 CrMo / Heat Treated

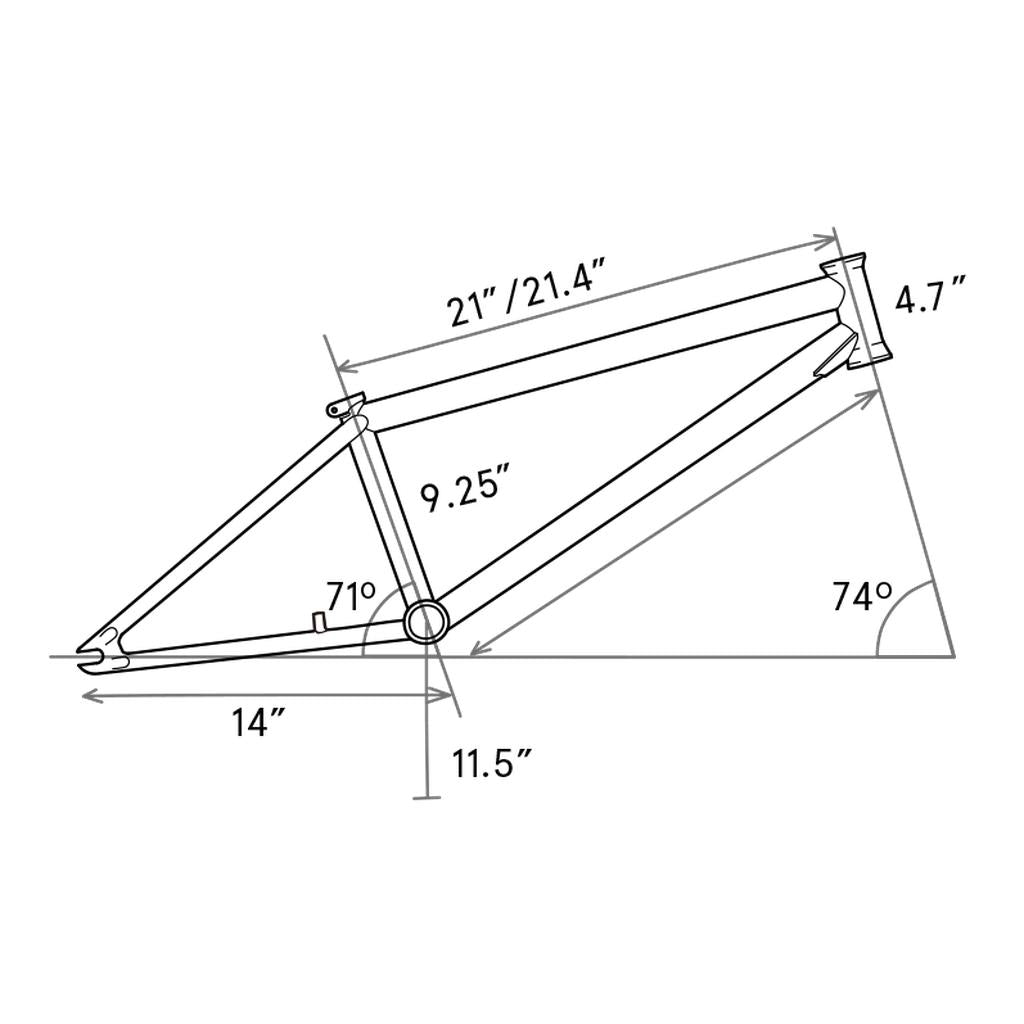

Top Tube
21" / 21.4"
Head Tube
74º
Seat Tube
71º
Rear End
14" Slammed
Standover
9.25"
Bottom Bracket Height
11.5"
Head Tube Length
120 mm / 4.7"
Brake System
Welded / Cable Trough Seat Tube / Chainstays
Weight 21"
2.200 kg / 4.85 lb
