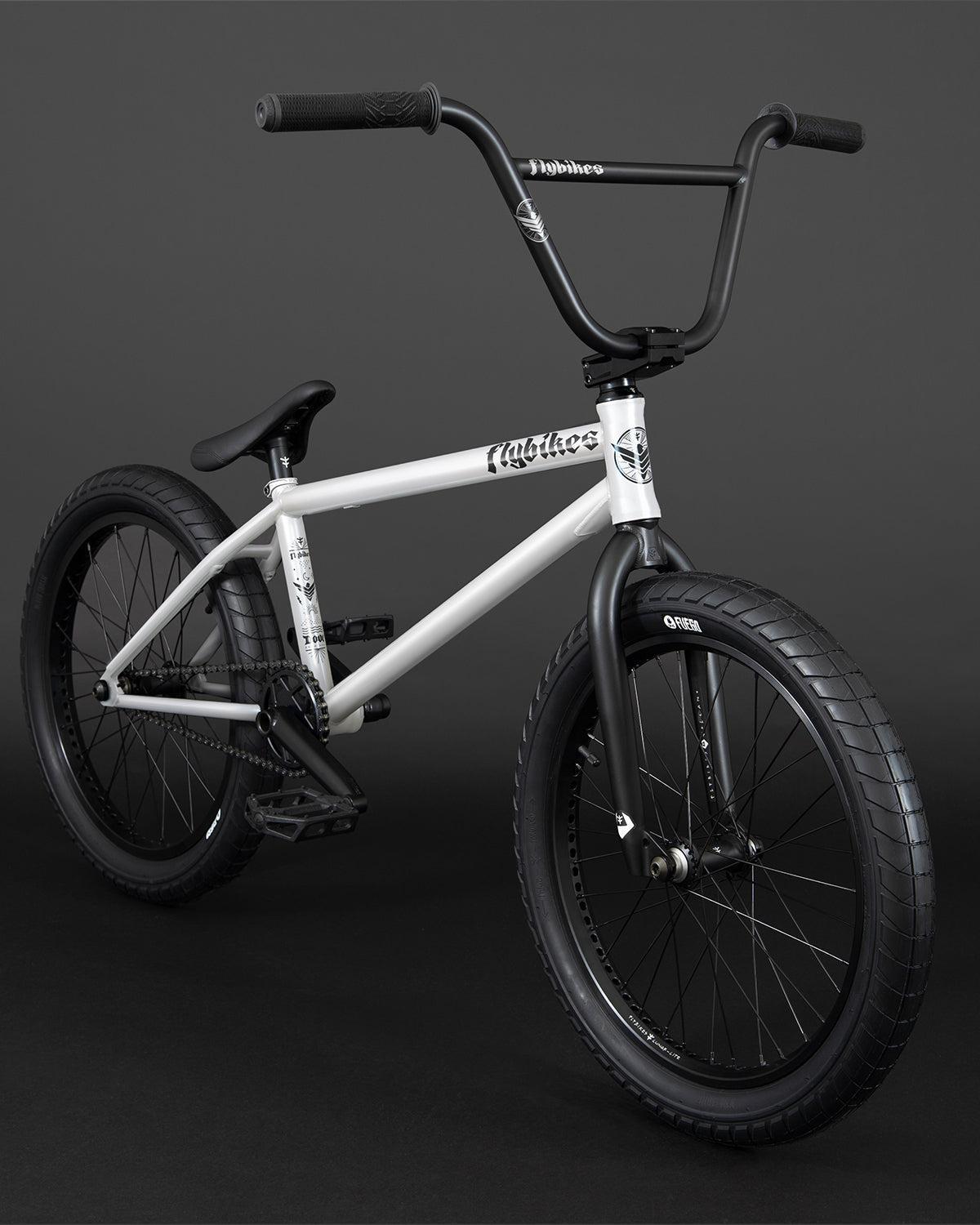

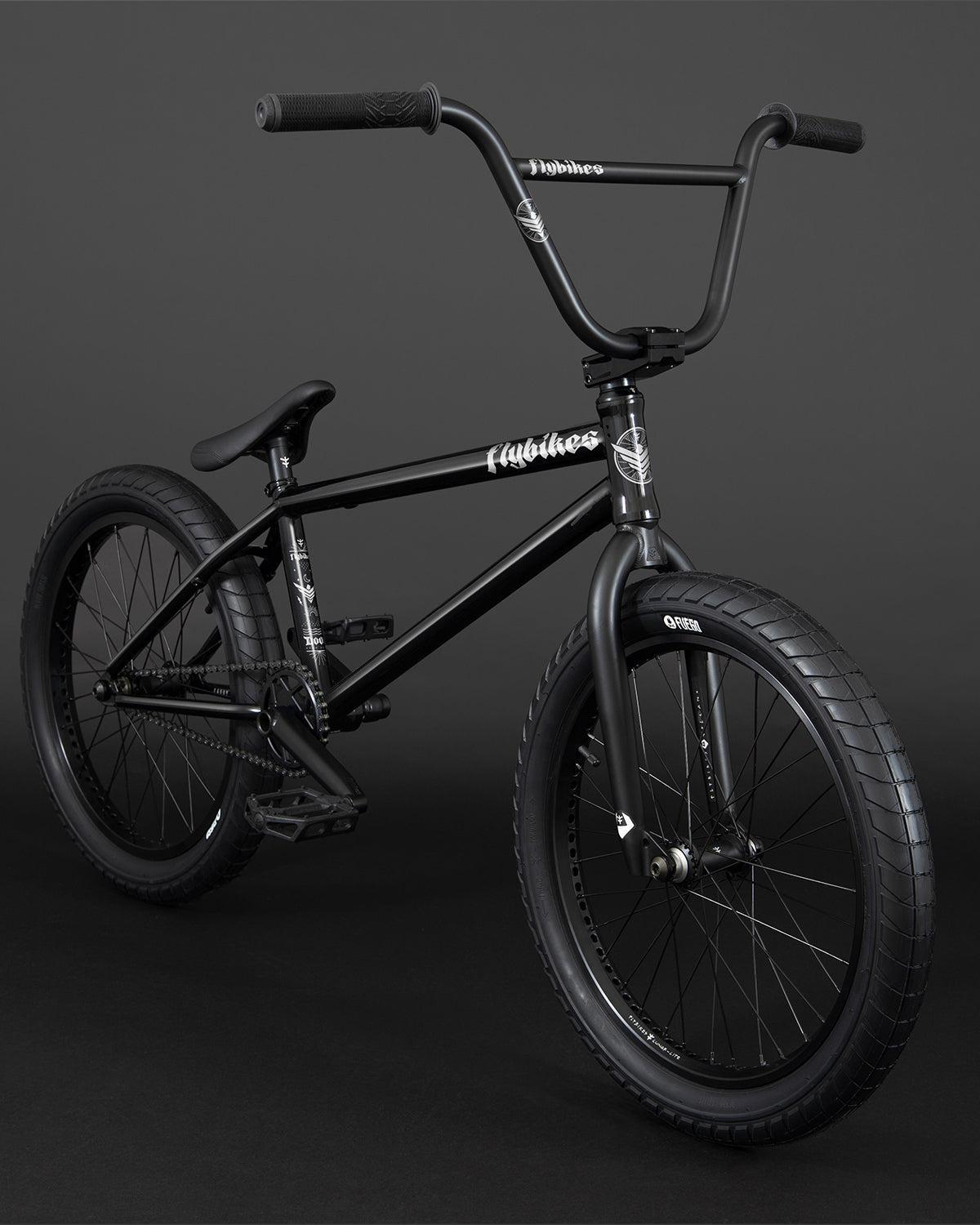

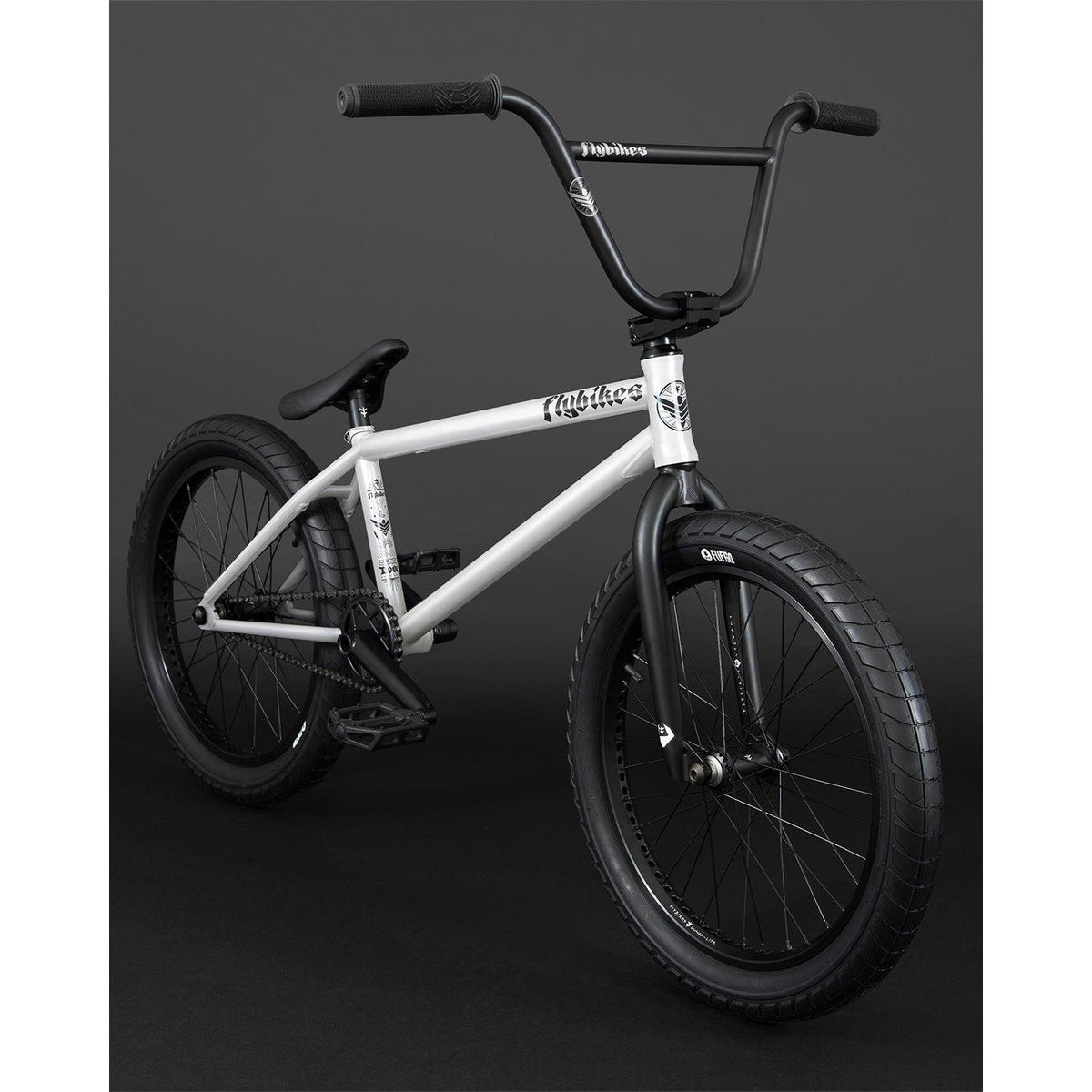

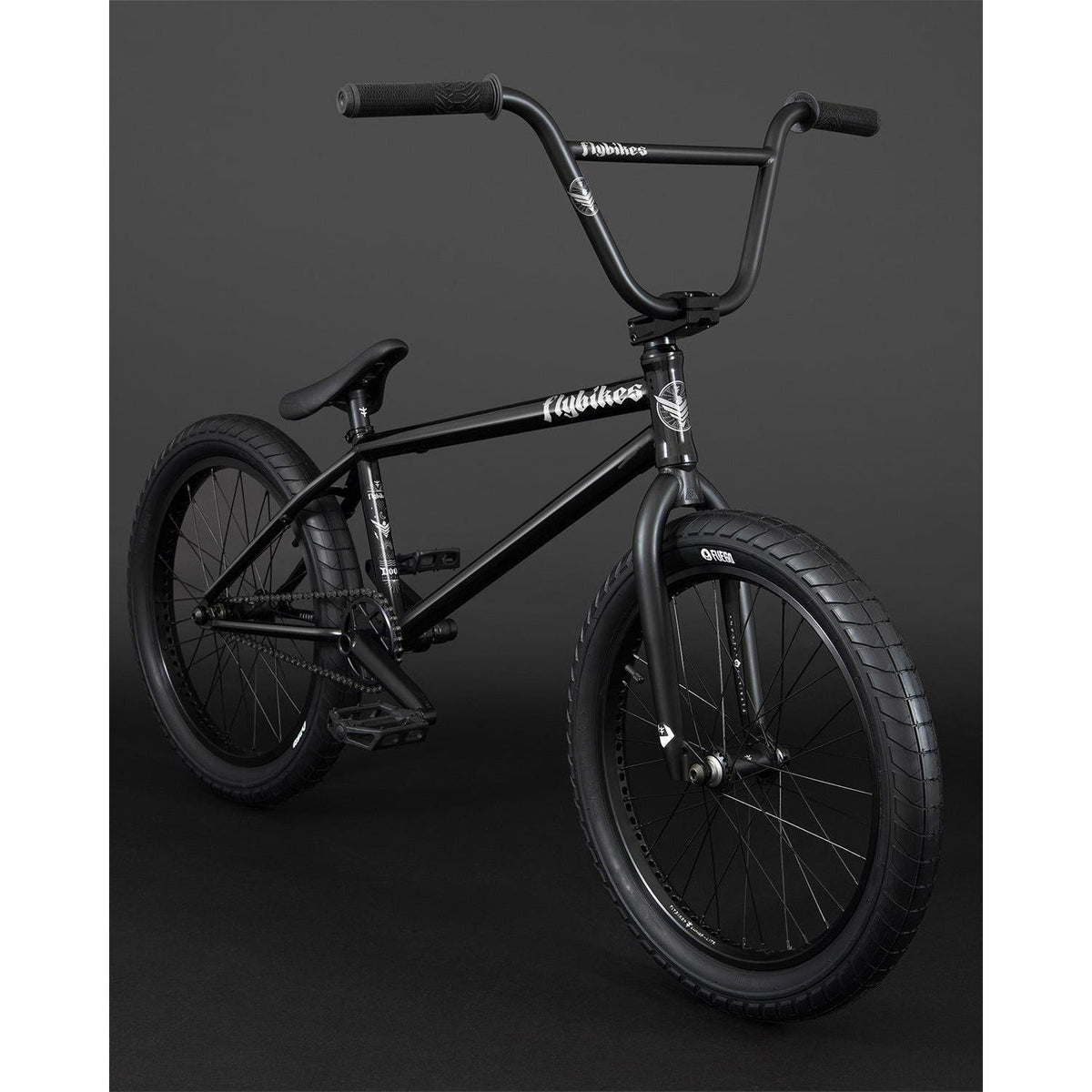

Fly Bikes Dove 20 Inch Bike (Short)

Geometry:
TOP TUBE LENGTH
20.5" / 21” / 21.5"
CHAIN STAY LENGTH
13.6" & 13.2" versions
HEAD TUBE ANGLE 13.6" Version
74.5º
HEAD TUBE ANGLE 13.2" Version
75º
STAND OVER HEIGHT 13.6" Version
8.75"
STAND OVER HEIGHT 13.2" Version
8.5"
BB HEIGHT
11.5”
SEAT TUBE ANGLE
71º
FORK OFFSET
30 mm.
BAR RISE
9"
BAR WIDTH
28”
BAR BACKSWEEP
10º
BAR UPSWEEP
2º
_
Specifications:
Frame
Dove / Full 4130 CrMo / Heat treated HS, BB / Invest Casting Heat Treated Dropouts / EBS brake system
Fork
Volcano 30 / Full 4130 CrMo / 1 Piece Steerer Tube CNC / Invest Casting Heat Treated dropouts
Bars
Dove / Full 4130 CrMo
Grips
Ruben 2 / 160 mm Long
Stem
Volcano 25 M / 50mm Reach / CNC Machined / 6061-T6 Aluminum
Headset
Volcano 15 / Sealed Bearing / CNC Machined / 6061-T6 Aluminum
Brake & Lever
None
Cranks
Dolmen 175/ 24 / 4130 CrMo / 2.5p Construction / 1p Invest Casting Arm
Bottom Bracket
Rotar Mid 24 / Sealed Bearing
Sprocket
Tractor / CNC Machined / 7075-T6 Aluminum / 28T
Pedals
Ruben Graphite / Nylon - Fiberglass Compound
Chain
Tractor / 4130 CrMo Heat Treated / Hollow Pins Chromium Treatment / 74 Links
Tires
Fuego 2.30 Front / Fly Fuego 2.30 Rear / 60 TPI / 120 PSI
Seat
Dove Seat / 100% Synthetic Leather / 7 mm Thickness
Post
Tripod / CNC Machined / 6061-T6 Aluminum / 180 mm Long
-
MAGNETO-LUNAR WHEELS OPTION
Rims
Lunar Lite Front / Double Wall / 6061-T6 Aluminum / Flash Welded
Front Hub
Magneto / Sealed Bearing / 3/8” CrMo Female Axle / 36H
Rear Hub
Magneto / Sealed Bearing / 14mm CrMo Female Axle / 36H / 9T
Weight 21" / 9" version
11.7 kg. / 25.7 lb.
