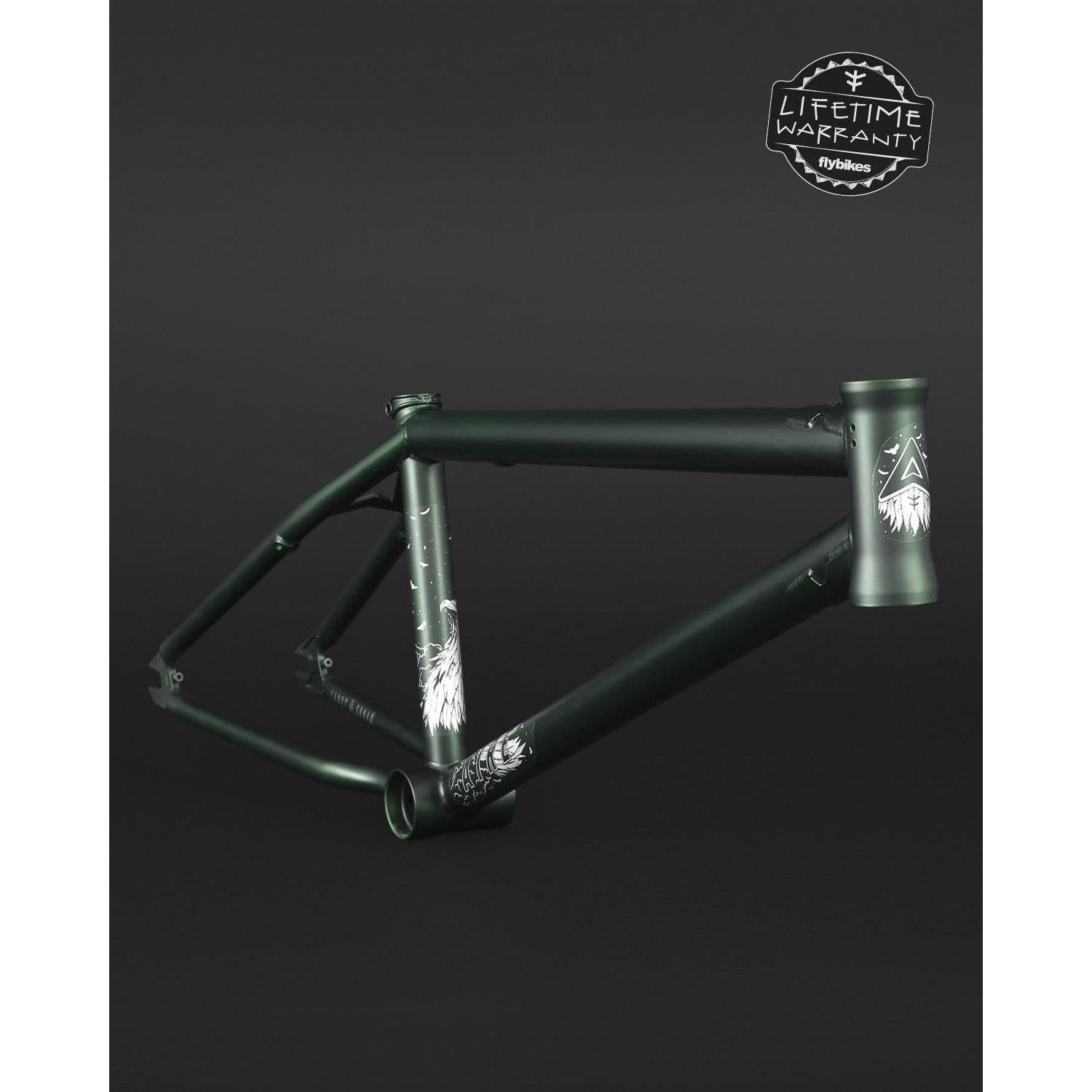

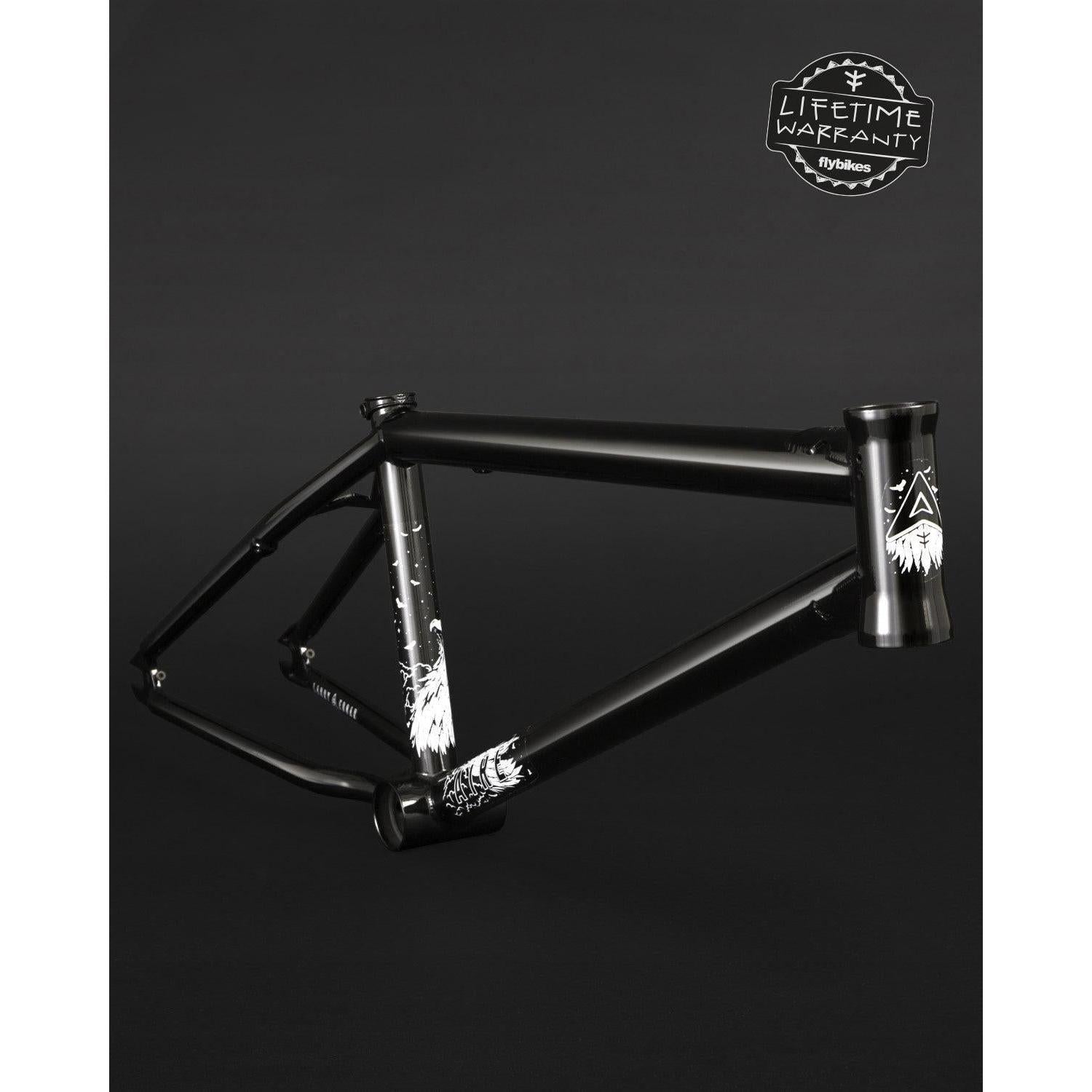

Fly Bikes Aire Frame
Description

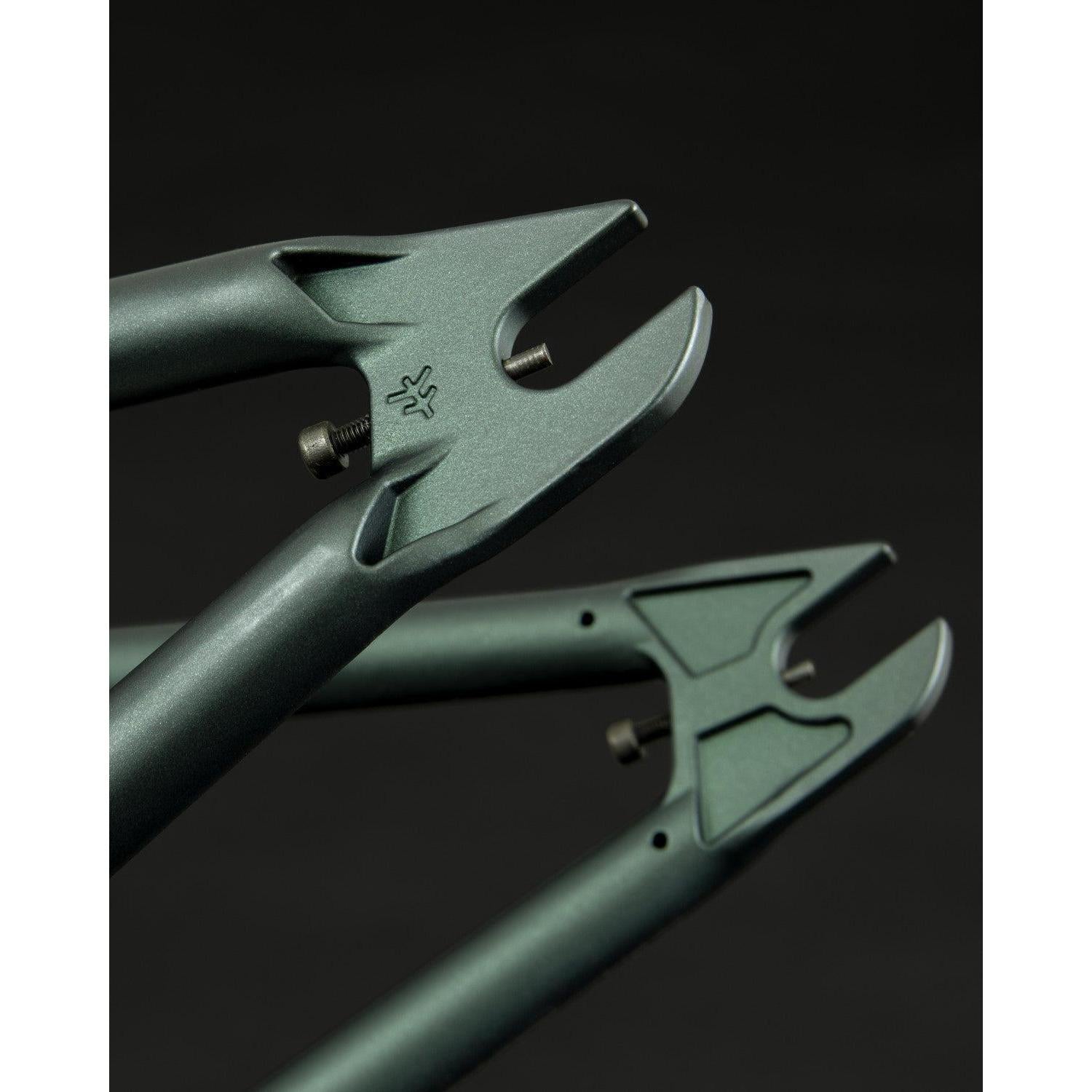

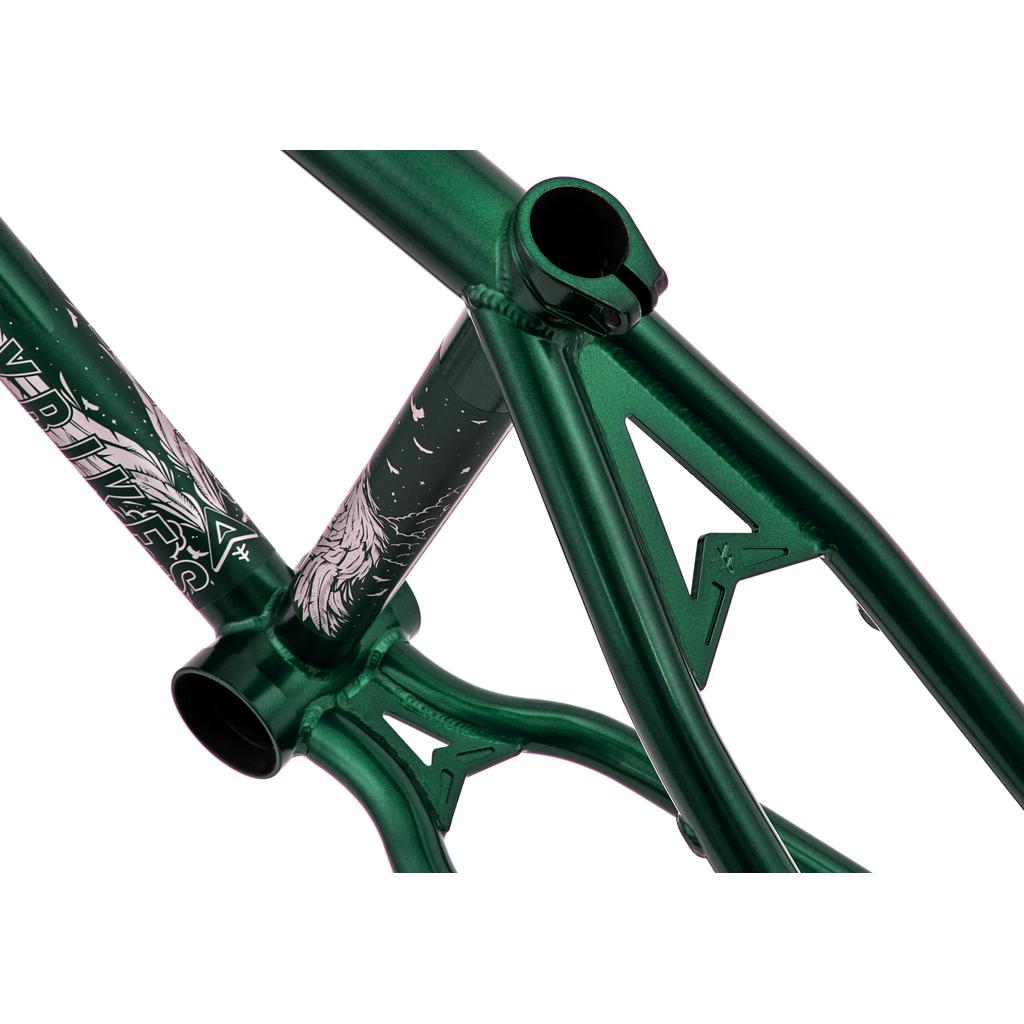

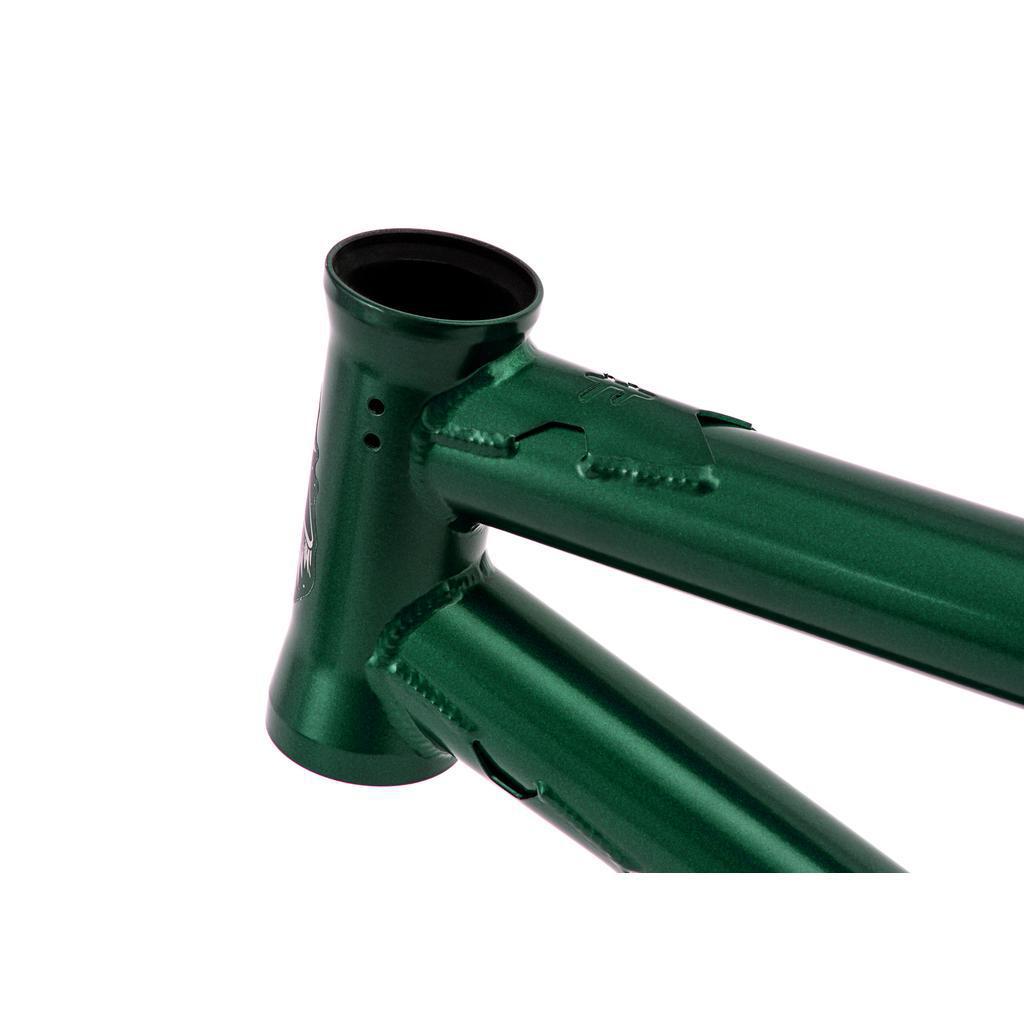

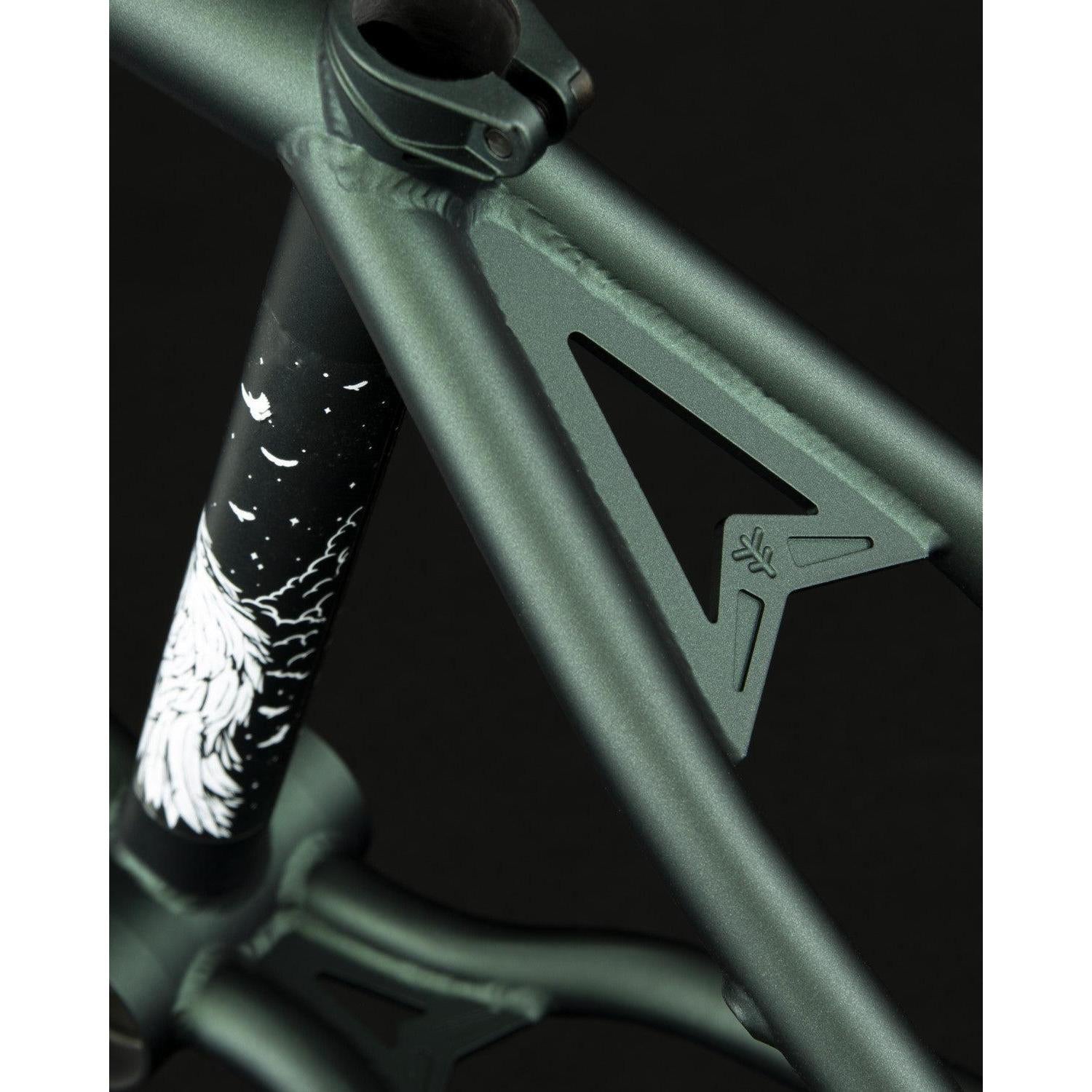

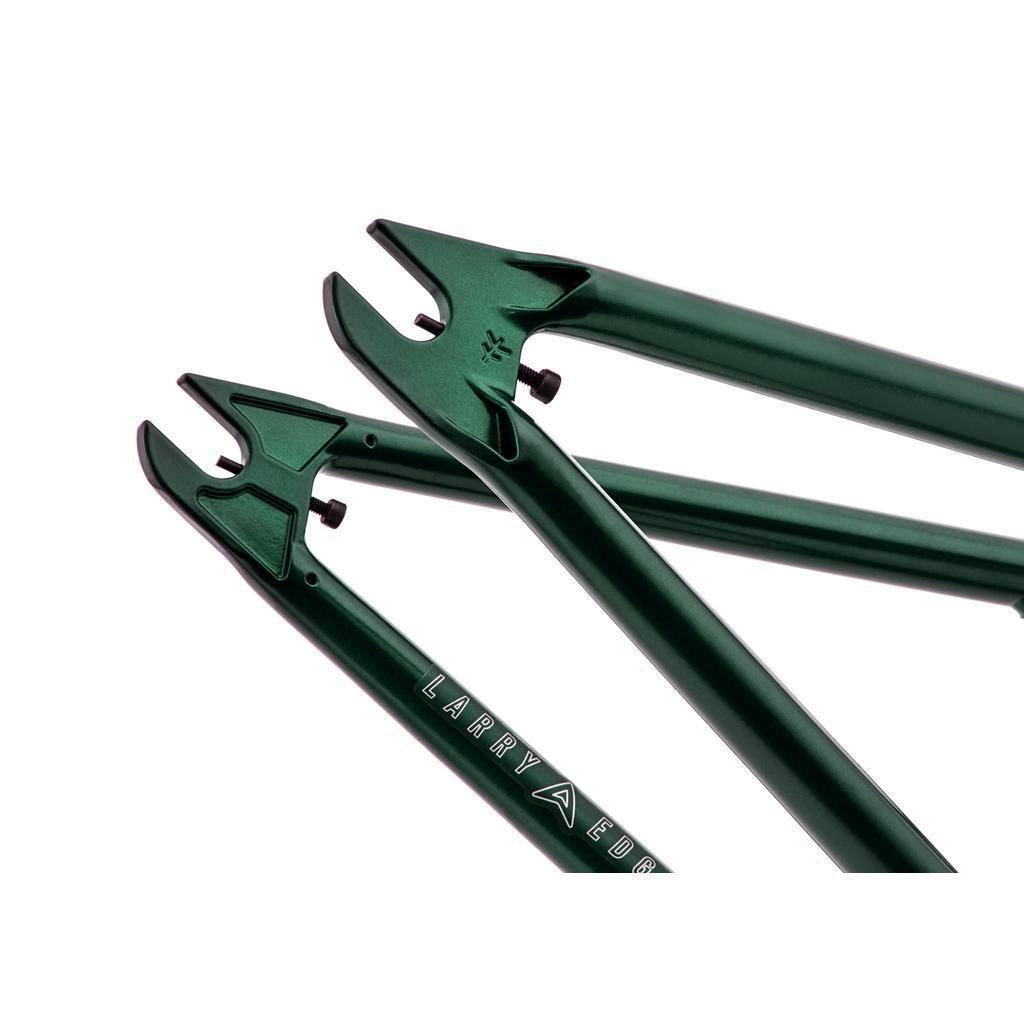

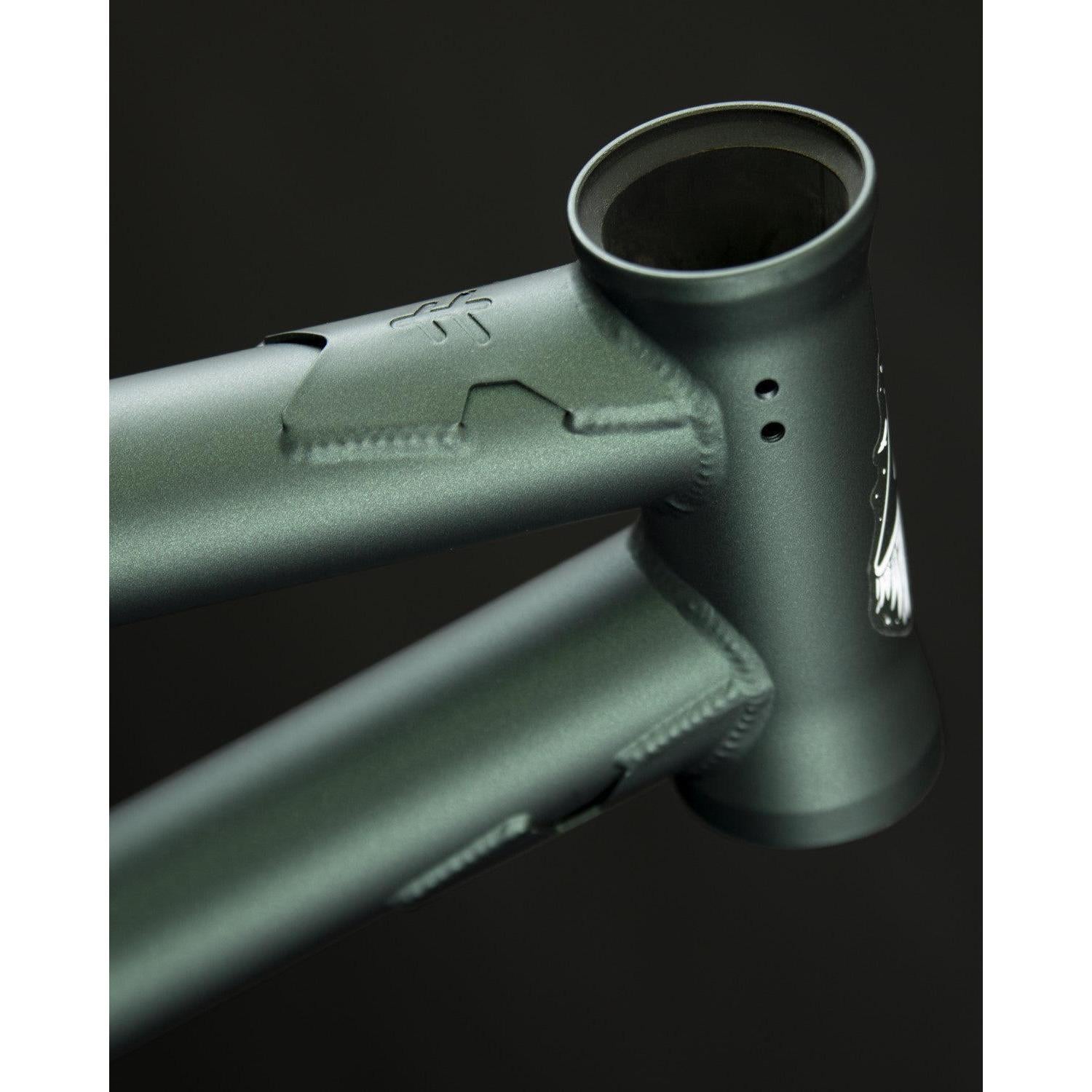

Larry Edgar’s signature Aire frame was designed to go big and fast! Made from full 4130 Cr-Mo with tubing specs designed to help reduce the overall weight without sacrificing strength, the frame features internal and external gussets, multi-butted and tapered tubing, an Investment Cast seat post clamp with the Horizontal Cut System, EBS removable brake mounts and 6mm thick Investment Cast Dropouts with integrated chain tensioners.
Available in a 20.8" size with 13" chainstays, or 21" and 21.8" sizes with a 13.8" chainstays.
• 100% Secure payment.
• Products in stock delivered in 24 hours to 7 working days.
• This product is covered with Lifetime Warranty.
• EBS Brake kit NOT included
• Replacement stickers included
Tubing Material
4130 CrMo / Japanese Sanko Triple Butted

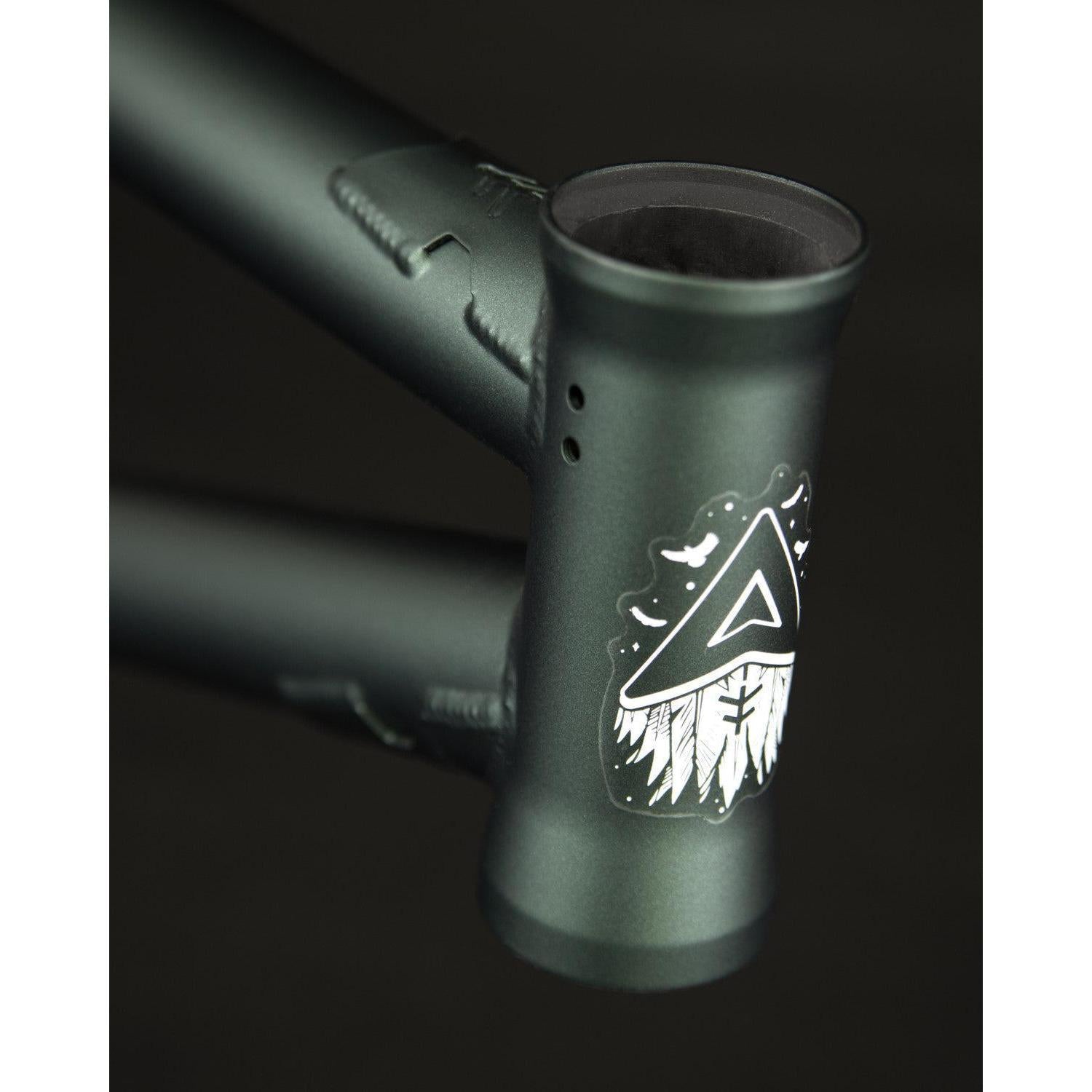

Headtube Material
CNC Machined / 4130 CrMo / Heat Treated
Bottom Bracket
CNC Machined / 4130 CrMo / Heat Treated / Mid BB
Seat Clamp Material
Invest Casting / 4130 CrMo / Heat Treated
Dropouts Material
Invest Casting / 4130 CrMo / Heat Treated
Stays Bridges Material
Laser Cut / 4130 CrMo / Heat Treated
Gussets Material
Laser Cut / 4130 CrMo / Heat Treated
Head Tube
74.5º
Seat Tube
71º
Rear End 21" / 21.8" TT
13.8" Slammed
Rear End 20.8" TT
13" Slammed
Standover
9.25"
Bottom Bracket Height
11.50"
Top Tube
20.8" / 21" / 21.8"
Head Tube Height
113 mm / 4.45"
Brake System
EBS / Seatstays
Bottom Bracket System
MID
Weight 21" TT
2.480 grs. / 5.47 lb
