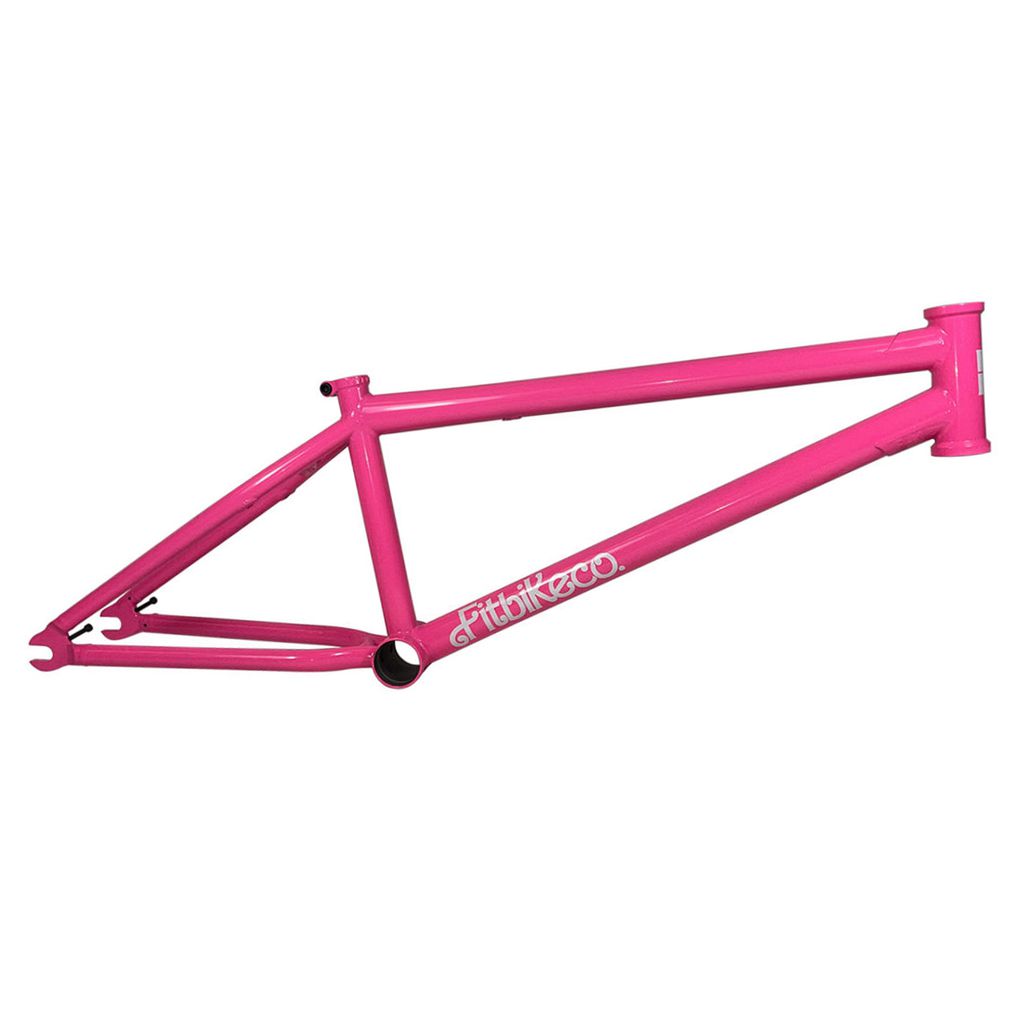

Fit Bike Co Shortcut V2 Frame

The Barbie Pink Shortcut V.2 colourway, inspired by Fit Team rider Rena Shirai, was designed with progression in mind!

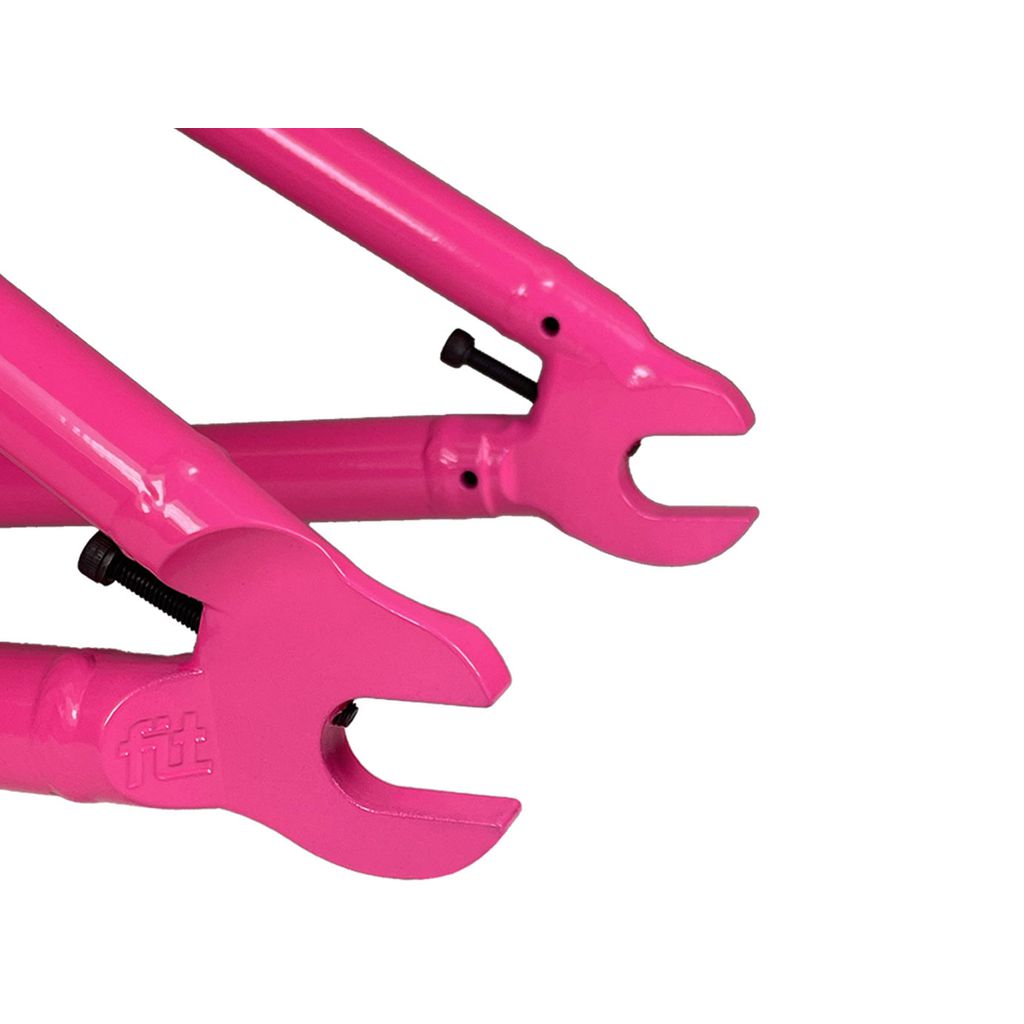

The Shortcut V2 frame features the shortest chainstay in BMX, measuring just 12.4″. With an investment-cast chainstay yoke, Fit was able to shorten the rear end while maintaining maximum tyre clearance. While the Shortcut is one of the most responsive frames on the market, it is also one of the most reliable. The investment-cast dropouts with integrated chain tensioners are built to withstand heavy peg use without weld failures or wheel movement. The Shortcut V2 now comes with shorter top tube lengths and a lower standover height. This makes it perfect for tech riders, those learning new tricks, or riders seeking a slightly smaller, nimbler frame.

Specifications:
Top Tube Length: 19.5″, 20″, 20.25″
Rear End Length: 12.4″
Head Tube Angle: 75.5°
Head Tube Style: Integrated (45°/45°, 41.8mm)
Seat Tube Angle: 71°
Seat Clamp: Integrated
Seat Post Size: 25.4mm
BB Height: 11.7″
BB Style: Mid
Standover Height: 9″
Brake Mounts: Thread-On
Dropouts: 14mm, 4Q-Baked
Gyro Tabs: None
Weight: 4.72 lb (2.14 kg)
