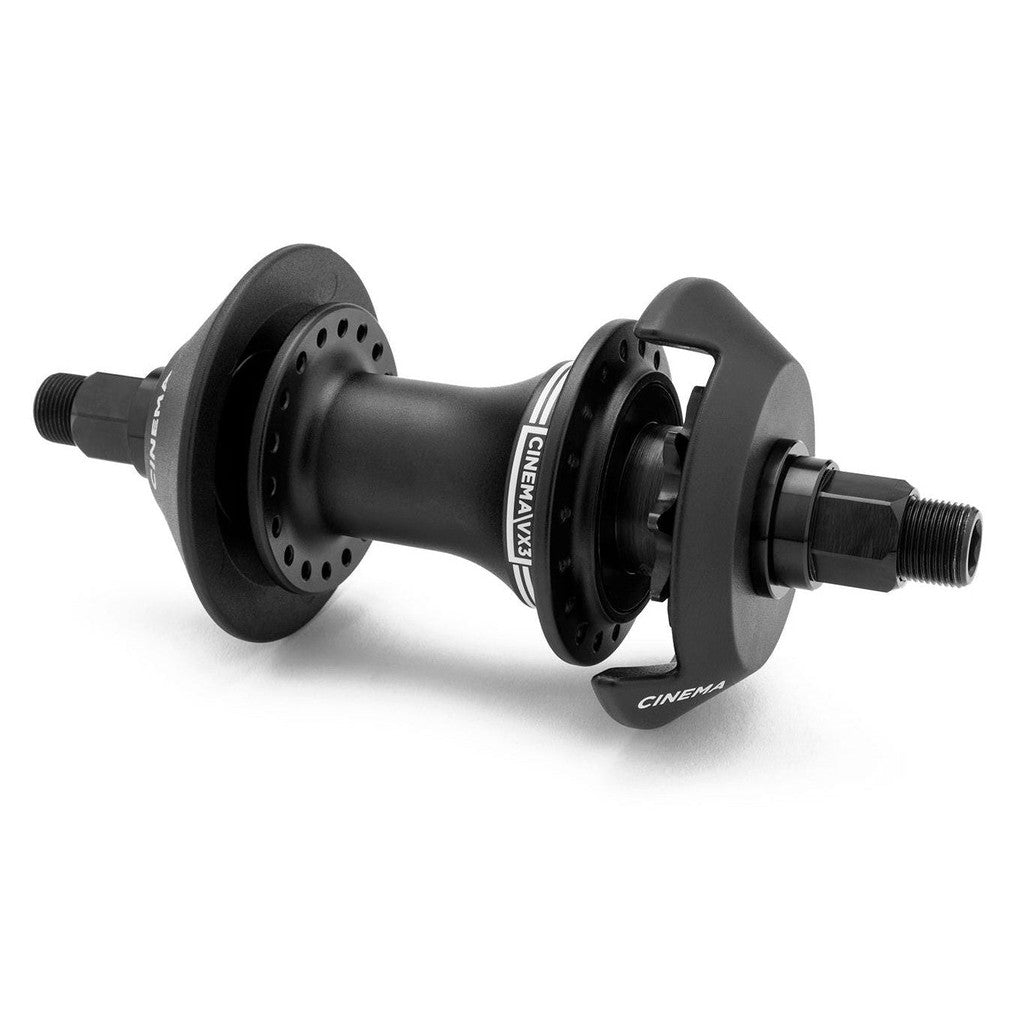

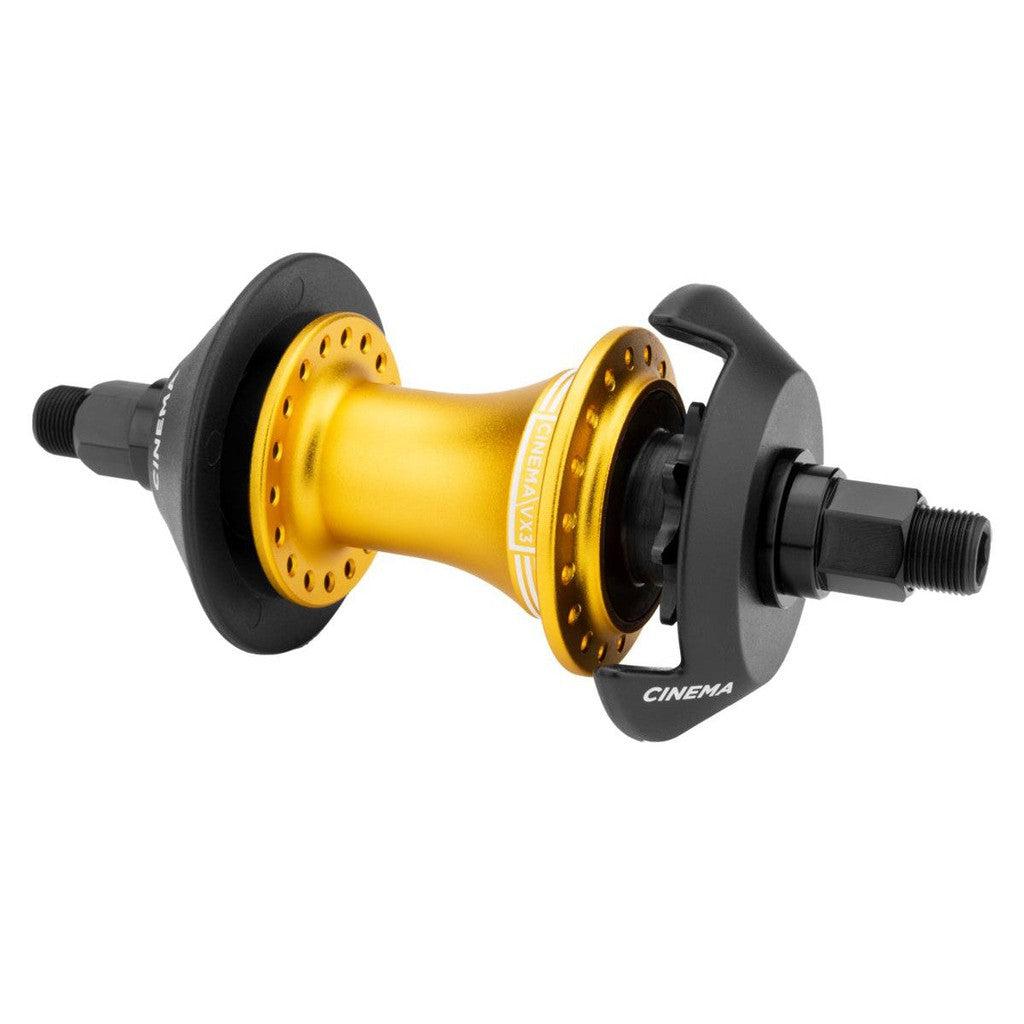

Dialled is an understatement- the Cinema VX3 Cassette Hub packs in all the features and durability you want and need in a hub. The design has been updated to a more resilient floating axle system, with the tried and true 14mm heat-treated chromoly male axle. The SDS driver system also allows you to easily switch between left or right-side drive without any additional parts. Ceramic bushings found inside the 9t driver unit eliminate any blown-out bearings, and spin directly on the axle creating room for increased axle thickness. Finally, the included nylon CR and DR hub guards keep your hub protected from grinds straight out of the box.
Dimensions:
- Axle width (Locknut to Locknut) - 110
- Drive side flange diameter - 51mm
- Non-Drive side flange diameter - 44mm
- Drive side flange to locknut - 28mm
- Non-Drive side flange to locknut - 26mm
Axle: 14mm Heat-Treated Chromoly
Axle Nuts: 17mm 7075-T6 Aluminum
Shell: 6061-T6 Aluminum 36-hole
Hub Bearings: 2 x 6902
Driver Bearings: Ceramic Bushing
Driver: 9-Tooth
Drive Side: RHD / LHD Switchable (SDS)
Cones: Threaded Drive Side / Press-On Non-Drive Side
Guards: Includes DR Rear Hub Guard and CR Rear Hub Guard
Weight: 556g (w/ Guards Installed)
