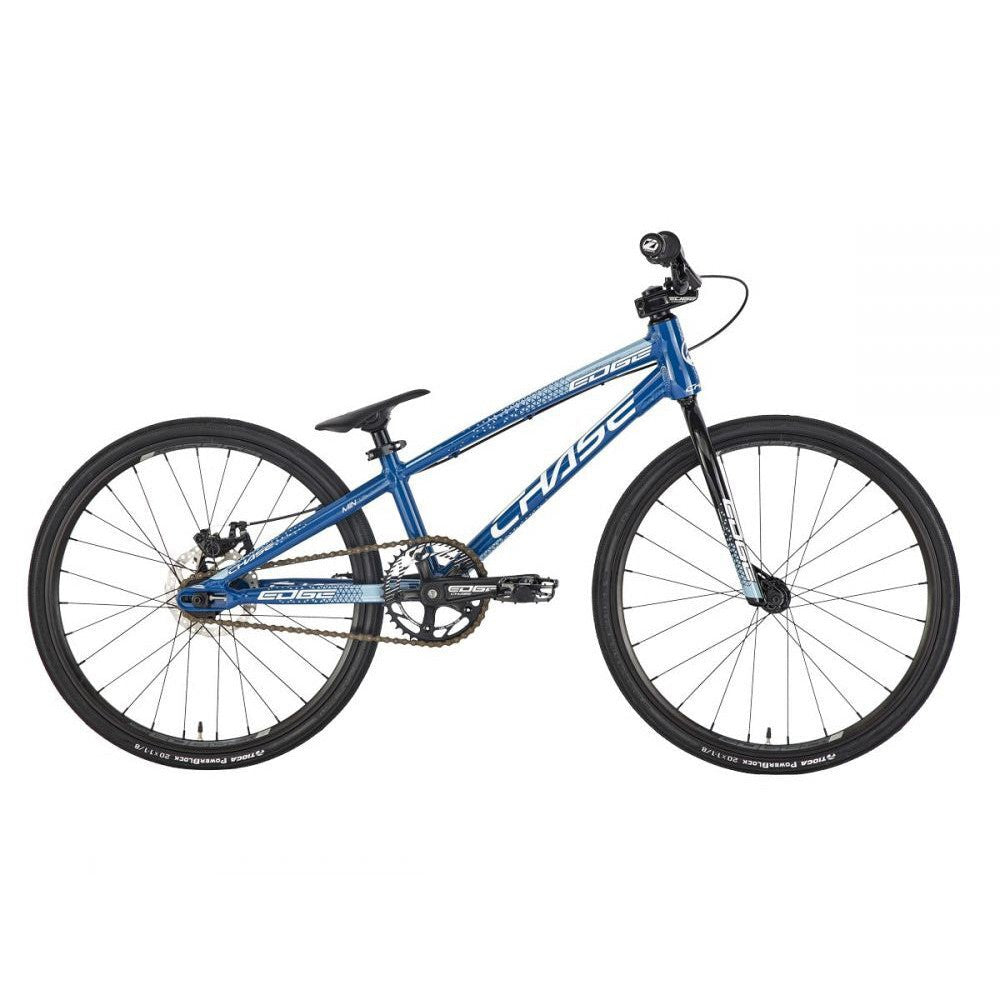

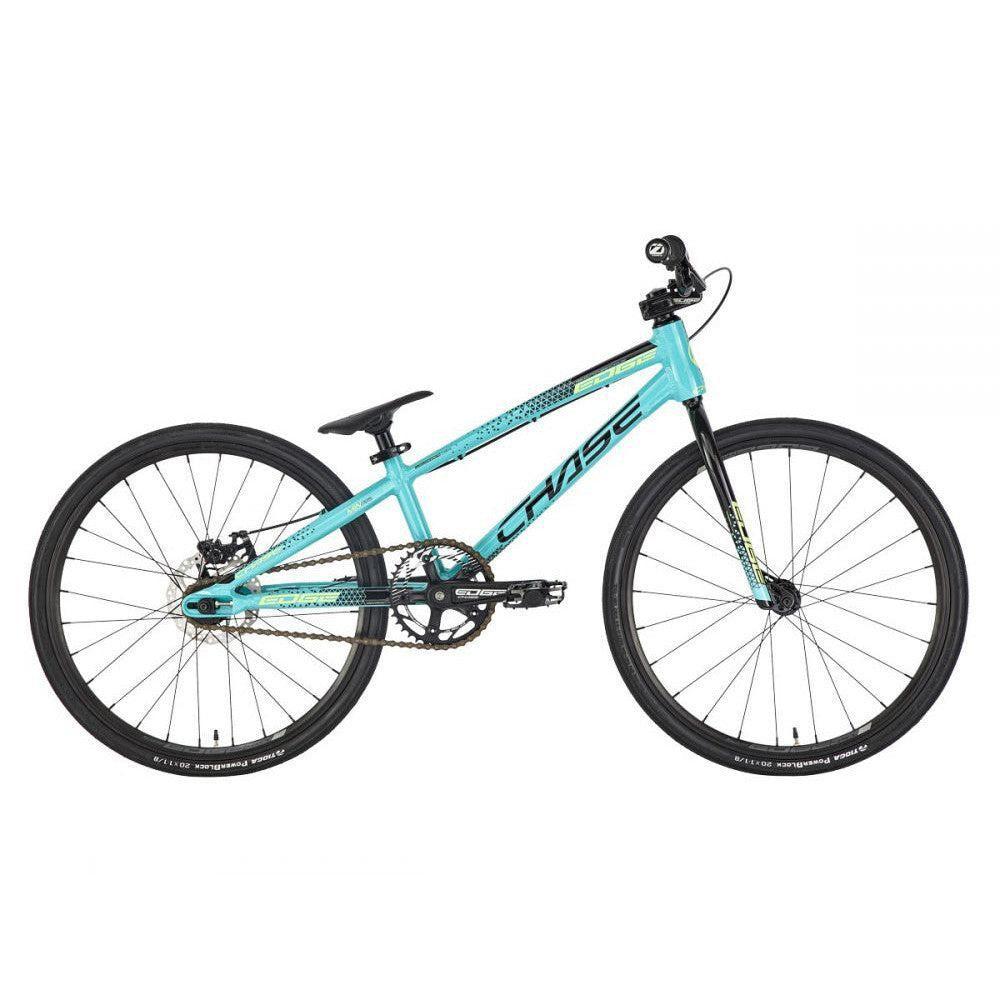

Chase Bicycles have again knocked it right out of the park with their 2023 Edge range. Starting here with their first 20 inch bike, the Chase Edge Mini, this bike packs a punch coming spec'd straight from the factory with a disc brake! With what we predict will become the norm for braking, your young racer will start out on the very best in performance with the frame on the brand's Edge Mini manufactured with the same hydroformed and triple butted tubing as the bigger bikes in the range and includes features like enclosed dropouts. The part's list mirrors quality like that of its bigger brothers as well, with Chase Edge CroMo forks, Tioga PowerBlock 20 x 1-1/8th tyres and Insight chainring, grips and pivotal mini seat.
With dedicated race geometry and lightweight design, the Chase Mini race bike is just the ticket for the racer entering the Sprocket racing ranks and is biting at the bit to send it down the big hill like the big kids. Get ready to be tagging #winwithchase regularly as your racer enters the winning arena.
All in all, this is one of the coolest, highest spec'd Mini race bikes currently available on the market and will set up your young rider for a life of BMX racing on of the most developed complete Mini race bikes to date. If 2022 is anything to go by, these will sell out fast.
Key Specs:
TT Length: 17.25""
Gearing: 38 x 16
Gear Ratio: 48.44""
Crank Length: 140mm
Weight: 7.95kg (without pedals)
| Size | 17.25TT |
| Frame | Chase Edge Mini, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system |
| Fork | Chase Edge Mini, Full Cr-mo, 1″ Steer Tube with Tapered Blades |
| Headset | Integrated Sealed Bearing |
| Stem | Chase Edge 40mm |
| Handlebar | Chase Edge 22.2mm, 2.25″ Rise, 22.5″ Wide, 8° Back Sweep, 2° Up Sweep |
| Grips | Insight C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug |
| Brake Lever | Linear-pull lever |
| Rear Brake | Mechanical disc caliper |
| Disc Rotor | 140mm disc rotor |
| Crank | Chase Edge 3 Piece Crank 140mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
| Chainring | Insight 38T 5 Bolts BCD 110mm |
| Bottom Bracket | Euro sealed BB |
| Pedals | Alloy sealed |
| Front Hub | Chase Edge Mini, 3/8″ Axle, Sealed Bearings |
| Rear Hub | Chase Edge Mini, 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets) |
| Rear Cog | 16T |
| Front / Rear Rim | Chase Edge 118 Double Wall 20″x1-1/8″, 24H Front and 28H Rear |
| Tyres | Tioga PowerBlock 20″x1-1/8″ Front and Rear |
| Seat / Post | Insight Mini Pivotal |
| Seat Clamp | Chase Edge QR Alloy 28.6mm |
| Gearing / Ratio | 38x16 / 48.44"" |
| Weight | 7.59kg (without pedals) |
