Description

The big big is back baby! This shred ready frame from BSD has loads of sick features, street leaning geo, comes in some big top tube lengths and has sick graphics. Hell yeah Reed. Hell yeah BSD. Hell yeah BMX.

Features
  • Back to a 13" rear end. For this version Reed Stark went back to the original 13" to 13.5" chainstay for added stability.
  • Big top tube lengths. 20.6", 21.4" and 21.8" on offer, with street leaning geometry at 75° head and 71° seat.
  • Removable brake mounts. New on this version, so you can run a rear brake or strip the mounts off for a clean back end.

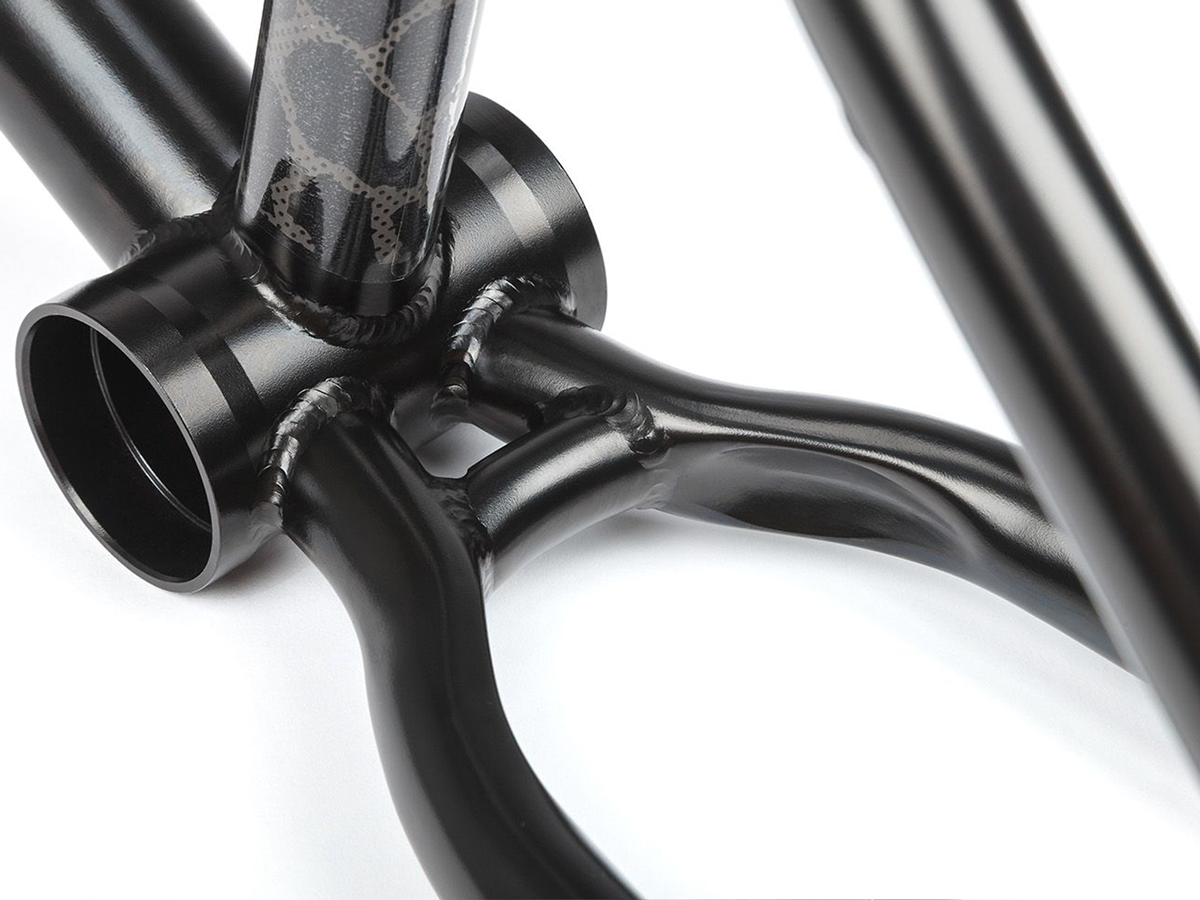

  • SuperScoop chainstays. SuperScoop chainstays and an investment cast seatstay bridge shape the back end, with external gussets adding material at the front.
  • 7mm invest cast dropouts. Thick cast dropouts with built-in chain tensioners hold your axle position through hard riding.

Specifications
  • Top tube: 20.6", 21.4", 21.8"
  • Chainstay: 13" to 13.5"
  • Head tube angle: 75°
  • Seat tube angle: 71°
  • Standover: 9.5"
  • Bottom bracket height: 11.75"
  • Dropouts: 7mm thick investment cast, built-in chain tensioners
  • Brake mounts: Removable
  • Weight: 2.3 kg
  • Note: SuperScoop chainstays, external gussets, investment cast seatstay bridge. Reed Stark signature model.

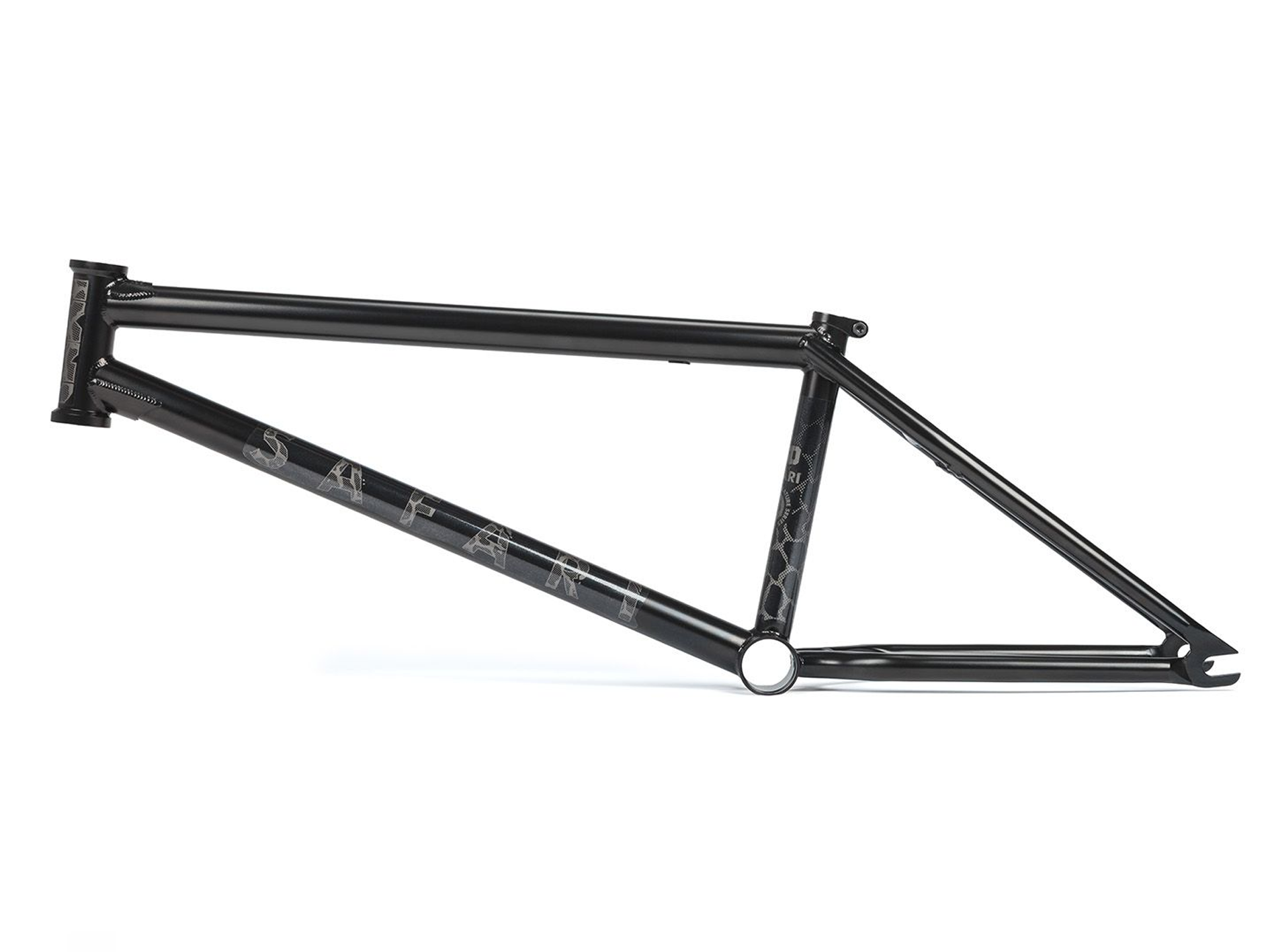

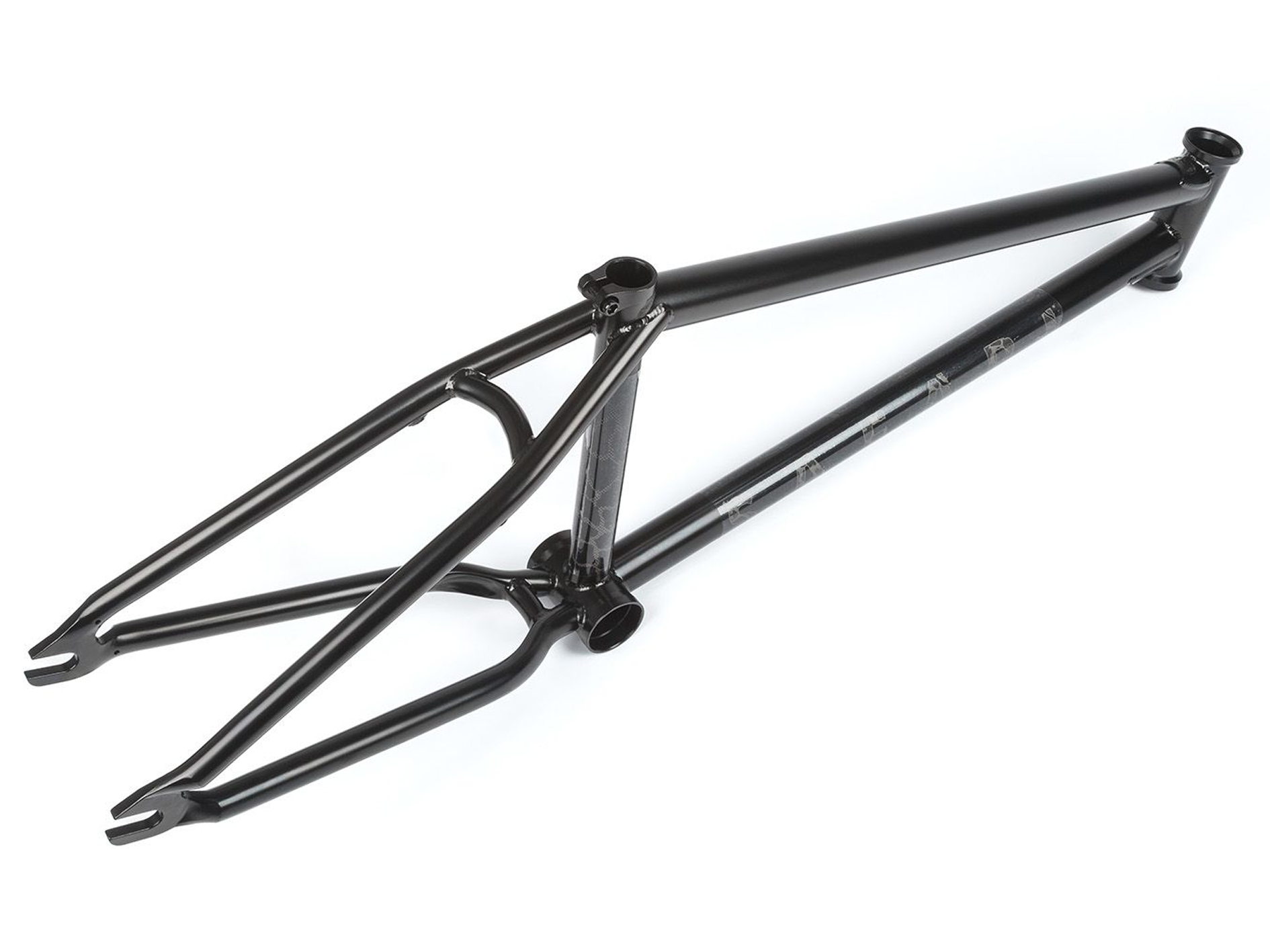

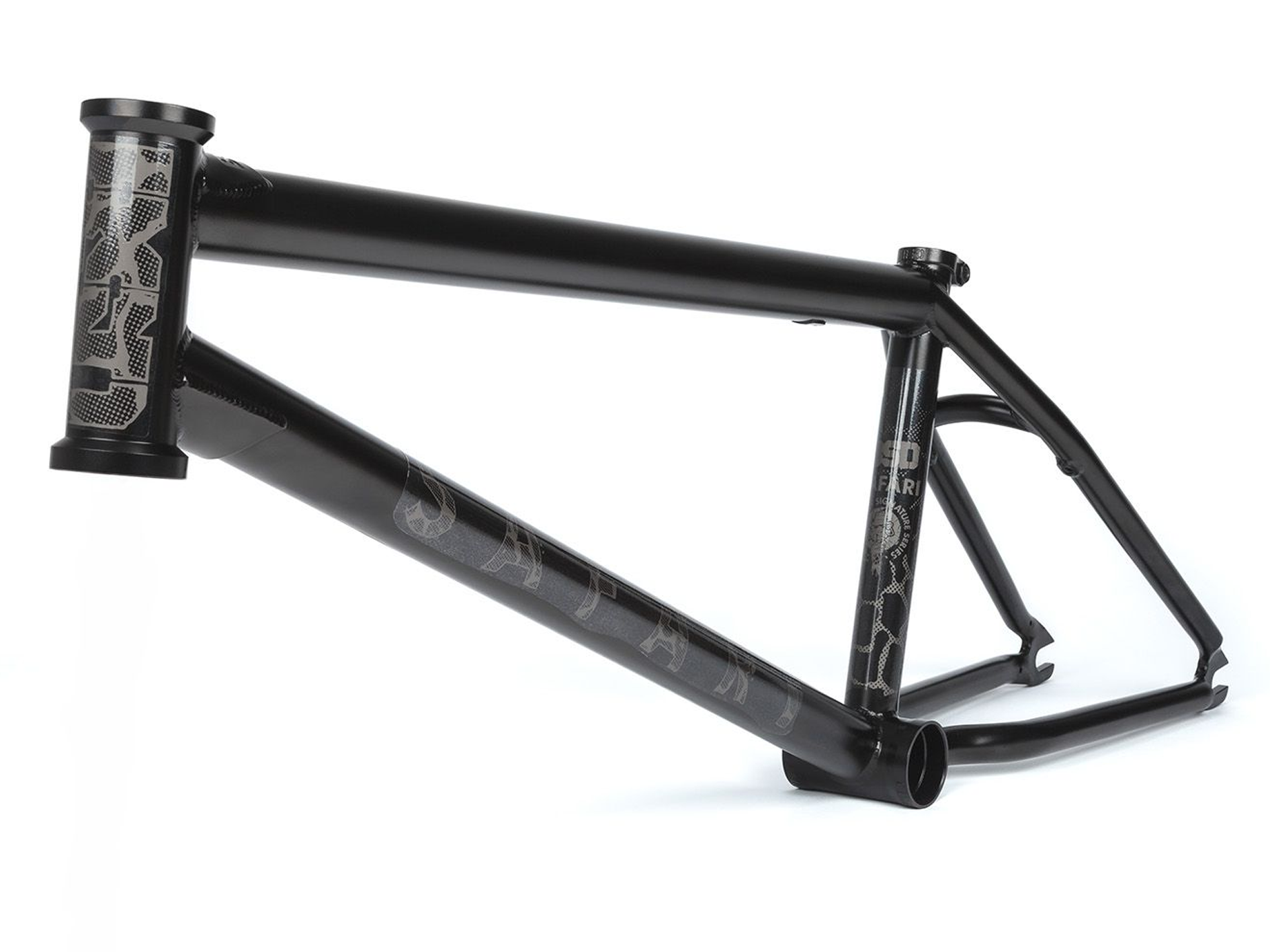

BSD Safari V4 (Reed Stark) 20 Inch Frame

Brand: BSD BMX SKU:

From

$749.99 AUD

 $750.99 AUD

Or 4 payments of $187.49 AUD with

Colour - Flat Black

Top Tube Length - 20.6

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
