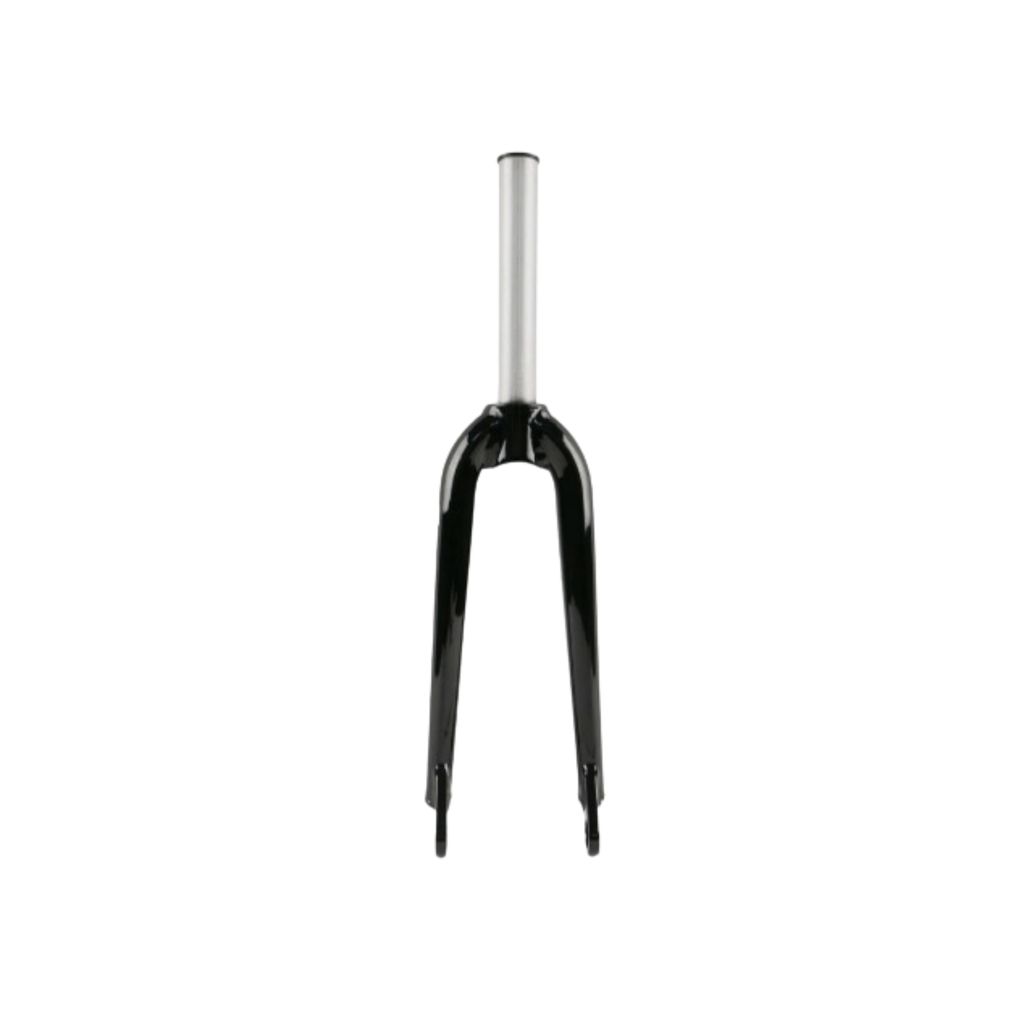

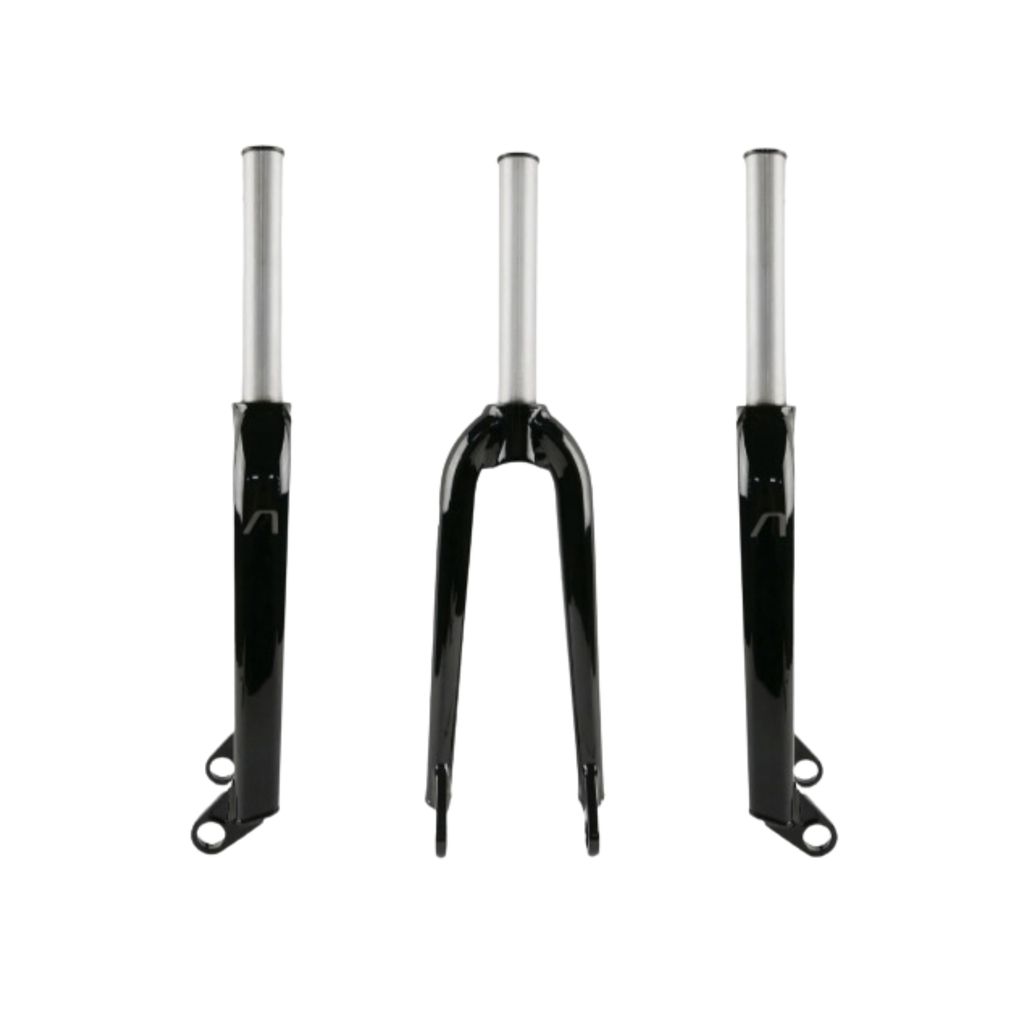

A super slim and lightweight Expert-sized fork made with a full 6061-T6 alloy steerer tube with hydroformed legs and CNC detailed dropouts. Utilising Arises own fork leg shape for the perfect balance between aesthetics and performance. Incredibly stiff and lightweight when compared to a carbon fibre fork. Laboratory-tested and race-proven. For a straight 1 1/8” steerer tube and 10mm/3/8” front hubs.
Material: 6061-T6 alloy steerer tube, fork legs and dropouts
Colour: Black
Machining: Fully CNC machined alloy steerer tube, hydroformed alloy legs and CNC dropouts
Steerer Tube: 1 1/8” straight steerer, 175mm long
Dropouts: 20mm thru axle (includes adaptors for 3/8"/10mm female bolt hubs)
Offset: 32mm
Axle to crown: 310mm
Max Tire Size: 50mm (inc minimum 3mm clearance)
Top Bolt: Includes M18 thread Quartz Fork Compression Bolt
Weight: 716g (25.2oz / 1.57lbs)
Features:
• super lightweight fork for Expert riders
• 100% 6061-T6 alloy steerer, legs and dropouts
• super stiff and durable fork with oversized welds for increased durability
• 20mm thru-axle dropouts with 3/8” adaptors
• to fit 30mm crown races
WEIGHT LIMIT 115KG
Arise Quartz Expert Forks
Or 4 payments of $137.49 AUD with
Select Option
View All
Arise Quartz Expert Forks / Black / 32mm
Sale price$549.99 AUD
