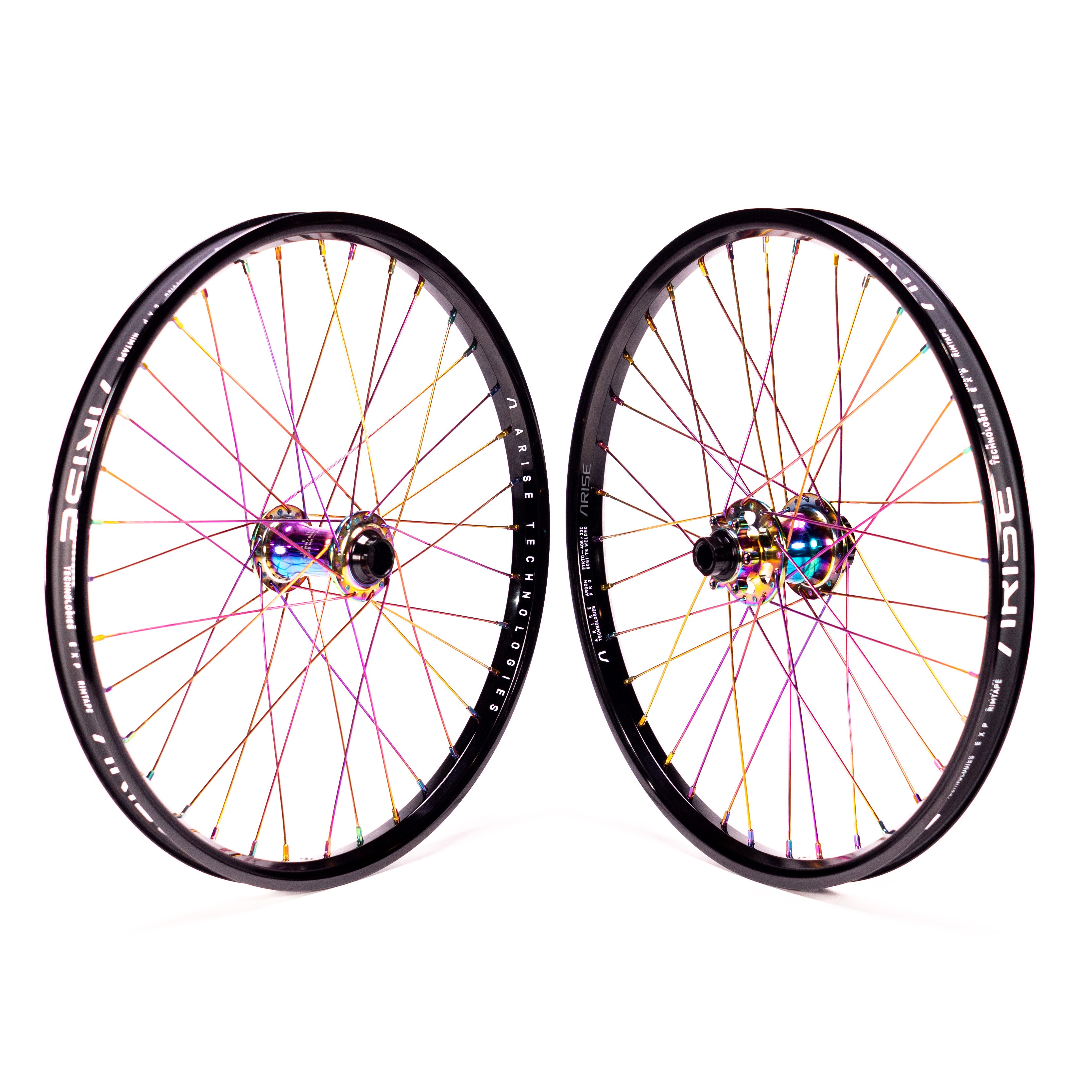

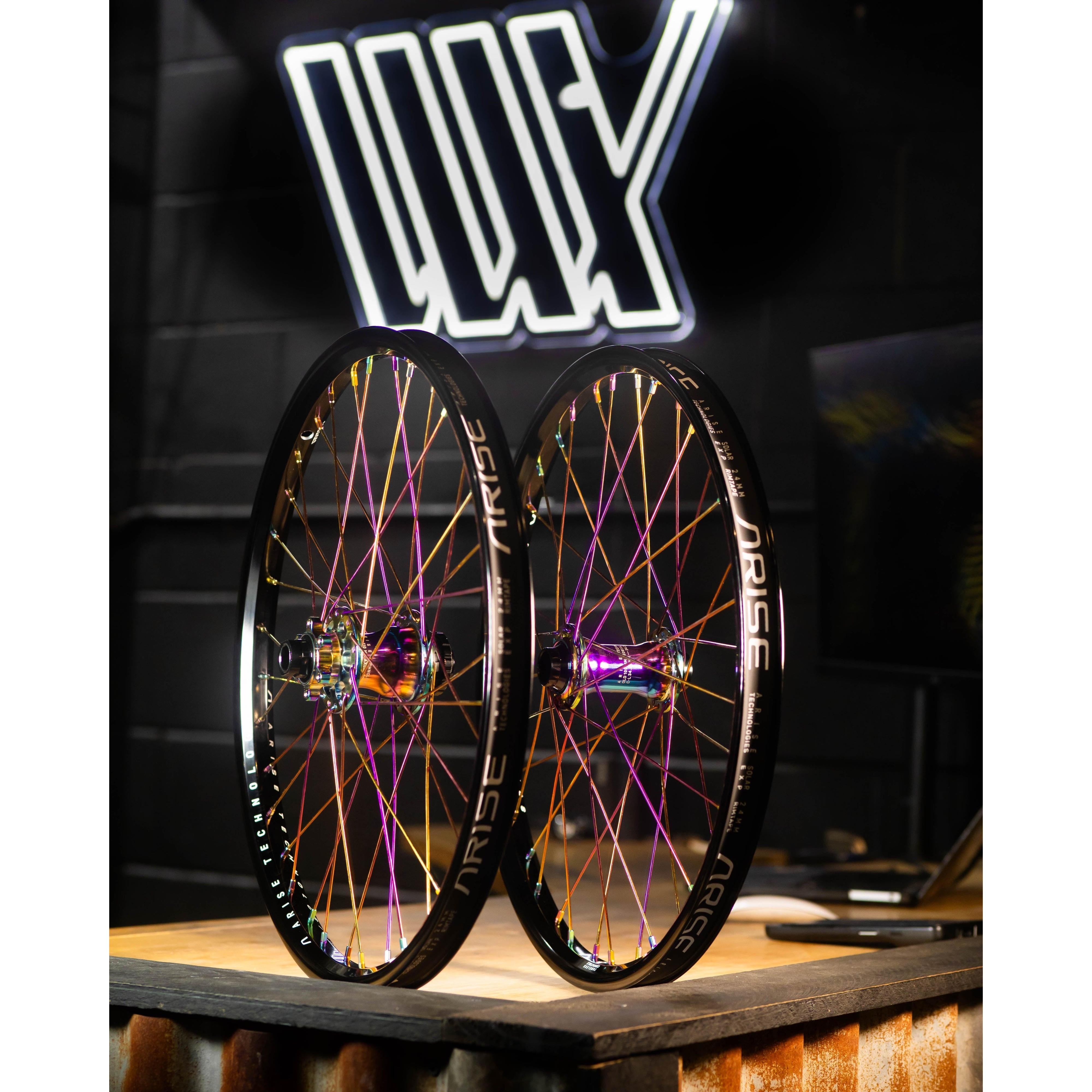

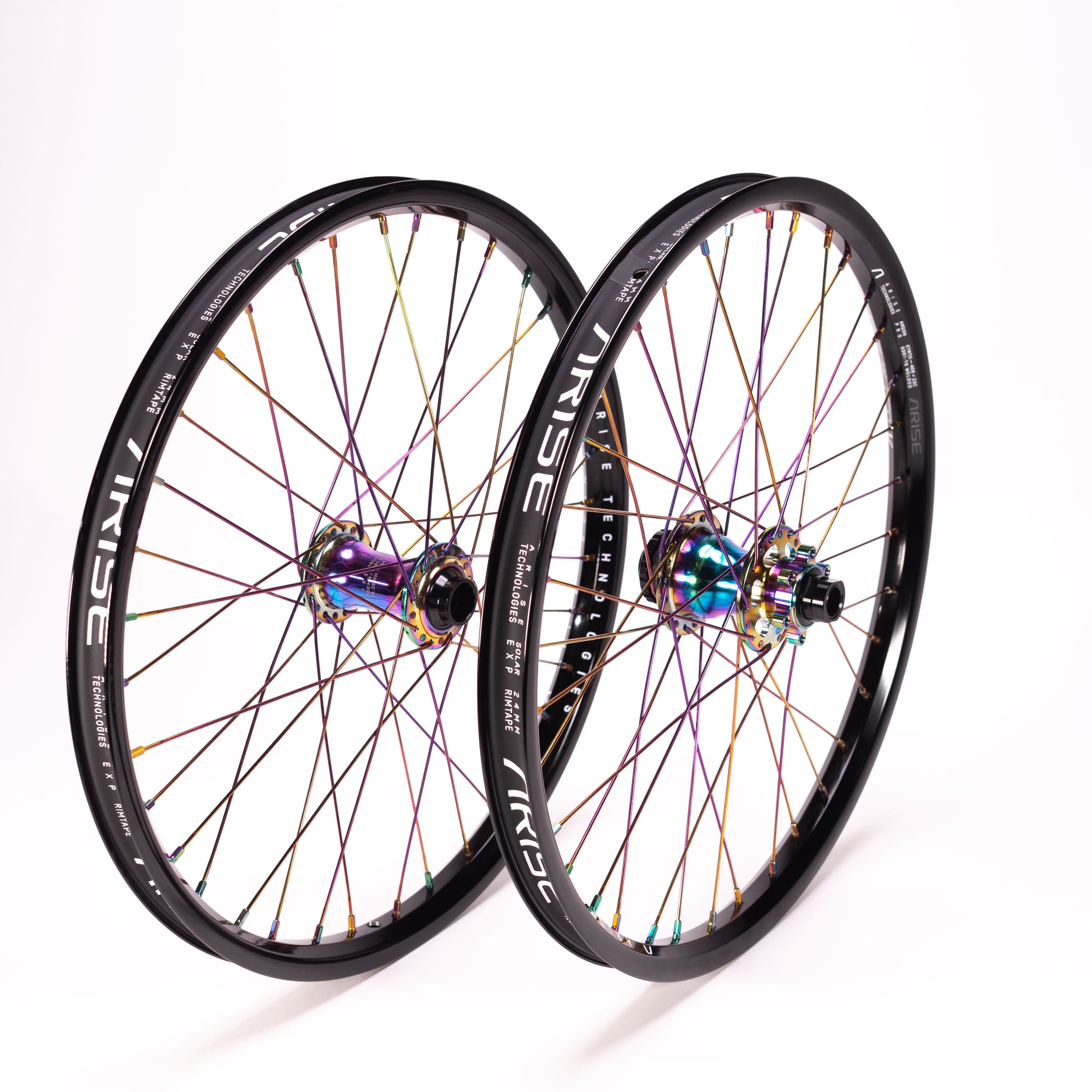

The Arise Echo 20 inch wheelset is built around the incredibly lightweight, efficient and powerful Arise Echo hub. Featuring a high engagement drive ring system and oversized bearings for smooth rolling, fast acceleration.
The Arise Argon PRO rims are flash-welded and tubeless-ready, providing maximum strength and reduced weight.
Laced up with Spectre Double Butted Swiss grade stainless steel spokes and T6-7075 aluminium nipples, this wheelset is a future classic for riders seeking high performance.
Weighing in at 1440g for the set, its hard to believe there is no carbon fibre or titanium in sight.

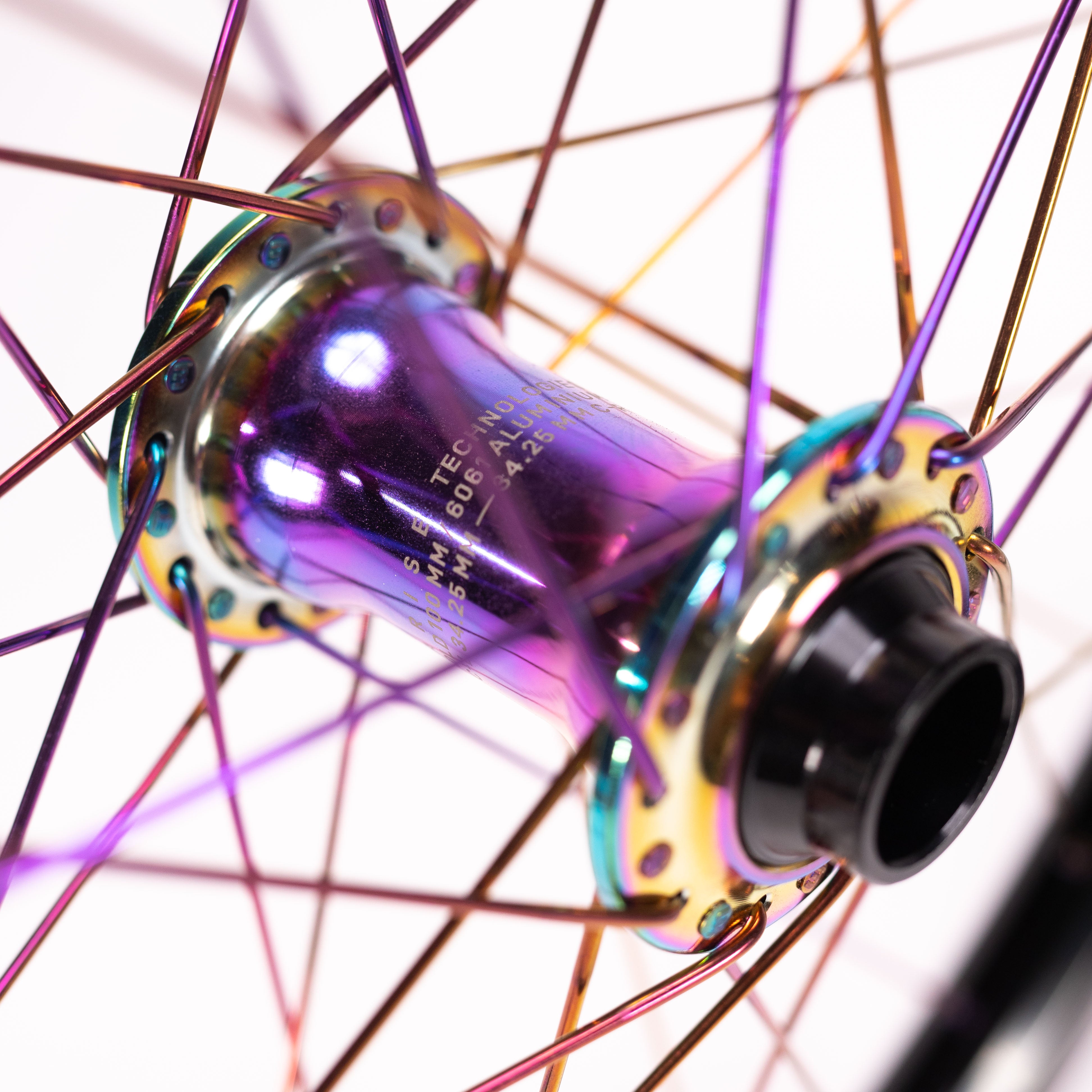

Front Hub Spec:
Material: 6061-T6 alloy refined hub shell
Axle Type: fits 20mm thru-axle or 10mm female axle (available separately)
Hub Spacing: 100mm
Spoke Holes: 36h
Bearings: 2x 6804-2RS bearings (20 x 32 x 7 mm)

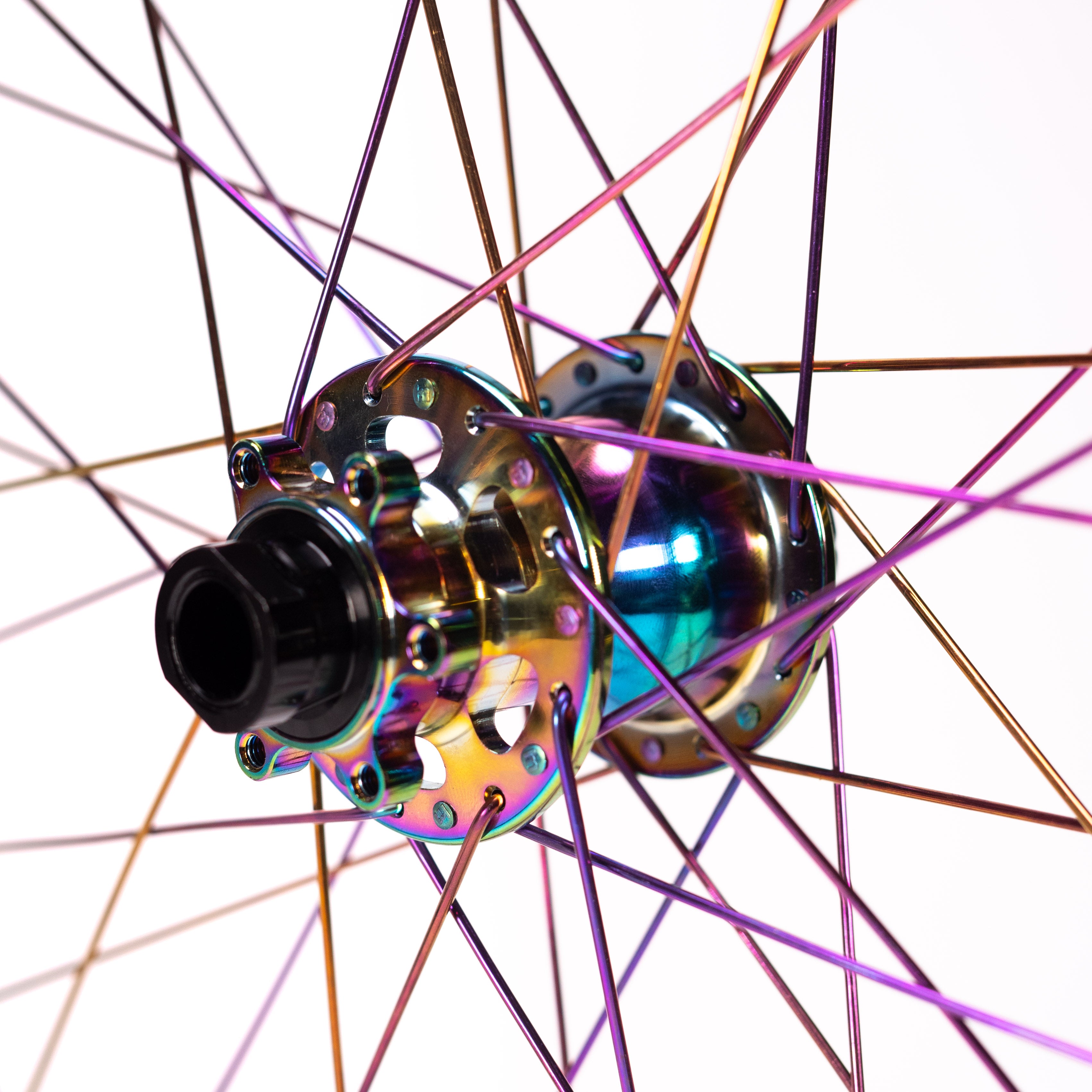

Rear Hub Spec:
Material: 6061-T6 alloy refined hub shell
Driver: Shimano Mini HG, 5mm range - lockring included (cog not included)
Axle Type: 15mm thru-axle or 10mm female axle available separately
Hub Spacing: 110mm
Spoke Holes: 36h
Disc Mounting: 6-bolt ISO
Bearings: 3x 18307-2RS bearings (18 x 30 x 7 mm), 1 x ACB41H6.5 (30.15 x 41 x 6.5 mm)
Rim Spec:
Material: 6061-T6 alloy
Construction: flash welded join, tubeless ready
Tyre Size: 20''x 1.6''- 1.95'' (406)
Etrto: 406mm
Width Outer: 28mm
Valve: Schrader
Spoke Spec:
Material: Spectre Swiss grade stainless steel.
Construction: Double Butted 14/15g
Nipple Spec:
Material: Spectre T6-7075 aluminium
Construction: 14g
Weight: 1440g
